HT high purity 99.99% Molybdenum bar electrode with factory price

Product Overview

Description

1. Grade: Mo1 MH1 MoY MSKA
2. Appearance: Black or alkali washing.
3. Application:Suitable for making filament,supporting wire and lead-out,etc. , in electronic and lighting industry, also widely used in EDM processing, used as heating elements, spraying molybdenum wires, etc.



Production process:

Materials---Hot rolling---annealing---cold rolling---leveling---annealing---Cut ---molybdenum sheet

Production equipments:

Hot mill,four-high cold mill, vacuum annealing furnace , W43G series straightener , hydraulic plate shears ,

water jet, wire cutting machine, flat-stone mill



Feature:

1. With high temperature resistance, low pollution

2. High purity, good plasticity

3. TZM has a higher recrystallization temperature, higher creep strength and higher tensile strength than pure molybdenum



Chemical component

Grade	% impurity content % max
	Fe	Ni	Al	Ca	Si	Mg	C	N	O
Mo-1	0.010	0.005	0.002	0.002	0.01	0.002	0.01	0.003	0.008

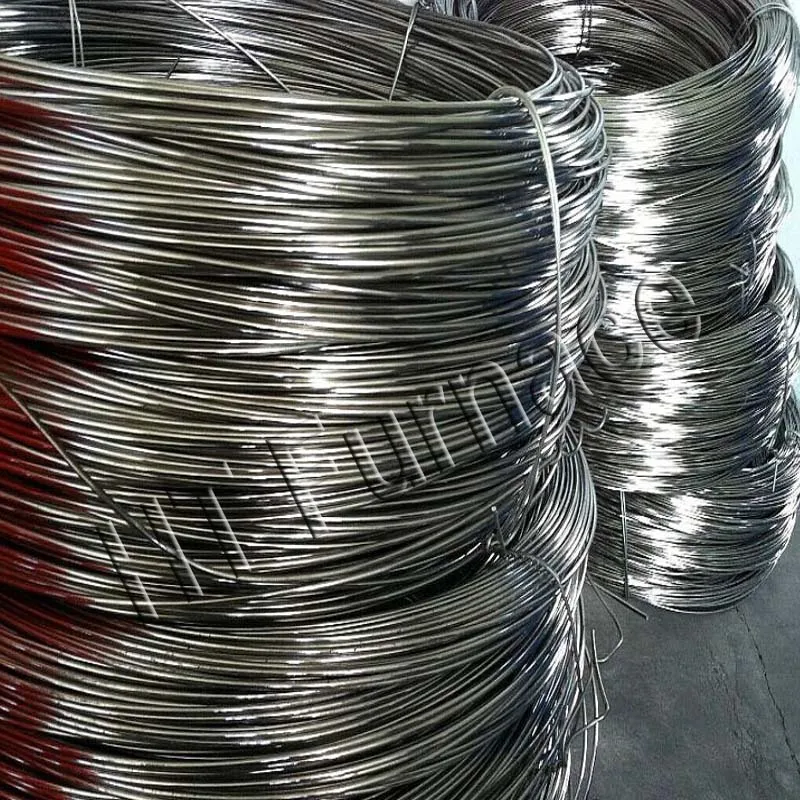

example size for wire





Commodity	Diameter	Deviation(%)
Pure Molybdenum Wire (Mo1)	0.1mm(Min.)	+/-(1.0-3.0)
Molybdenum Lanthanum Wire (MH1)	0.1mm(Min.)	+/-(1.0-3.0)
Molybdenum Yttrium Wire (MoY)	0.3mm(Min.)	+/-(1.0-3.0)
Molybdenum Si/Al/K Wire (MSKA)	0.3mm(Min.)	+/-(1.0-3.0)





Application

1. Suitable for producing ion implantation parts

2. For producing electric light source parts, components of electric vacuum and electric power semiconductor

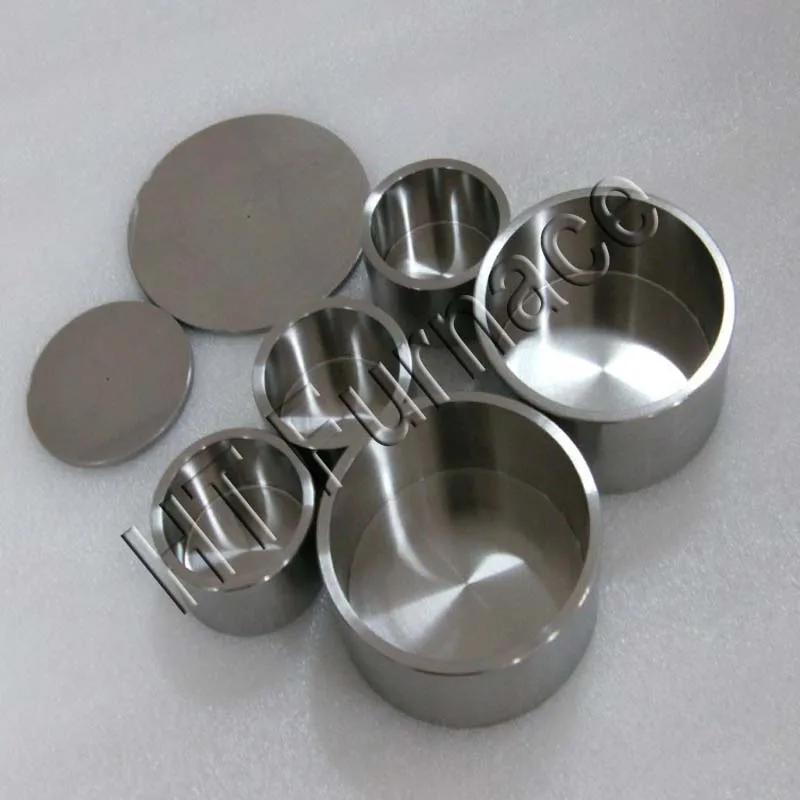

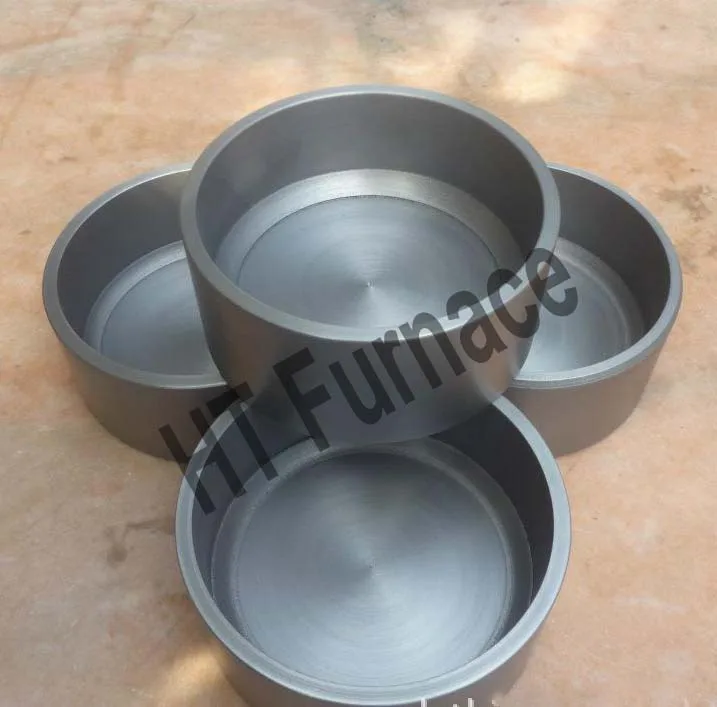

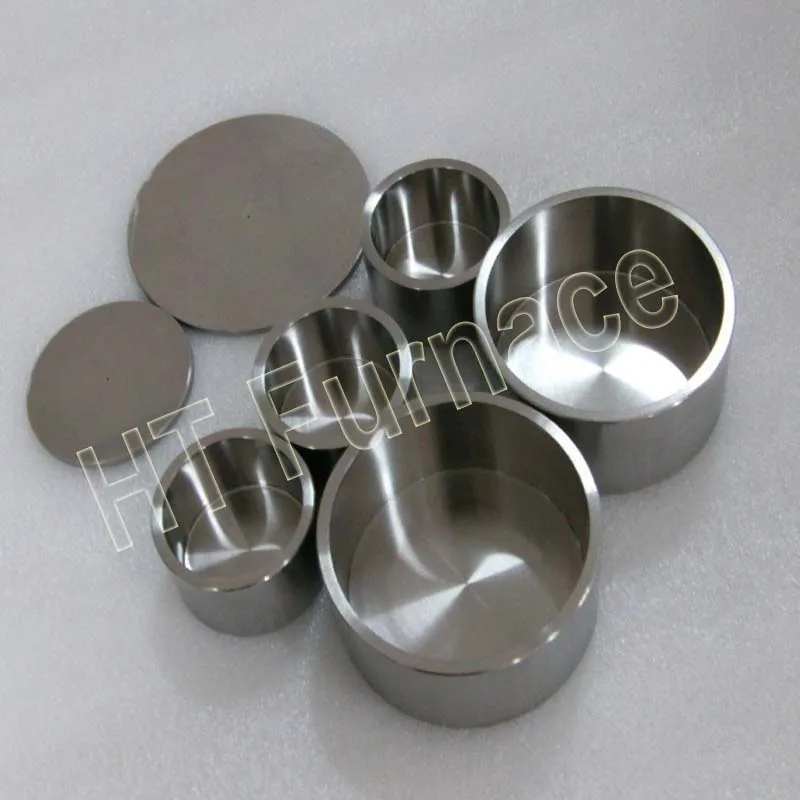

3. For producing Mo-boat, heat shield and heat bodies in high temperature furnace
