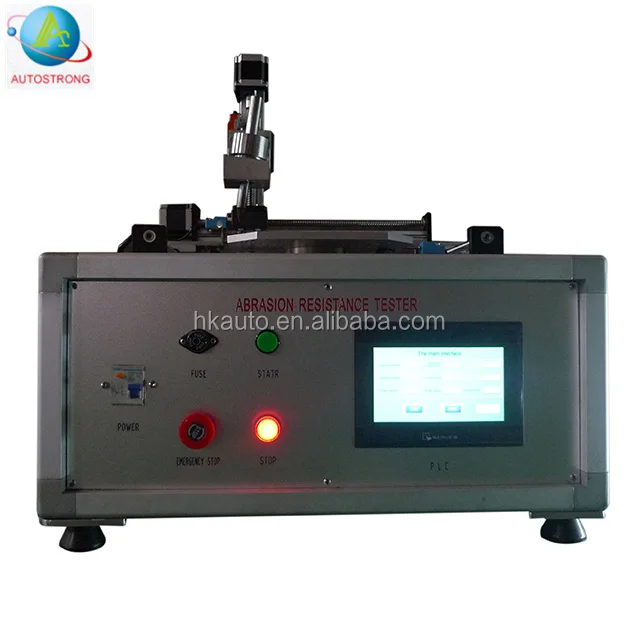

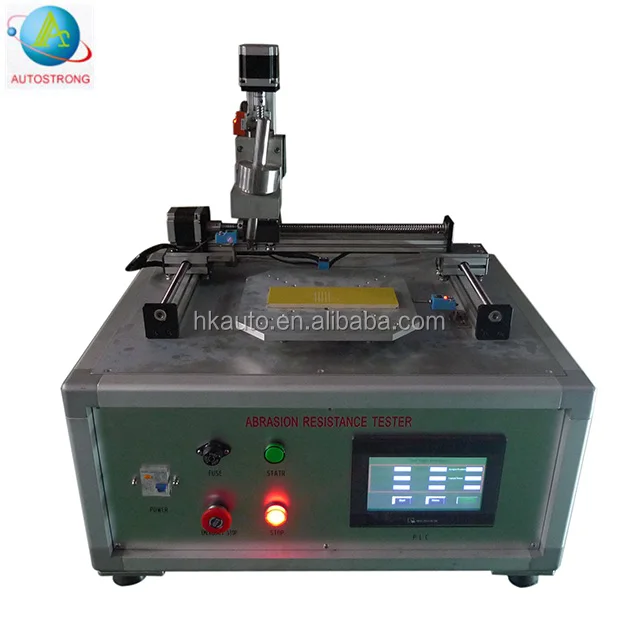

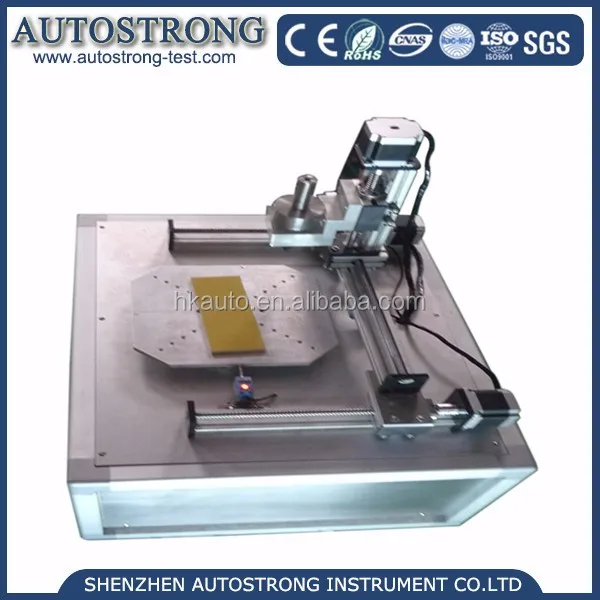

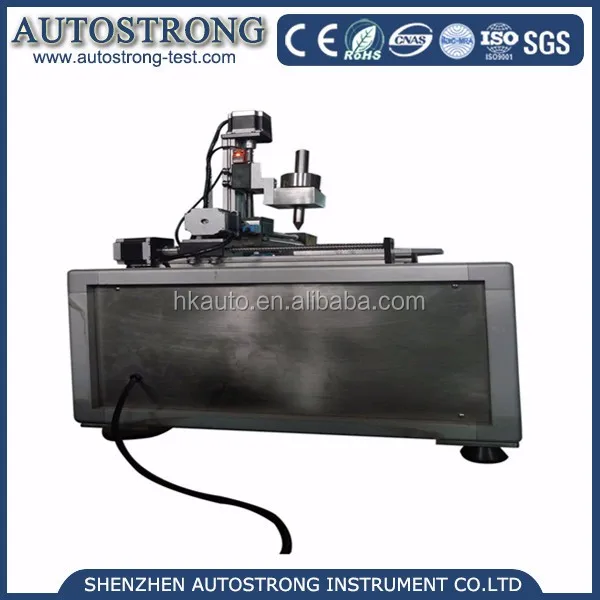

IEC60335 1 Clause 21.2 Abrasion Resistance Testing Machine

Characteristics:Determining the abrasion resistance of varnish / printing ink / coatings.

The device determines the abrasion resistance of paint coat and similar coatings as well as printing ink. It is suitable for surfaces which are exposed to minor mechanical stress, e.g. friction with textiles of paper, as is the case with office appliances, control panels with coated edges or around control buttons. The test for abrasion resistance according to this standard can be done with nearly any flat surface area.

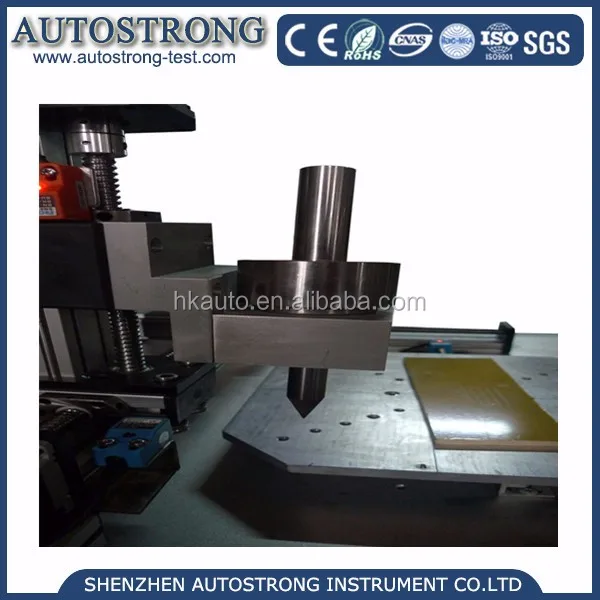

A paper tape is pulled over a coated metal plate or a metal plate printed on with a constant speed of 100 cm/min and is pushed onto the specimen area with a defined load by a cylinder. The measure for abrasion resistance is the length of the paper tape in cm which is needed to make the carrier material visible. The integrated counter registers the length of the paper that moved through the drive unit in cm. Additionally a desired value in cm which the paper is supposed to move over the specimen can be set in the counter. The maxium length of the paper reel is 50 m. The power supply is provided by an IEC-320 AC power cordset 100-230 VAC (50/60 Hz).

Technical specifications:

AUTOSTRONG(www.hkautostrong.com) are the leading testing equipment manuscript in China. We are professional manufacturer of laboratory and Industrial test equipmets for products safety application with headquarter in Kowloon HK and branch factory in SHEN ZHEN city. SHEN ZHEN Branch factory is over 3200 area,it besides SHEN ZHEN airport with very convenient transportation.

We are one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2015 Certification .

Main Products include:Glow wire tester, Needle flame tester, horizontal & vertical burning tester, tracking index tester, textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, salt spray test chamber , Constant Temperature and Humidity Test Equipment,building materials flammability tester, friction tester, test finger, test gauges, spring hammer, IPXX code dust & waterproof test equipment, Wire & cable testing machine, universal testing machine and other testing instruments.

1).We’re factory which specialized in testing equipment field for 10 years.

2).We’re ISO9001 certificated company.Every step is well controlled with checking report from raw material purchase to production and shipment.

3).Production: strictly designed and manufactured in accordance with international standards.

4).Experienced engineer team: more than 60 engineers from Germany,Hong Kong and China.

5). Full certificates: CE,ISO17025 Cabliration Certificate, ISO9001 International Quality Certification System, RoHs etc.

6).Fast delivery: within 10 working days after order confirmed.

7).Excellent package: strong wooden (plywood) box, no need to do fumigation.

8).Various transport: choose the most suitable way including by ocean/air freight/express.
