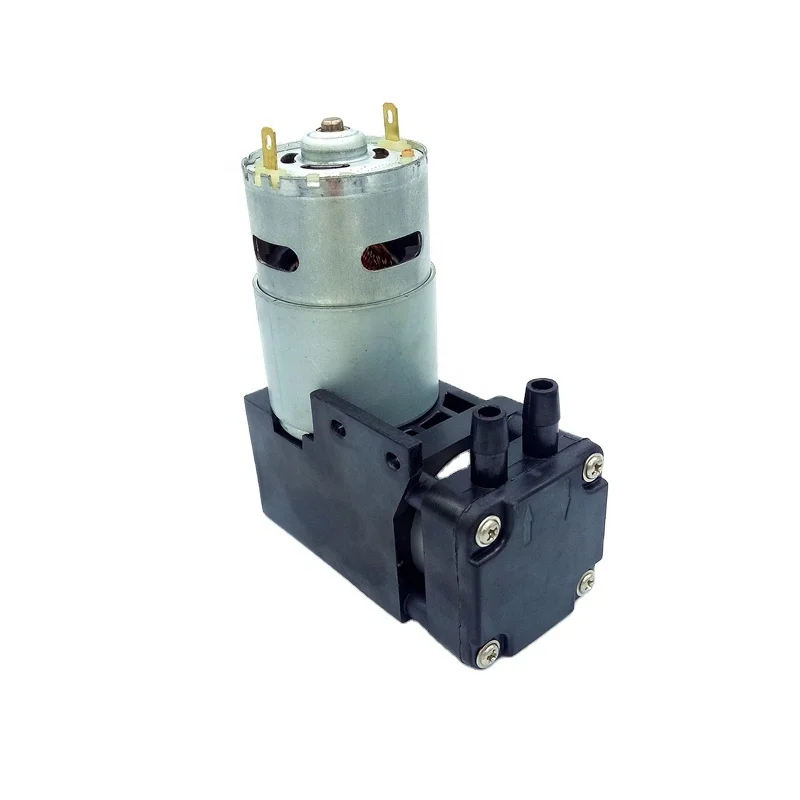

Mini 12V 24 volt Electric Micro High Flow Air Vacuum Pressure Piston Pump
- Category: >>>
- Supplier: Shenzhen Boden Technology Development Co. Ltd.
Share on (60773158340):
Product Overview
Description
Product Description
High Flow BD07V 20~30LPM -80kpa(600mmHg) Brush DC Vacuum Pump 12V 24V
1, High performance & High Flow & Low Noise
2, Stable Quality with New Technology
3, CE RoHS ISO9001 approved

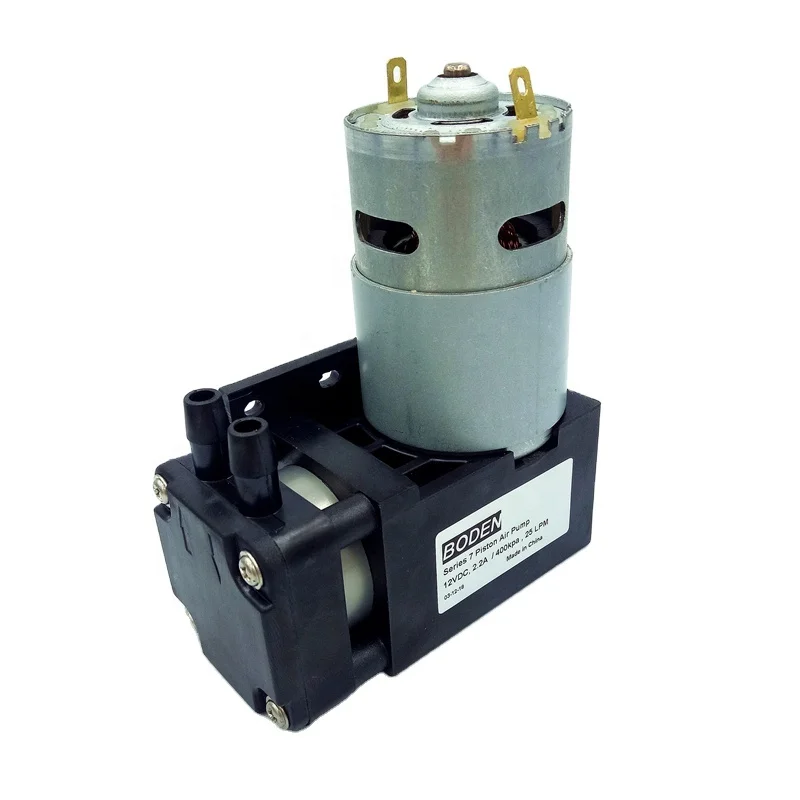

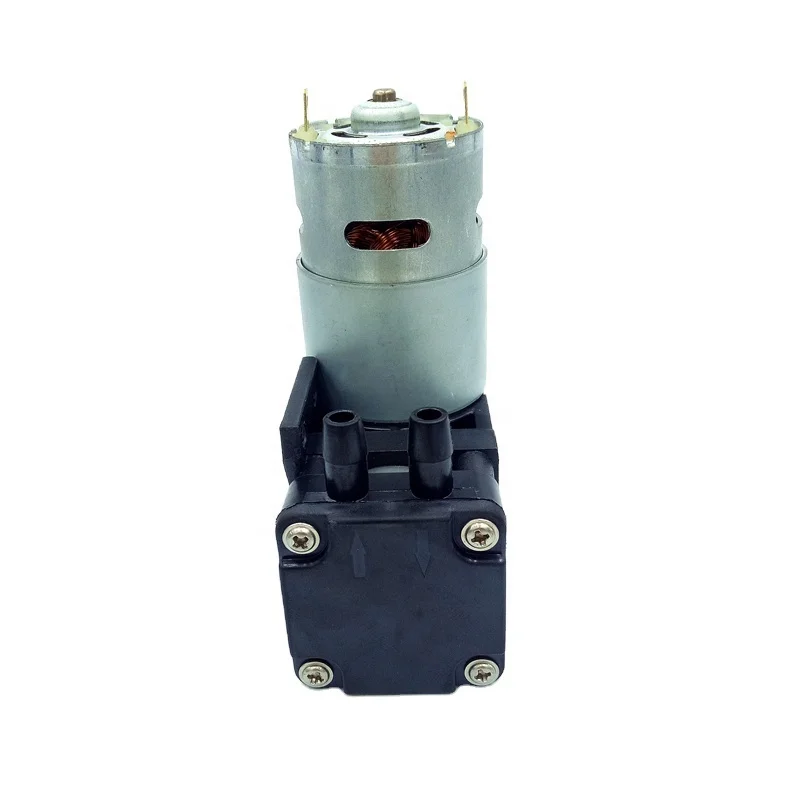

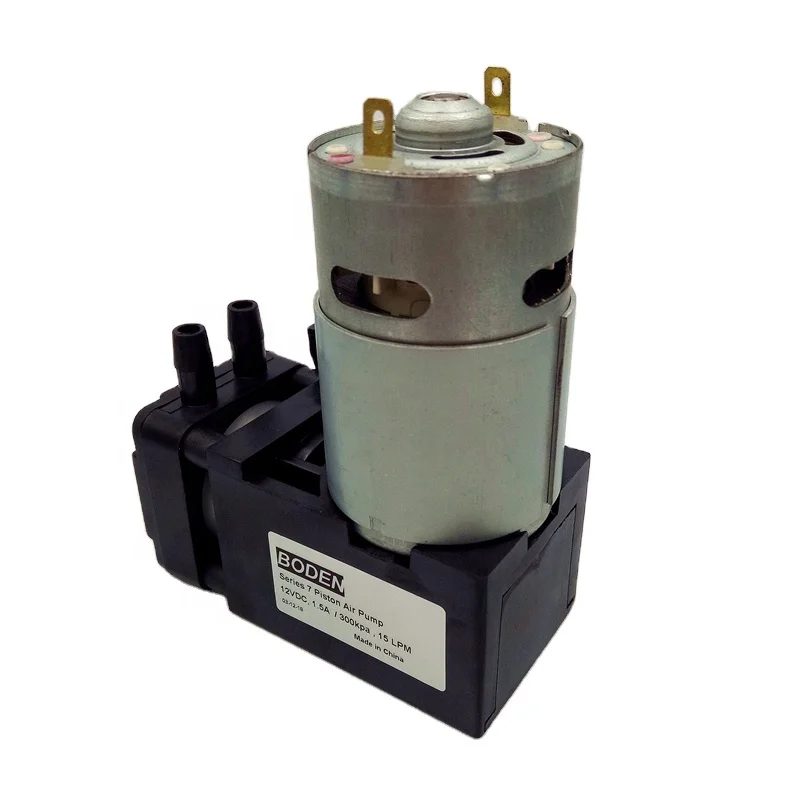

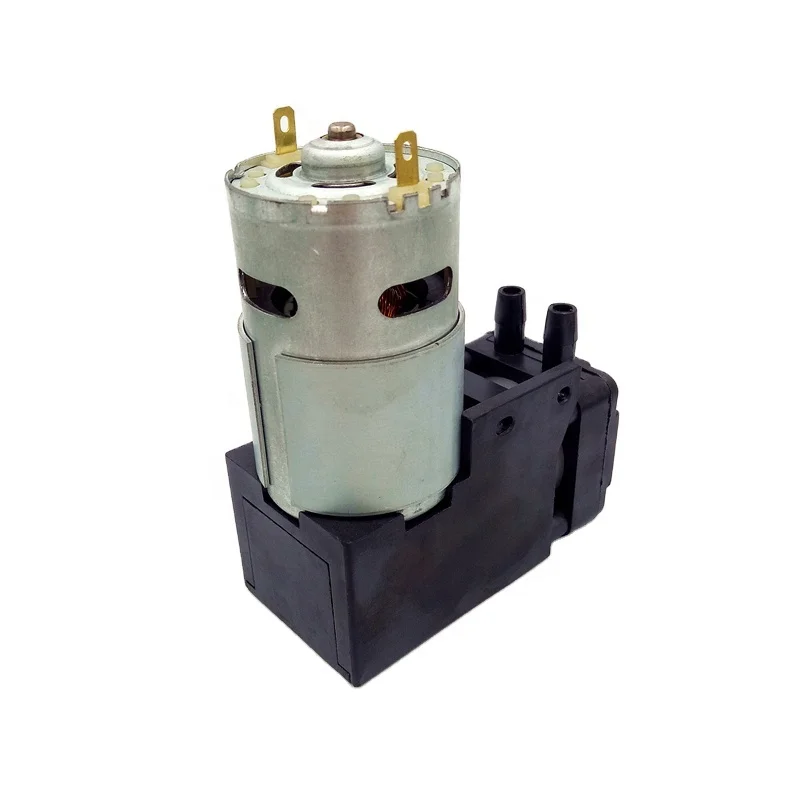

BODEN SERIES 7
BD07V PISTON AIR PUMP has the advantages of compact structure, maintenance -free, oil-free, low power consumption, corrosion resistance. Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
Description | Air&Vacuum | ||||
Model | BD-07A, BD-07V | ||||
Free flow rate | 15L/20L/30L/35L/40L | ||||
Max Pressure | 4 bar/5bar/6bar/6.5bar | ||||
Vacuum | -80kpa(-600mmHg), Max -85kpa(-637mmHg) | ||||
Motor type | DC/BLDC | ||||
DC Voltage | 12V optional 24V | ||||
Power | 24~50W | ||||
Life time | 1000 h | ||||
Dimension | 110*87*44mm | ||||
Weight | 580 g | ||||
Noise Level | 55~75dB(from 30cm away) | ||||
Work Temperature | 5~50℃ | ||||
Relative Humidity | <80% | ||||
Characteristic Curve | Dimension | ||||
Applications
Related Products
BD1104B VACUUM PUMP
Application:breast pump, penis enlargement, pneumatic massage goggles, massage belt, pedicure machine etc...
BD3802 MICRO PUMP
Application: beast pump, suction
machine, airbrush makeup pump, fragrance machine, aquarium...
BD1004B MINI WATER PUMP
Application: coffee &drink machine,
blood pressure meter, juice dispenser,
fish tank, skin care, small sprayer etc..
BD09 DIAPHRAGM PUMP
Application: medical industry, beauty equipment, lab automation, instrumentation,laboratory equipment, other fields.
BD04 BRUSHLESS DC PUMP
Application: food and beverage, hourshold electric appliances, medical industry, gas monitoring, beauty equipment etc...
BD04 CARBON BRUSH DC PUMP
Application: vacuum blenders, airbrush makeup compressors, portable oxygen concentrator,oxygenators...
Our Company
Introduction:
Shenzhen Boden Technology Development Co., Ltd is a professional R & D,production and sales of micro pump enterprises. Our micro pump contains micro pump (inflatable), mini vacuum pump (suction type) and micro water pump. Our company has developed a series of products (such as: 1 series, 2 series, 3 series. 4 series, 7 series, 9 series). To better meet the specific needs of different clients, our electric mini diaphragm pumps are available in a wide range of materials include PPS, POM, EPDM, FPM, FKM, NYLON, PTFE, metal, and other customized materials.
With a wide range of products and product reliability, our products have won the trust of many customers; we will fully meet customer requirements, to provide customers with the best solutions.
Packing & Delivery
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, specialize in design&develop&producing micro pumps, miniature vacuum diaphragm pump, high performance mini air/gas/liquid pump for OEMs
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer qualified buyer 1pcs sample free charge but do not pay the cost of freight. Furthermore, EXTRA sample fee can be fully refunded and debited from your formal order.
Q: How can I choose the most suitable pump?
A: Please tell us your requirements: 1, flow rate 2, pressure or vacuum degree 3, voltage, also you can tell us the product application&size&noise limited, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How to contact BODEN?
A: You can contact us by choosing below ways:
1, Trade Manager: beden1699 2, Email: boden1699(@)outlook.com 3, Telephone: 0086 755 33121462
4, Cell phone: +86 158 1465 8227 (David Zeng) 5, Skype&Wechat&WhatsApp: +86 158 1465 8227 6, Visit us
