High Quality aluminum alloy 6063 with good heat emission;
High transparent plastic lens in 60 90 and 120 degree for option;
Stronger 1 sqm cable wire .
B.LED LINEAR LIGHT CONNECTION

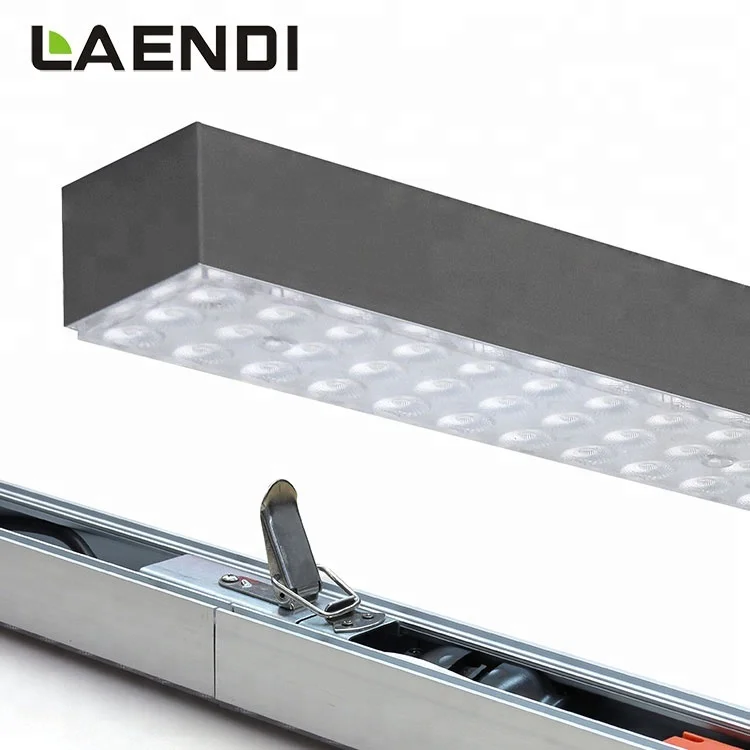

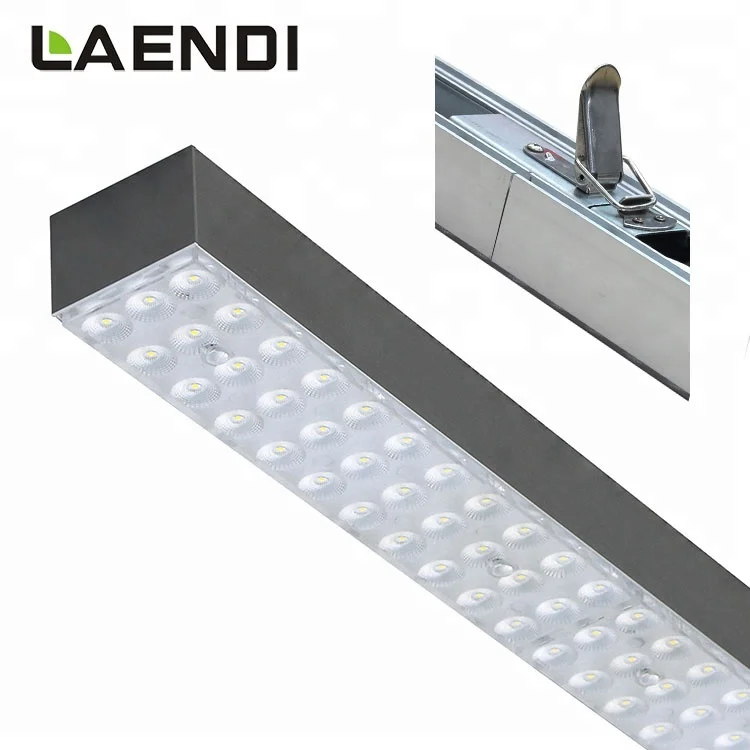

Seamless connection via aluminum plate with locker;
Max 1400watts connected in series via 1.8m long female and male cable wire.
B.Suspended Led Linear Light INSTALLATION
1.First open fixing hole on the ceiling and another hole for passing through the input wire;
2.Fixed the suspending parts by tools to make sure the wire fixing hole is firmed;
3.Fixed the lamp with two screws to the steel rope vertically,and adjust the height of the steel rope;
4.Connecting the input wire to 100-240VAC and pay attention to the LN G wire;
5.Turn on switch.
C.LED LINEAR LIGHT AGING TESTING
Detailed Images
Packaging & Shipping
Packaging Drawing
Model
PCS/Carton
Box Size(mm)
Carton Size(mm)
N.W
G.W
LLF-1200-50W
1pcs/Box
4PCS/Carton
1250×70×55
1260×160×150
9.8
10.9
LLF-1500-60W
1555×70×55
1560×160×150
10.5
11.8
LLF-1700-70W
1755×70×55
1760×160×150
10.3
14.5
Application
1.Widely used for office,super market,shopping mall,warehouse,airport,subway etc.
Company Information
FAQ
FAQ
Q1: What is the Warranty for the lamps? A1: For the lamps,we have 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is color temperature? A2: Laendi's LED Lighting offer lamps in warm, natural, pure and cool white with color temperatures measured in Kelvin (K). The lower the color temperature is, the warmer the light given by the LED: Warm white = 2800K-3200K Natural white = 4000K-4500K Cool white = 6000K-7000K
Q3: What is CRI? A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q4:Is there cheap shipping cost to import to our country? A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q5:Can we get support if we have our own market position? A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Trading Process
Our Services
Our services
1.Your inquiry related to our products or prices will be replied in 24hours. 2.Well-trained and experiences staffs to answer all your enquires in fluent English. 3.OEM&ODM, any your customized lightings we can help you to design and put into product. 4.Warranty: 3 years and ensure high brightness and lifespan. 5.Research and develop by ourselves with good material. 6.Specialises in producing T5 LED Tube, Led Panel Light, Led Downlight, Led Wall Washer, Led Floodlight, Led Cabinet, Led Spotlight and so on.
