It has larger effective filtration area and wider inflow path. It can not only increase the water yield, but also diminish the frequency of cleaning, saving energy and cost. This series obtin the hightest quality of water at the lowest cost.

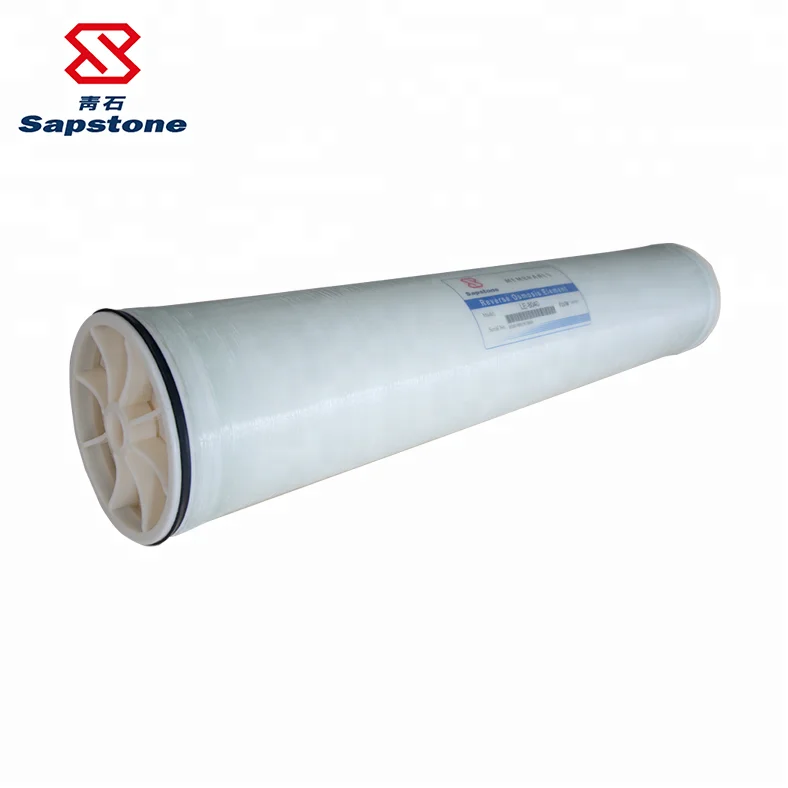

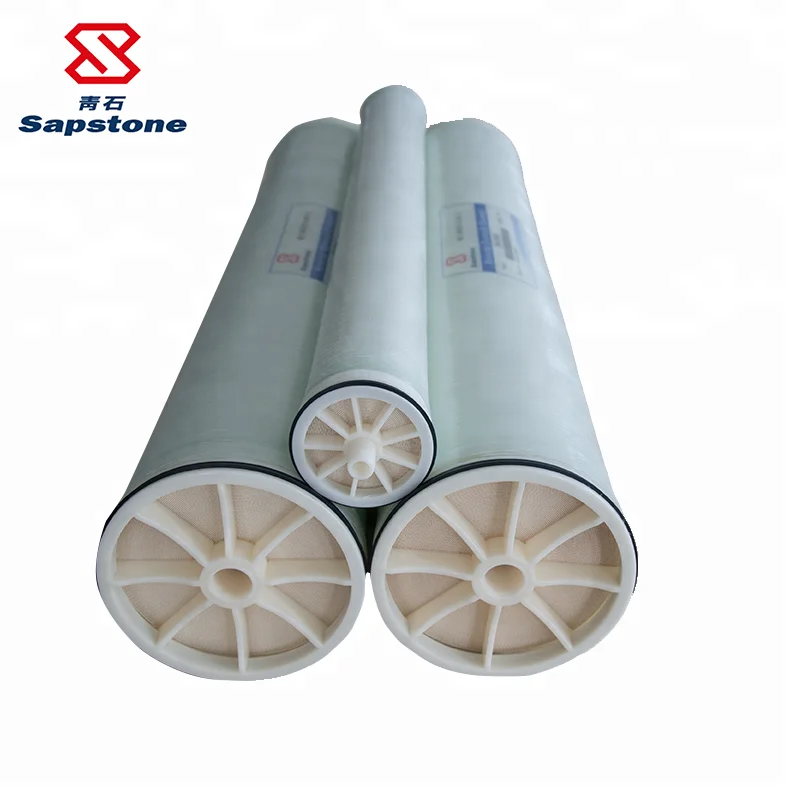

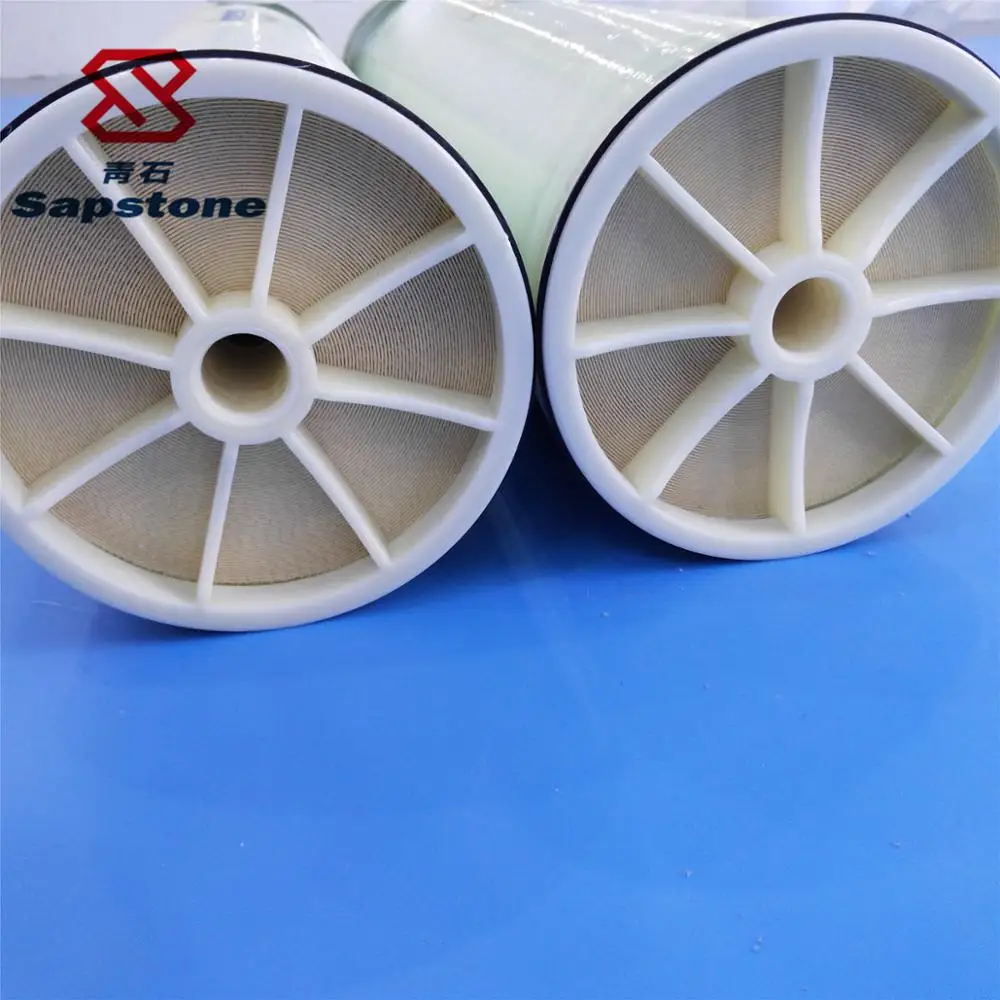

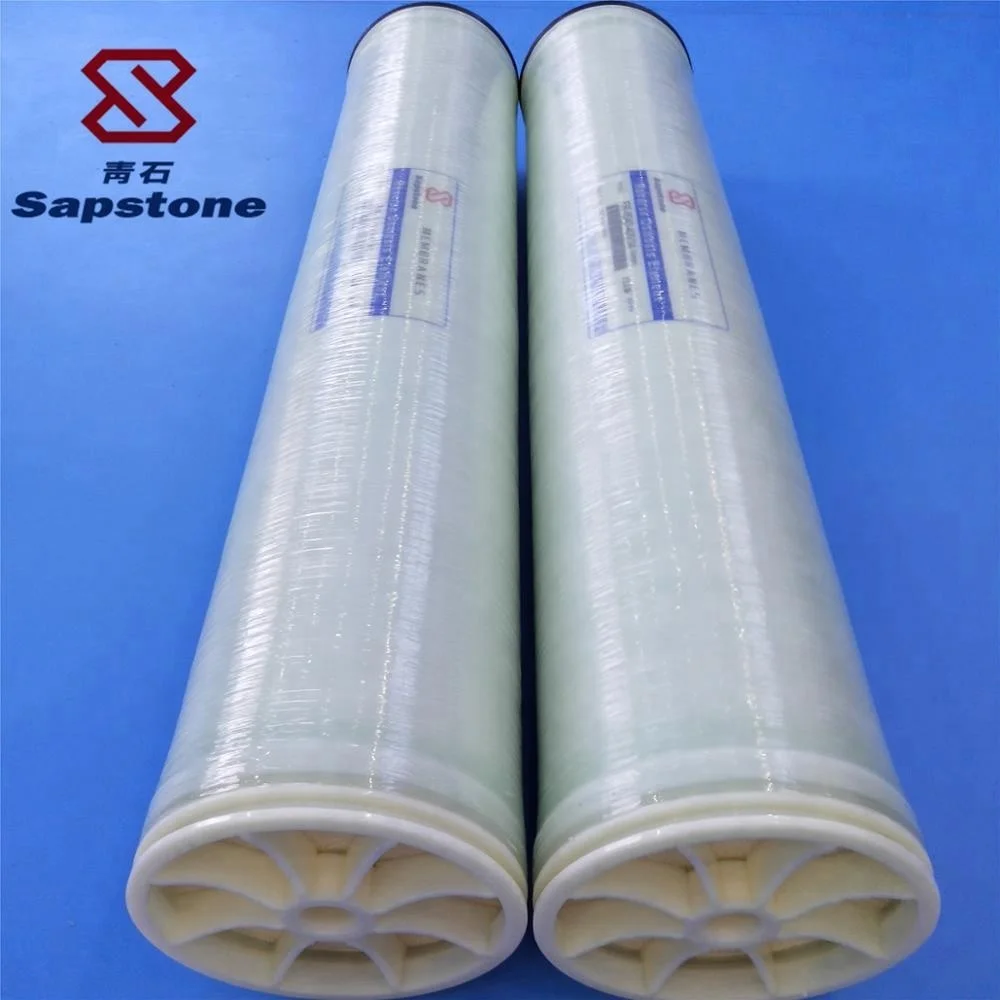

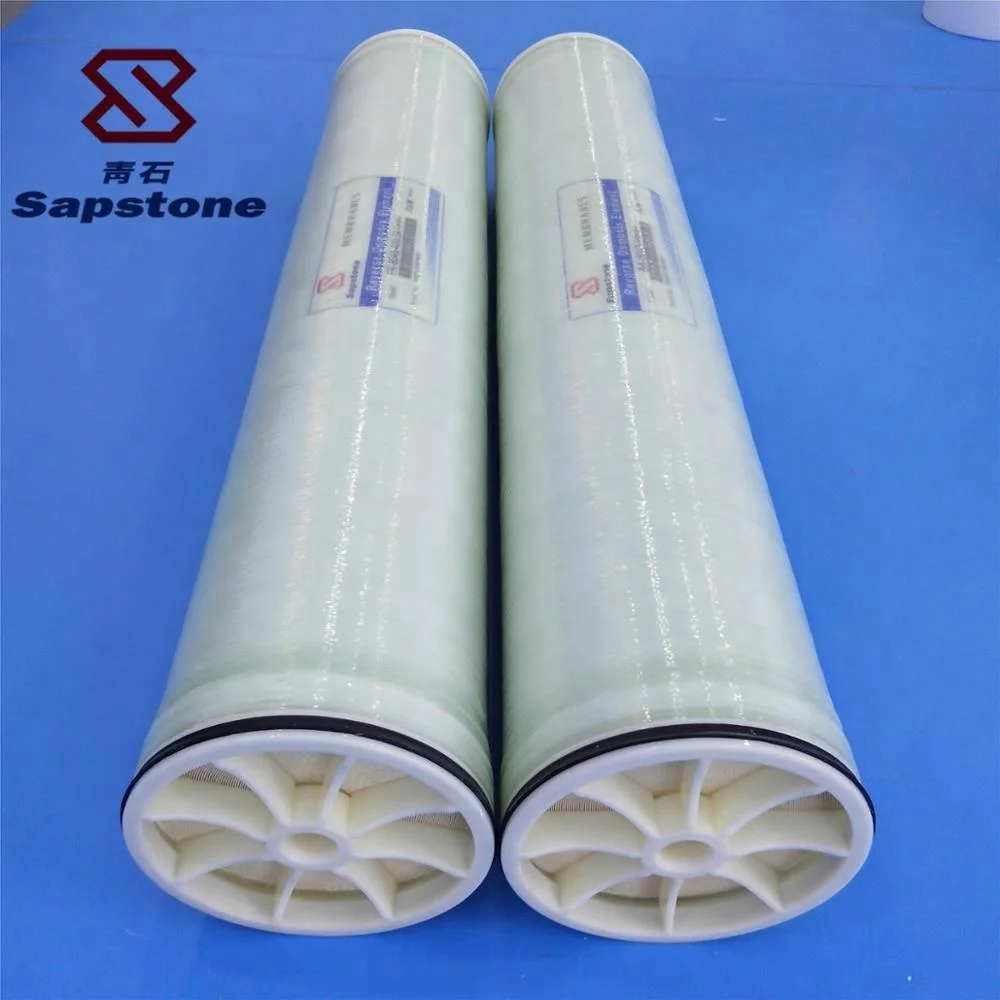

Specification and Main Performance of RO Membrane Elements
Type
Model
Performance
Structure Parameter
Stable Rejection / %
Average permeate flux
/gpd (m3/d)
Effective Membrane Area / ft2
Flowpath Diameter
/ mil
Product PipeInner Diameter
/ mm
BW Series
BW-8040
99.5
10000(37.9)
380
31
28.7
BW-8040-400
99.5
10600(40.1)
400
30
28.7
BW-4040
99.5
2400(9.1)
90
31
19.0
Testing Conditions:
Testing Pressure
225psi(1.55 MPa)
Temperature of Testing Solution
25 ℃
Testing Concentration(NaCl)
2000 mg/L
pH Value of Testing Solution
7.5
Recovery of Single Membrane Element
20%
Operation Limits and Conditions:
Max. Working Pressure
600 psi(4.14 MPa)
Max. Feedwater Flow
75 gpm(17 m3/h)(8040)
16 gpm(3.6 m3/h)(4040)
Max. Inflow Temperature
45℃
Max. Inflow SDI15
5
Residual Chlorine Concentration of Feedwater
<0.1 mg/L
pH Range of FeedwaterDuring Continuous Operation
3~10
pH Range of FeedwaterDuring Chemical Cleaning
2~12
Max Pressure Drop of Single Membrane Element
15 psi(0.1 MPa)
Company Information
Kung Ta New Material CO., LTD
Quality: Clear as Sapphire and Quality as Rock
Registered trademark:Sapstone
Products:domestic/ commercial/ industrial ro membrane elements
NF membrane
Brife Introduction:
Tianjin Kung Ta New Materials Technology CO.,LTD is a leading manufacturer of ro membrane in China with ISO9001 certificated. As a high-tech enterprise, we take membrane separation technology as our core competence, and specialize in the R&D and manufacture of membrane products, the production of membrane equipment as well as the design, construction and operation of membrane engineering application.
Let Sapstone put the ro membrane on your success!
Packaging & Shipping
One piece/carton, and several carton/wooden pallet.
We will follow the special packaging as you required.
