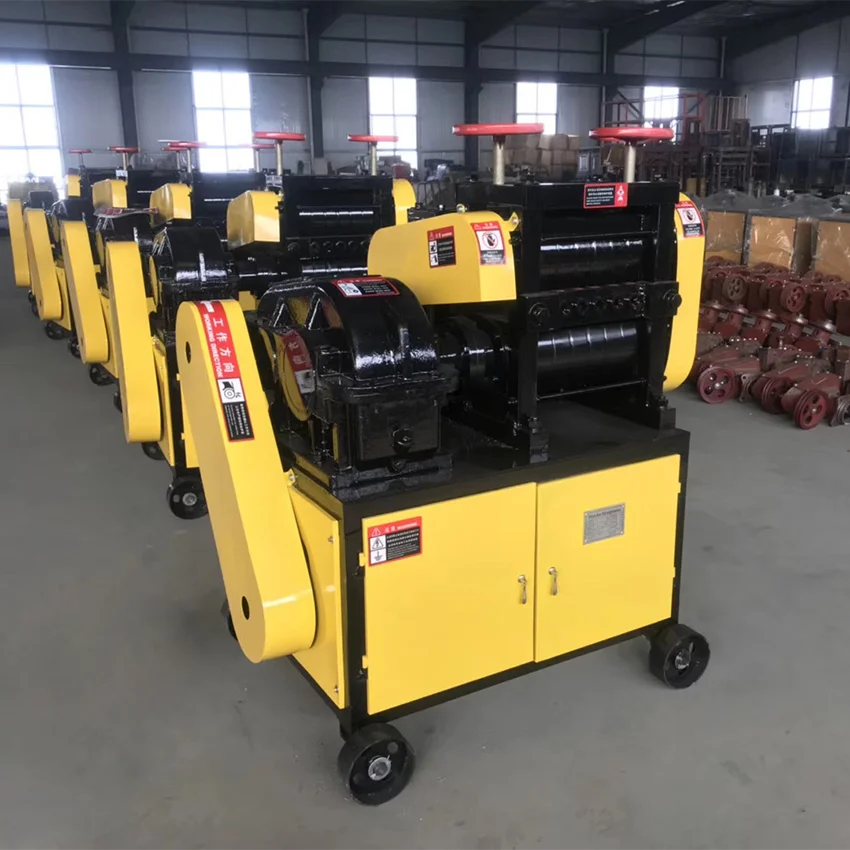

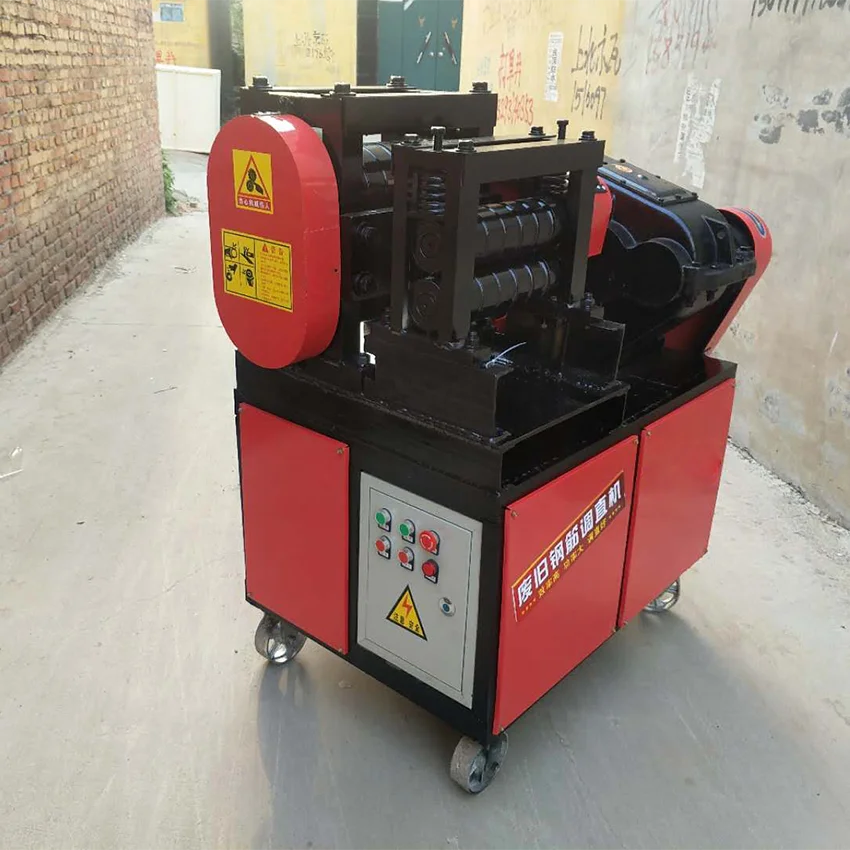

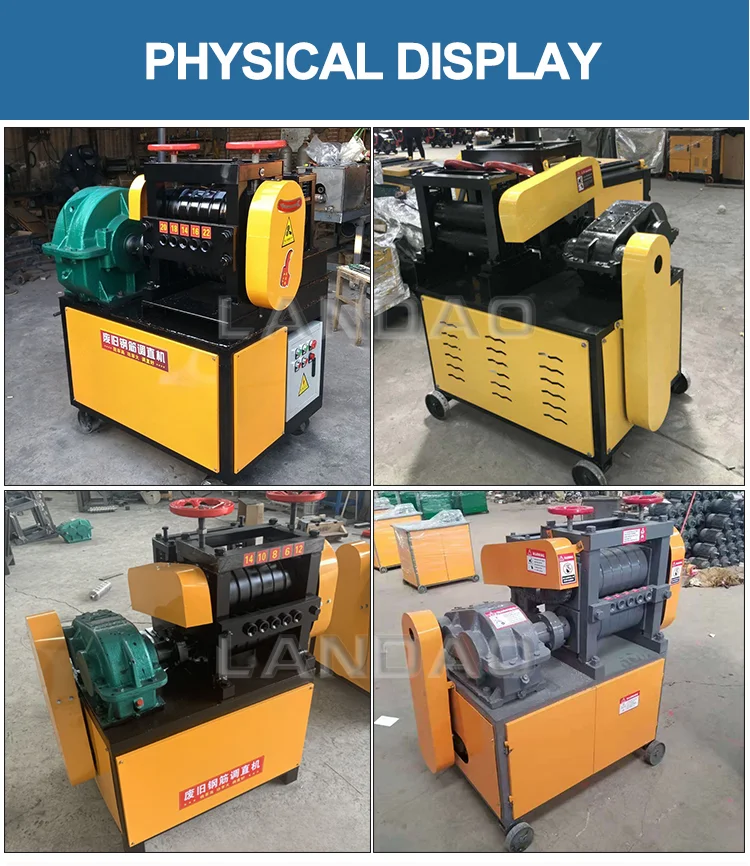

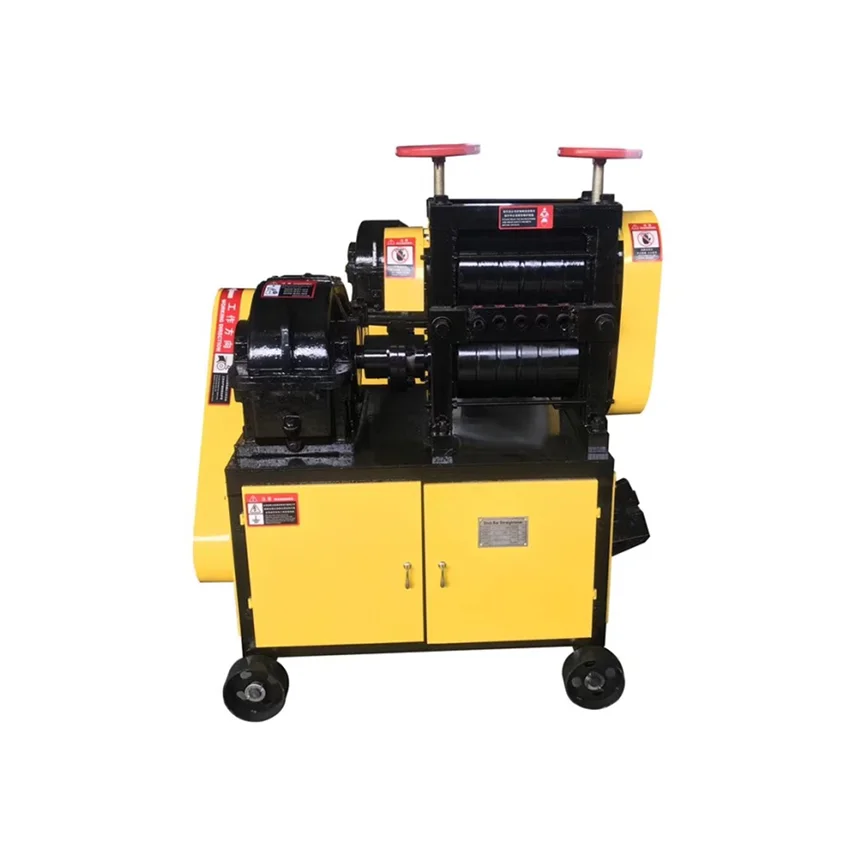

China Waste Round Bar Straightener Supply Scrap Bar Straightening Machine
Product Description

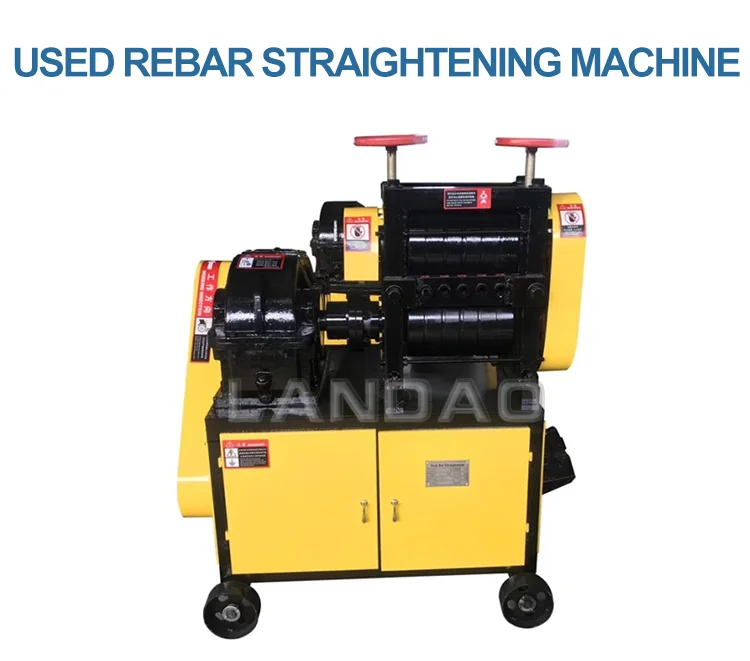

Scrap Rebar Straightening Machine reduces the cost of the materials and protects the environment bu reusing the waste rebar.

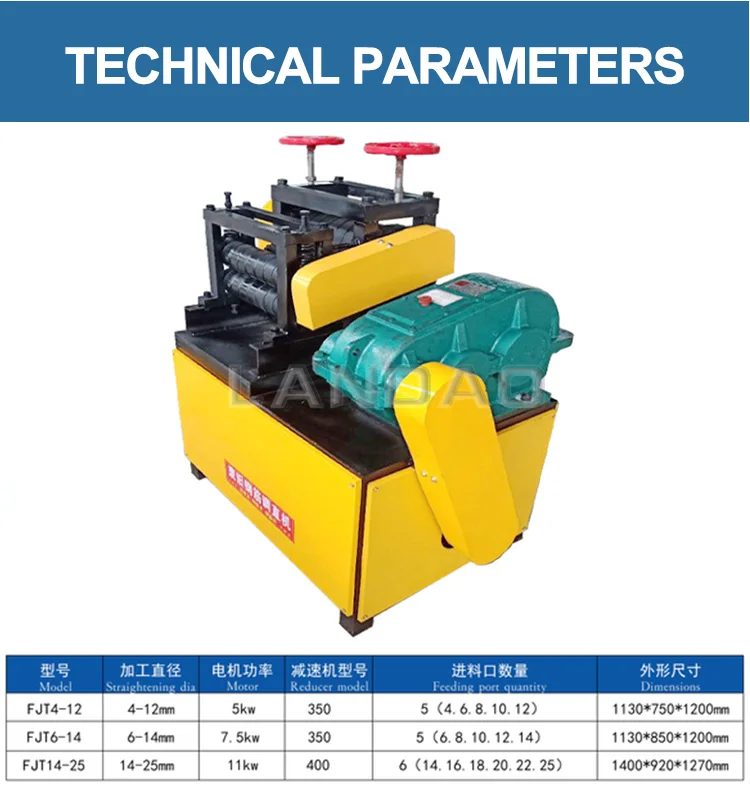

Technical Parameters
Model | GX4-12 | GX4-14 |
Straightening diameter | 4-12mm | 4-14mm |
Working speed | 28m/min | 25m/min |
Max Cutting Diameter | 16mm | |
Cutting space | 500-6000mm (can be longer) | |

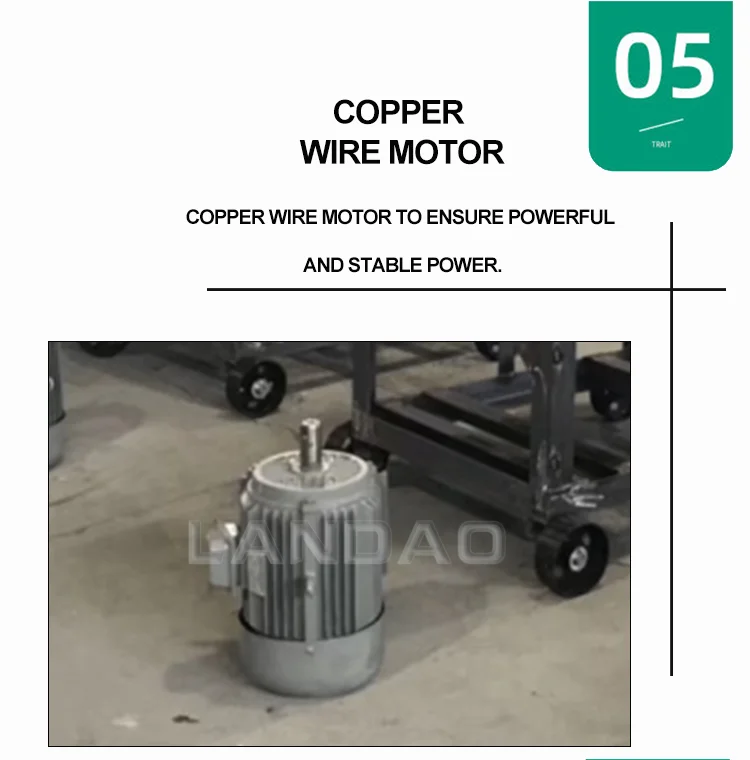

Motor power | 4kw+2.2kw | 5.5kw+2.2kw |
Voltage | 380v/50hz/3phases or customized | |
Dimension | 1180x700x1280mm | |
Weight | 720kg | 750kg |
Features
1.Fast straighten speed, performance stable
2.Steel surface no scratches,good straightness
3.Achieve the waste utilization, Scientific and environmental
4.Operation simple,work safety

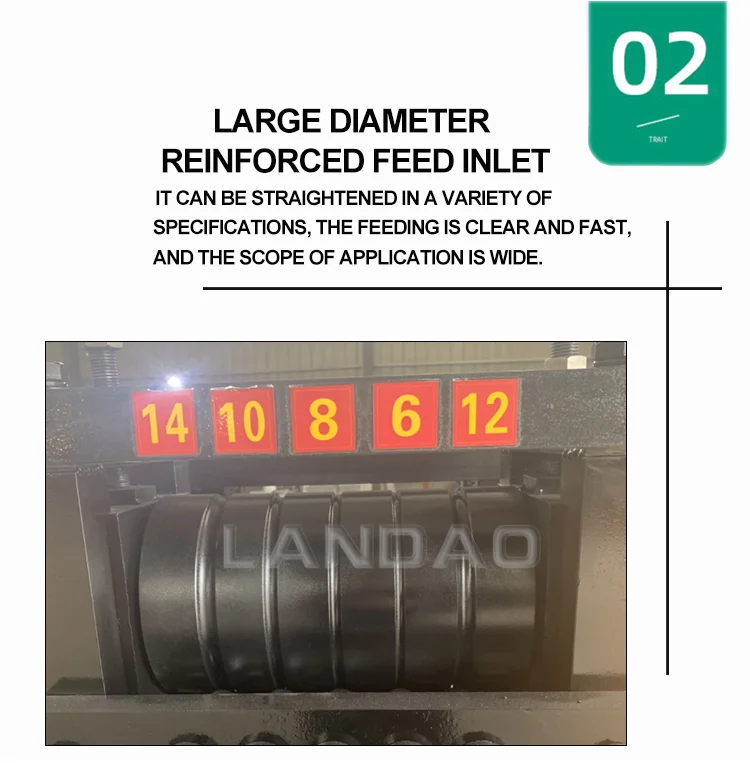

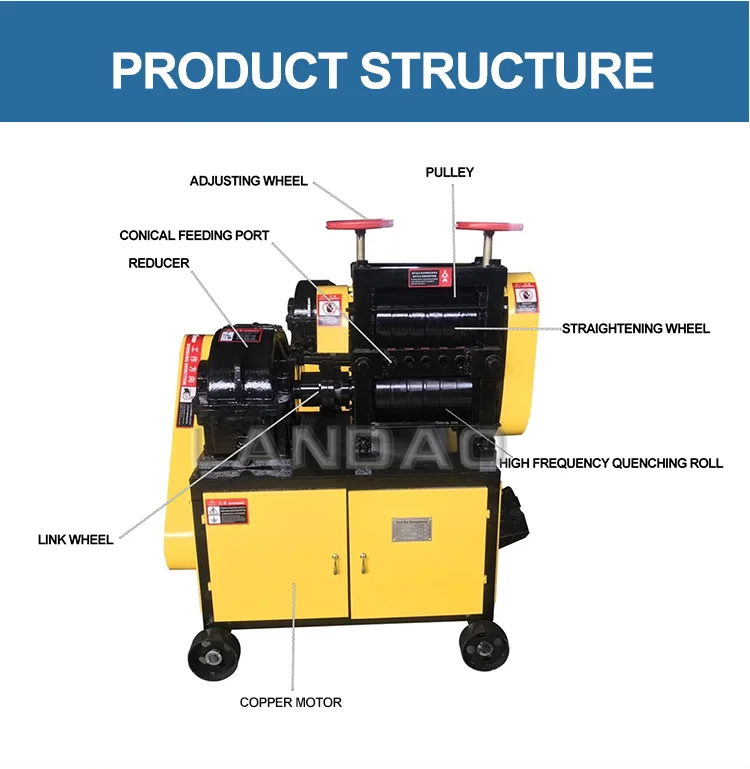

| The machine have five holes which used for feeding the scrap rebar or round bar,the hole diameter is 4mm,6mm, 8mm,10mm,12mm.If need customized,we will change the hole diameter according to your demand. |
| The four heavy-duty wheels can be used to move the machine anywhere easily.The double big wheels always used to adjust the material loose or tight. Big wheel diameter:220mm Small wheel diameter:100-150mm |

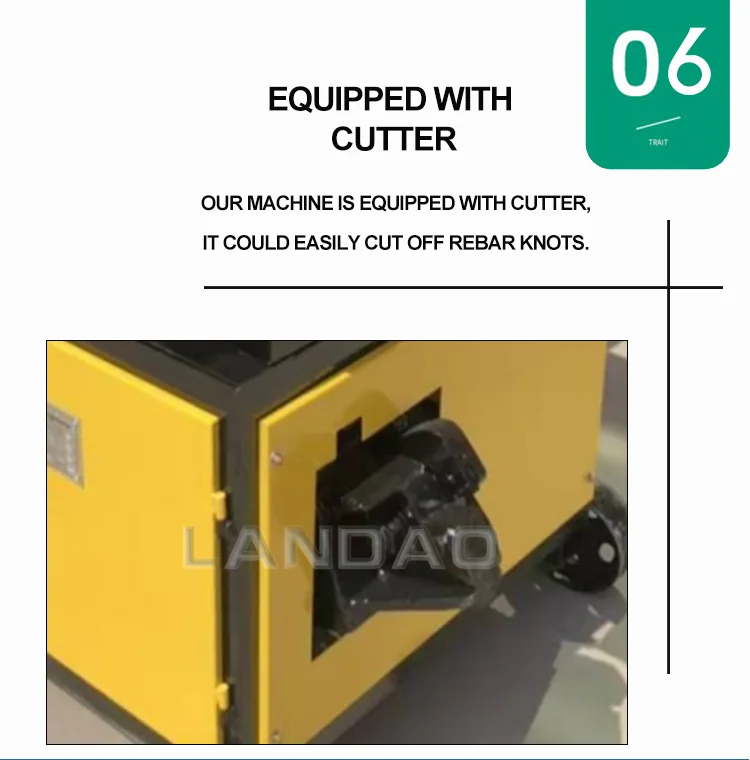

| The machine have a small rebar cutter on the right side,and the max cutting diameter is 16mm,and the rebar cutter motor is 2.2kw |

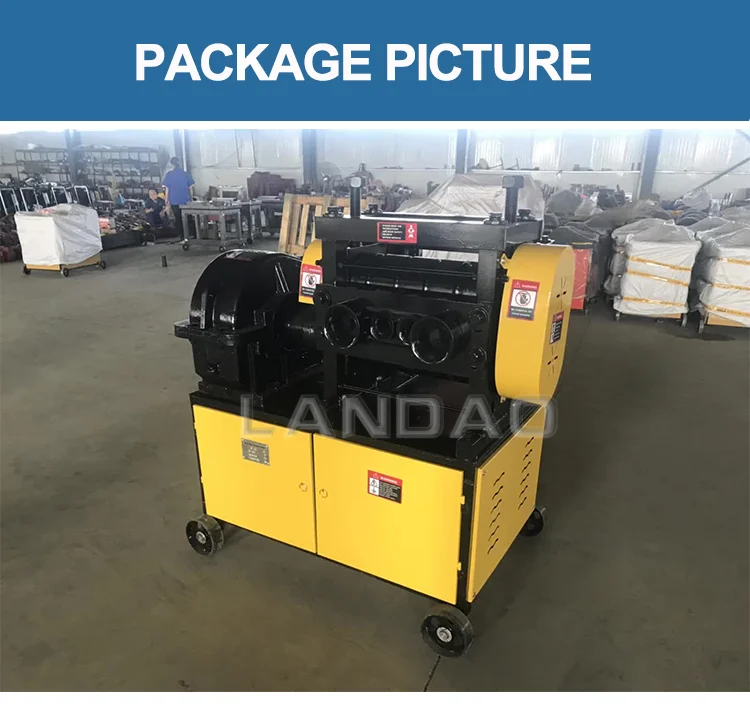

Packaging & Shipping
Wooden Boxes for Scrap Rebar Straightening Machine
