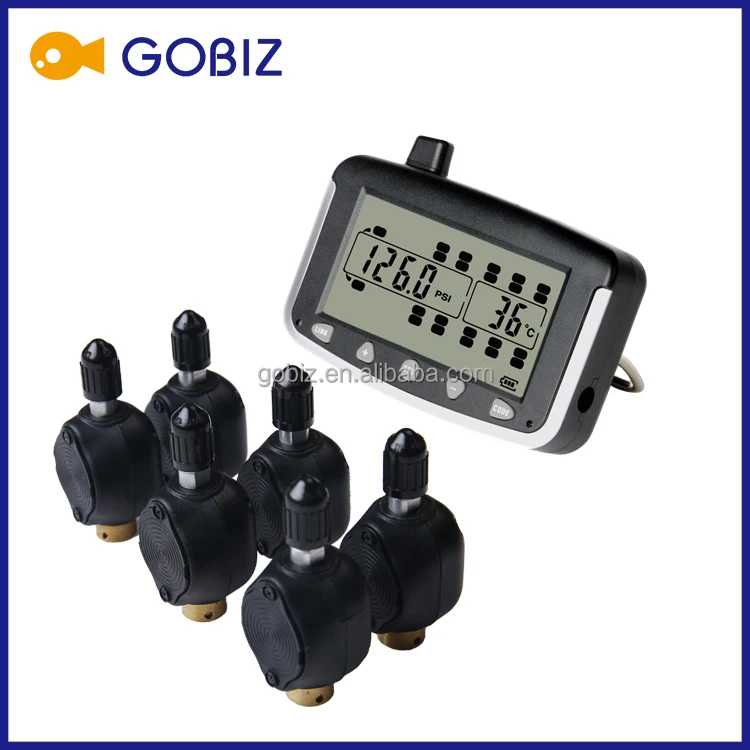

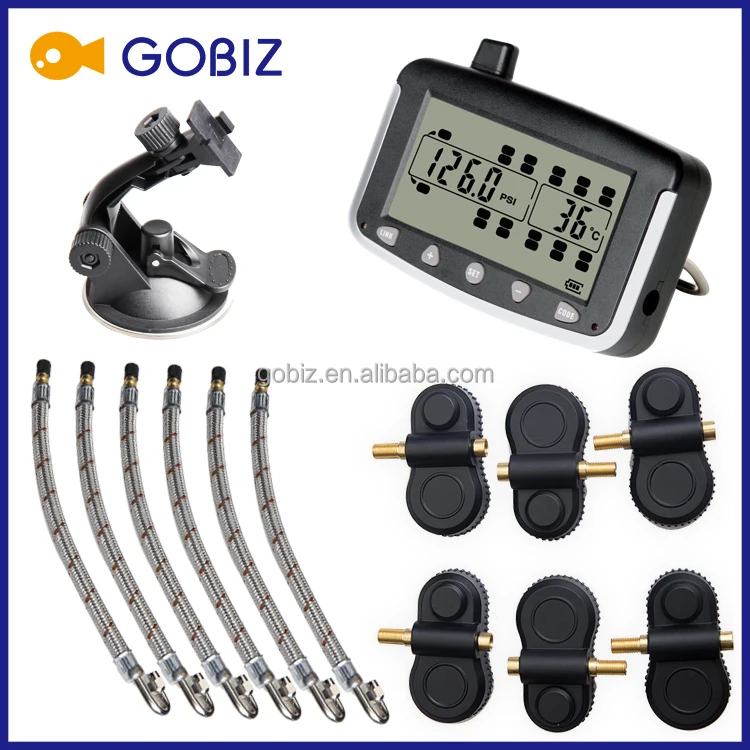

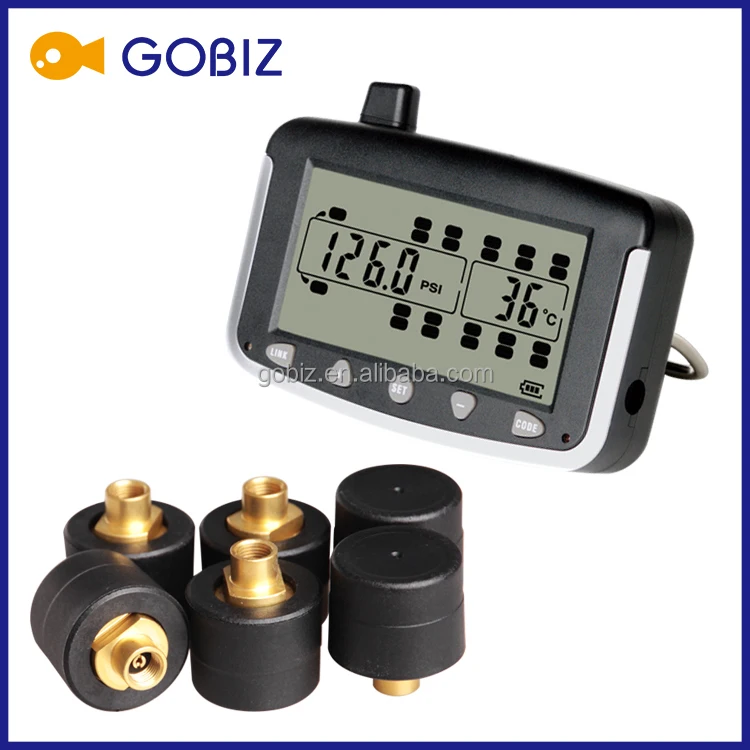

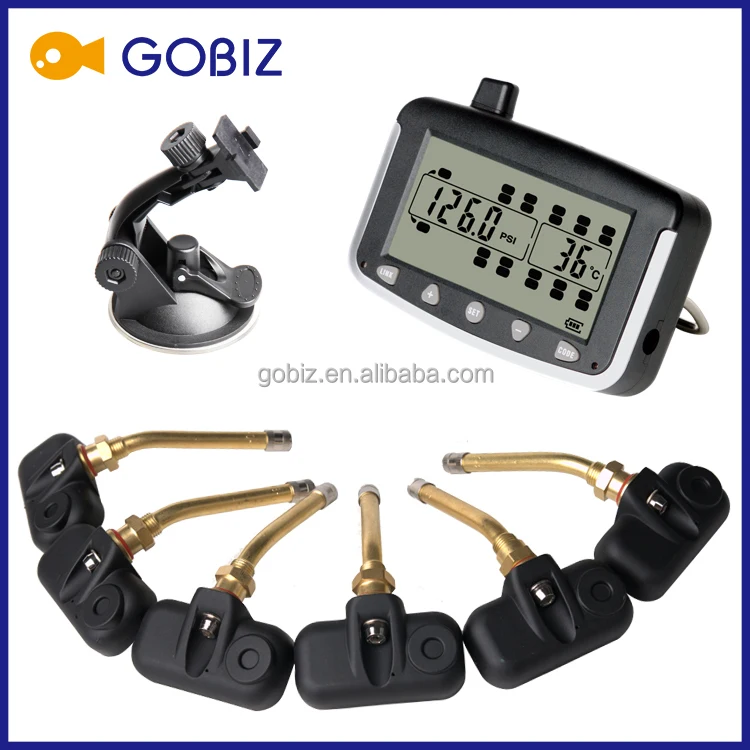

rv motorhome tire pressure monitoring system tpms with tpms sensor

Product Overview

Description

rv motorhome tire pressure monitoring system tpms with tpms sensor







1. What are the advantages of TPMS ?



Full time, real time display tire pressure and temperature
100% wireless transmitting
Sensor transmit tire's pressure and temperature every 5 minutes
Capable of a truck and a trailer with 22 tires in total
Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure
Fast leakage alert
High pressure/low pressure setting for each axle
Supports trailer-exchange with an optional trailer-exchange repeater



2. Features:

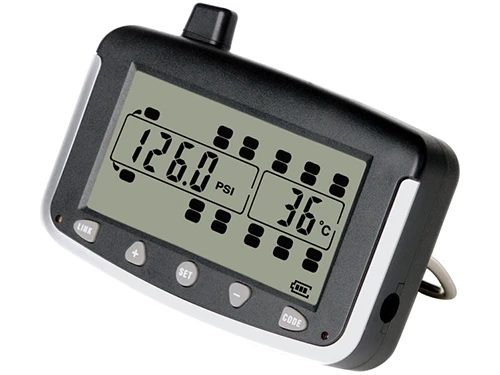

Monitor Features:



Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units(BAR, PSI).
Temperature unit selectable( ℃/ ℉ )
Monitors 22 Tires.
Individual pressure alert for each axle.
Selectable display for one or two trailers.
Long range between monitor and sensors.
Awake sensor to program ID code.



Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .



Pressure range: 0-188PSI
Pressuer accuracy: +/-1.5PSI
Transmission frequency: 433.92MHz
Battery life: 2 years, replaceable

Operation temperature: -40C~+85C

Weight: 19grams

Size: Diameter 28mm. Height: 30mm





3. Specifications:



Monitor specifications:



Storage temperature	-30 to +85° C
Frequency	433.92MHz
Operating temperature	-20 to +80° C
Charge Input Voltage	DC 8 to 30 V
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +85° C
Weight:	19 grams
Size:	diameter:28 mm, height:30 mm
