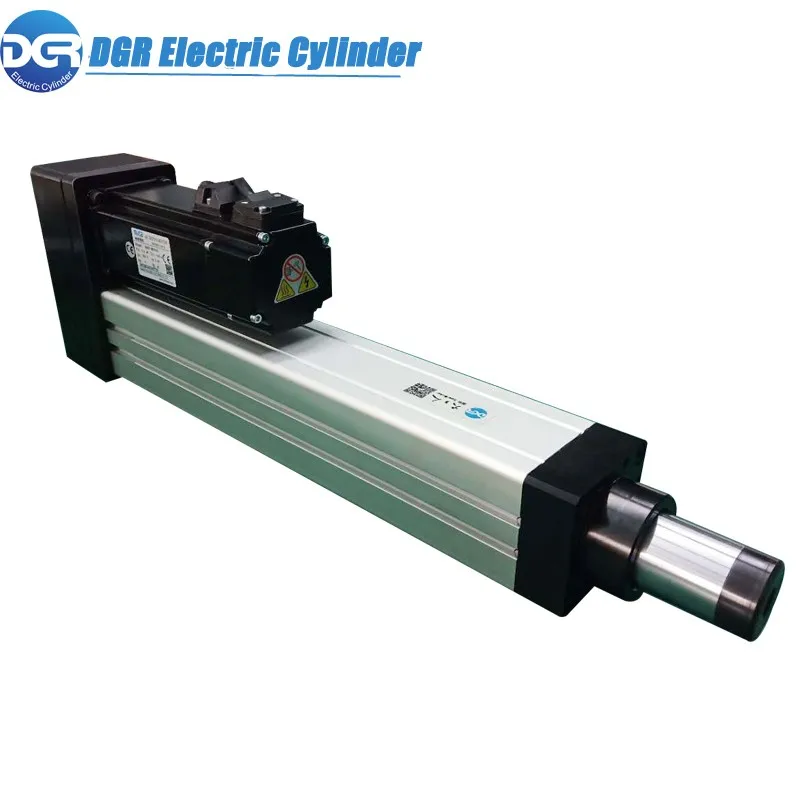

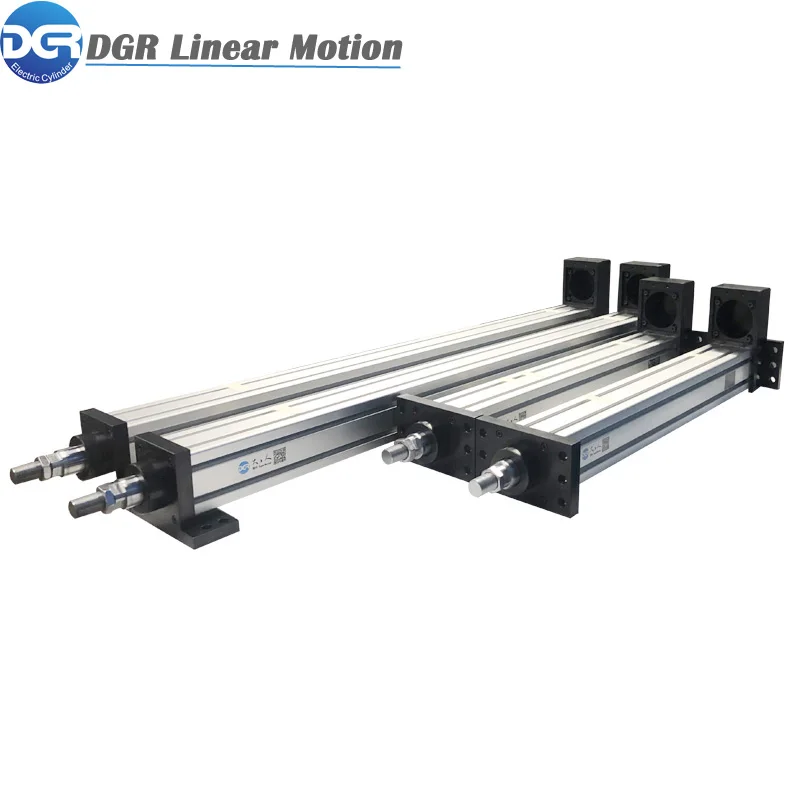

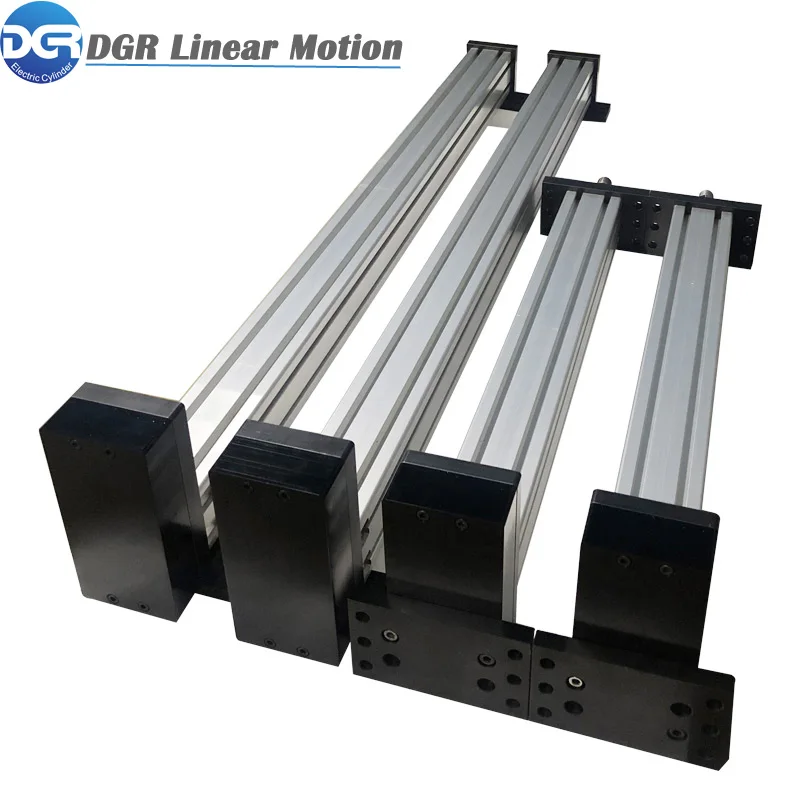

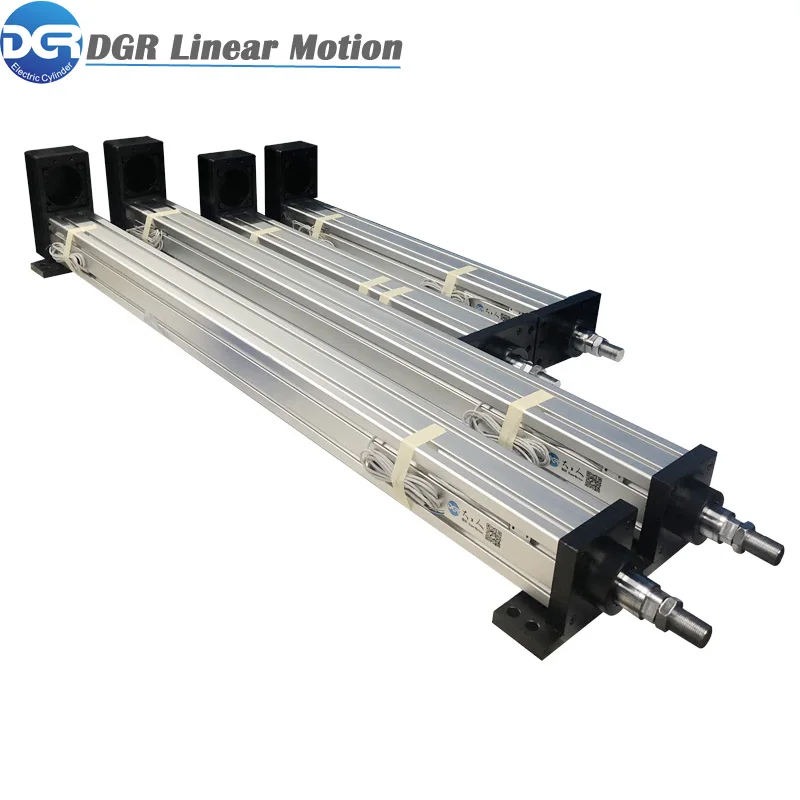

IP68 Waterproof Electric Cylinder Actuators Description:
DGR-80 U Classic Rod Electric Cylinder Actuators with Cylinder bore being 80mm, manufactured with high-grade aluminum, and coming in various stroke lengths. We carry heavy-duty, clevis-type brackets which fit via quick release pin on either side of the units
Stainless Steel Electric Cylinder Actuators Model designations:
DGR
80
T5
300
U
SM86
i1
Electric cylinder series
Cylinder bore
Screw Lead
T5=5mm T10=10mm
Stroke length in mm
Motor mount
Inline:I
Parallel:U
Motor Brand/Power
Stepper motor:SM
42/57/60/86/110
Panasonic 100=100W
Mitsubishi 400=400W
YASKAWA 500=500W
DELTA ........
Reduction ratio
i1=1:1
i1.5=1.5:1
i2=2:1
........
i100=100:1
IP68 Waterproof Electric Cylinder Actuators Parameters:
Motor power(W)
1000
1500
Motor rated torque(N.m)
4.7
7.1
Drive Type
Grinding ball screw
Position repeatability(mm)
±0.02
Screw lead(mm)
5
10
5
10
Max.Speed(mm/s)
250
500
250
500
Max.Thrust(KG)
800N=1763.7lbf
Effective stroke length(mm)
50-3000
Basic weight 0 stroke inline installation(KG)
5.8
Basic weight 0 stroke parallel installation(KG)
7.5
Weight per 100mm stroke (KG)
1.6
Magnetic sensor switch
Three-wire NPN/PNP Magnetic Switch x 3
Wire Length: 2m
If your requirements are beyond the specification chart above, please contact us directly, we can able to customize according to customers' requirements on the load (up to 50ton), speed(up to 5000mm/s) and stroke (up to 3000mm).

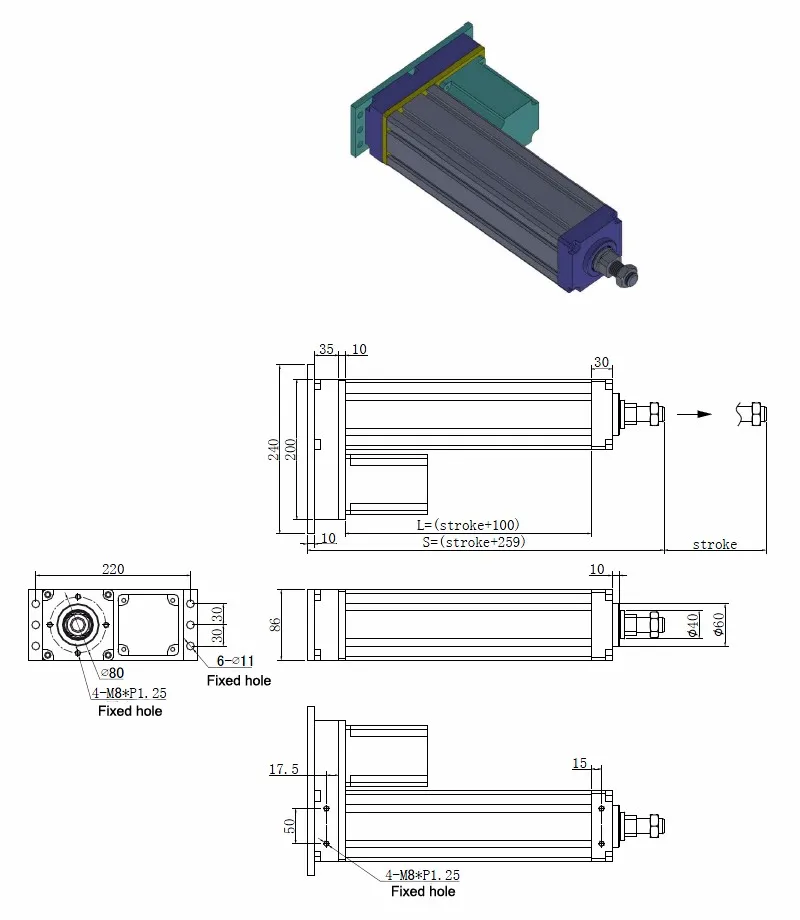

The dimension of DGR-80 U IP68 Waterproof Electric Cylinder Actuators
Main Features Of DGR-80 U IP68 Electric Cylinder Actuators
Accuracy
High precision, repeatability up to 0.02mm.
Service life
Run over a distance of 100,000 km
Material Selection
1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body
2. Various surface treatment options (including: coating, azotizing, oxidation)
3.Selected internationally-famous brands of motor, ball screws, bearings and gears
Features
Rigid connection between the screw nut and the piston rod
Excellent Service
1.DGR Electric cylinders can be fully customized for customer's particular application and requirements.
2. 1 year warranty and lifetime technical services
Duty Cycle
The duty cycle is ensured to be greater than 50% or even 100% continuous operation.
Complete Testing
Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc.
Applications of Stainless Steel Electric Cylinder Actuators
1. Entertainment industry: multi-degree of freedom simulation, multi-degree freedom dynamic entertainment, mechanical arm and joints, dynamic seats, etc.
2. Industrial industries: machinery automation production line, steel continuous casting, petrochemicals, material handling , injection molding machine, mold control, valve control, precision machine tools, pharmaceutical machinery, precision machining of multiple degrees of freedom, mechanical lifting platform, food industry, etc.
3. Automotive industry: automotive presses, automotive manufacturing equipment, etc.
4. Military industry: analogue aircraft, Simulation, etc.
The six-degree-of-freedom motion platform is composed of six electric cylinder actuators, it's widely applied to various training simulators
Electric cylinder actuator is applied to the automatic steel strap packing machine, it controls the movement of the strapping head for more accurate positioning
Electric cylinder actuator servo press is widely used in precision press-fitting operations in various industries
