VD320III Rotary Digital Paper Label Die Cutter Cutting Machine
Product Description
The unique roll to roll digital label die-cutter which can have 4 cutting heads
VD320 Digital Roll To Roll Rotary Label Die Cutter For Sale is developed for work for all kinds of applications. It can use for short work or big work, can die-cut all of shapes which you design, delivery time is very fast, it is your best partner for label printer. This machine collect to laminate, die-cut, waste-remove, slit and rewind together, it is not only for die-cutting, but also work for one slitting machine. The operation is very easy, it apply into label, hang tag, and package widely., we believe that this machine will be apply more and more lines , only expect you find the advantage.
Suitable media: Adhesive label ,PP,Plastic film,PET,PVC,white card paper, art paper and other soft media.
Example of application: Adhesive label ,hang tag,paper box making.
Parameters:
Machine model
VD-320 Digital Rotary Small Label Die Cutter
Max. media roller
Diameter 450mm
Cutting media width
40-340MM
Max. cutting width
320MM
Min. label length
10MM
Max. label length
400MM
Cutting speed
7m per minute (Depend on label shape and size)
Cutting blades
2 pcs (Standard ) Max. 4pcs
Slitting blades
4pcs (standard ) Max. 15pcs
Die-cutting technology
Tungsten steel rotary blades
Cutting Precision
0.05MM(Duplicate )
Cutting tracking Manually
single mark or double mark
Slitting speed
Max. 60m per minute
Slitting precision
0.2MM
Slitting width
10-320MM
Machine size
158cm(w)x90cm(D)x136cm(H)
Weight
Approx. 450KG
Power
100-240VAC, 1000 watts
Warranty
1 year (beside high consumables parts)
Functions :
1. High Speed, Economical Digital Label Finisher!
2. The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, we research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system.
3. The high reliable and professional new model digital label die-cutter are designe for professional label printing company.
4. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.Vin
yl Stic
ker L
Web-Guide

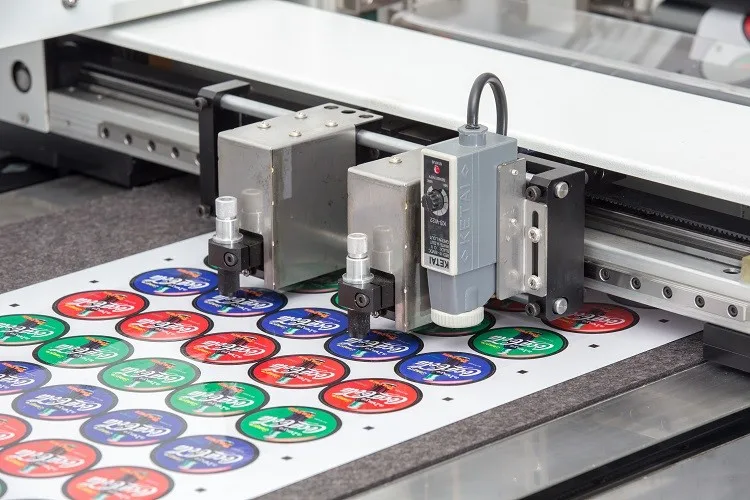

Die-Cutting

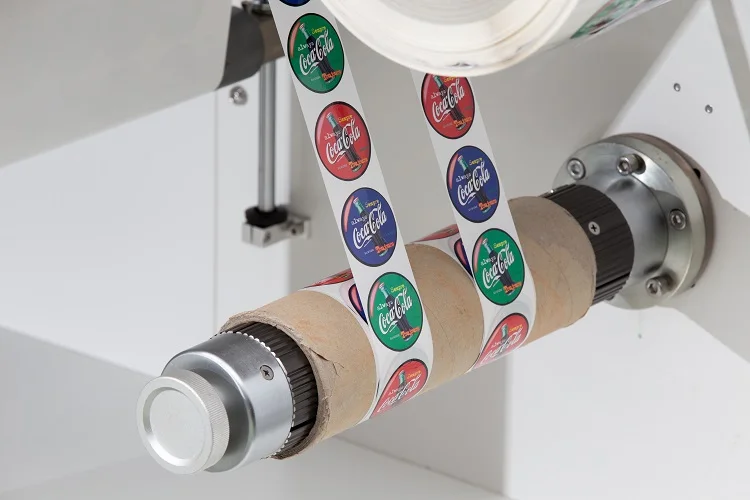

Rewinding
Main Feature

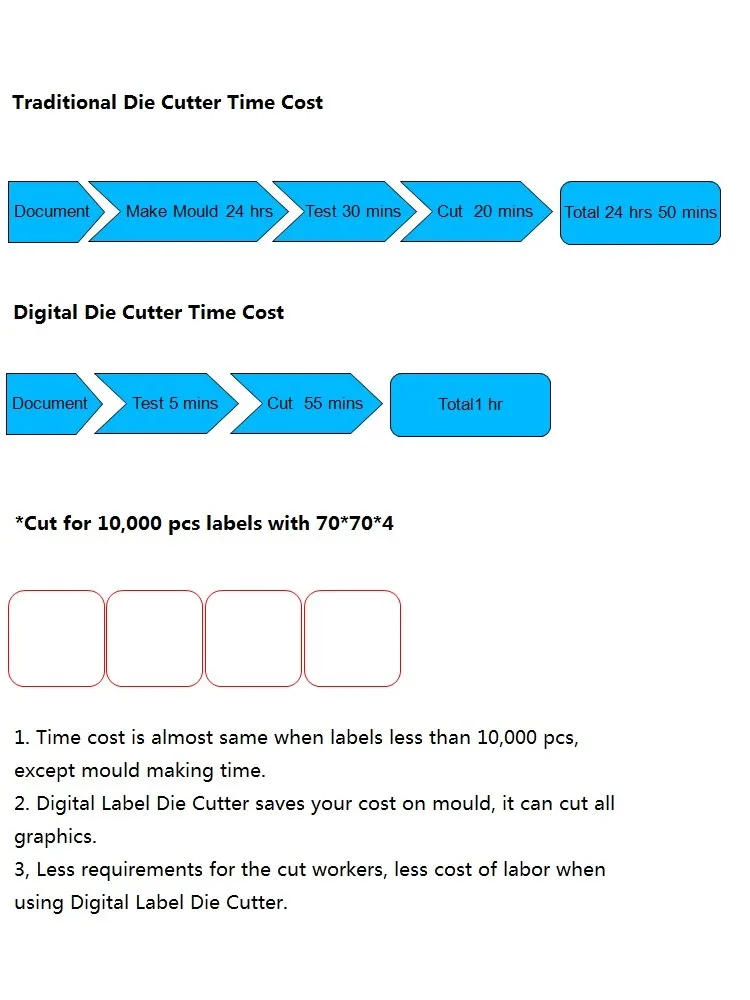

1. Time Saving, compared with traditional die cutter

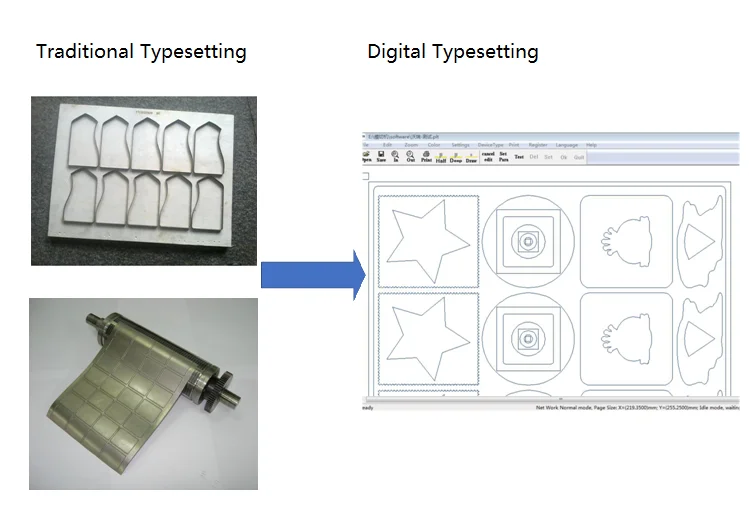

2. No need mould typesetting
3. Suit for small and medium batch cut
a, width: 10-310 mm b, price: 15,000-18,000 USD c, speed: max 6 m/min d, strength: high precision, time saving. e, weakness: low speed
Vorey Technology Co., Ltd. the expert of digital label printing system and digital labe finishing system .
Certifications
All of Our Machines have CE Certifications!
Company Information
Vorey Technology Co., Ltd. is specialized in researching, producing and selling digital label printing equipment and finisher. We are located in Ningbo of Zhejiang which called “ Rich in culture, and an important trading port” . We produce complete new Color DLP VP320C digital label printing machine unless VD320 digital label die-cutter and EDGE850 LED digital label printer. Color DLP VP320C Utilizes advanced S-LED and DELCIS system, it is not only output high resolution image get to 1200 * 2400dpi, but also help you to get a solution for labels production. Whatever you have big batch order or short and sample, you always get a perfect job from it.
