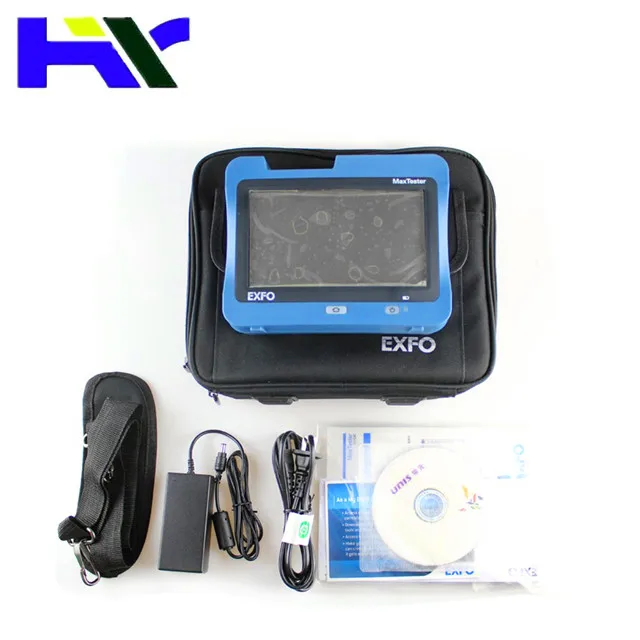

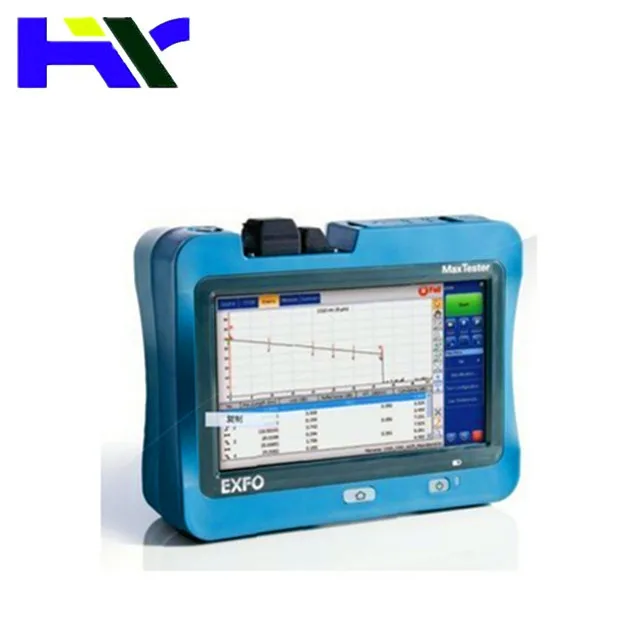

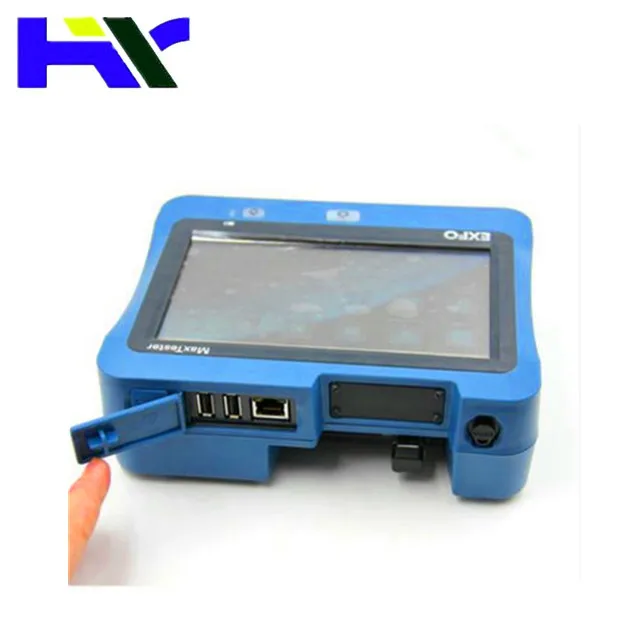

FTTx/PON SM OTDR 1310/1550 nm, 39/38 dB EXFO MAX 730C OTDR
- Category: >>>
- Supplier: Beijing Herui Photoelectric Technology Co. Ltd.
Share on (60773410508):
Product Overview
Description
Features

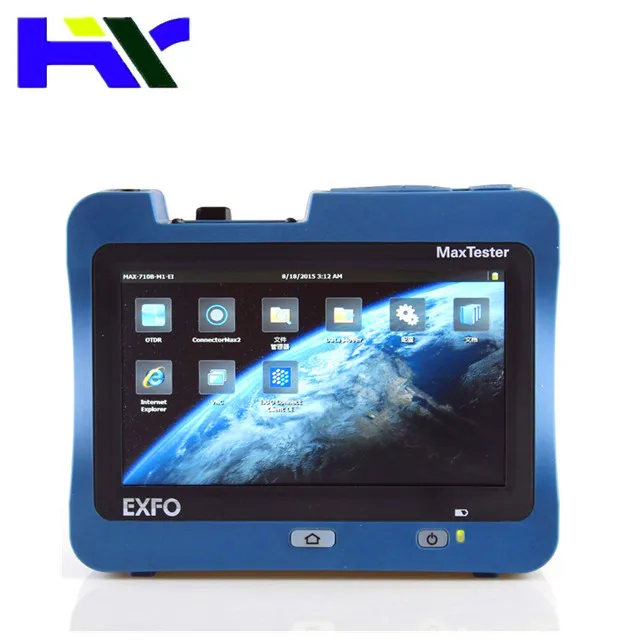

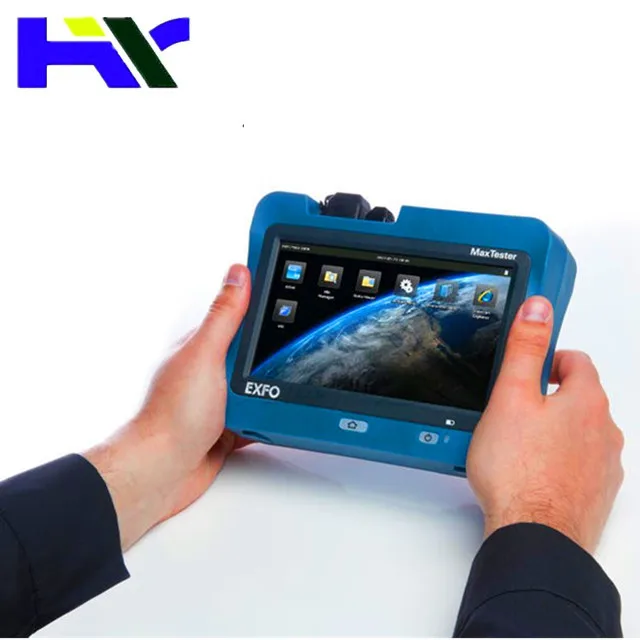

Handy, lightweight, powerful, tablet-inspired design
7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry
12-hour autonomy
Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 39/37 dB
Rugged design built for outside plant
Applications
FTTx last-mile installation and troubleshooting
Short access-network testing
FTTA fiber-DAS installations
CATV/HFC network testing
Specifications

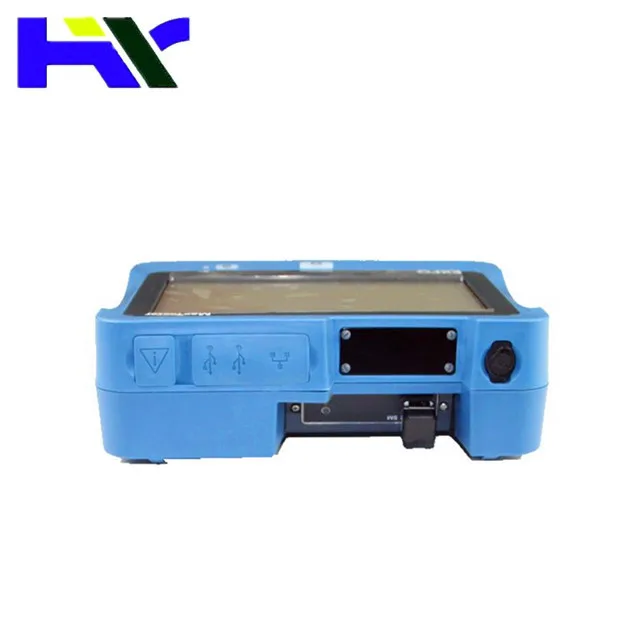

Display | Two USB 2.0 ports |
Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
Batteries | Rechargeable lithium-polymer battery |
Power supply | Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Wavelength | 1310/1550/1625nm |
Dynamic range | 39/38dB |
Event dead zone | 1m |
Attenuation dead zone | 4m |
Distance range | 0.1 to 160 km |
Pulse width | 5 ns to 20 us |
Linearity | ±0.05dB |
Loss threshold | 0.01dB |
Loss resolution | 0.001dB |
Sampling resolution | 0.04 to 5m |
Sampling points | Up to 256 000 |
FAQ
1. About the quality?
After price confirmation, you can require for samples to check our quality.
2. Can you accept small order?
Yes, small order is available.
We support new project of our customers, as we know business is always from small order.
3. Can you accept the OEM service?
Yes. we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
