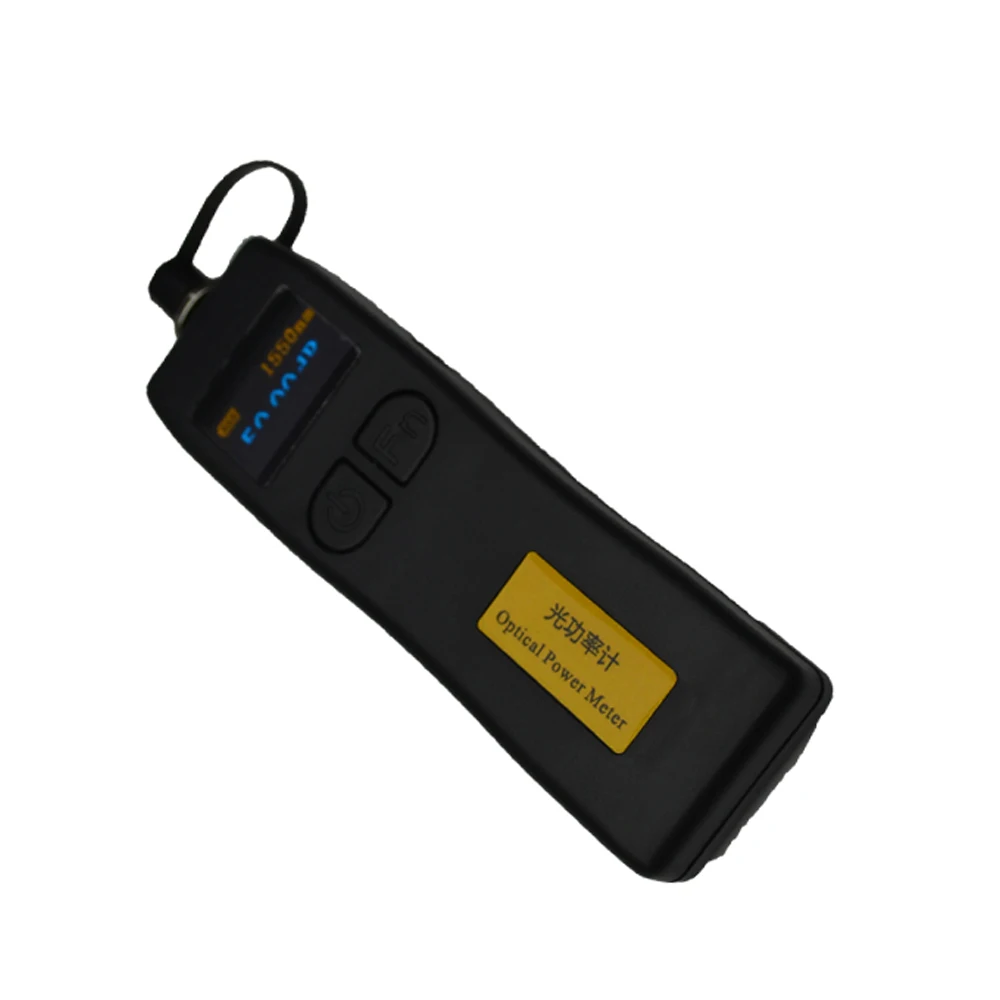

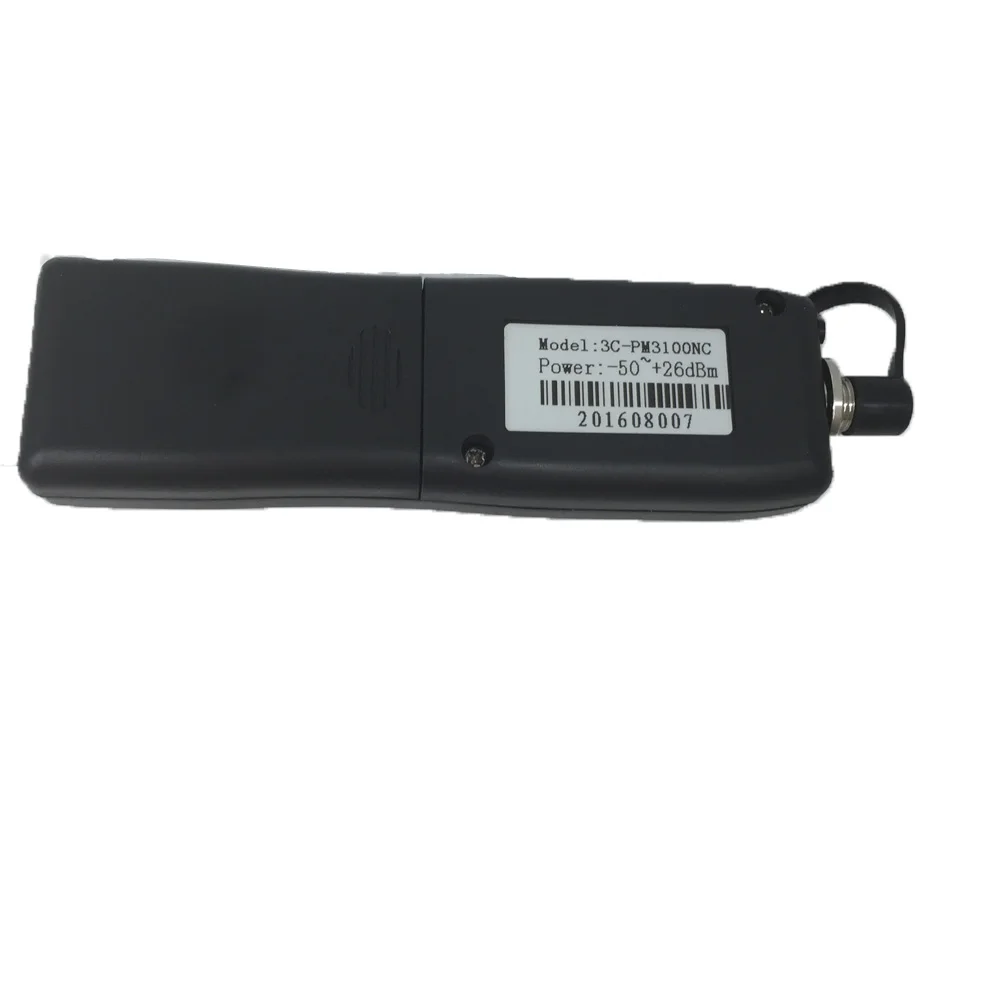

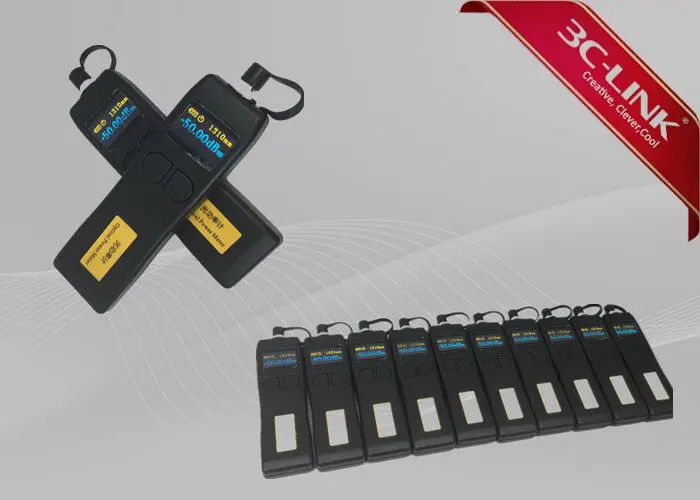

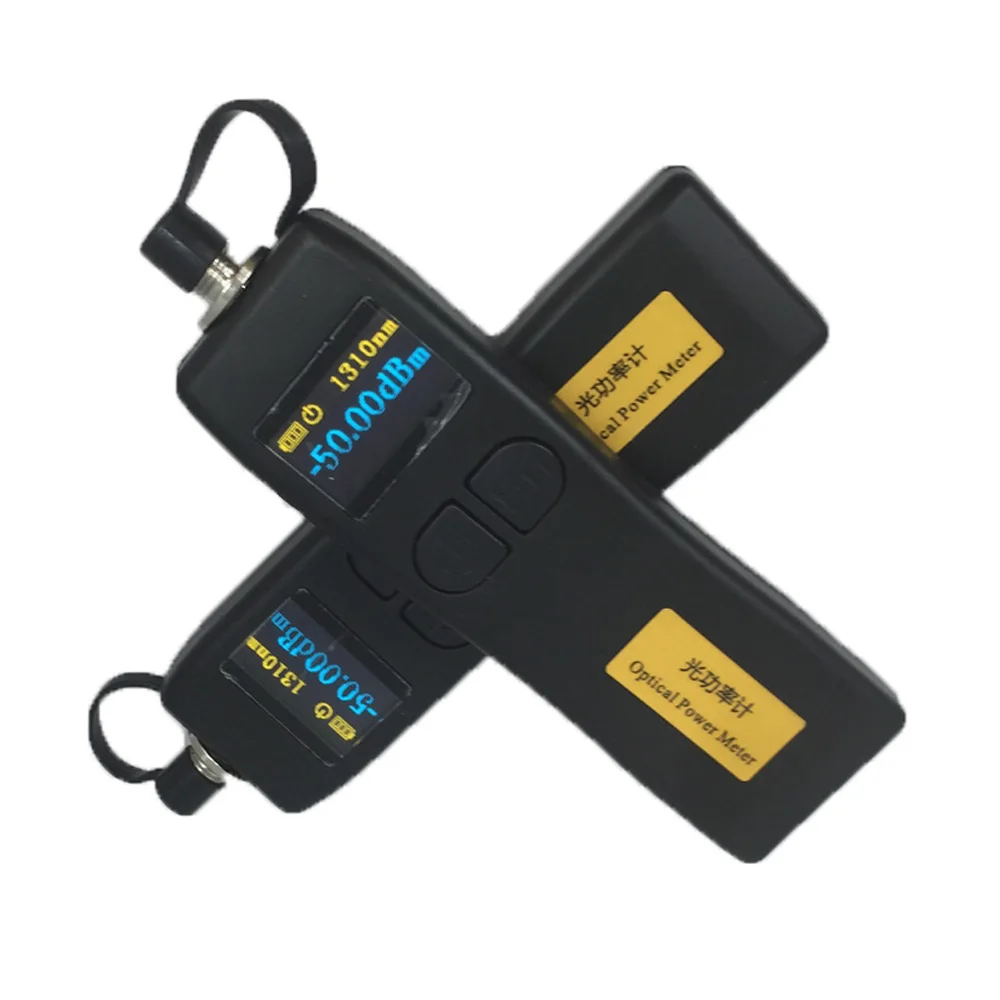

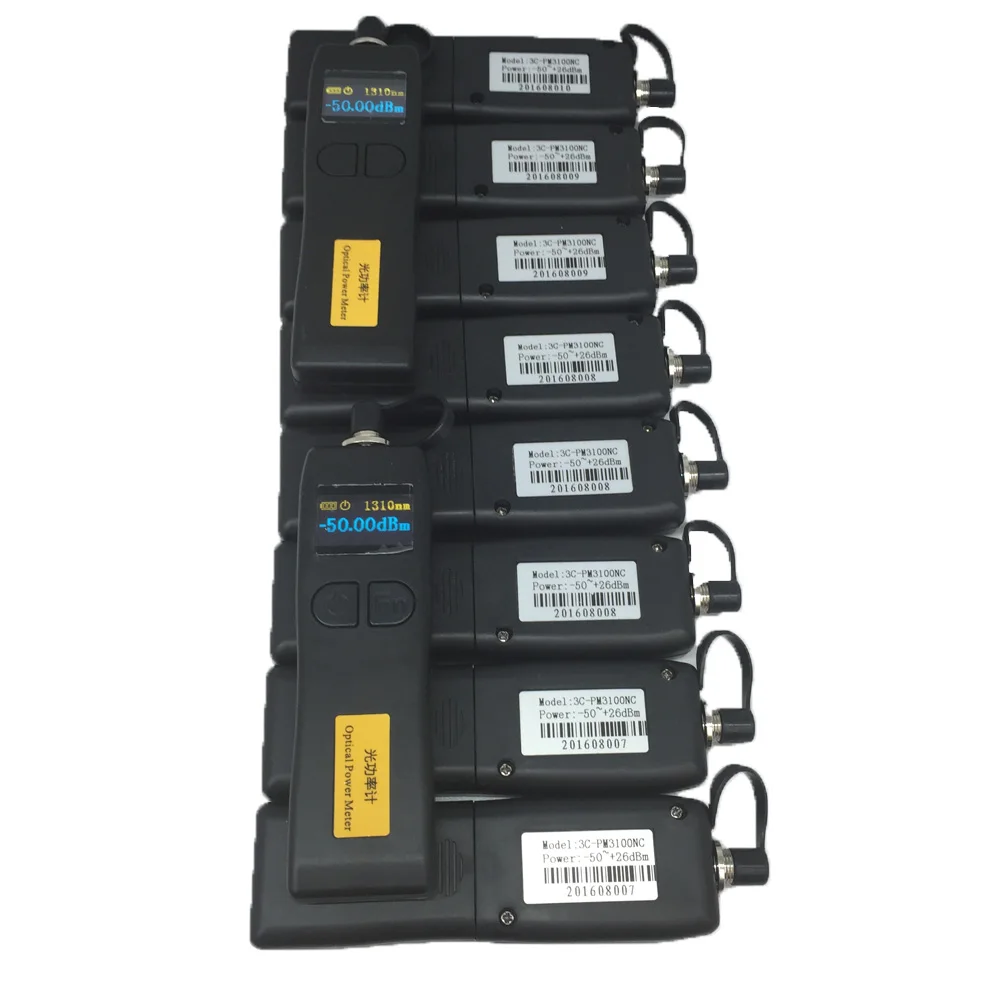

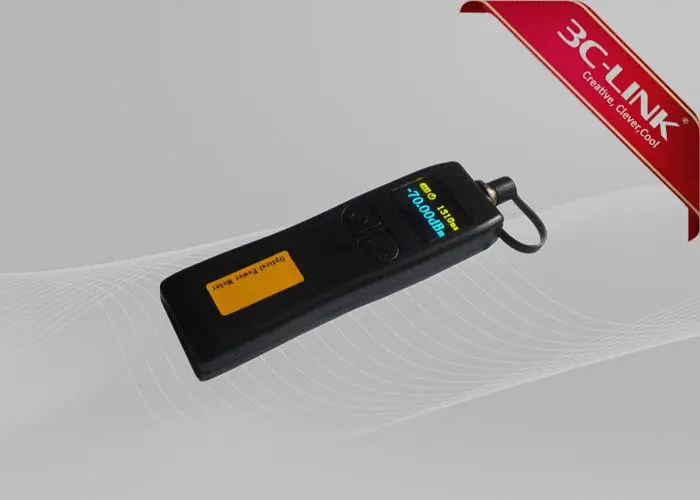

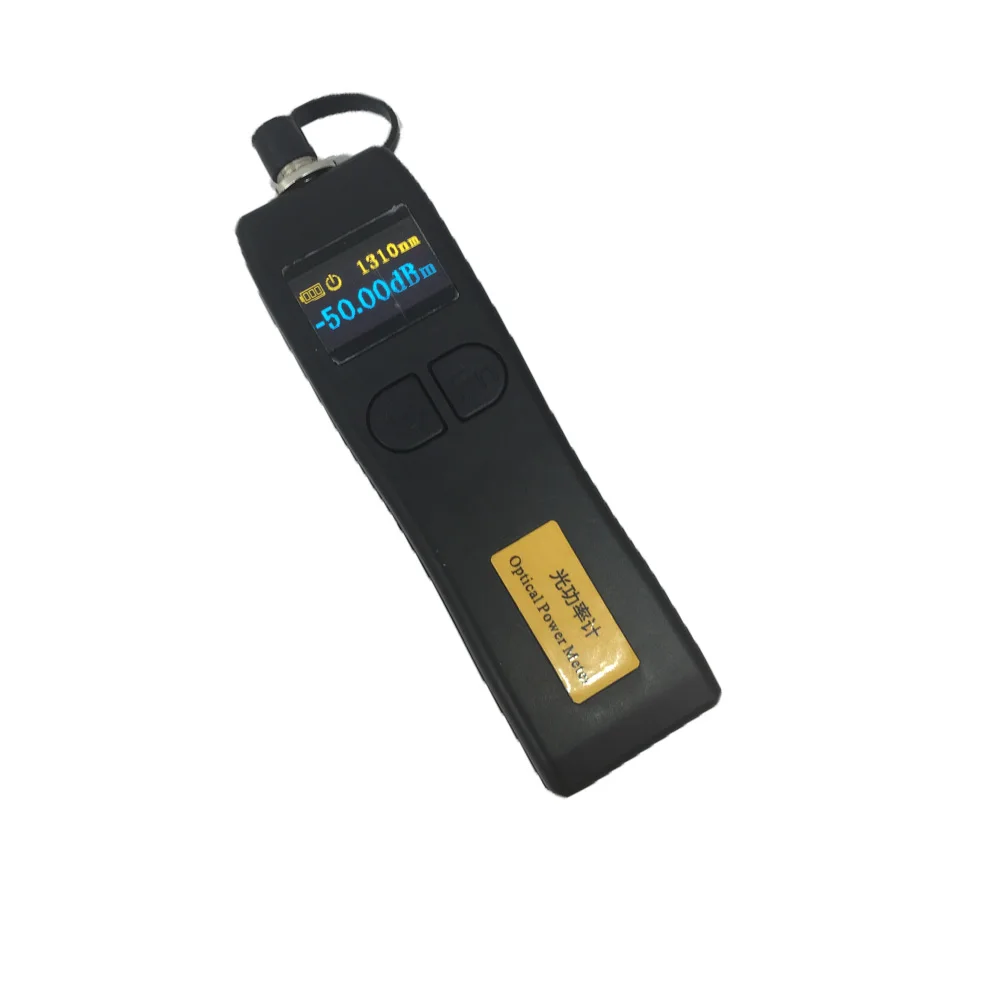

Pocket-Size Optical Power Meter Fiber Optic Tester, power meter small type
3C-PM3100N pocket-size optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy.
Features
* OLED screen, bright color and clear display
* OLED screen provides 180 degree view angles
* Very small size and fast test without warm-up
* 2.5mm universal port
* 6 calibration wavelength
* Up to 100 hours working time
* 10 minutes auto-off time
* Relative power and absolute power display
Application
* Maintenance in Telecom
* Maintenance CATV
* Test Lab of optical fibers
* Other Fiber Optic Measurements
Measurement Range (dBm): |
-70~+6 / -50~+26
|
Wavelength: |
850/1300/1310/1490/1550 /1625
|
|---|
Detector Type: |
InGaAs
|
Connector: |
FC
|
|---|
Operating Time (h): |
10 Hours
|
Dimensions (mm): |
110×32×17mm
|
|---|
Model |
3C-PM3100NT |
3C-PM6100NC |
Measurement Range (dBm) |
-70~+6 |
-50~+26 |
Wavelength Range (nm) |
800~1700 |
Detector Type |
InGaAs |
Uncertainty |
±5% |
Calibrated Wavelength (nm) |
850/1300/1310/1490/1550 /1625 |
Accuracy (dB) |
0.05dB |
Operating Temperature (℃) |
-10~+50 |
Auto-off Time (min) |
10 |
Operating Time (h) |
100 |
Dimensions (mm) |
110×32×17 |
Battery |
AA 2pcs |
Weight (g) |
45 |
