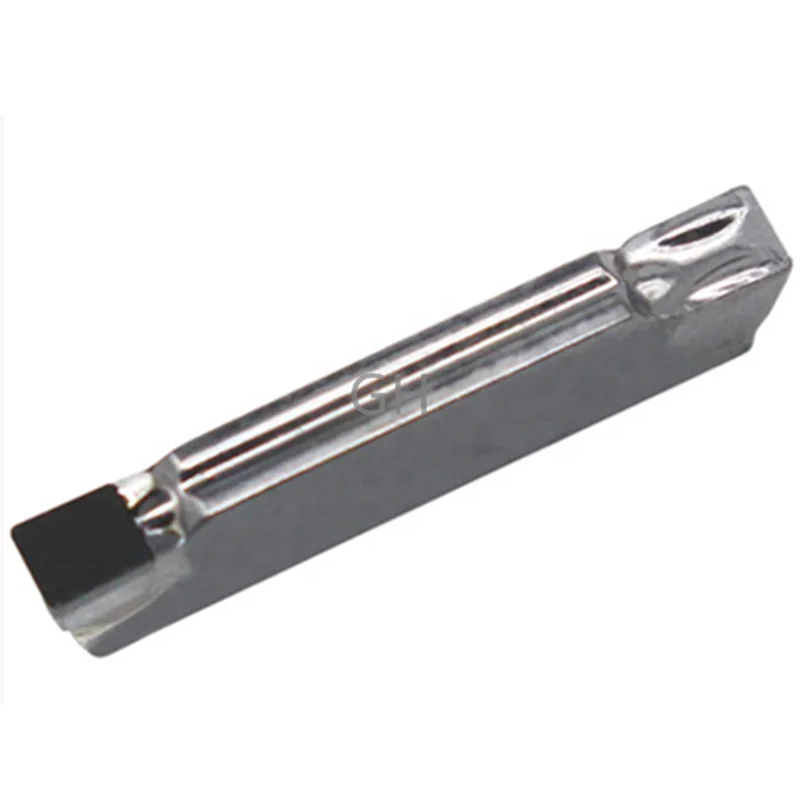

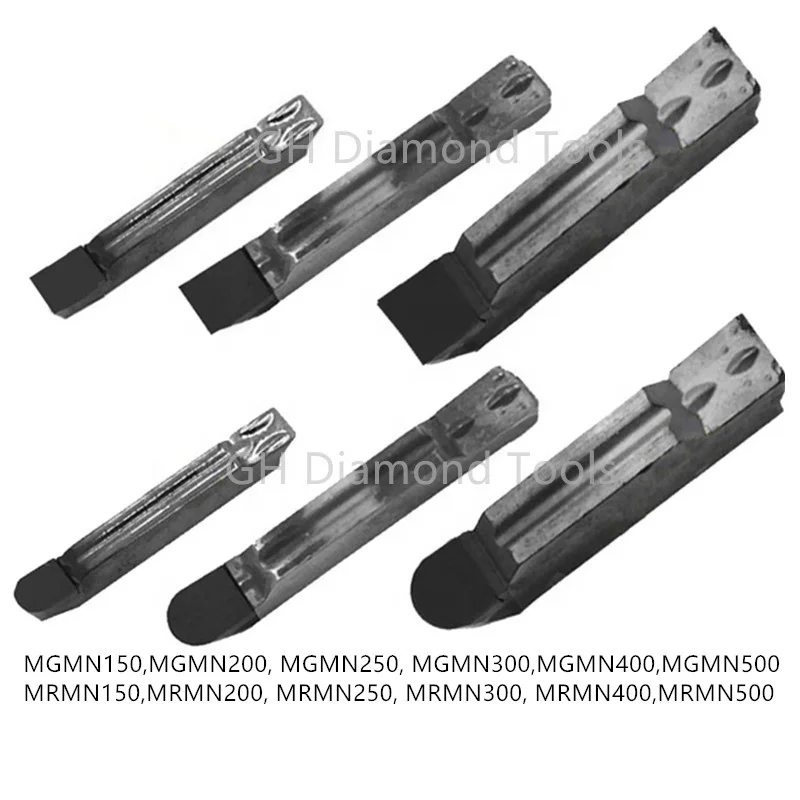

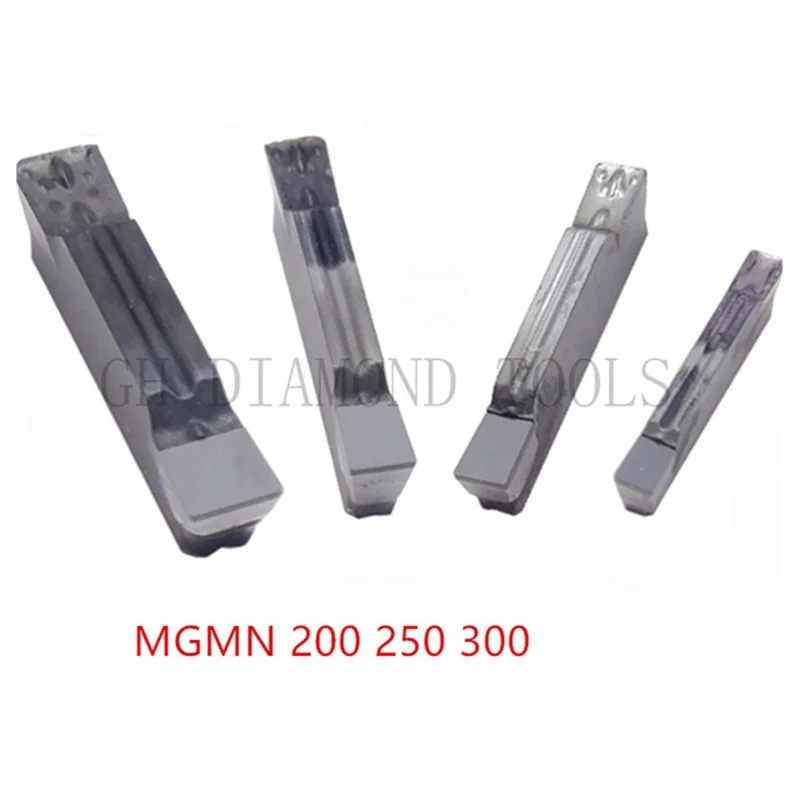

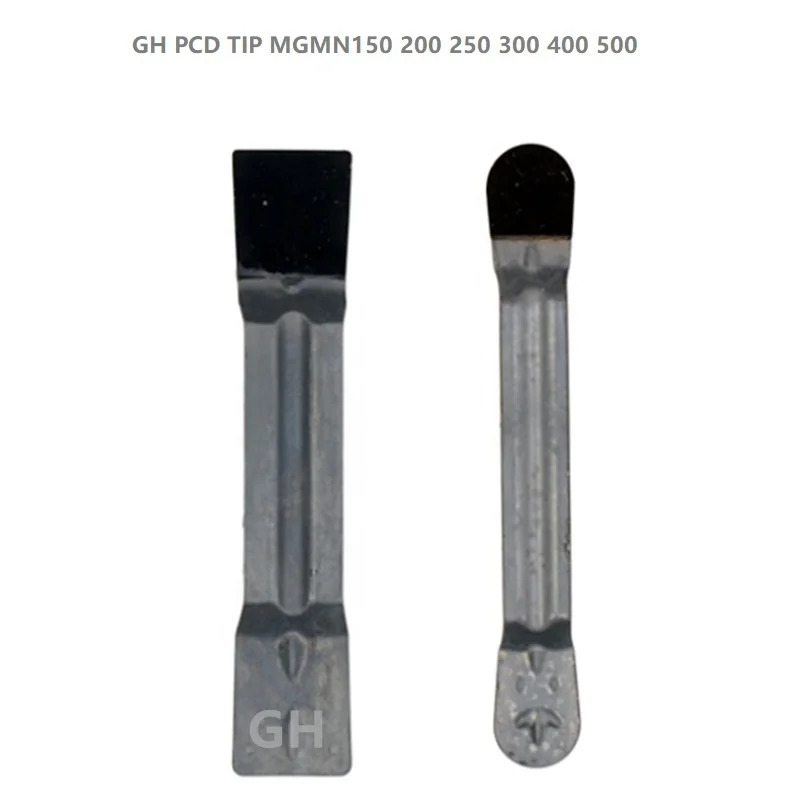

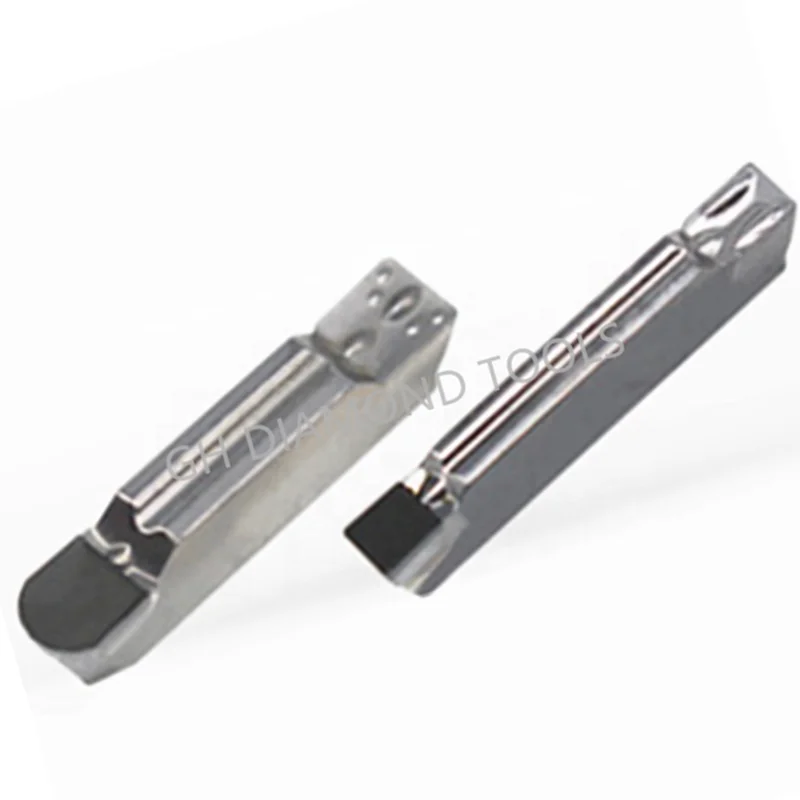

Diamond PCD grooving inserts MGMN MRMN for grooving tool MGEHR

l  PCD

PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

Features:
--All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.

--The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.

---With sharp cutting edge , sharp, high precision,

---The body uses high quality tungsten carbide or steel.

-- Machines imported from UK, Germany, Japan

Application:

PCD may be cost effectively employed to machine the following broad range of materials:

• Non-ferrous metals and alloys including, aluminum, copper, bronze, brass, green tungsten carbide, precious metals and MMC's.


• Non-metallic materials including, ceramics, reinforced plastics, hard rubber, chipboard, MDF's and other fibreboards, etc.

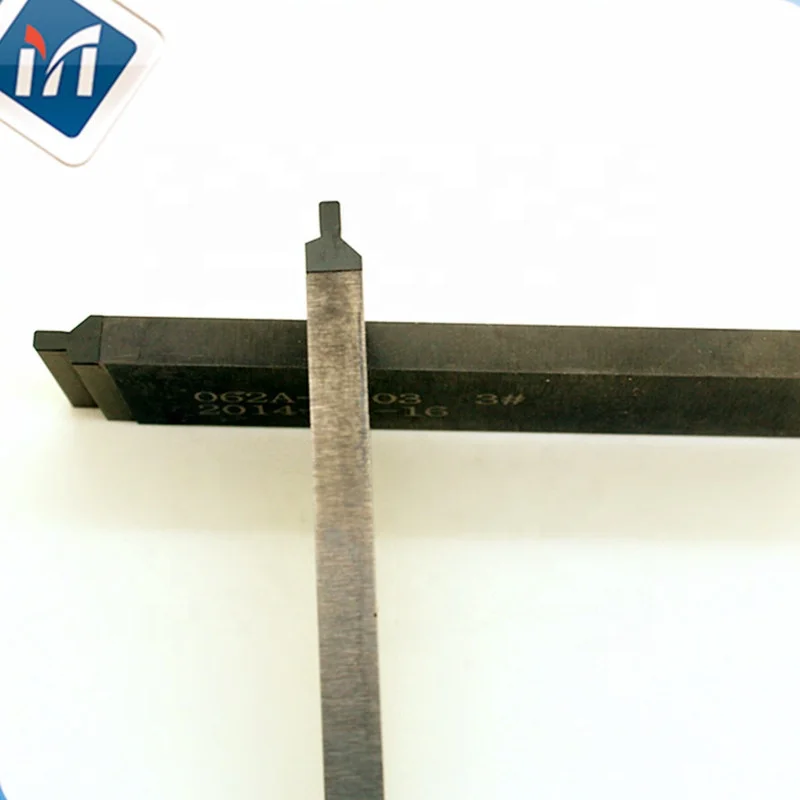

Diamond and CBN grooving tools

Diamond grooving tools and profile turning tools with extremely high precision for manufactoring pistons.

These tools are used mainly for the grooving of piston head rings.

For external grooving, groove turning, profiling and undercutting. Various PCD materials and CBN materials find application to the workpiece material.
