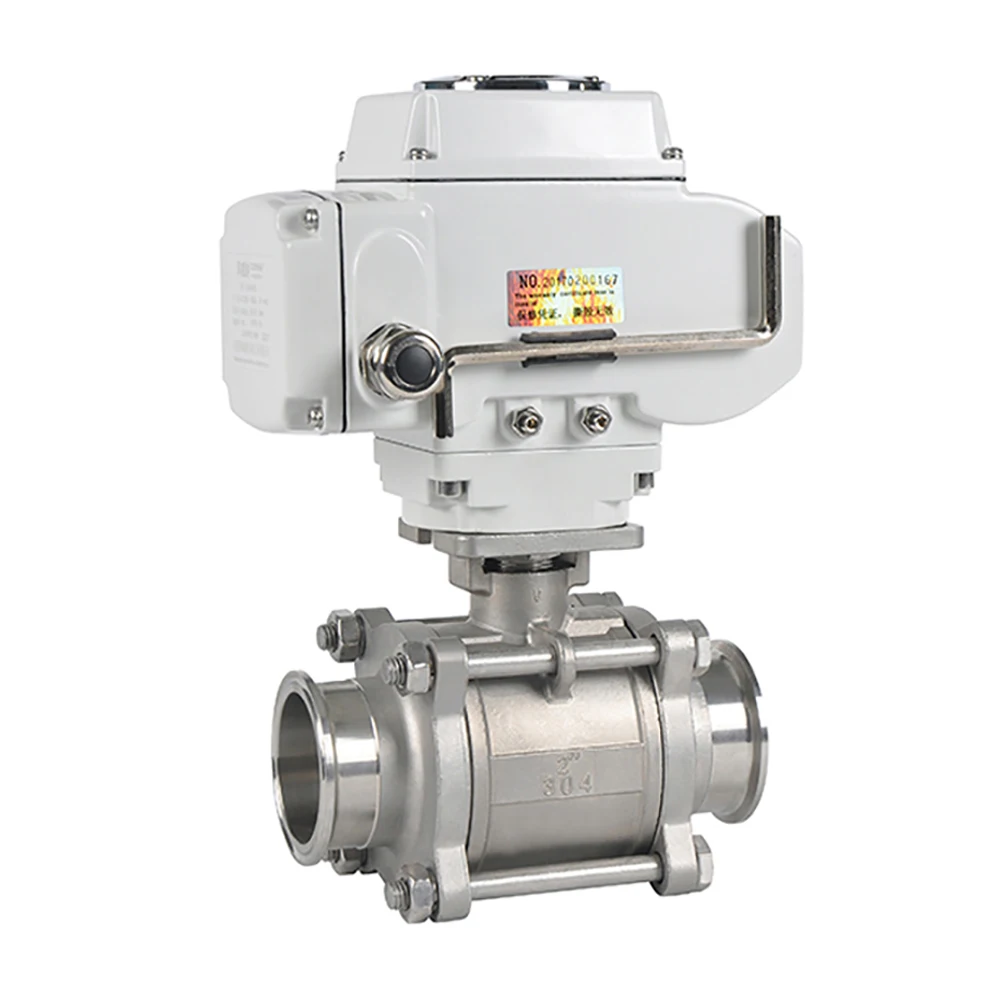

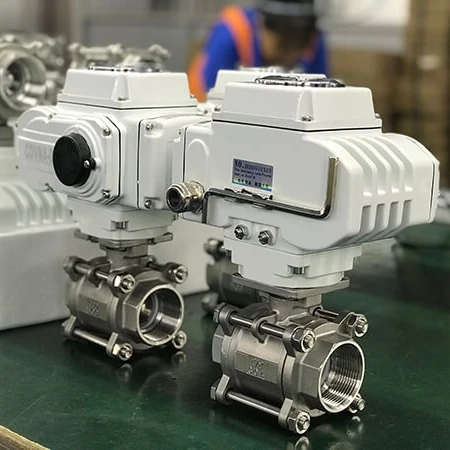

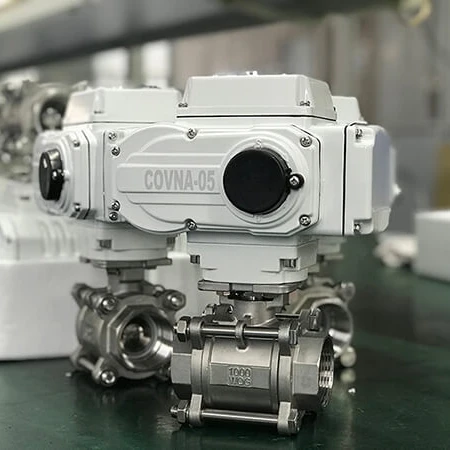

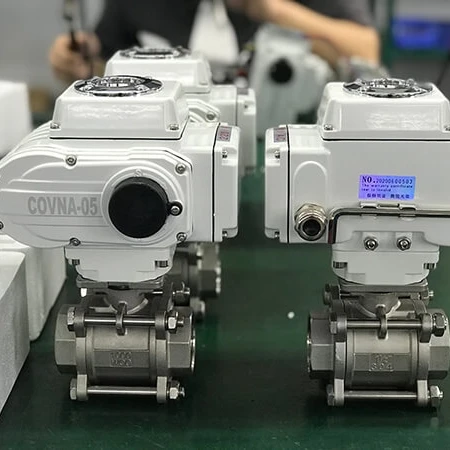

COVNA DN50 2 inch 2 Way 3 Pieces 12V DC Stainless Steel Electric Motorized Actuated Ball Valve Welding Ball Valve
- Category: >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (60773486136):
Product Overview
Description
Product Description
Feature:

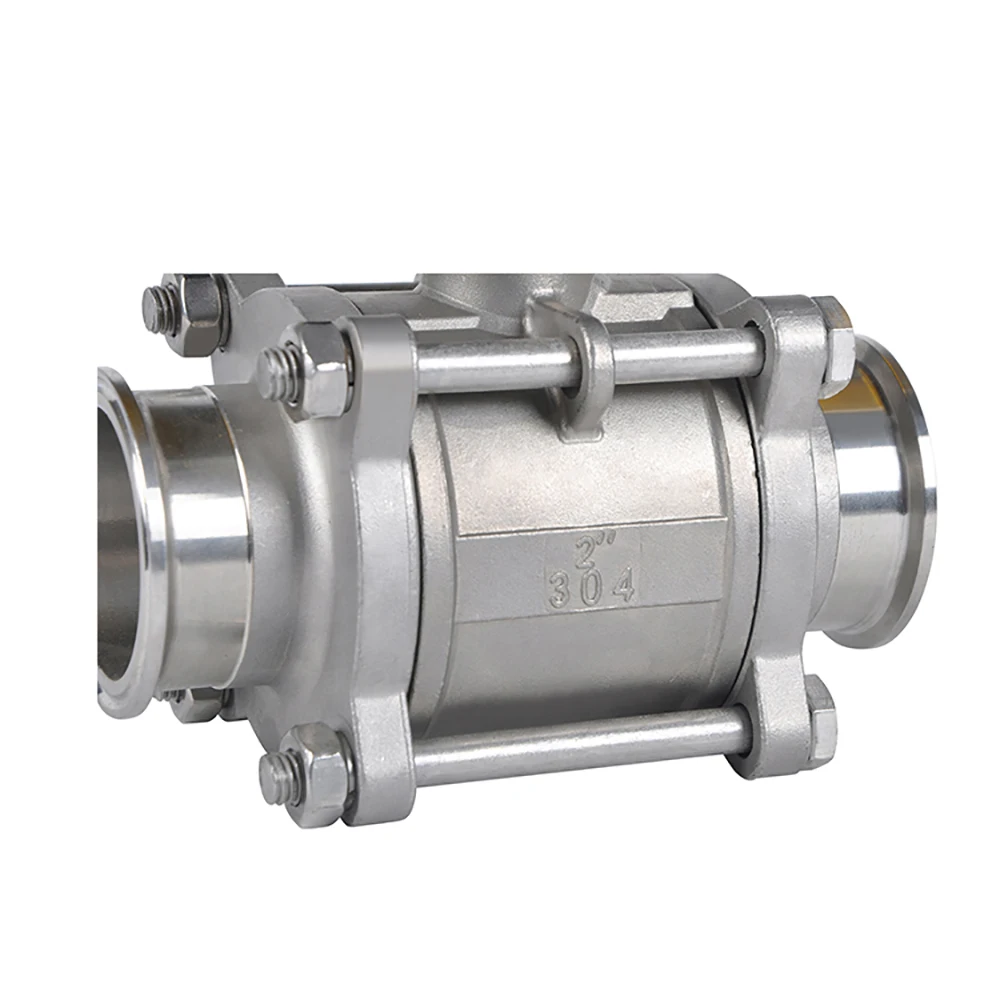

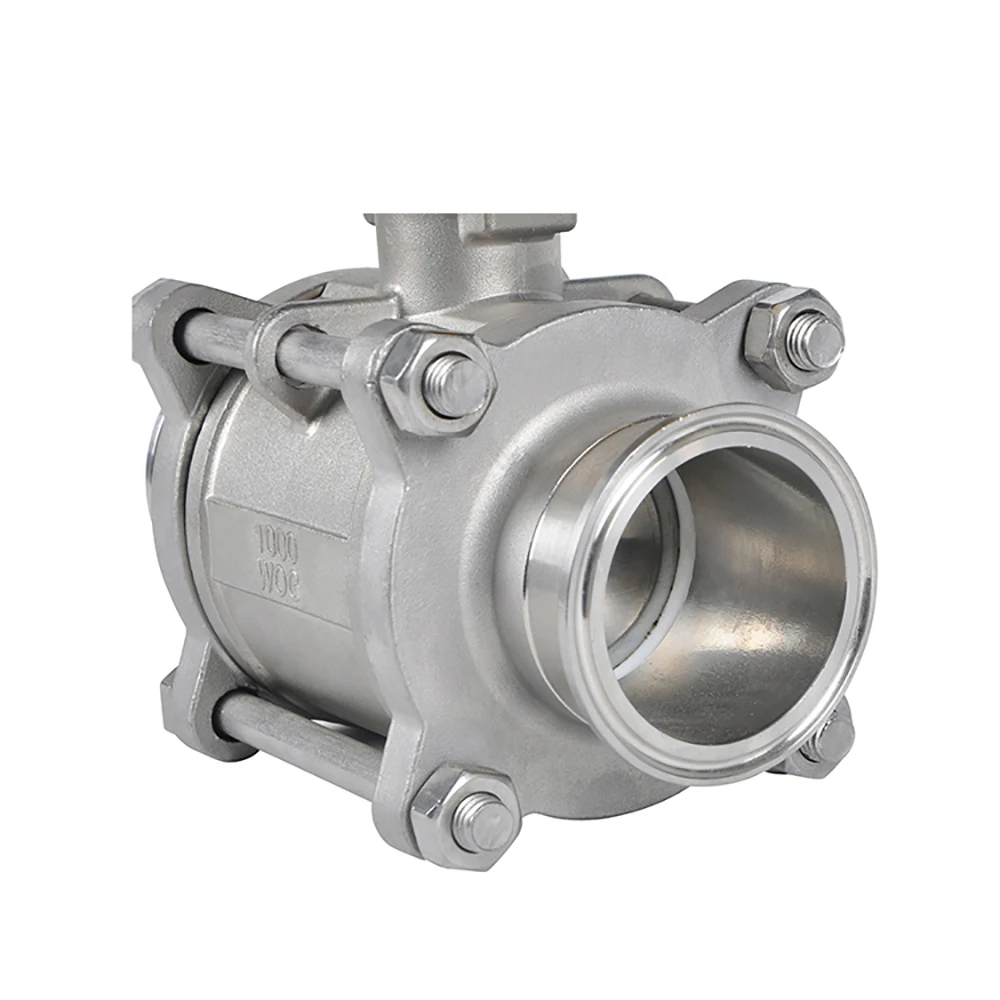

● 3-piece ball valve design. Easy to maintain and repair to extend the lifespan
● 4 Versions of seals for choice: NBR, EPDM, VITON, PTFE, and PPL. To meet various mediums requirements
● Multi control methods for your choice: AC/DC power supply, signal control, Bluetooth control and manual override to help you
control locally and remotely.
● Full port design with high flow rate feature

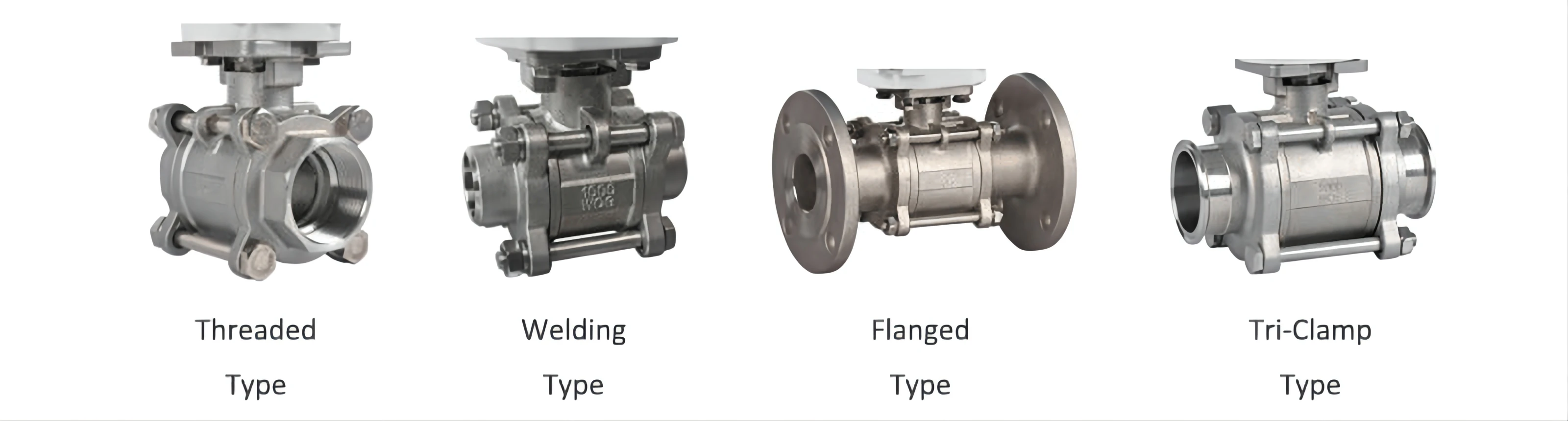

● Available in threaded, flanged, tri-clamp, and welding connections to meet your pipeline's standard
● Available in normally closed type or normally open type
● Vast applications like water treatment, HVAC, paper & pulp, power plant, FGD industry, and other applications
● 4 Versions of seals for choice: NBR, EPDM, VITON, PTFE, and PPL. To meet various mediums requirements
● Multi control methods for your choice: AC/DC power supply, signal control, Bluetooth control and manual override to help you
control locally and remotely.
● Full port design with high flow rate feature
● Available in threaded, flanged, tri-clamp, and welding connections to meet your pipeline's standard
● Available in normally closed type or normally open type
● Vast applications like water treatment, HVAC, paper & pulp, power plant, FGD industry, and other applications
Item | COVNA DN50 2 inch 2 Way 3 Pieces 12V DC Stainless Steel Electric Motorized Actuated Ball Valve Welding Ball Valve | |||||
Applicable Standards | GB, DIN, ANSI, ASME, JIS, API | |||||
Size Range | 19mm to 102mm | |||||
Operating Pressure | PN16 | |||||
Sealing Material | PTFE, PPL | |||||
End Connection | Threaded/Flanged/Welding/Tri-clamp | |||||
Temp. of Media | Range from -10 to +80°C | |||||
Size Range | DN08 to DN100 | |||||
Operating Pressure | 0~1.0MPa | |||||
Control Mode | ON OFF Type, Modulating Type, Intelligent Type and Explosion-proof Type | |||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | |||||
Body Material | Cast Iron, SS304, SS316, SS316L | |||||
Core Material | Cast Iron, SS304, SS316, SS316L | |||||
Sealing Material | NBR: -5℃~80℃, EPDM: -5℃~120℃, PTFE: -30°C~180°C | |||||
Structure | 2 Way | |||||
Connection | Double Union | |||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid | |||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | |||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | |||||

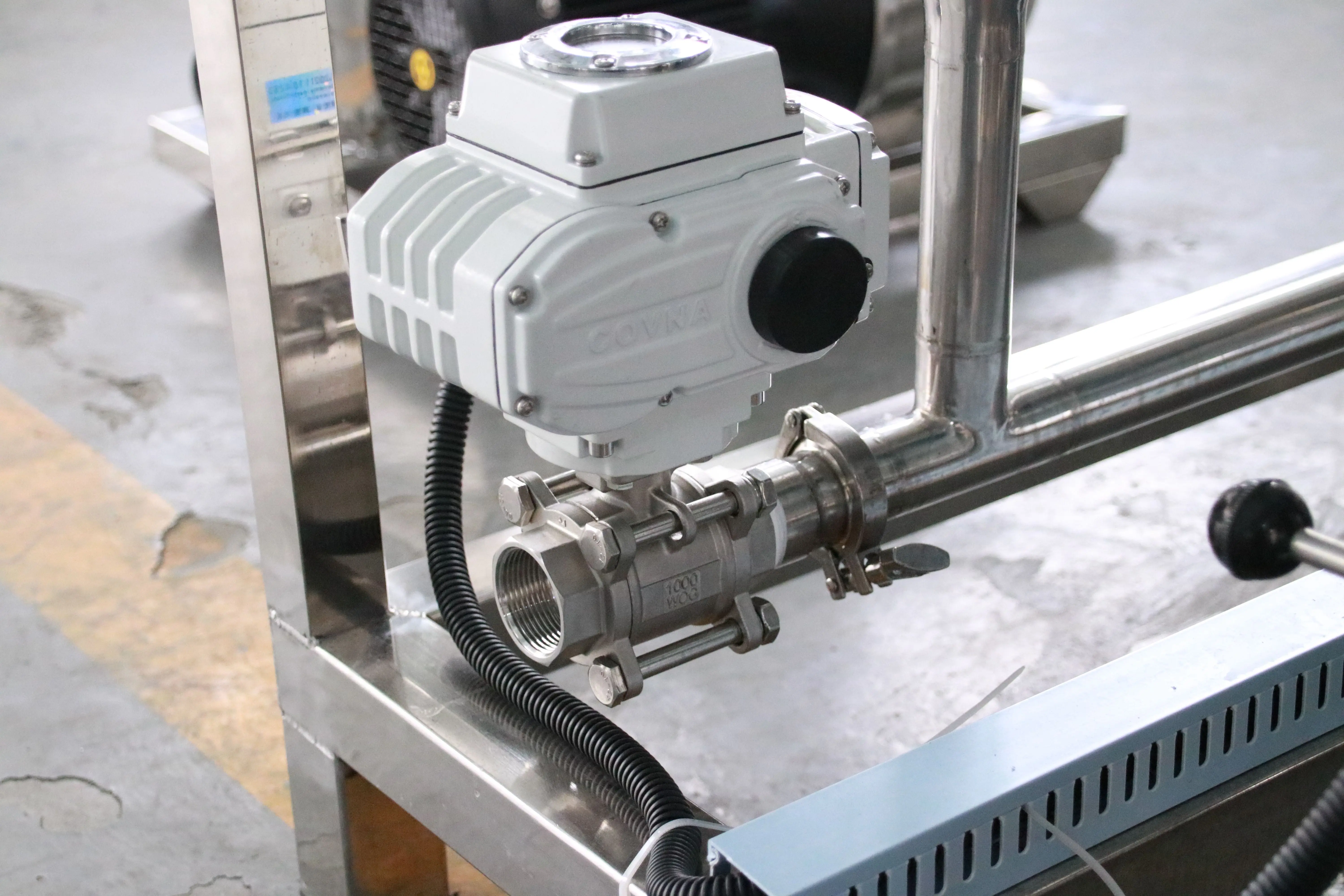

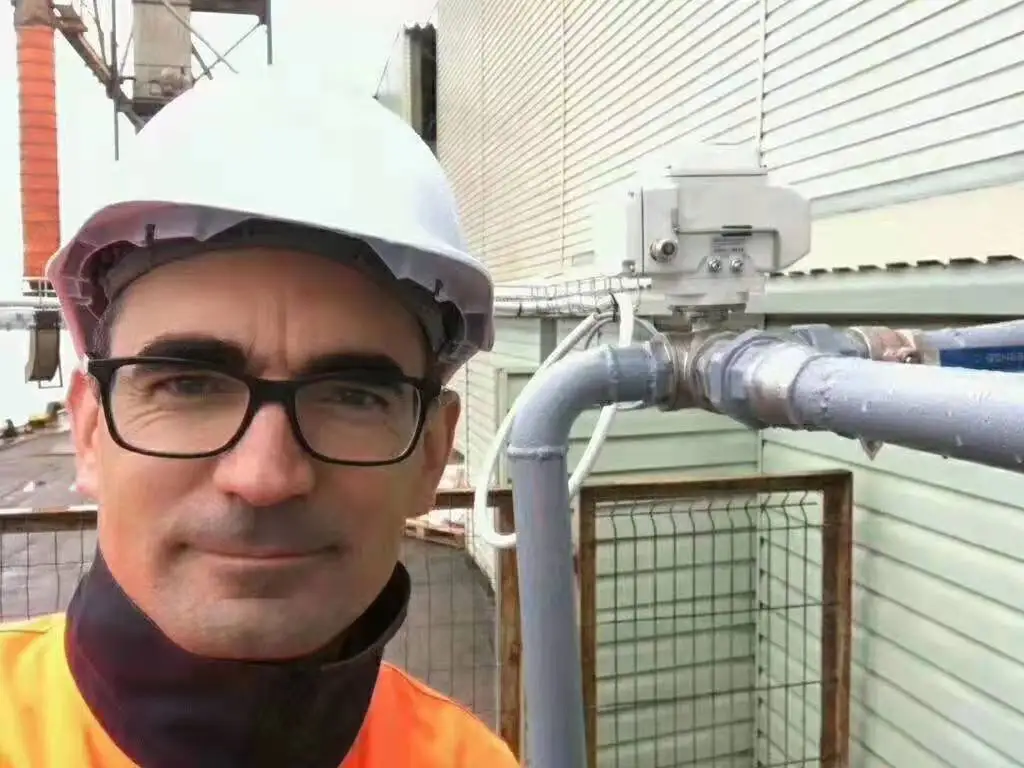

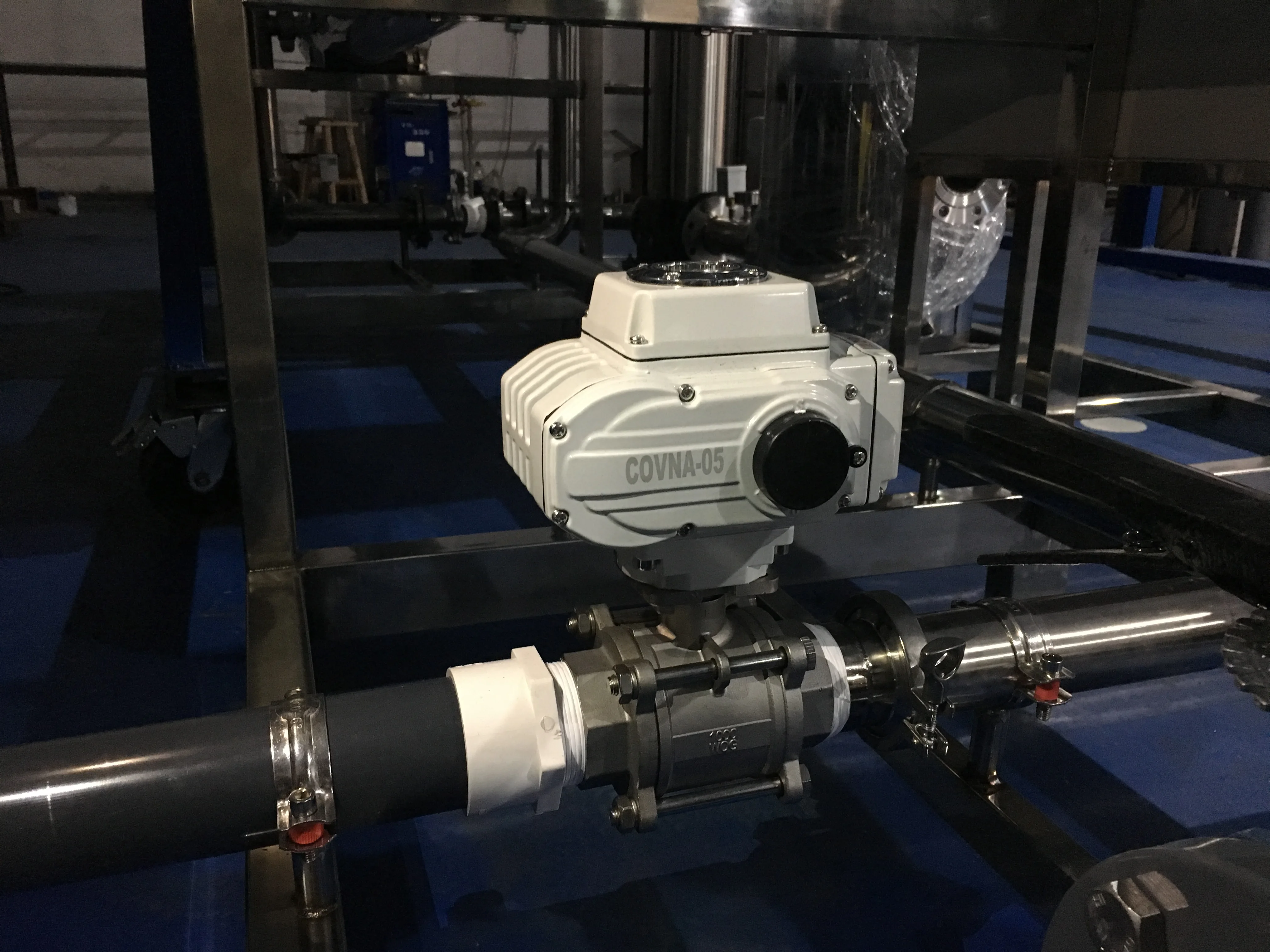

Engineering Case

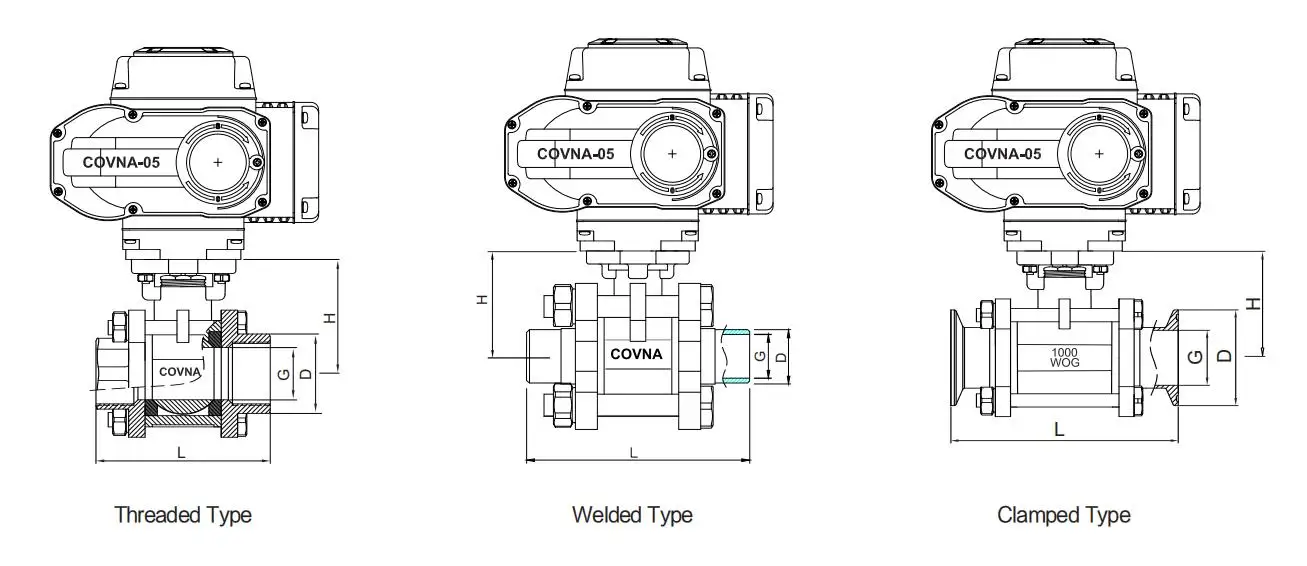

Dimension:
NO. | Name | Materia |
1 | Screw | Stainless Steel 304 |
2 | Connector | Stainless Steel Cf8、CF8M、CF3、CF3M |
3 | Seat | PTFE、Nylon、PPL、H/Y |
4 | Ball | Stainless Steel 304、304L、316、316L |
5 | Body | Stainless Steel Cf8、CF8M、CF3、CF3M |
6 | Nut | Stainless Steel 304 |
7 | Stem | Stainless Steel 304、304、316、316L |
8 | Gasket | Stainless Steel 304、316L |
9 | Packing | PTFE |
10 | Gland | Stainless Steel 304、316L |
11 | Connecting Yoke | Stainless Steel CF8 |
12 | Connecting Set | Stainless Steel 304 |
13 | Screw | Stainless Steel 304 |
14 | Hand Gear | Plastic |
15 | Electric Actuator | ON/OFF、Regulation 、Multi-Turn、Explosion-Proof |

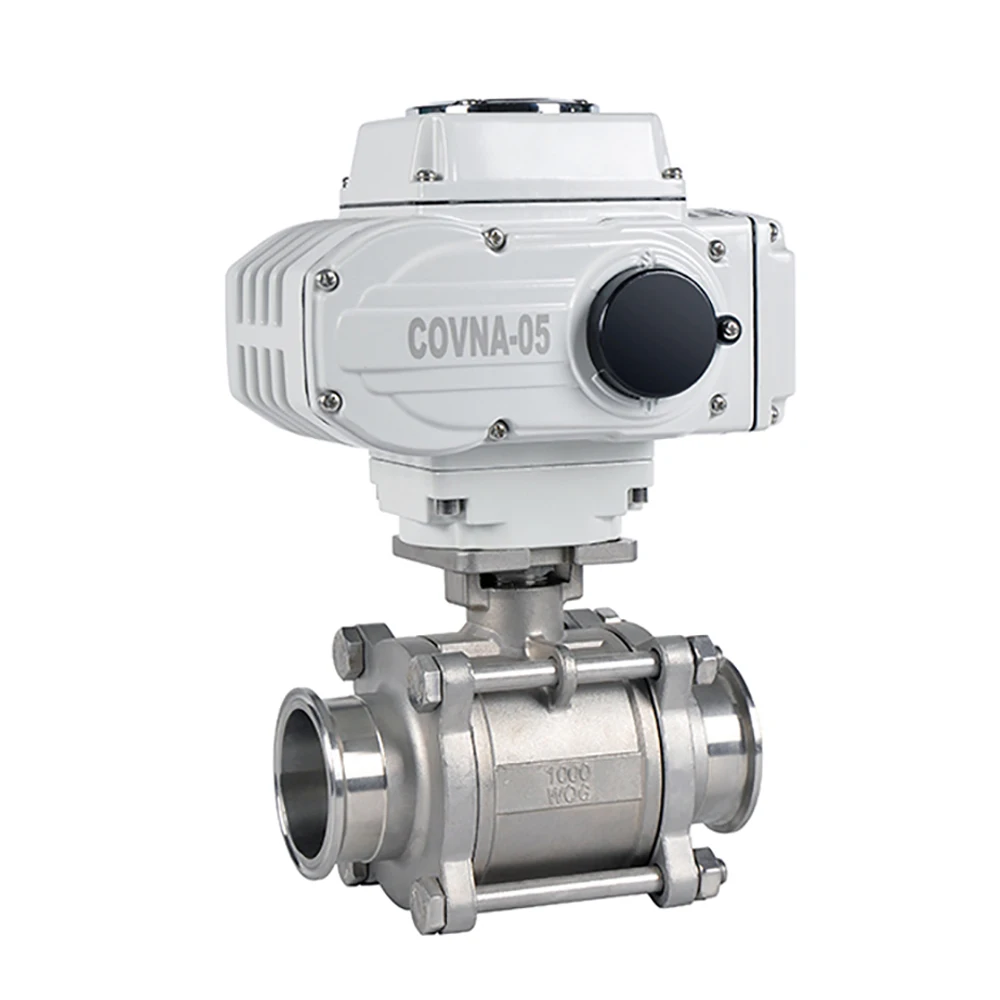

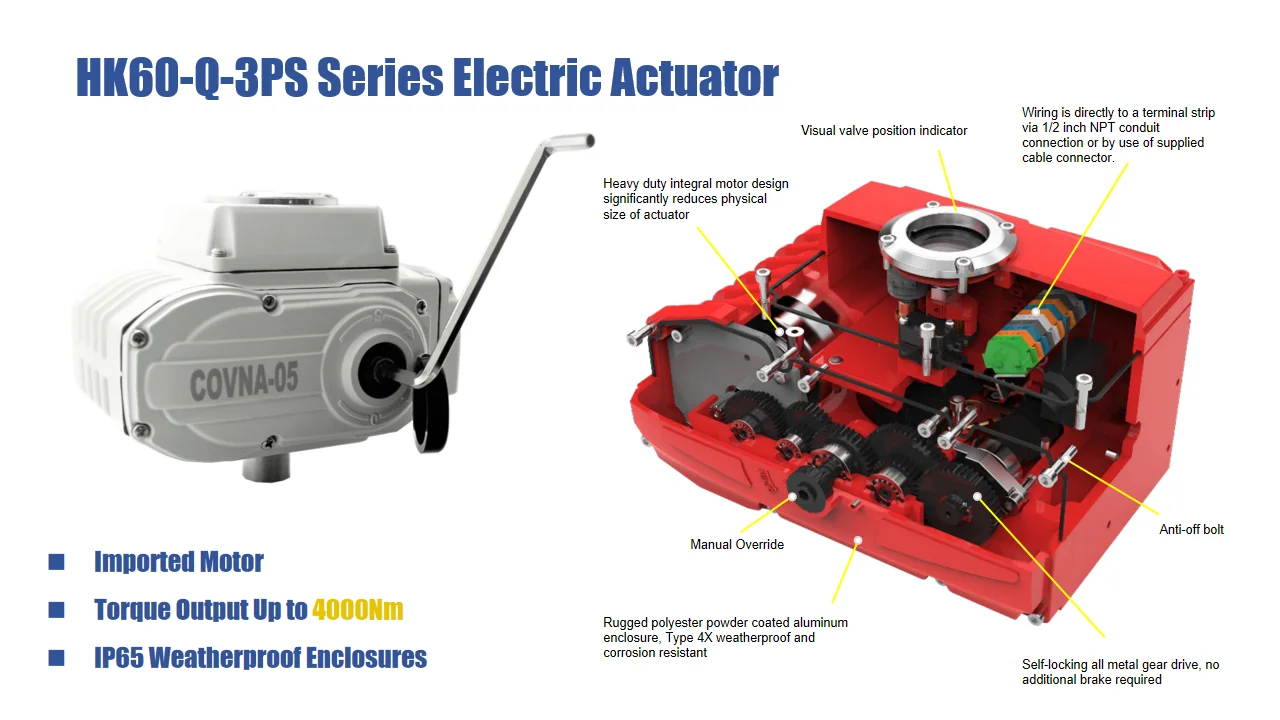

Electric Actuator
Features Of COVNA Quarter-Turn Electric Actuator:
●90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Technical Parameter of Valve Body
Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 20 / 64 bar |
Temperature Of Media | -30~180℃ (-22℉~356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
Port size range | DN08-DN100 | Voltage Tolerance | ±10% |
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | Port Thread | Threaded/Flanged/Welding/Tri-cla |
Buyer Feedback
Company Profile
VR
Company Strengths:
● COVNA-Specialized Manufacturer of High Quality Actuated Valve for 22＋ Years.
● German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
● Extensive flow control project experience and various product solutions can beoffered.
● OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard.
● Inquiry will be replied within 8 hours.
● Custom complaints handed by one stop professional service.
● ISO 9001certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
● Industrial standard 1 year warranty.

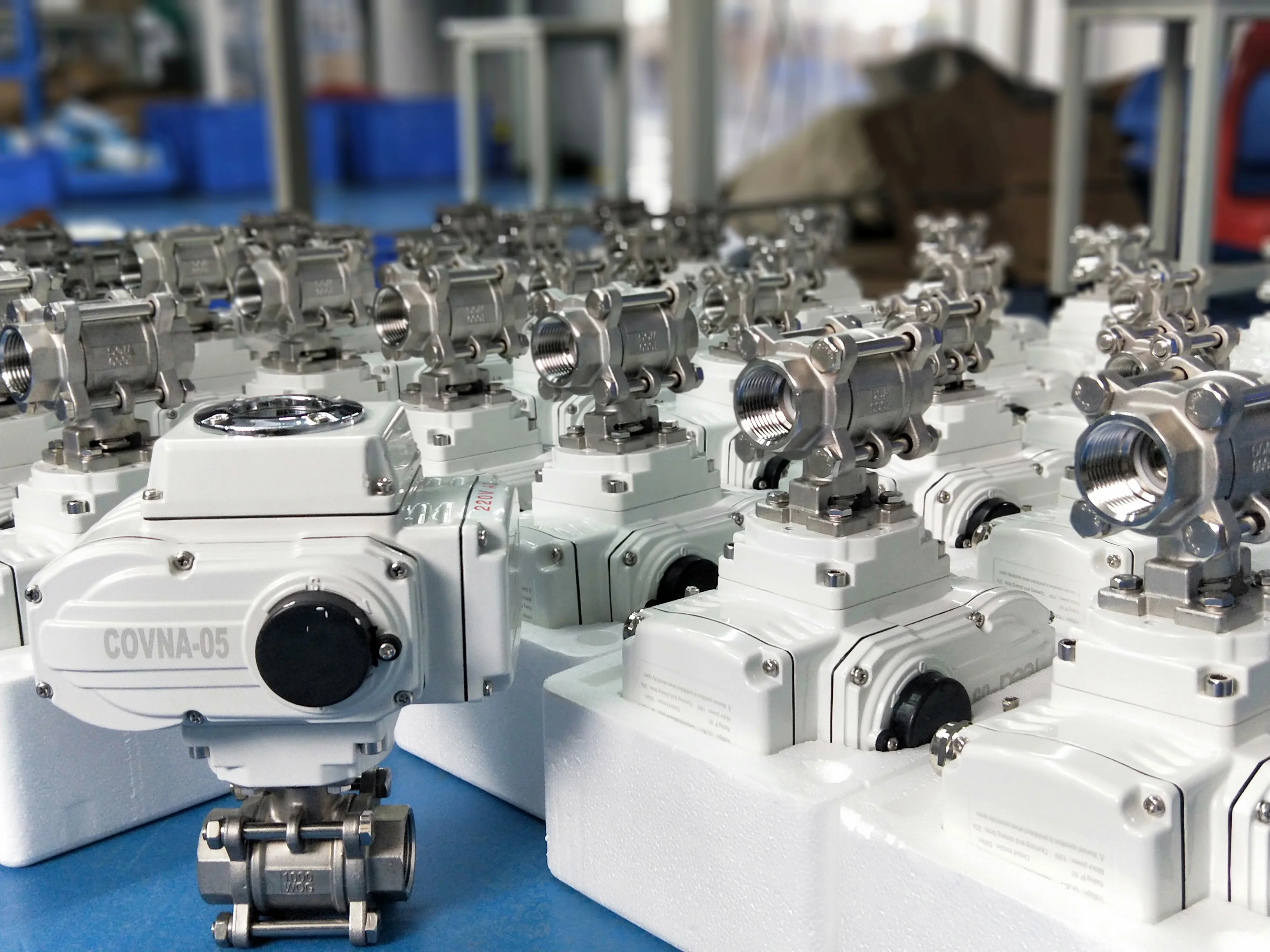

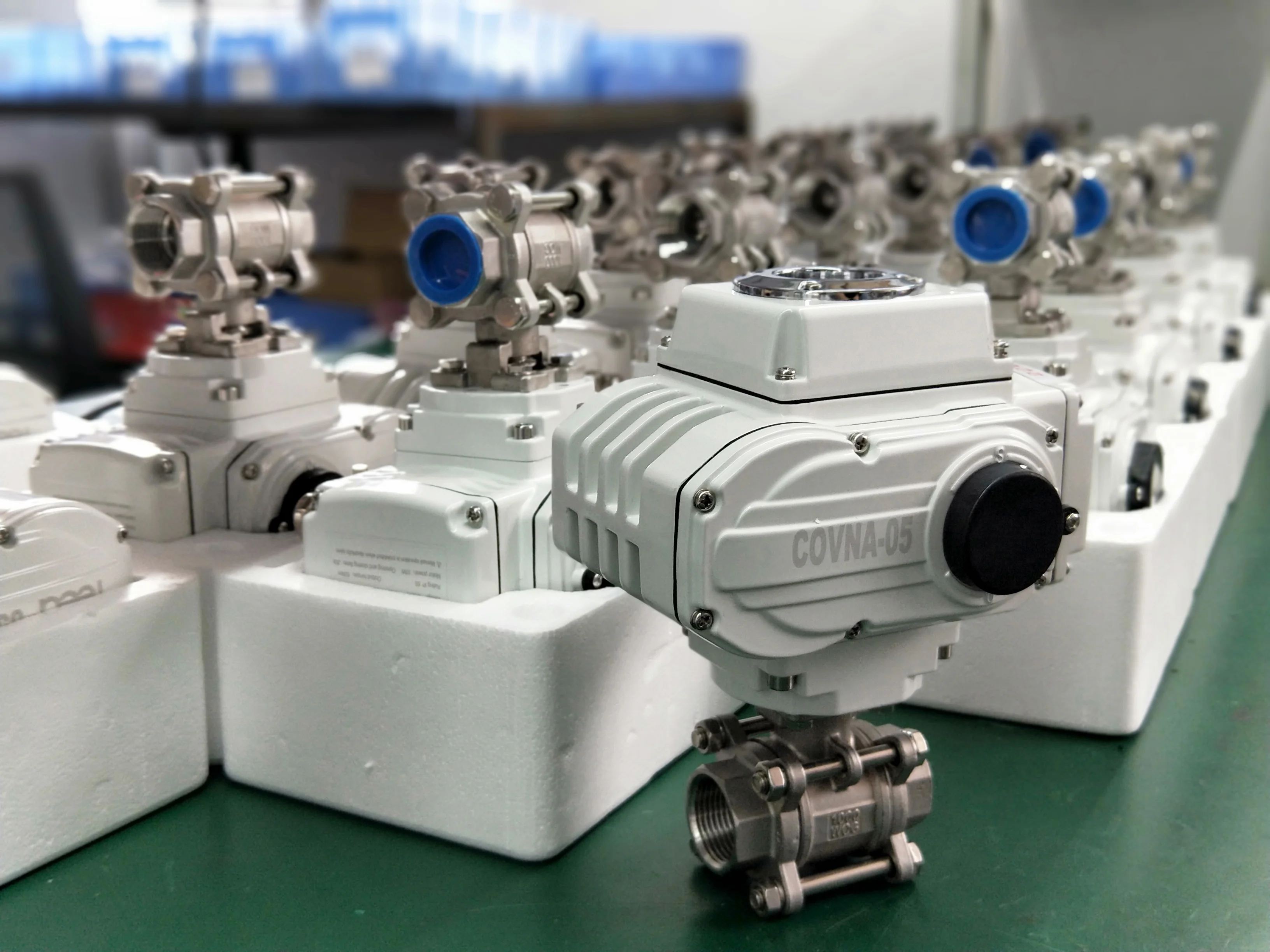

Factory Strength:
Exhibition&Finished Project
Project of Motorized Valve
Project of Pneumatic Actuated Valve
Project of Solenoid Valve

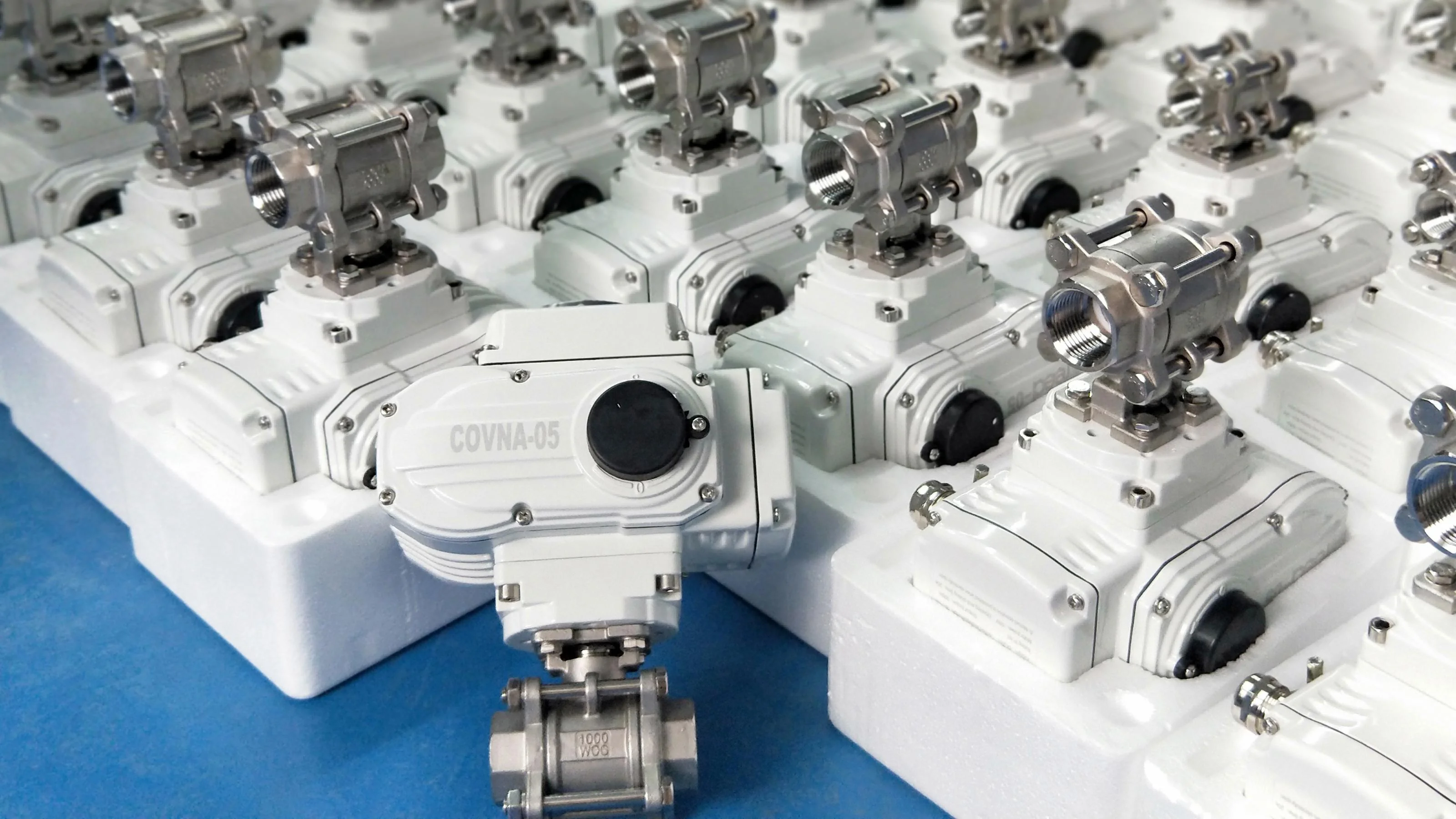

Packaging & Delivery
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?

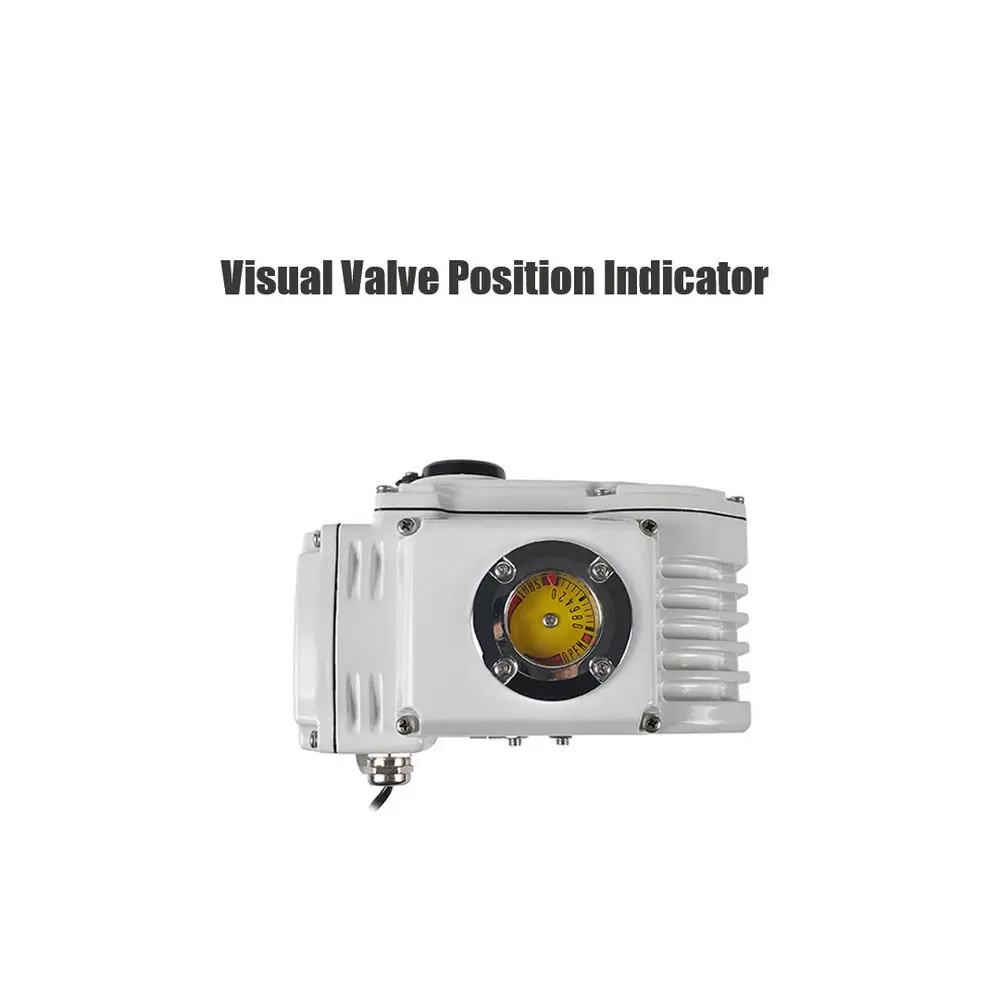

Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
