Product Overview
Description
New Type Sawdust Charcoal Briquette Making Process In Chinaerial
Product Description
Biomass Charcoal Briquette Making Machine-Coconut shell/Wood/Rice Husk/ Sawdust

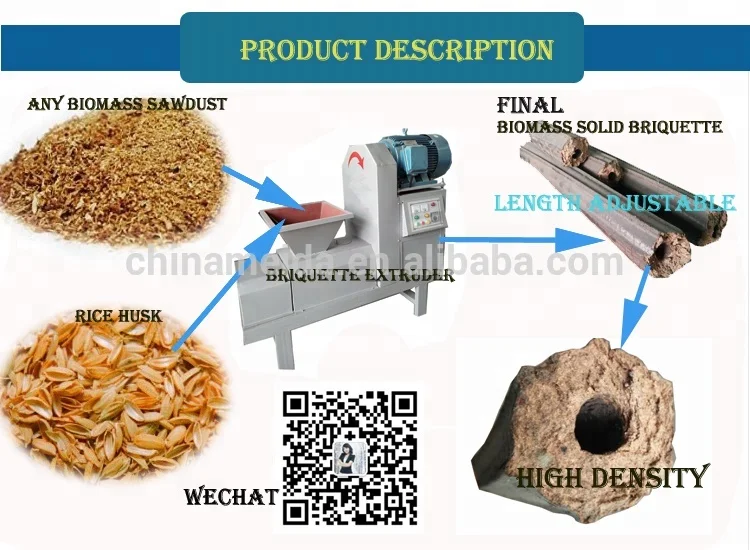

Sawdust Charcoal Briquette Making Machine - Basic Introduction of biomass charcoal briquette press machine
Work Principle: this machine is used for change agriculture or forestry waste into solid fuel under the high temperature & high pressure
Raw materials : sawdust made from wood, peanut, coconut shell, straw , plant stalk; leaf,corn straw,wheat straw .... anything which can be burning, all can be raw materials
1 raw materials : | any biomass sawdust & rice husk( put raw materials directly into the machine , no need any additives ) |
2 raw materials moisture: | 8-12% |
3 final biomass briquette density : | 900-1400kg/m |
4 final briquette length : | the machine with a automatic cutter, any length can be make |
5 final briquette shape : | hexagon or square shape |
6 final briquette size : | diameter 50mm & inside hole 15mm |
7 spare parts | spare parts include mould, heating ring, oil seal, propeller, welding rod, temperature controlled meter. |
Different Models of Biomass charcoal briquette extruder machine
Model | Power | Weight | Capacity | Size |
250 | 15kw | 500kg | 250kg/h | 1.6*0.55*1.25m |
450 | 22kw | 600kg | 450kg/h | 1.7*0.55*1.55m |

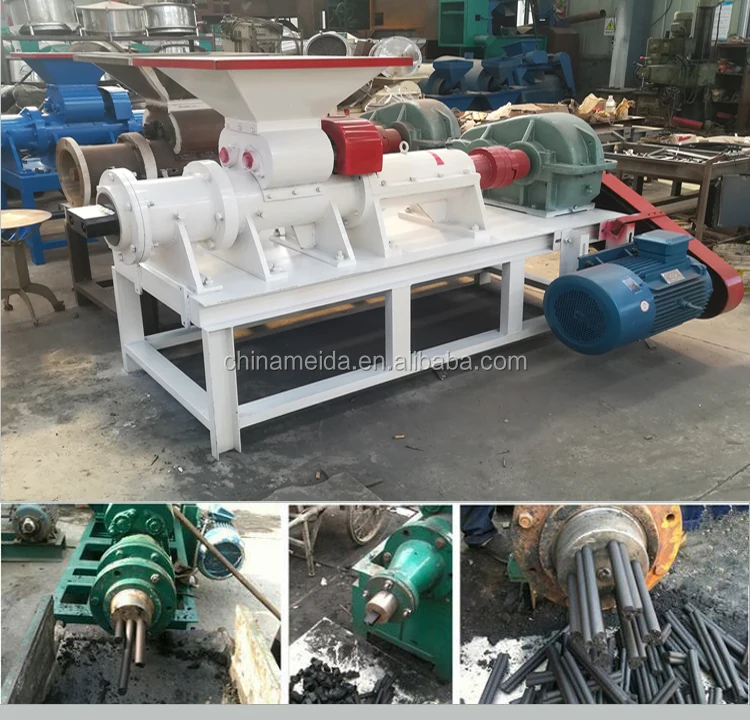

Coal stick briquette extruder
Basic Introduction of coal stick briquette press machine
Work Principle: change charcoal powder or coal or other powder into briquette
Final products shape : mold style : square, round, hexagonal, plum blossom and so on
Main Features of the machine
1. This machine can make coal and charcoal powder into sticks.
2. The shape of the sticks can be made by customers’ requirements.
3. The final product made by this machine is no pollution or smoke.
4. It is suitable for charcoal powder, wood charcoal powder, coconut shell charcoal powder, rice husk
charcoal powder, charcoal dust, coal powder.
5. Material required size: <3mm
6. The shape and size of stick can be made as required, such as round, hexagon, cinquefoil, and other
shapes, in the stick center, it can be made with a hole or not.
7. For the length, the automatic cutter is available.
Model Style | Model 140 | Model 180 | Model 300 | Model 450 |
Capacity | 1-2t/h | 2-3t/h | 3-5t/h | 8-12t/h |
Power | 11kw | 22kw | 90kw | 220kw |
Diameter of briquette | 18-80mm ( buyer need tell us what diameter you need ) | |||
Speed | 60rpm | 60rpm | 132rpm | 132rpm |
Spiral impeller diameter | 120mm | 160mm | 270mm | 420mm |
Size | 1.9*1.1*1.17m | 2.2*1.37*1.44m | 3.6*1.4*1.45m | 5.13*1.52*1.5m |
Raw materials size | <3mm | |||
Raw materials moisture | 12-14% | |||
Different Mold of coal briquette make machine

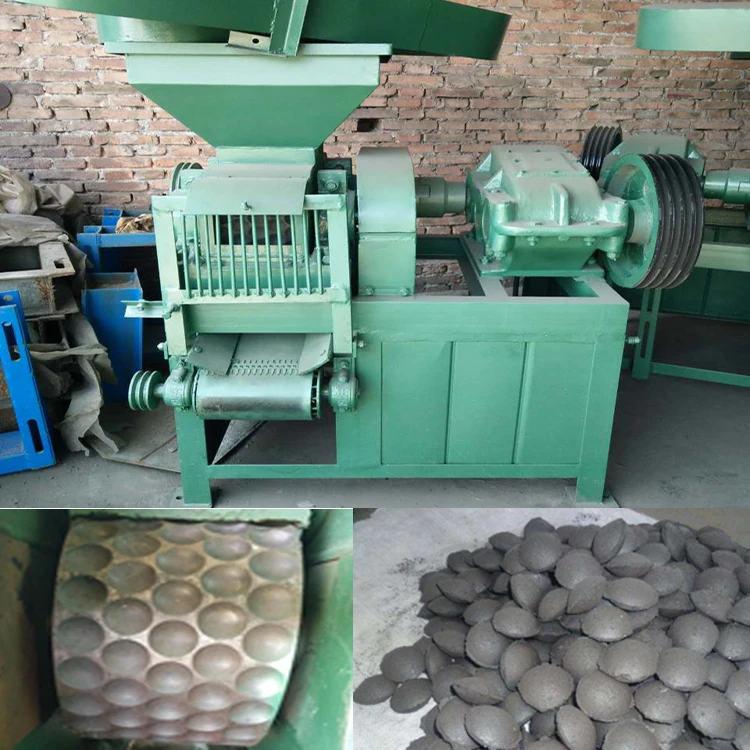

Coal charcoal briquette making machine
briquette briquetting machine is a ball-making equipment, which can continuously send various powder materials to the roller pressing area through the pre-pressing device, and press the powder into balls under the pressure of the roller pressing area
| Model | 290 | 360 | 360B |
| Capacity | 2-3t/h | 3-4t/h | 5-6t/h |
| Roller width | 200mm | 250mm | 250mm |
| Roller diameter | 290mm | 360mm | 360mm |
| Power | 5-7.5kw | 7.5-11kw | 7.5-11kw |
| Rotary speed | 18r/min | 18r/min | 18r/min |
| Roller material | Wear-resistant alloy | Wear-resistant alloy | Wear-resistant alloy |
Big Output Solution
Sawdust Charcoal Briquette Making Machine

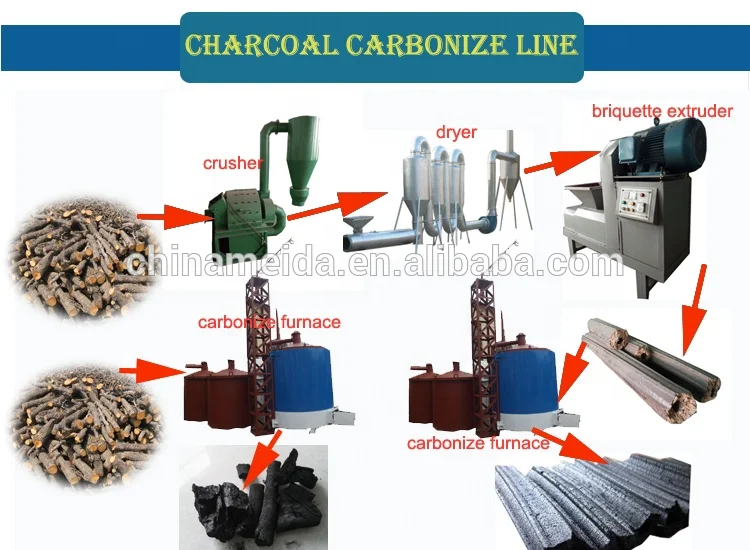

Complete biomass briquette charcoal production line
Charcoal Making Process crusher - dryer - briquette extruder - carbonize furnace
- for crusher : this need crush the raw materials into size 3-5mm

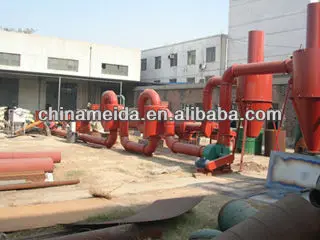

- for dryer : use dryer to get moisture 8-12%
- for briquette extruder : change different mold can get different shape and size briquette, and machine can be adjusted to get any length briquette

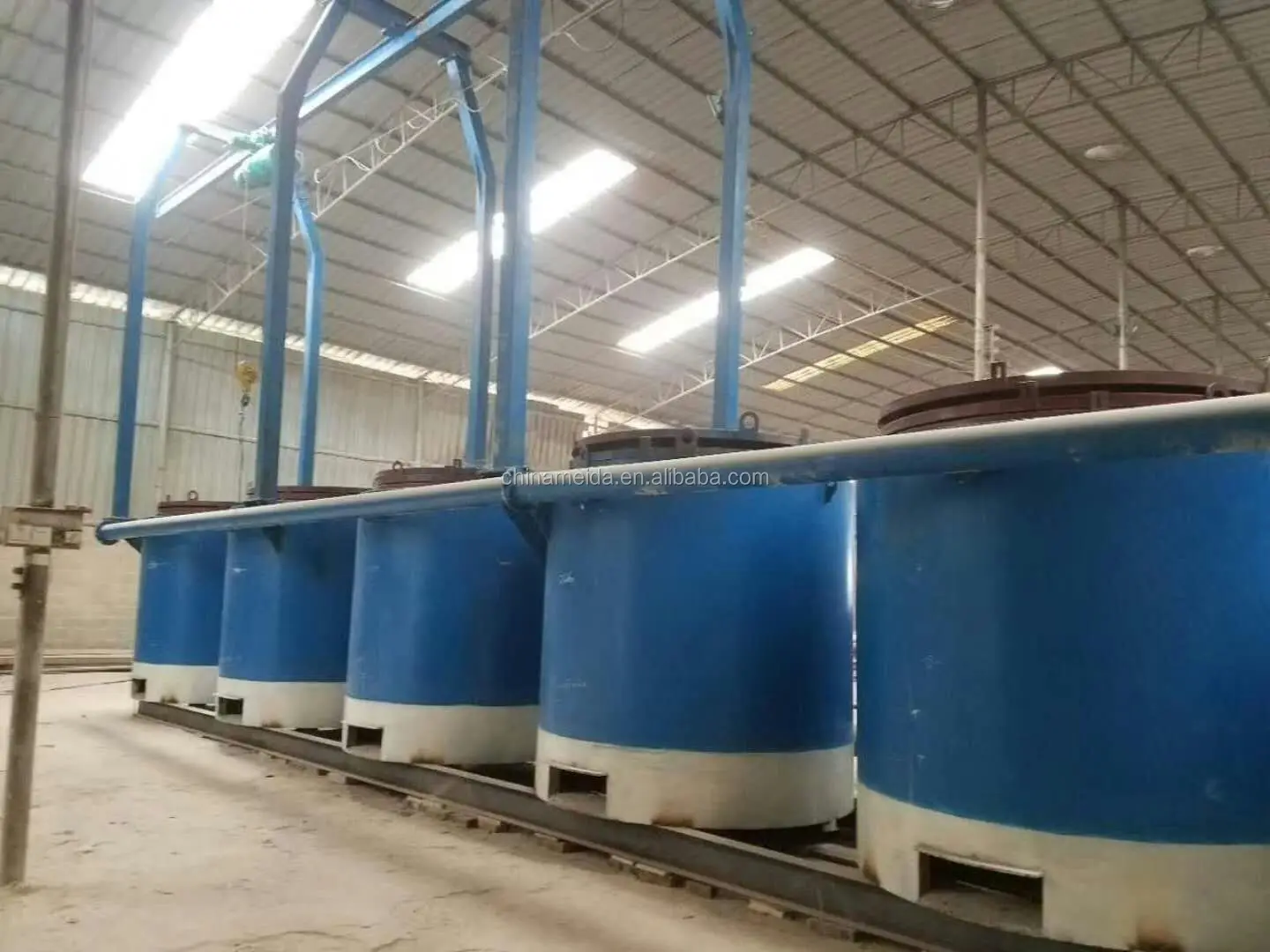

- carbonize furnace : usually 2.5-3tons raw materials can get 1 ton final charcoal
Company Information
Our Service
1for our charcoal making machine , we offer details explanation for customer in each step
2 welcome customer come to our factory - to check any of our Charcoal Carbonization Stove
3 after sign contrac,we give customer video showing for the manufacturing process each day
4 After customer buy the charcoal making machine,we sent engineer install abroad & training worker
5 warrant time 12month - for all of our Charcoal Carbonization Stove , briquetting machine etc
6 For all our charcoal making machine , offer free technical support any time .
7 will inform previous buyer according new products - according new charcoal machines
8 help any customer if anything need we do in China
Install Abroad
FAQ
Sawdust Charcoal Briquette Making Machine
Q1:How Many raw materials can get 1 ton final charcoal ?
A1:usually 2.5-3tons raw materials to make 1ton final charcoal
Q2: What is the normal temperature for carbonizing?
A2: The temperature should around 400°C
Q3: Whether you can sent engineer to do machine install ?
A3: Yes,we can sent engineer to do install & worker training, buy pay him salary
Q4: Where your factory located?
A4:Gongyi City Henan Province, nearest airport : zhengzhou xinzheng international airport . After you arrive we will go to pick you from the station
Q5: Can your factory test the machine when we in your factory ?
A4:Yes, we test the machine and show you how to use the machine in details
