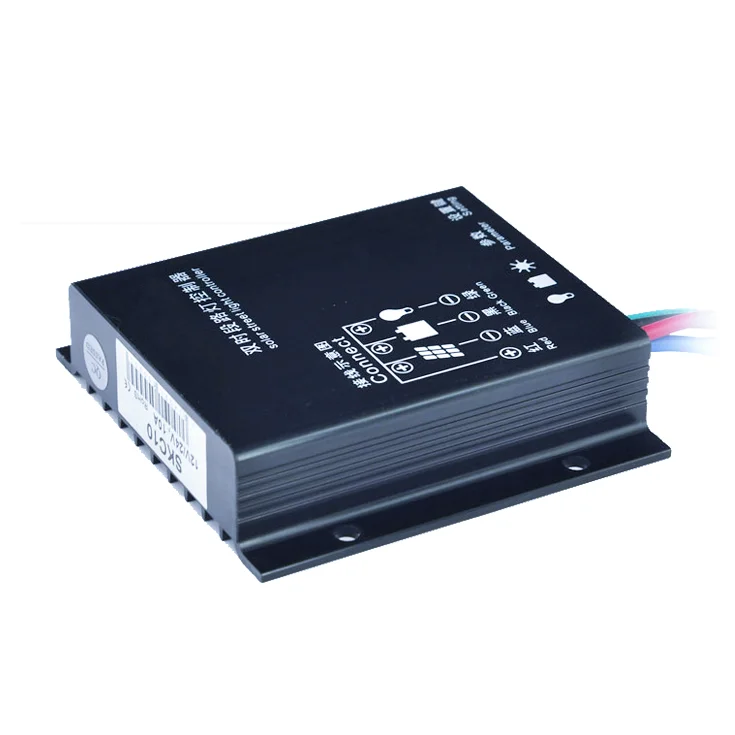

12V 24V PWM IP68 Waterproof Wind Solar Hybrid Street Light Charge Controller
- Category: >>>
- Supplier: Dongguan Amplec Electronic Co. Ltd.
Share on (60773511840):
Product Overview
Description
Product Description
1.Rate solar current 10A/20A
2.Rate load current 10A/20A
3.System voltage: 12v/24v
4.Battery type.Lead acid (GEL, AGM, flooded)
5.2 time setting functions
6.Work mode.Light control ON+OFF,Light on+ Delay time OFF
7.Dimension: 104*65*28mm
8.Load output power can adjust between 10% - 90%
9.LED screen display the controller parameter status
10.Waterproof IP68 Protections, suit well for outdoor use
| Solar Street Light Charge Controller PWM Waterproof | ||
| Model | SKC10-LED | SKC20-LED |
| Max.solar panel current | 10A | 20A |
| load current | 10A | 20A |
| Solar system voltage | 12V/24V,automatic recognition | |
| NO-load current | 6mA | |
| LED Driver | With LED Driver inside | |
| Output load current | 60W(12V),100W(24V) | |
| Overvoltage protection | 17V(12V), 34V/24V; | |
| Work temperature range | -35℃--+60℃ | |
| Boost voltage | 14.6V(12V), 27.2V/(24V) | |
| Equalization voltage | 14.6V(12V), 29.2/(24V) | |
| Float voltage | 13.8V(12V), 27.6V/(24V) | |
| Recharge voltage | 13.2V(12V); 26.4/(24V); | |
| Temperature compensation | 5mv,2 | |
| Load reconnect voltage | 12.6V(12V), 25.2/(24V) | |
| Charge control mode | PWM | |
| Diplay mode | LED screen display | |
Product Overviews
Packaging & Shipping
12V 24V 20A solar light controller 54pcs packed in one carton, carton size 0.04cbm
| Packing details for Solar charge controller -SKC20-LED | ||
| Product Dimension | 104*94*28mm | |
| Weight | 0.46kg | |
| QTY/ctn | 54pcs | |
| CTN size | 44*41*22.5 cm | |
| Weight | 25kg | |
