High Quality Glove Box for Lithium Battery
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (60773519357):
Product Overview
Description
Product Description

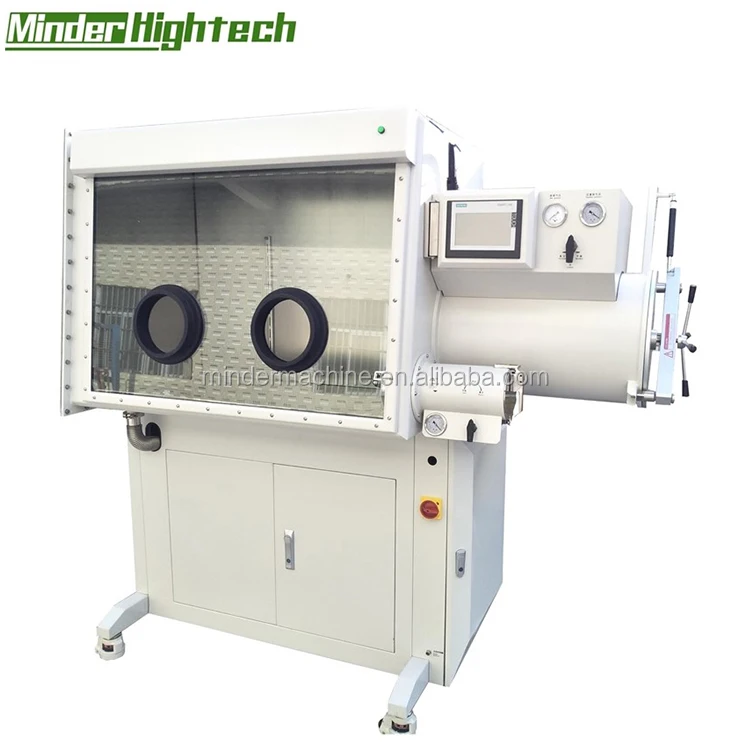

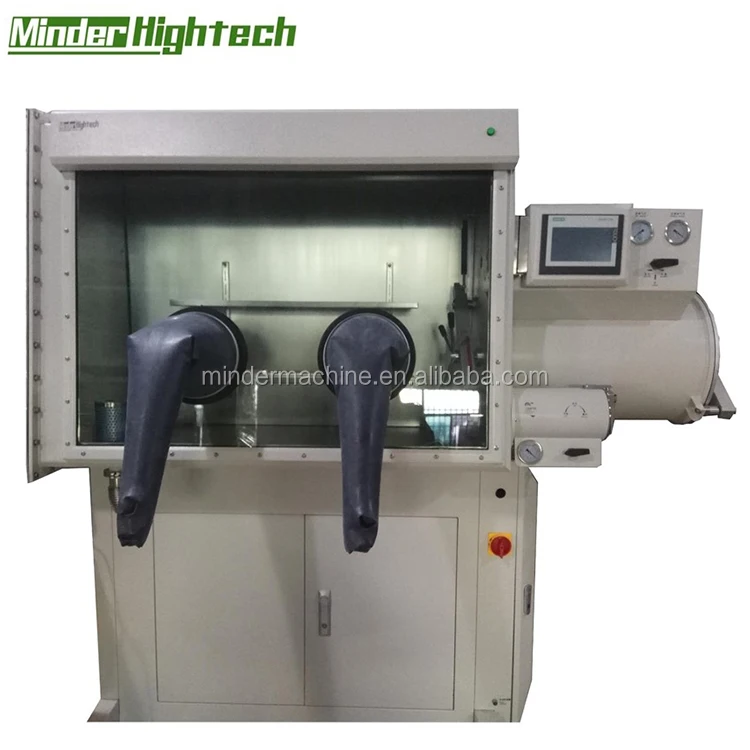

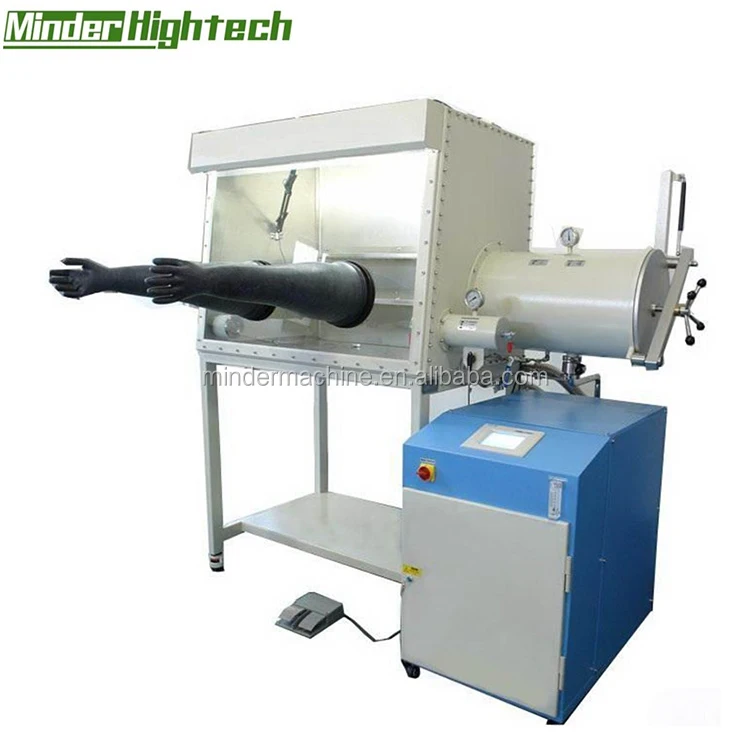

High Quality Glove Box for Lithium Battery
MD-GL750 is a stainless steel glove box designed for researches in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF R3-11 Copper Catalyst and Lindy Molecular Sieve in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in a ultra-clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, and system data log recording. EQ-VGB-6 is widely used in preparing Nano materials, Li-ion battery materials, catalysts, and metalorganics.
Specification
Model | MD-GL750 |
Voltage | AC 220V/50Hz/60Hz |
Power | 3000W |
Glove Box Chamber | 1. Case Material: Stainless Steel 304 with 3mm thickness 2. Dimensions: 1200mm(L) x 750mm(W) x 900mm(H) 3. Openable Front Window Panel |
Chamber Condition | Water concentration: <1 ppm (20°C, 1 atm) Oxygen concentration: <1 ppm (20°C, 1 atm) |
Leak rate | <0.01 Vol% / hr (20°C, 1 atm) |
1 Standard Airlock | DN390*600mm SUS304L |
1 Tool Airlock | DN150*360mm |
Working Gas | 1. Operating gas: Inert gas such as N2, Ar, He 2. Regenerating gas: For regenerating both oxygen and H2O remover: use mixture of H2 (5-10%) and Operating gas |

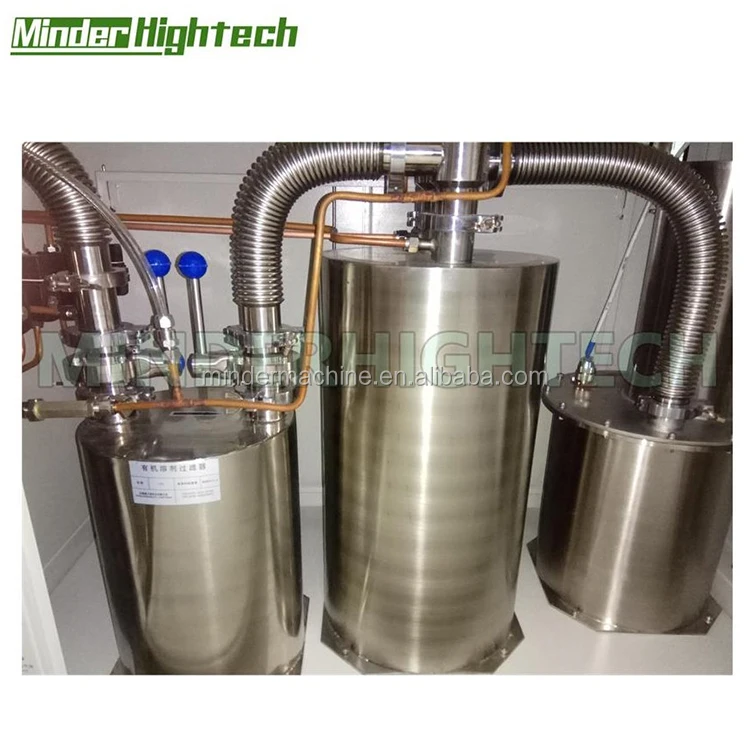

Gas Purification System | 1. Automated regeneration process 2. Automated water and oxygen removal 3. Purification cylinder: independent display panel, measurement range:0-2000ppm,imported from USA UPO, and Germany BASF |
Filter System | Inlet and outlet filter can eliminate particle size > 0.3 μm |
Pressure Control System | 1. Automatic pressure control by PLC for the Glove Box Chamber Pressure range: +/- 12 mbar 2. Manual pressure control is allowed via a foot pedal |
Purging System | Automatic purging system allows easy operating and reduces gas consumption |
Control System | Siemens PLC control system with 6" touchscreen display: 1. Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm 2. Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm 3. Pressure: -25 to 25 mbar with an accuracy of 0.01 mbar 4. Automatic system data logging |
Pump | Vacuum rate: 8400 L/H |
Product Dimension | L2000mm*W805mm*H1880mm |
Weight | 600kg |
Warranty | One year warranty with lifetime support |
Please Clinck on the Picture to See More Machines
Battery Manufacturing Process
Packaging & Shipping
1 Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according to your country requirements.
Our Services
1 We supply a full set of materials for lithium battery, including polymer battery, mobile phone battery, EV battery and so on.
2 We supply a full set of equipment for lithium battery lab research, pilot scale research, production line
3 We supply a full set of technology support for battery design, research and producing.
Company Information
FAQ
| F.A.Q |
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 5-10 working days
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
