Applicable Industry cnc angle punching line:

The machine is the automatic special production line used for angle steel marking, punching (Circular hole,oval hole), and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Product composition cnc angle punching line:

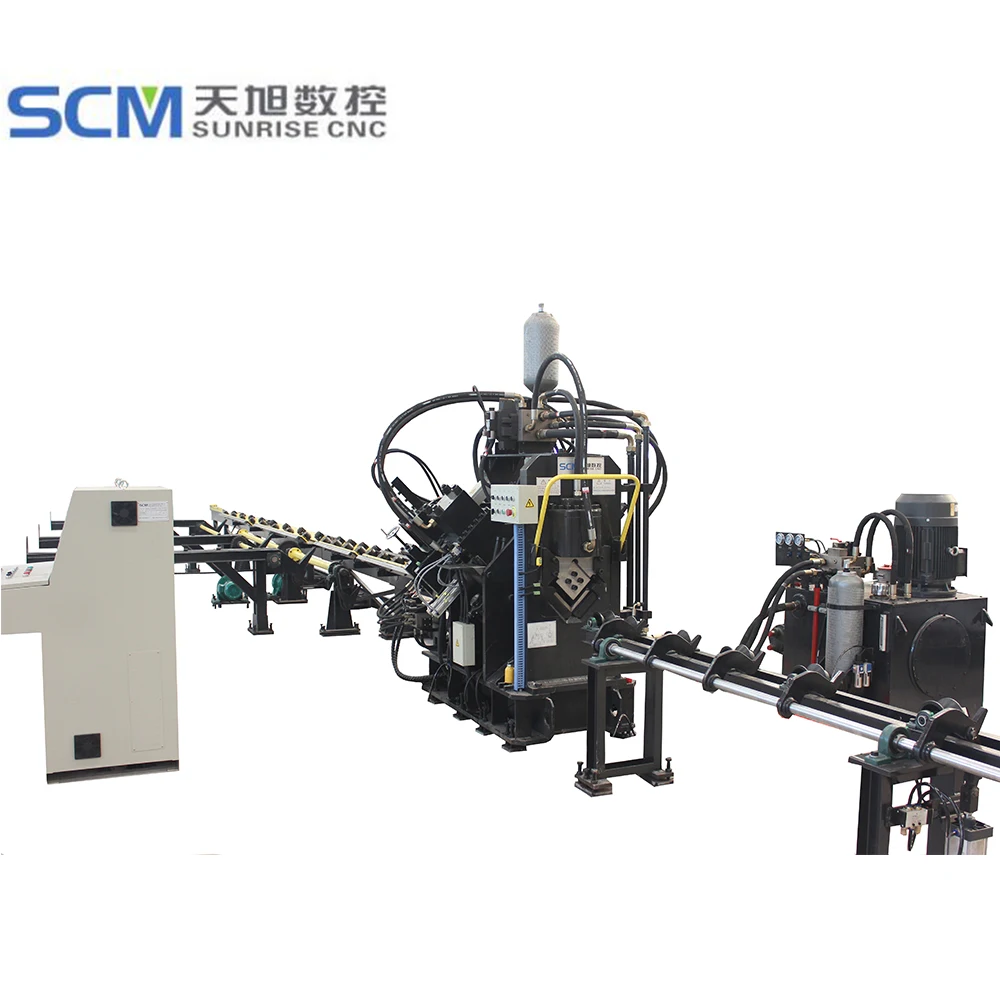

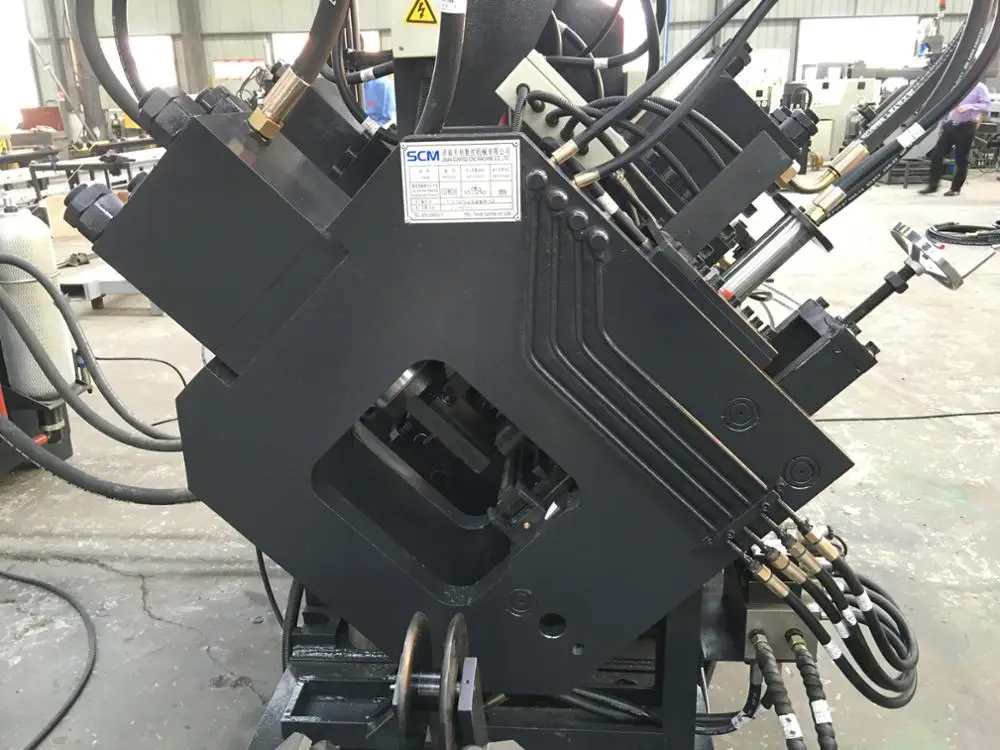

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

SPECIFICATIONS for Angle cnc punching machine
Model
TAPM1010
TAPM1010-2
TAPM1010-3
Angle size(mm)
40*40*3-100*100*10
Max punching (mm)
round hole φ26*10
round hole φ26*10, slot hole 22*50mm
Punching force(kN)
600
1000
1000
Marking force(kN)
630
630
630
Shearing force(kN)
1200
1200
1200
Max blank length
10 or 12
Max finished length
8
8
8
Qty of punch on each side
2
2
3
Qty of marking group
4
Character size
14*10*19
CNC axis
3
Shearing mode
Single blade

Main Features cnc angle punching line

1. Feeding speed and punching speed are very fast, greatly improve the production efficiency. For 50×50×4mm angles, it can process 9 to 10 tons per 8 hours.
2. The pressing angle device, NC infeeding carriage, Material supporting device, and clamping claws are Access to the national patent protection.
3. Adopt PLC module control, servo motor in feeding, with high efficiency, stable work piece precision.
4.The program function is perfect, already obtained the national patent, the program is more practical and more powerful.
5.Easy programming, can manual programming and also can use the program generated by lofting software.. It can read NC.1 files generated by TEKLA software.

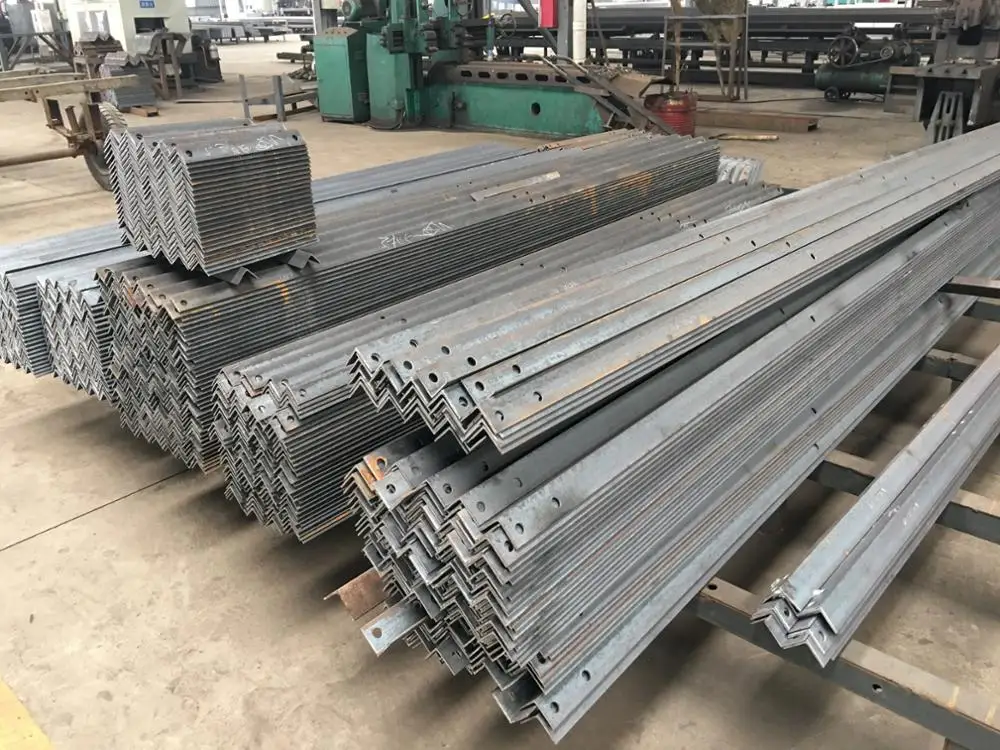

6.All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

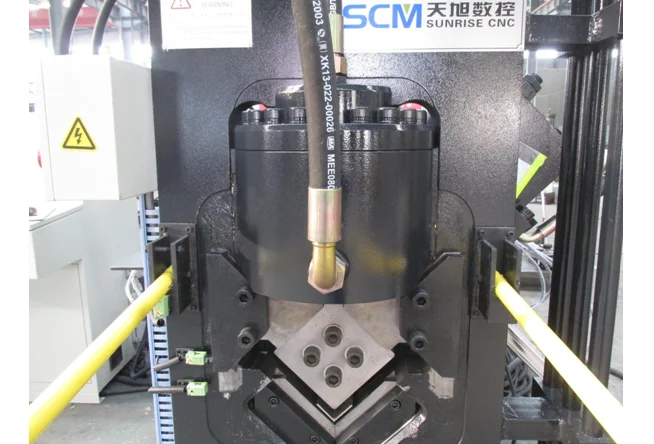

7.Marking unit adopts closed frame with good rigidity.
8.Single blade shearing, save raw material.
9.  The feeding conveyors use double linear guide, and the carriage is newest design, which improve the machine speed and accuracy.

Certifications
Detailed Images

Machine Parts

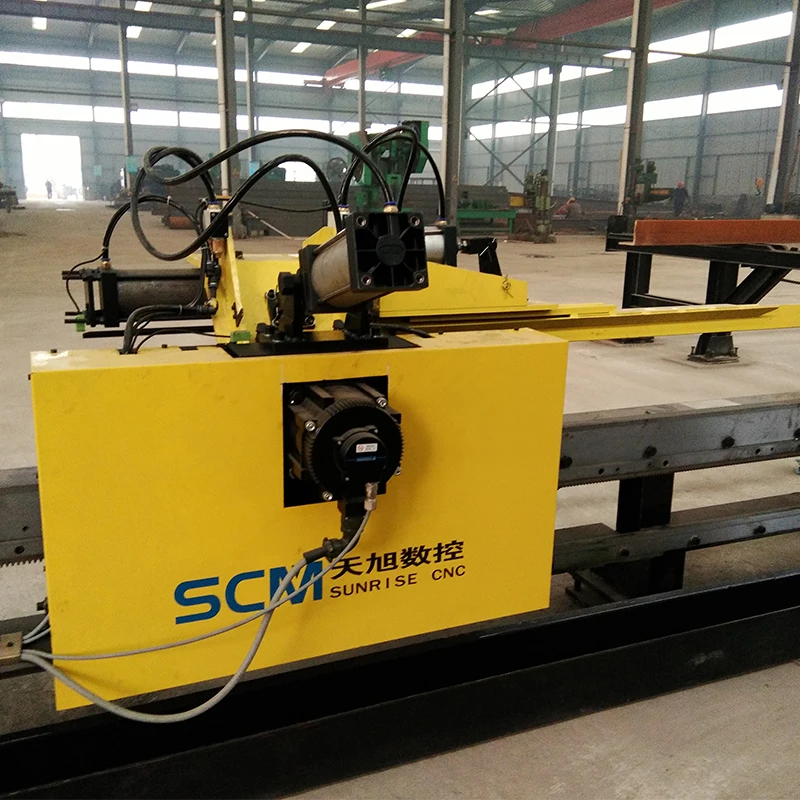

Name: NC carriage

with the NC carriage, the feeding speed is very fast, greatly improve the production efficiency, also save the labor cost.

CNC infeed carriage is driven by servo motor, ensure high positioning precision.

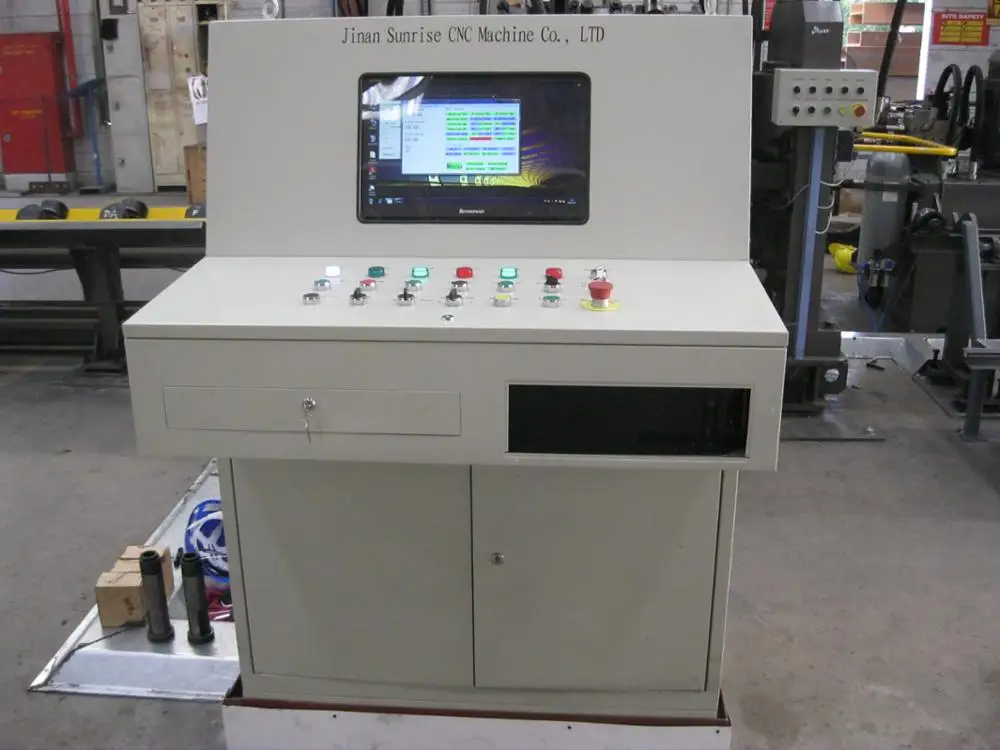

Name: Control system
Adopt PLC mold control, Easy programming, adopt instruction programming and lofting software. It can read NC1 files generated by TEKLA software.

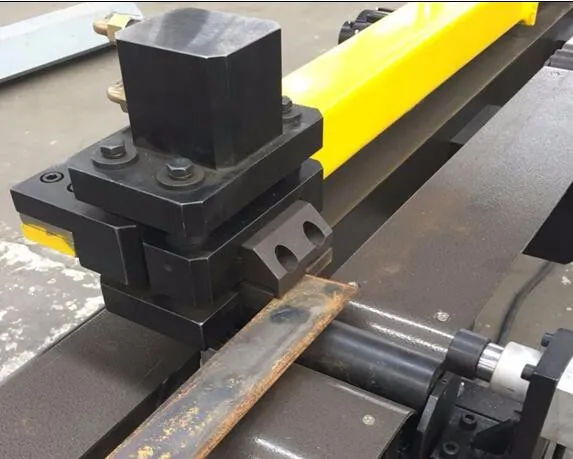

Clamping claws


The pressing angle device, feeding carriage, material supporting device, and clamping claws all have obtained national patents protection.

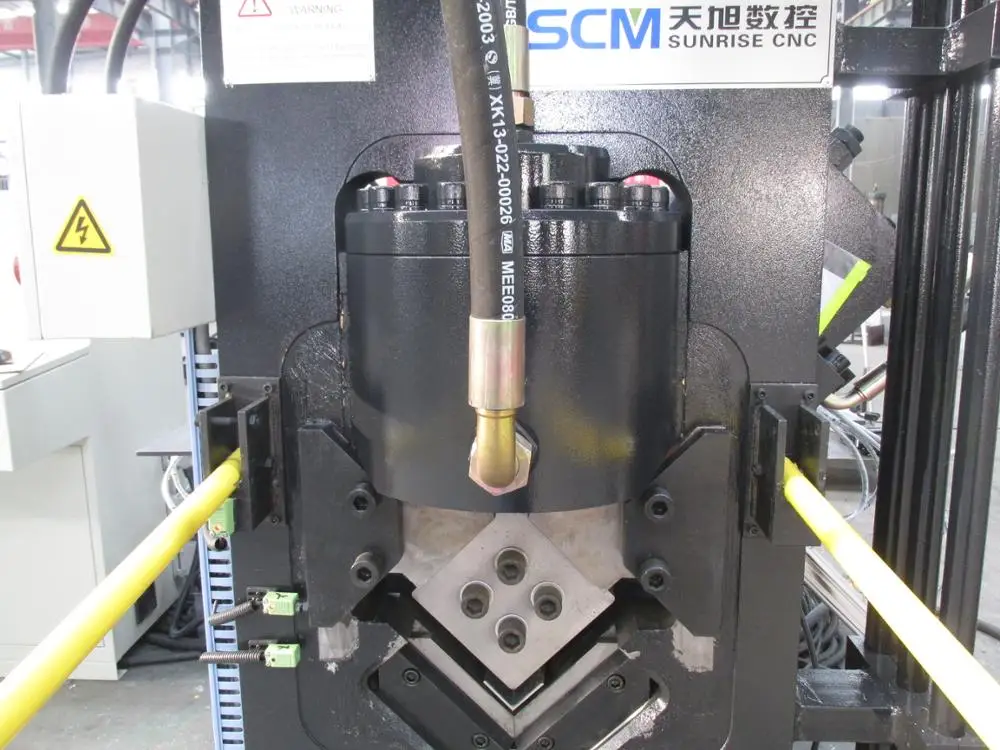

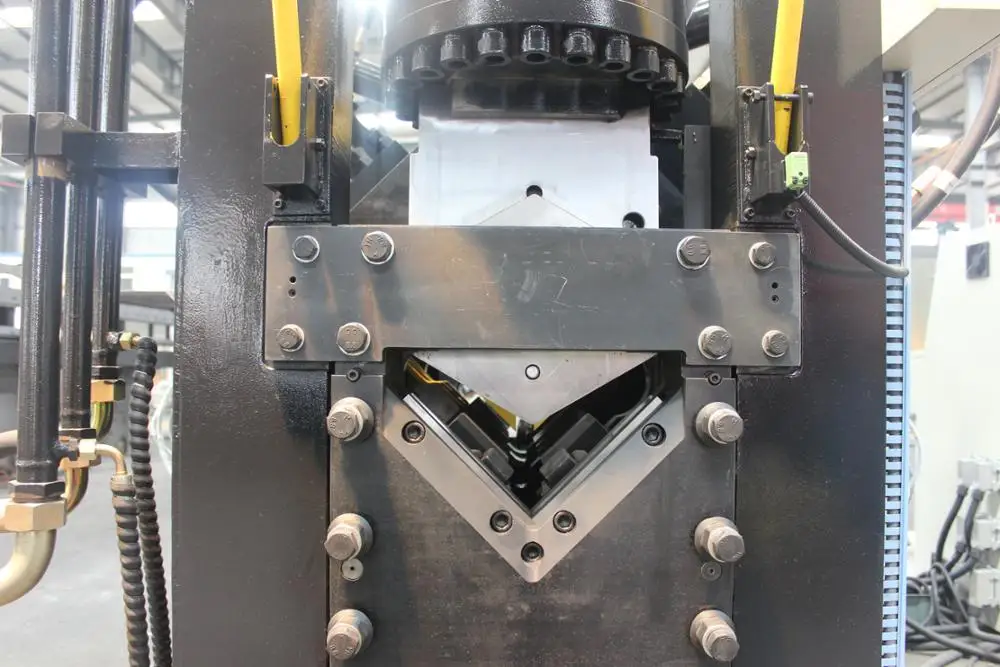

Single blade shearing
Save raw material.
