Product Overview
Description
Product Description

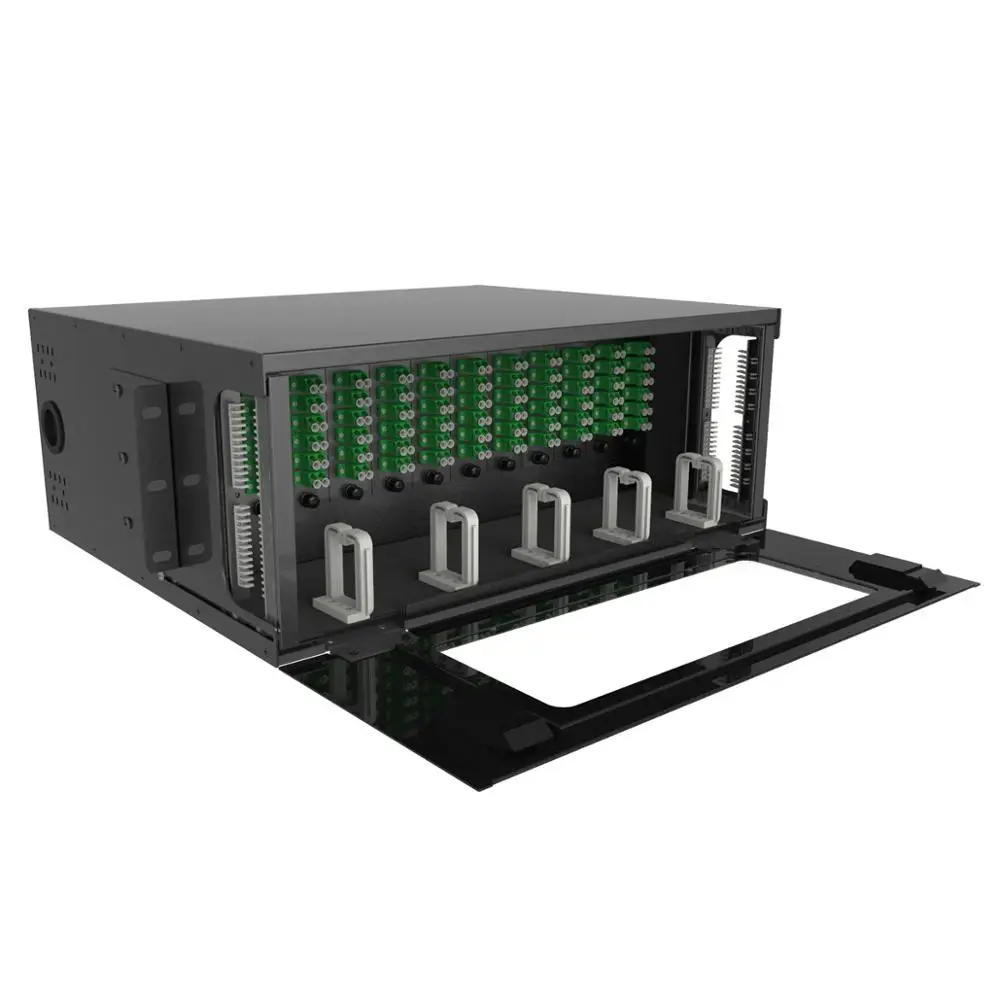

19 Inch 1U~4U Rack Mount Optical Distribution Frame 12 24 48 72 96 144 ports fiber optic patch panel cabinet odf optical fiber main distribution frame price
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. The basic requirement is ODF should allow for easy access to the connectors on the front and rear of those ports for insertion and removal. It is usually used as the interface between optical transmission network, optical transmission facility and between optical cables in access network of optical fiber subscribers. It can also work as a protective device to protect fiber optic connections from damage.
Specification
* Material: Cold-roll steel or Aluminum, electrostatic painting ABS plastic tray inside, 12cores per tray

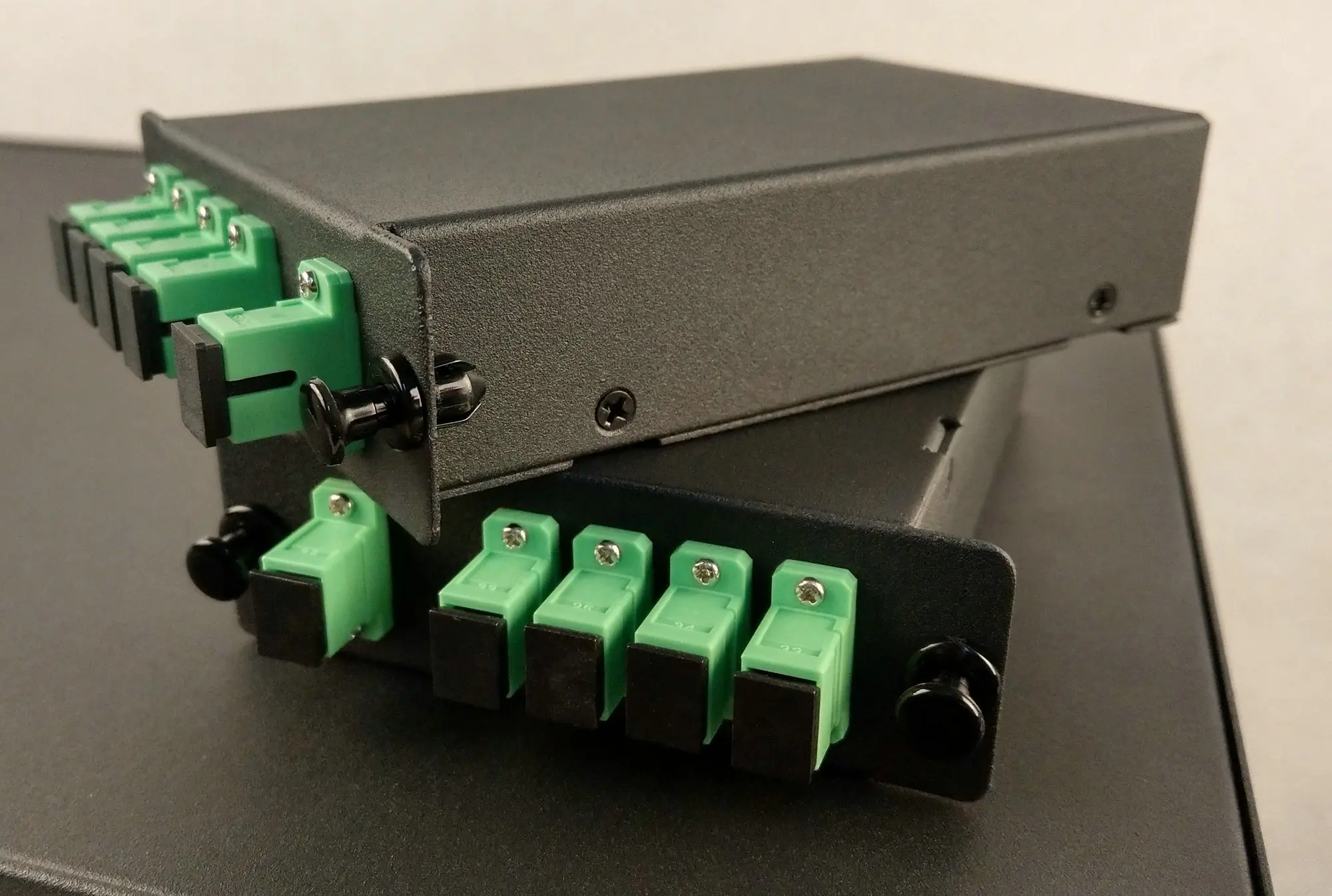

* 4 Metal adapter panel available: FC, SC, LC, ST adapter...
* Slide out drawer for easy cable management
* Suitable for 19'' standard optic distribution cabinets
* Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
* Reasonable design ensures the cables are in good order
* Rack mounted slidable type, indoor using;
* White, black, grey ... color painting optional
* 12, 24, 48, 72, 96,144... capacity customized
* Slide out drawer for easy cable management
* Suitable for 19'' standard optic distribution cabinets
* Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
* Reasonable design ensures the cables are in good orde
* Rack mouted slidable type, indoor using
Material | Cold-roll steel or Aluminum; ABS plastic |
adapter | FC, SC, LC, ST |
Capacity | 12, 24, 48, 72, 96,144 cores |
color | White, black, grey |
Detailed Images

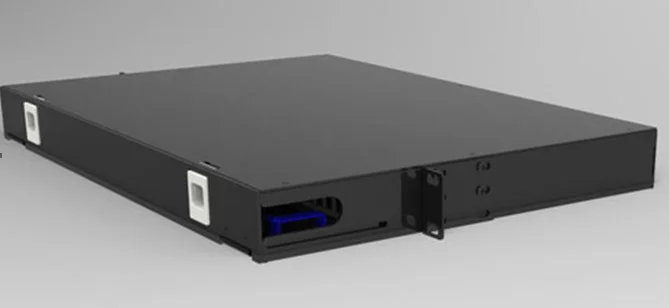

1U 12 Cores
1U 24 Cores
2U 48 Cores

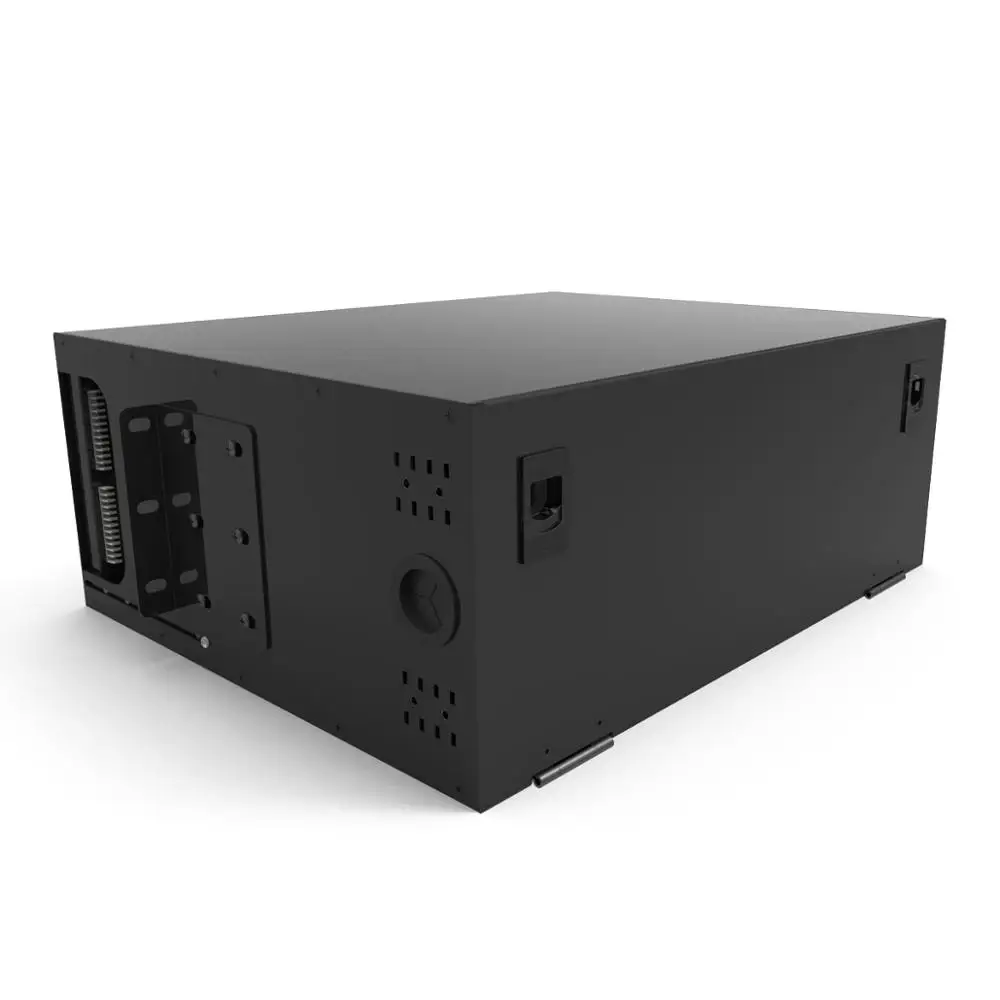

4U 96 Cores
4U 144 Cores

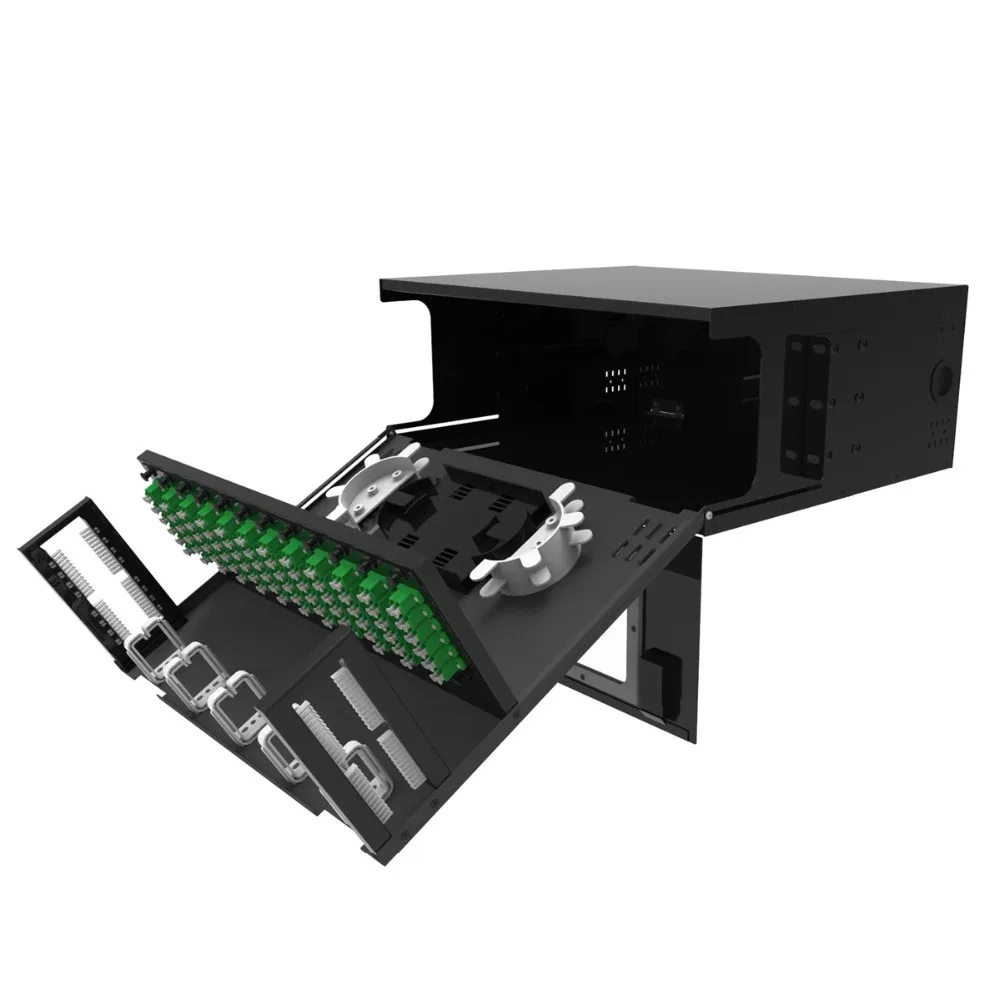

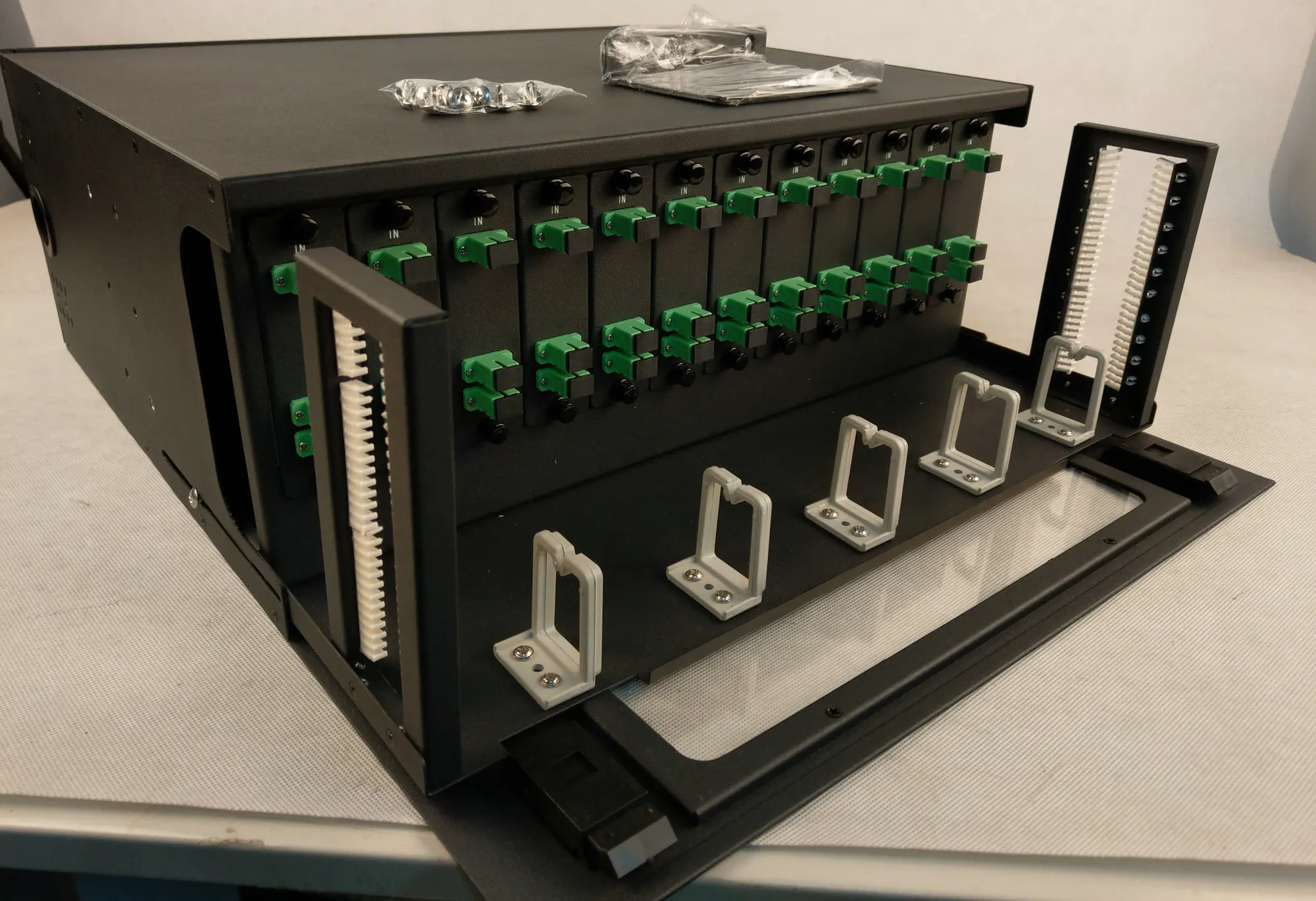

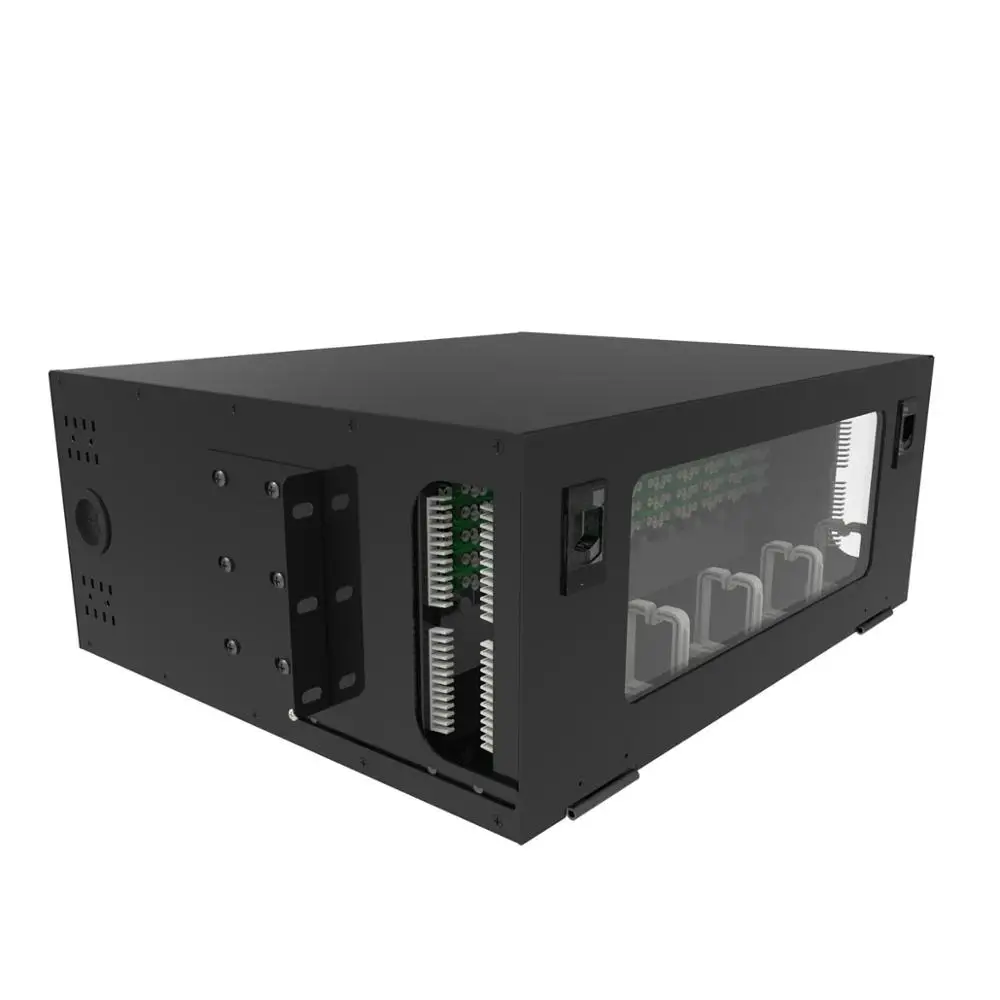

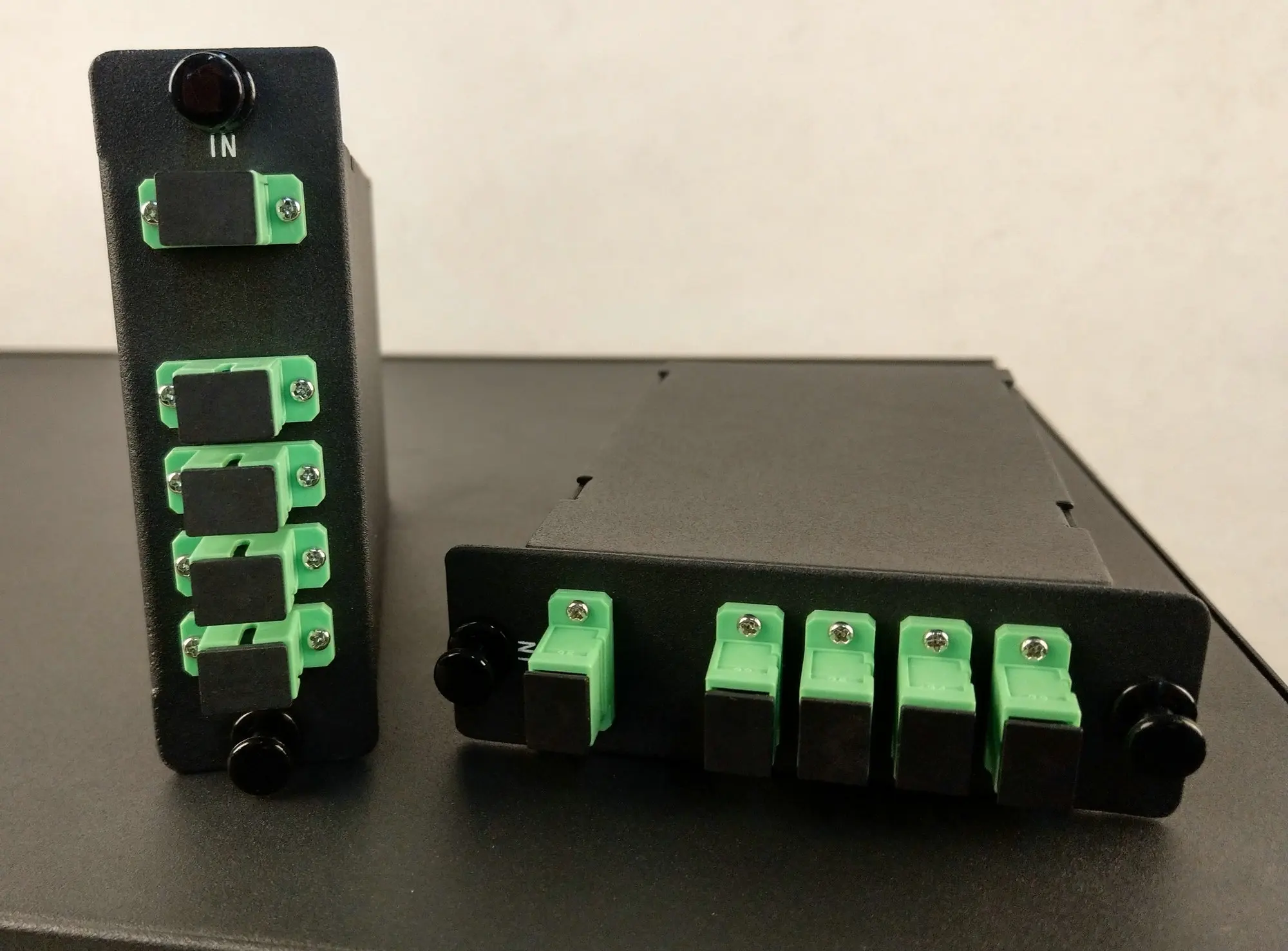

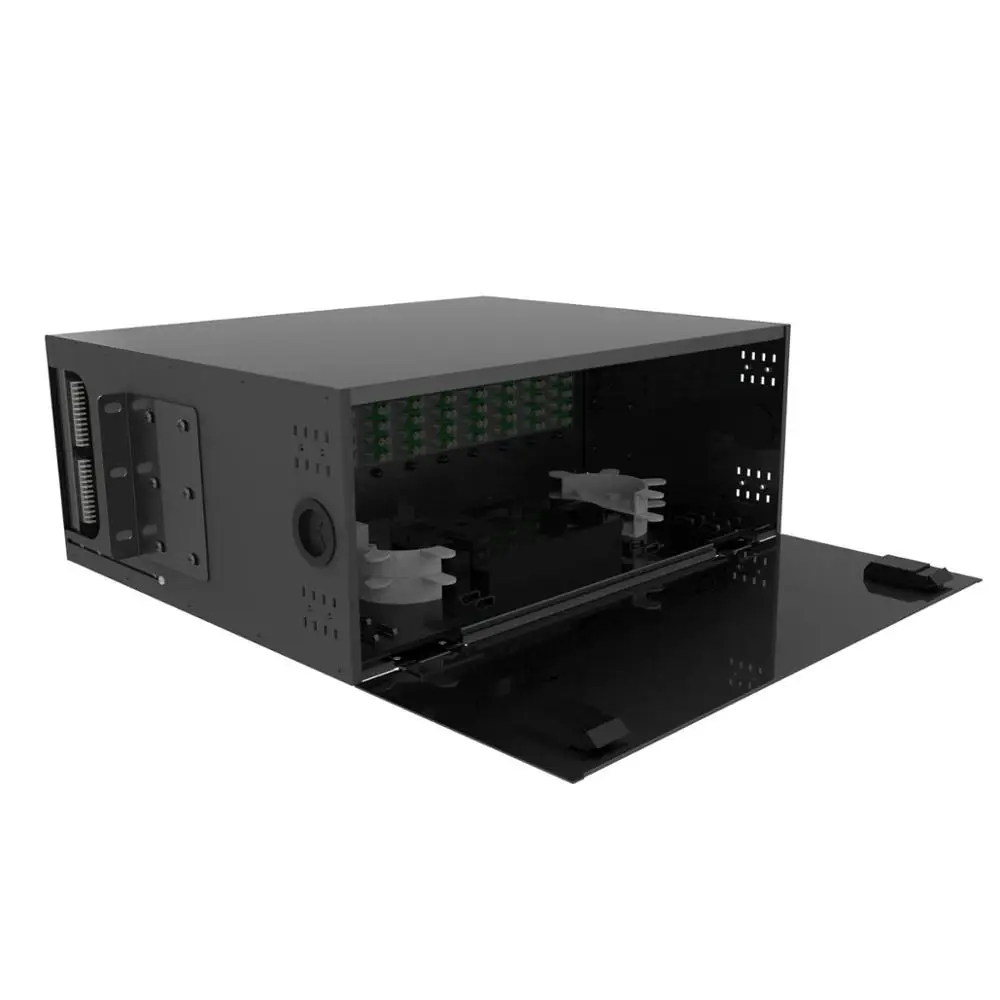

More details from different sides
Installation Instructions

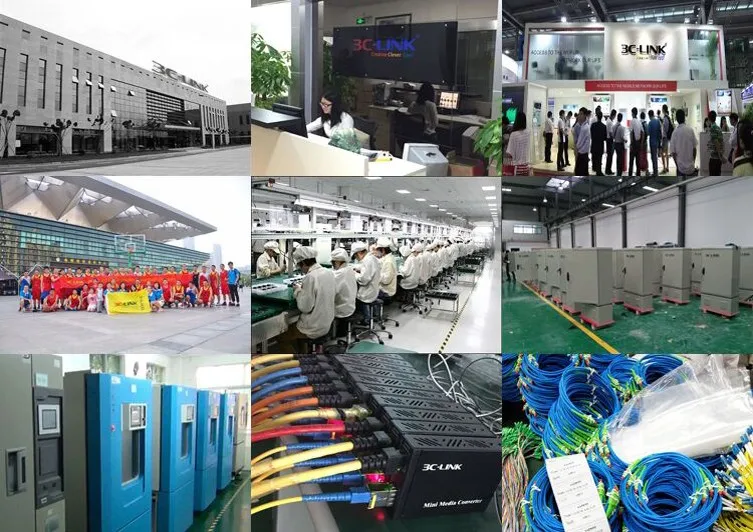

Production Line
Certifications
