P12 Double wing screw closed end wire connector

Product Overview

Description

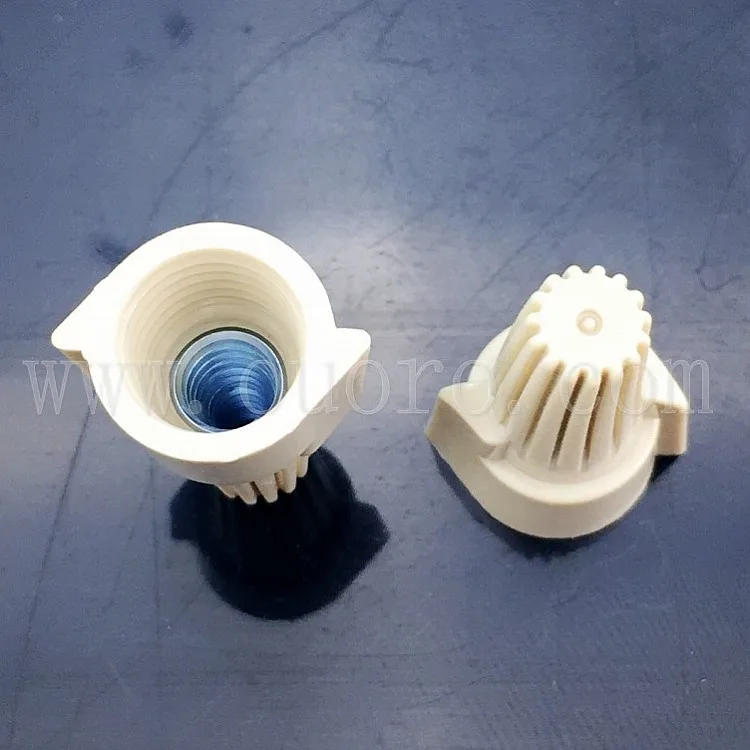

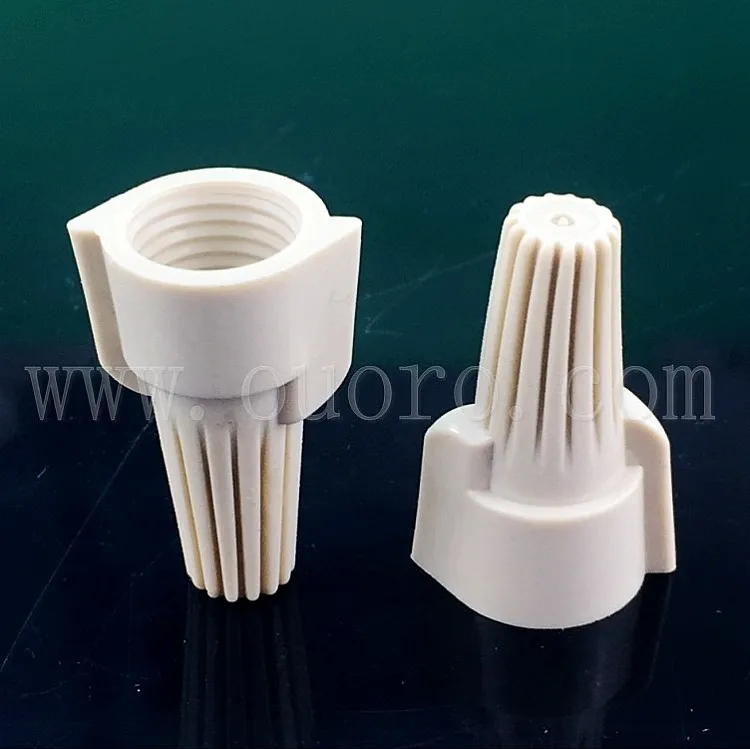

P12 Double wing screw closed end wire connector











Tough thermoplastic PVC, UL 94V-2 flame-retardant shell.
galvanized iron wire spring inside.
Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

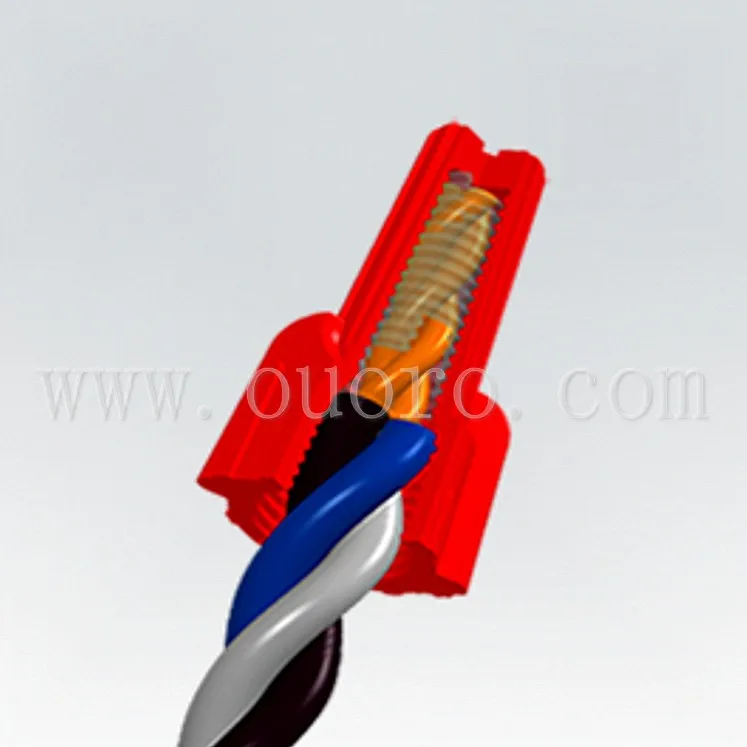

No pre-twsting required, push stripped conductors into connector and screw on.

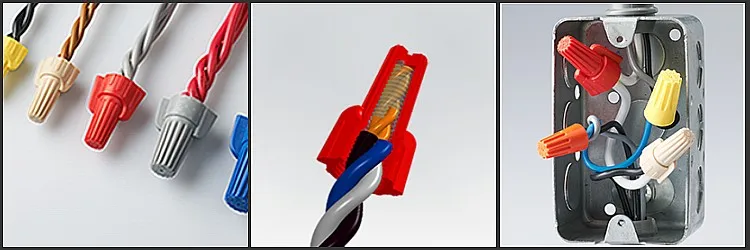

For use in electrical appliances, lighting and building wiring.

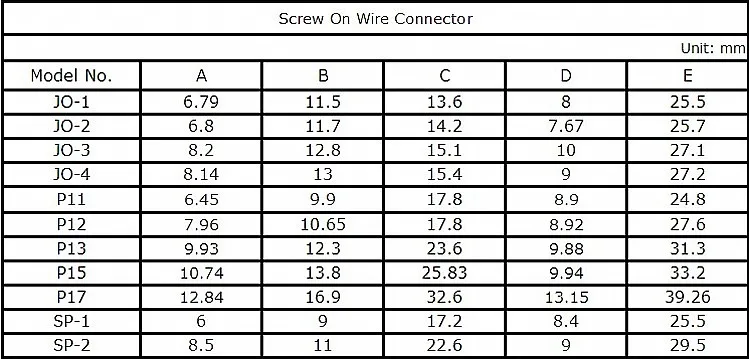

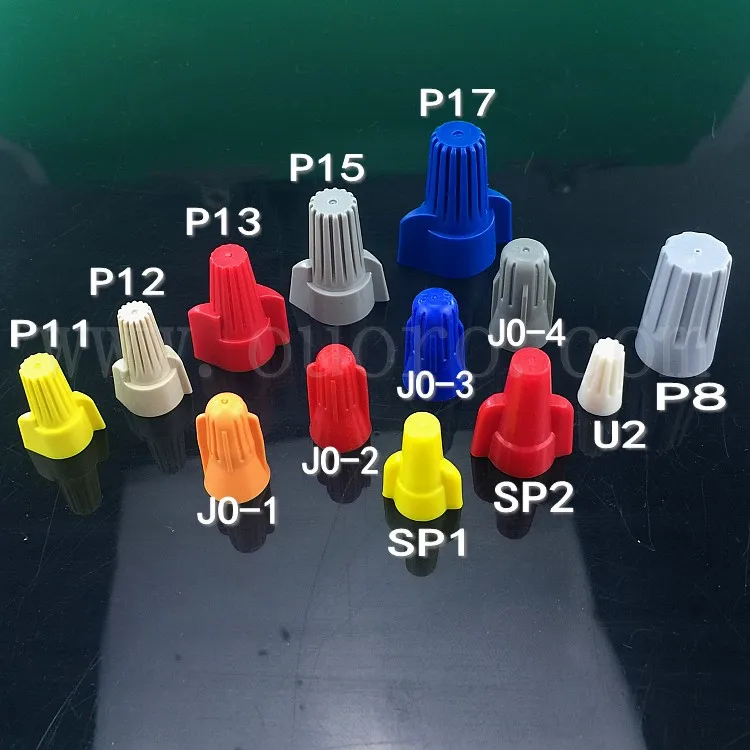

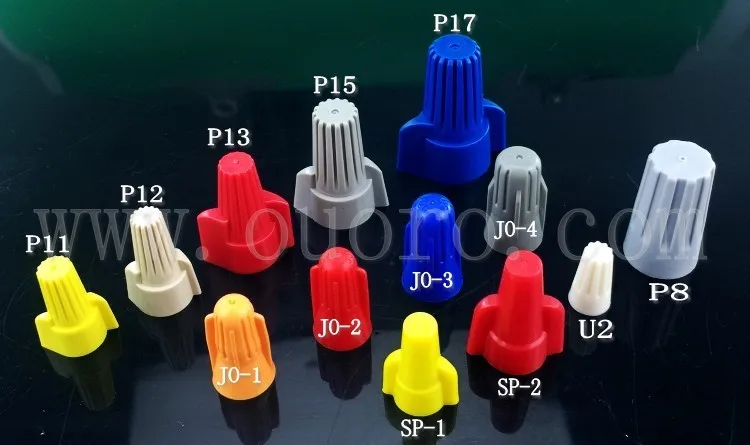

Screw-On Wire Connectors
Model No.	Color	Electrical Ratings	Wire Range	Packing
JO-1	Orange	300 V/600 V Max. 105°C (221°F)	18-10 AWG, Cu Max. 2 #12 w/1 #14 Min. 3 #18	100 Pcs/Bag
JO-2	Red	600 V Max. 105°C (221°F)	22-8 AWG, Cu Max. 4 #12 Min. 3 #22 Sol	100 Pcs/Bag
JO-3	Blue	300 V/600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 5 #12 Sol Min. 3 #16	100 Pcs/Bag
JO-4	Grey	300 V/600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 5 #12 Sol Min. 3 #16	100 Pcs/Bag
P11	Yellow	300 V/600 V Max. 105°C (221°F)	18-10 AWG, Cu Max. 2 #12 w/1 #14 Min. 3 #18	100 Pcs/Bag
P12	Tan	600 V Max. 105°C (221°F)	22-8 AWG, Cu Max. 4 #12 Min. 3 #22 Sol	100 Pcs/Bag
P13	Red	300 V/600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 5 #12 Sol Min. 3 #16	100 Pcs/Bag
P15	Grey	600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 3 #10 Min. 3 #14 w/1 #18	100 Pcs/Bag
P17	Blue	600 V Max. 105°C (221°F)	14-6 AWG, Cu Max. 3 #8 Sol w/1 #12 Min. 2 #10 w/1 #12	100 Pcs/Bag
SP-1	Yellow	300 V/600 V Max. 105°C (221°F)	18-10 AWG, Cu Max. 2 #12 w/1 #14 Min. 3 #18	500 Pcs/Bag
SP-2	Red	300 V/600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 5 #12 Sol Min. 3 #16	250 Pcs/Bag
