BX 3L/h 150L/h Small Liquid Nitrogen Generator
- Category: >>>
- Supplier: Hangzhou Boxiang Gas Equipment Co. Ltd.
Share on (60773656295):
Product Overview
Description
Product Description
BX-20L/h Small Liquid Nitrogen Generator

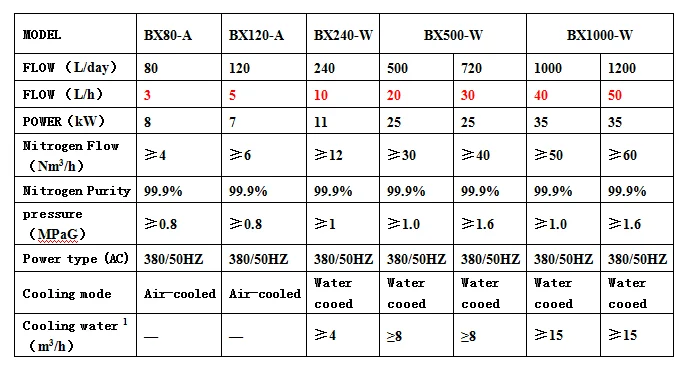

1.Specification&Selection of BOXIANG liquid nitrogen generator
2.Operating Principles
| Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180℃) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196℃. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life. |

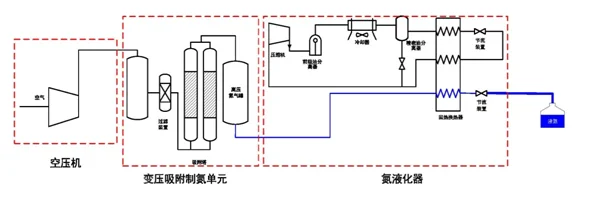

3. System process flow chart
4.Technical characteristics
This machine has the characteristics of simple process flow, Normal temperature production, high automation,
easy to start and stop, less damaged parts, easy maintenance and low production cost.
5.Application fields
1.Fishing boats, hotels and food processing plants, etc.2,hospital, beauty salon 3,Scientific research laboratory
4,Remote Farm

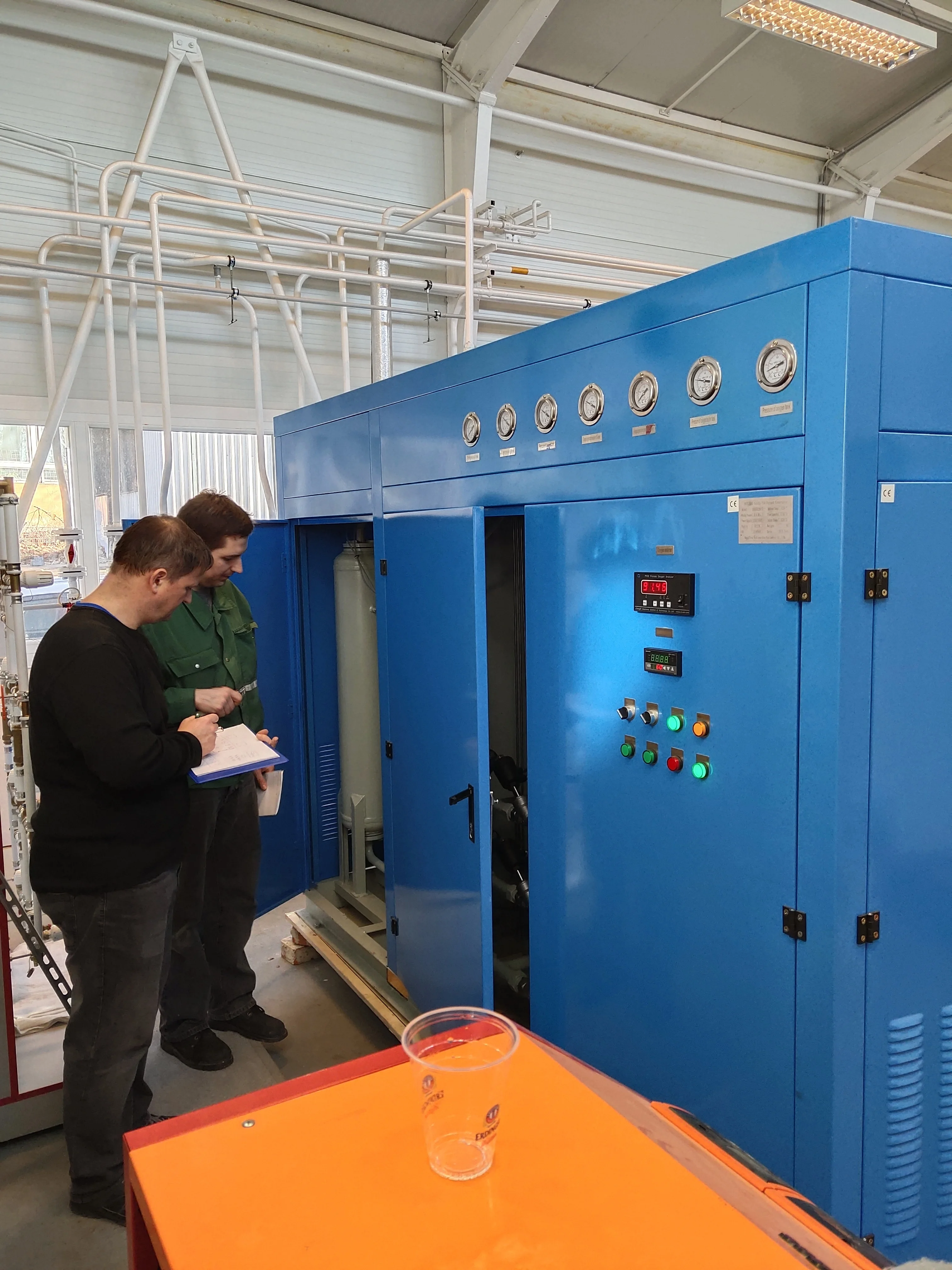

Customers Visiting

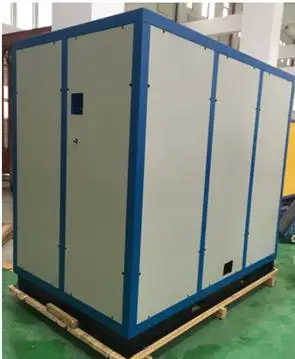

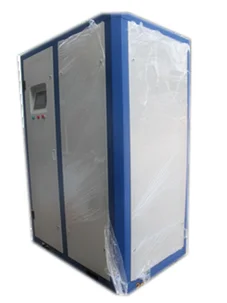

Packaging & Shipping
 |
