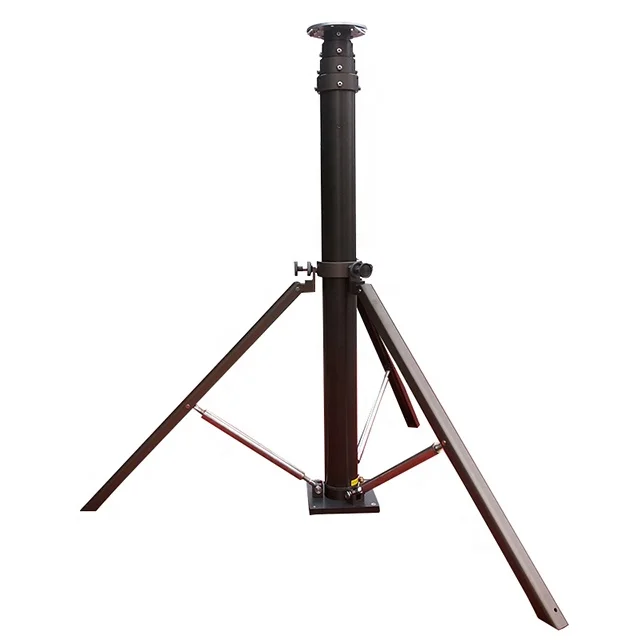

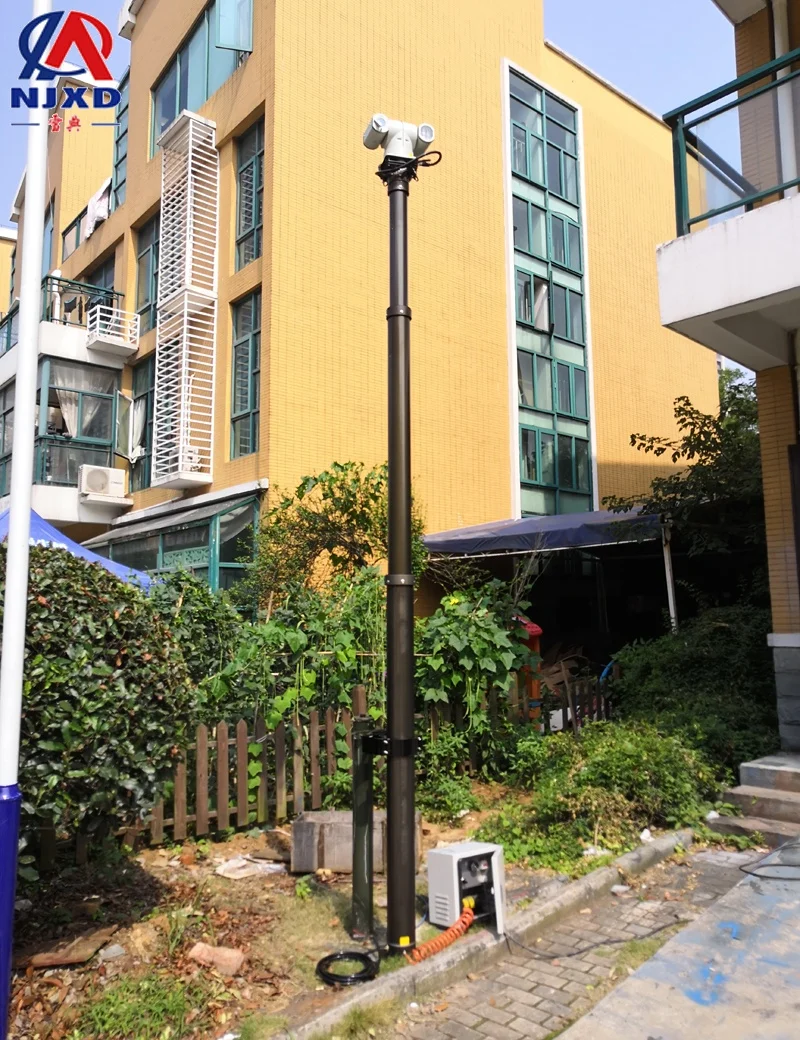

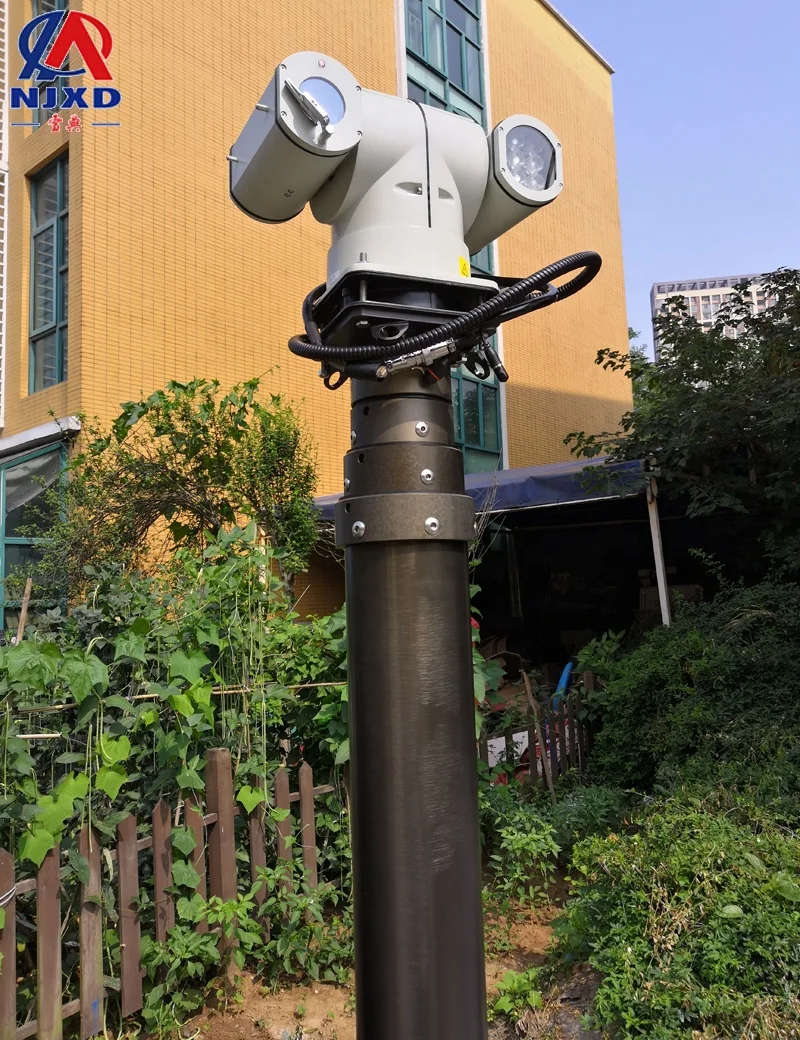

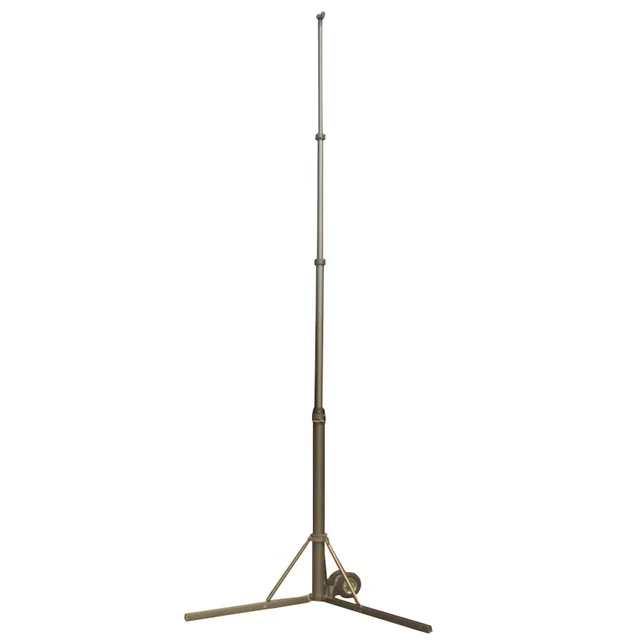

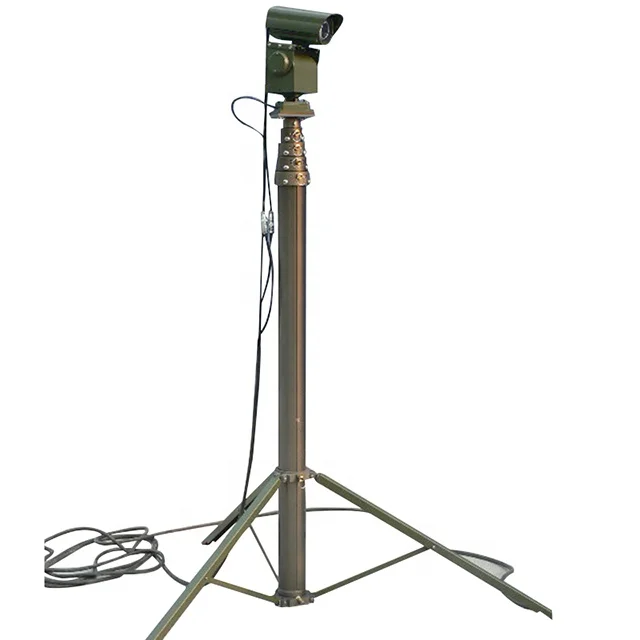

XD681 tripod pneumatic telescopic mast for CCTV camera
- Category: >>>
- Supplier: Nanjing Xuedian Lighting Co. Ltd.
Share on (60773704297):
Product Overview
Description
About us
NJXD Mast
Our company specializes in manufacturing and sales of telescopic antenna, manual telescopic mast, electric telescopic mast, vehicle mounted emergency telescopic monitoring systems and portable telescopic lamp products, the products have passed ISO9001: 2000 international quality system certification.
Product Introduction
The portable tripod uses a tripod to move the base by a hand tool (leg pressure pump) to raise the mast or raise it by hand. This device is equipped with a self--locking device. When each mast is raised to the highest point, there will be a “beep” sound, indicating that the mast is in place. Customers can also rise to the right heights they need. Before the mast is lowered, pull the ring of each section in turn to make the mast slowly descend. Finally, the tripod is put up and loaded into the mobile lag, which can be completed by a single person.
Specification
Model | Section | Retracted Height(mm) | Extended Height(mm) | Max OD(mm) | ID(mm) | Payload(kg) |
TBX3-75-1600-4000 | 3 | 1600 | 4000 | 75 | 46 | 20 |
TBX5-90-1300-4500 | 5 | 1300 | 4500 | 97 | 30 | 15 |
TKX5-90-1600-6000 | 5 | 1600 | 6000 | 97 | 30 | 15 |
TKX6-110-1800-8000 | 6 | 1800 | 8000 | 118 | 46 | 20 |
TKZL6-110-2200-10000 | 6 | 2200 | 10000 | 118 | 46 | 20 |
Application
Lighting
Camera
Antenna
Lightning Rod
Portable Tripod
Mobile Monitor Equipment
Related Preducts
Certification
FAQ
Q1: Price Term
A1: FOB
Q2: MOQ:
A2: 1 set for customized
Q3: Payment Term
A3: T/T
Q4: Delivery:
A4: Goods will be ready for shipment within 20 workdays after receiving deposit for 30 sets.
Q5: How can i get a price of needed pole?
A5: Please give the exactly dimensions such as tensile strength, height, thickness, material, top and bottom diameter. We can according to your specification and give you a similar price. You can also send us a drawing, and we give you the price according to it.
Q6: Package
A6: Wooden cases
A1: FOB
Q2: MOQ:
A2: 1 set for customized
Q3: Payment Term
A3: T/T
Q4: Delivery:
A4: Goods will be ready for shipment within 20 workdays after receiving deposit for 30 sets.
Q5: How can i get a price of needed pole?
A5: Please give the exactly dimensions such as tensile strength, height, thickness, material, top and bottom diameter. We can according to your specification and give you a similar price. You can also send us a drawing, and we give you the price according to it.
Q6: Package
A6: Wooden cases
