Factory Supply Car Truck Bus Engine Dynamometer Test Bench

Product Overview

Description

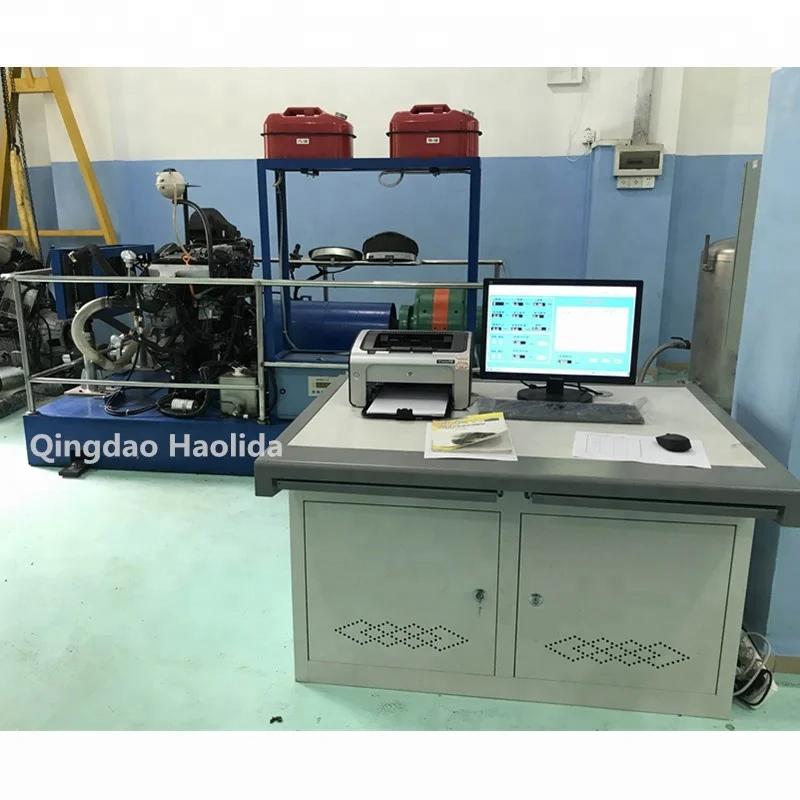

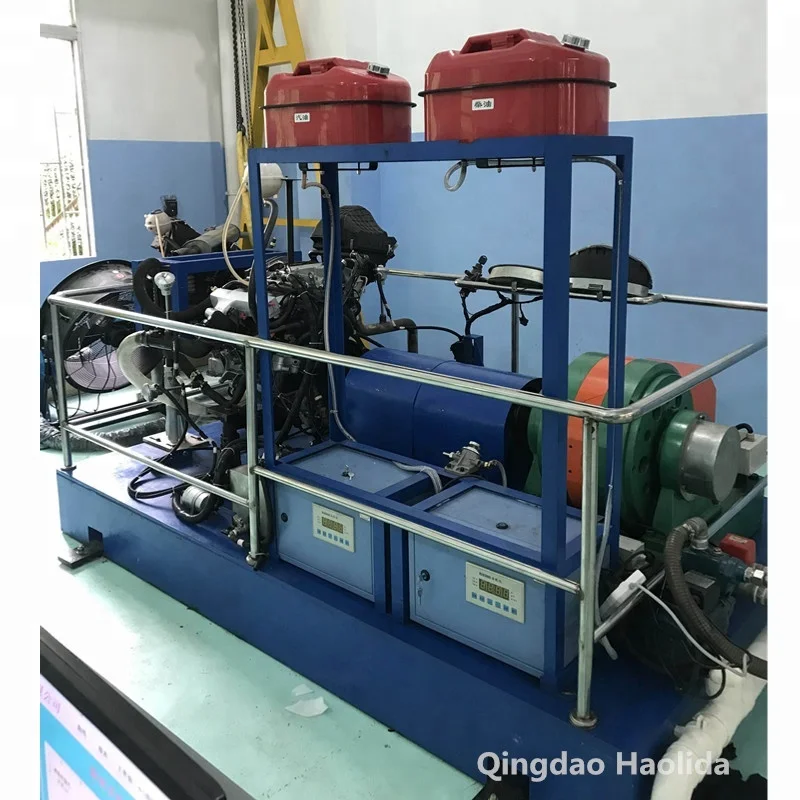

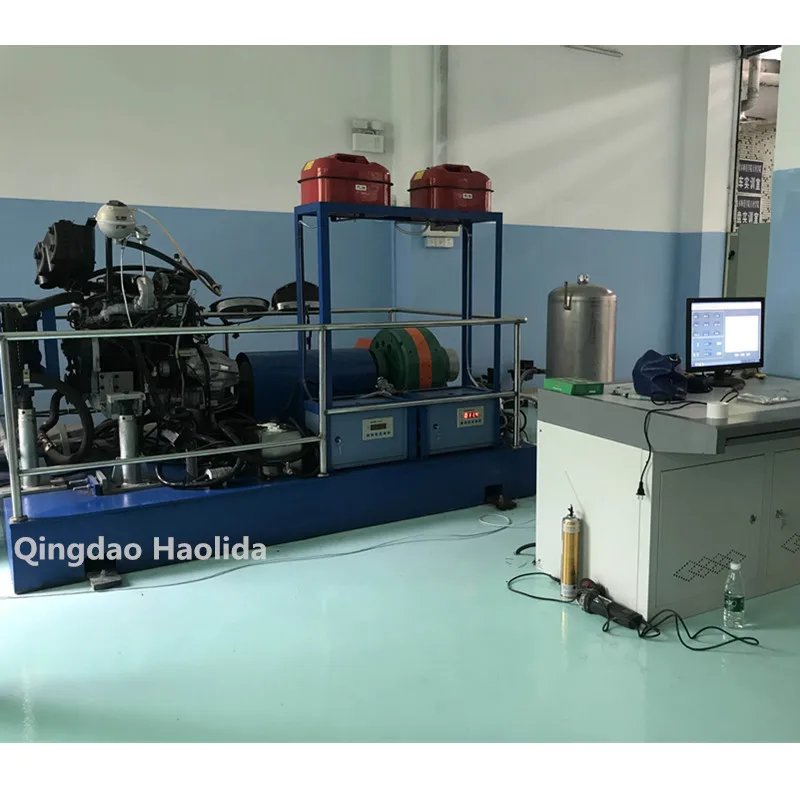

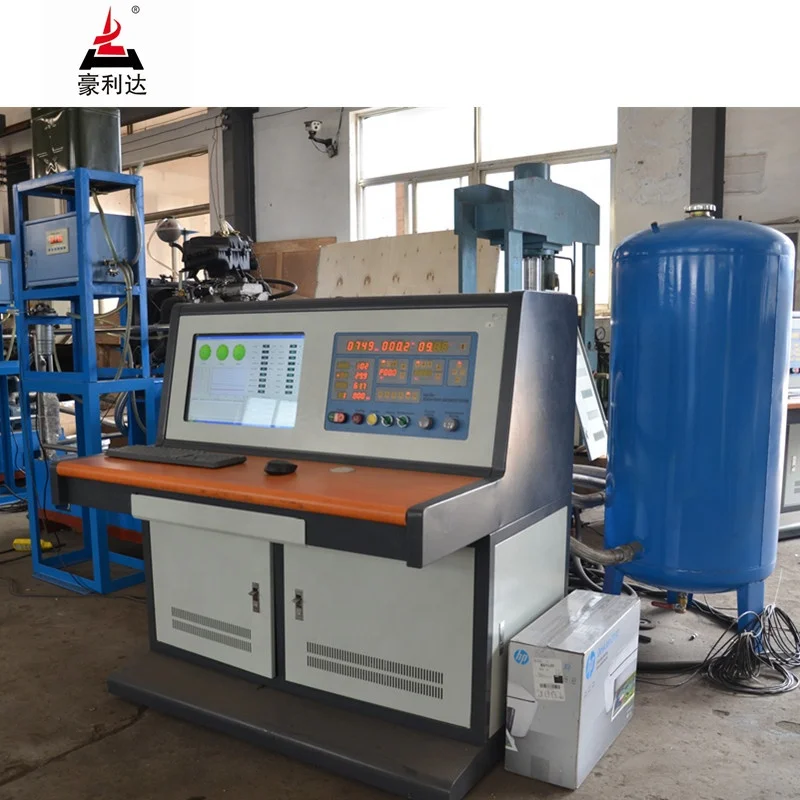

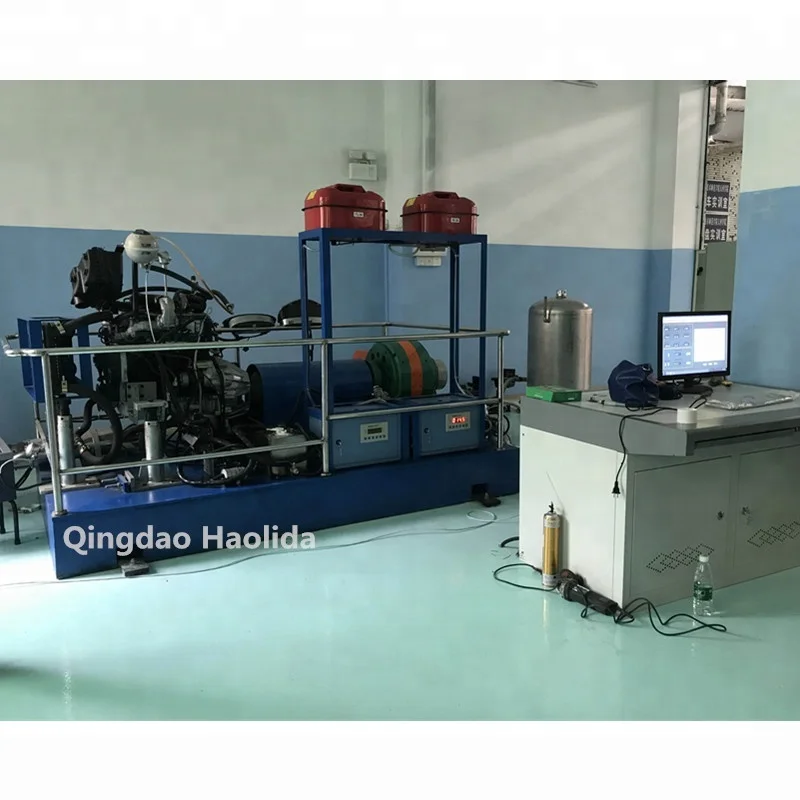

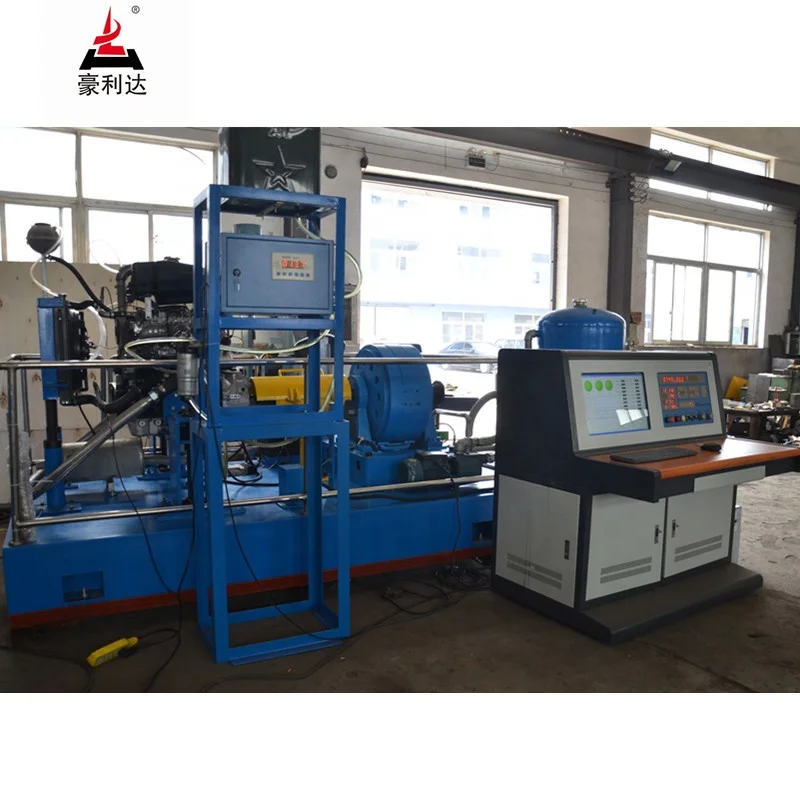

                        FWC-2 model engine dynamometer test bench



General introduction

This test bench is used for the test of engine dynamometer system.  It can test the speed, power, torque, oil pressure, intake and exhaust temperature, intake and exhaust water temperature, fuel consumption, exhaust gas data analysis ,etc. With a computer system (control, collect, storage, display, print), dynamometer work platform, a full set of engine ignition related accessories, throttle controller and throttle actuator, dynamometer water cooling system with universal coupling Device, engine connection plate, pipeline and so on.



Test items:

1.      Test speed of engine

2.      Test power of engine

3.      Test torque of engine

4.      Test oil consumption of engine (optional)

5.      Test tail gas of engine (optional)



Technical parameter:



Model no	FWC-2
Language	English
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	AC 220V 50 Hz
Rated power	150KW (can be made bigger power)
Rated speed range	2500-6000r/min
Rated power torque	50N.m-500N.m
Rated excitation voltage	50V
Rated excitation current	10A
Inlet temperature of cooling water	25℃
Outlet temperature of cooling water	50℃
Rated power cooling water pressure	0.2Mpa
Cooling water consumption	56L/min
Accessories:
Accessory wires, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	35 days after receiving downpayment
HS code	90312000.90



Why Choose us:

1.      32 years’ design,development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
