Product Overview
Description
Product Description
1.Feature of the pellet floating fish feed making machine processing line :
(1).It can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is 0.6-16mm. Promising fodder output evenly and continuously.
5. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel,with building block system structure and self-cleaning function.
3.The detailed configuration:

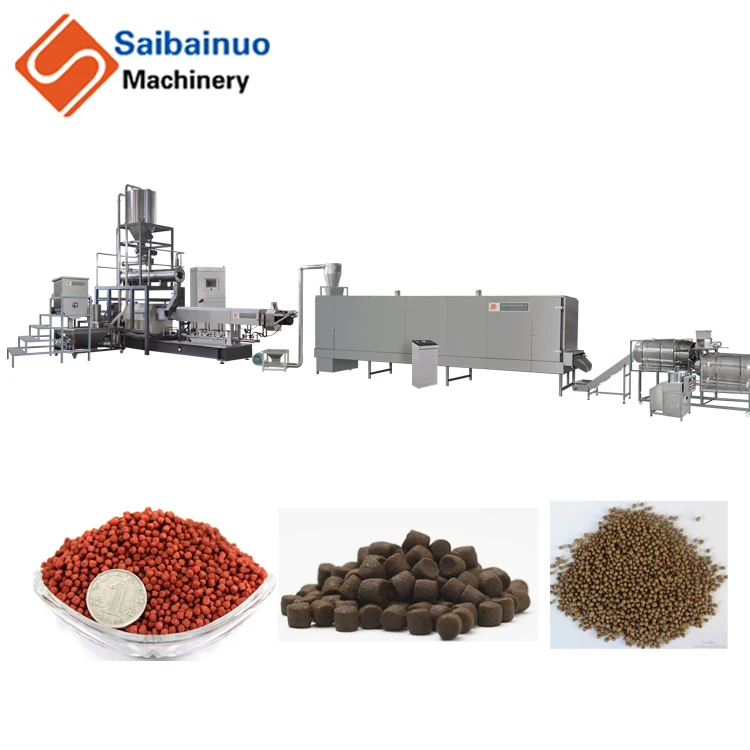

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system(some customer need, some customer do not need).
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system(some customer need, some customer do not need).
4.Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
5. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel,with building block system structure and self-cleaning function.
6.The parameter:
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, quality is our culture, time is our gold, we have professional engineer making nice quality machines is short time, also have special team work 24*7 help you slove any kinds of problems, so with us your money in safe, your business in safe.

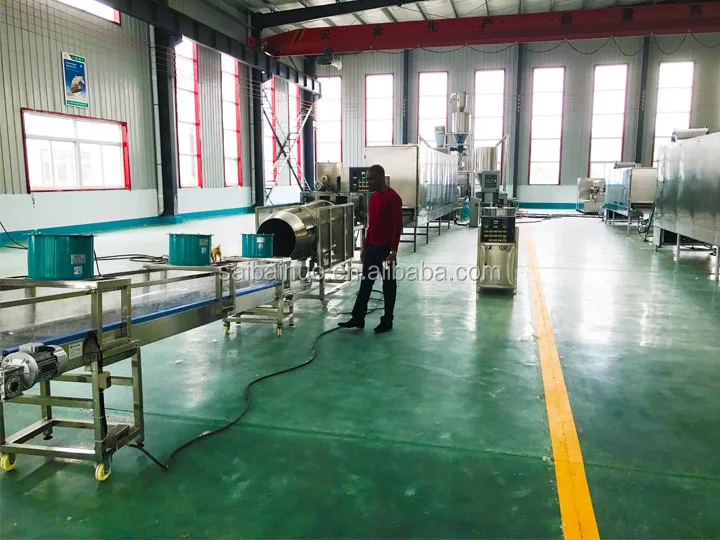

Customer come to our factory to inspect the machines.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 3KW
Speed: 400rpm
Throughput: 20kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter:\tΦ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material

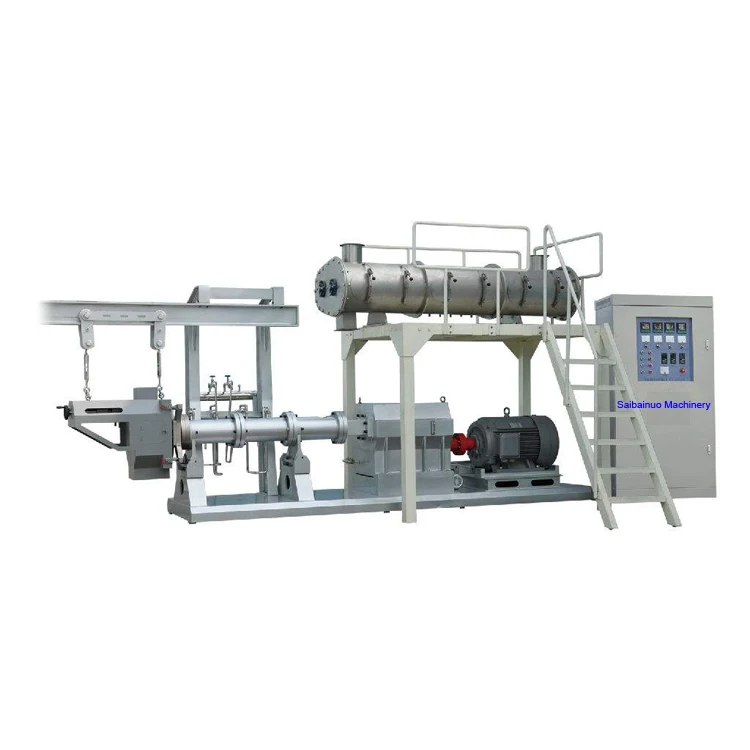

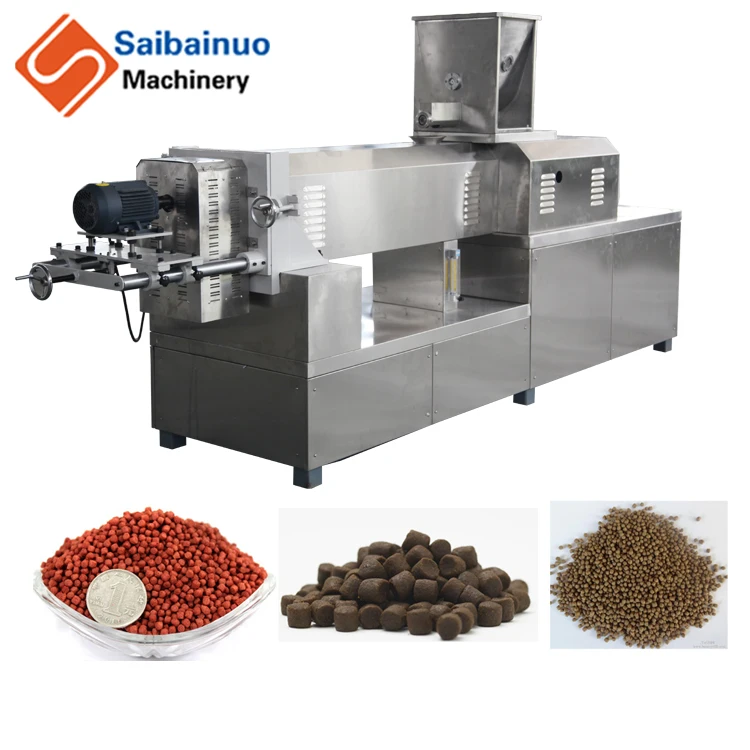

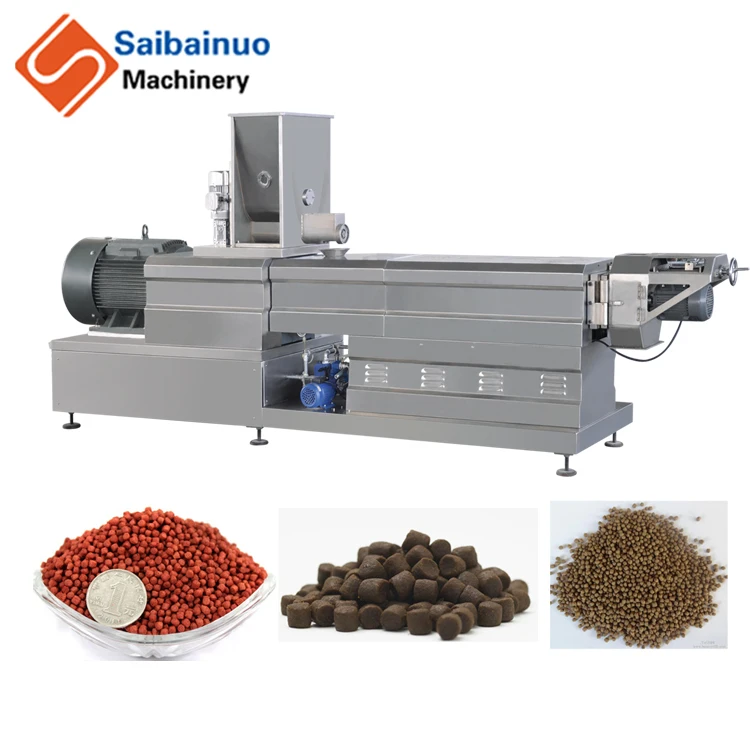

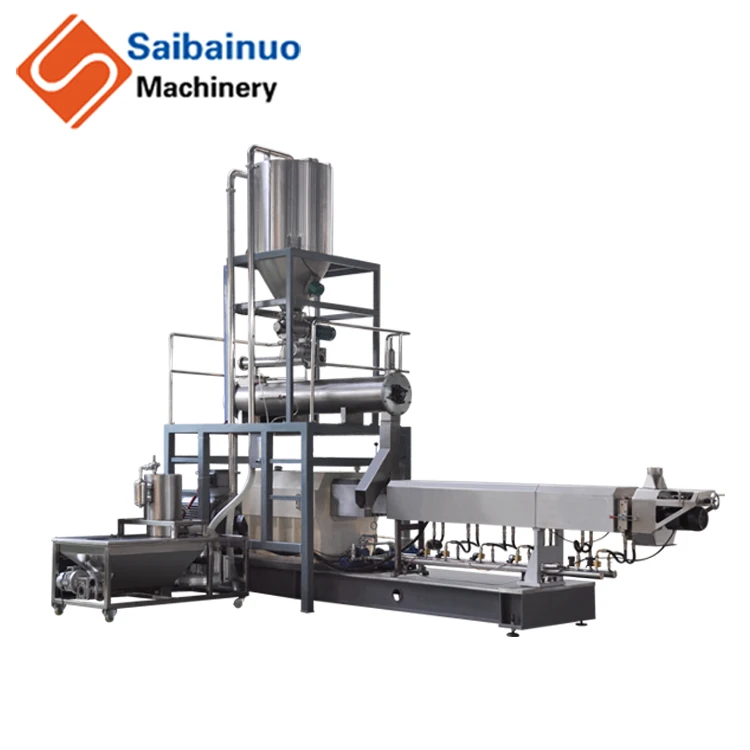

Name: twin screw extruder
Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different moulds to produce different Shapes product.
Name: air conveyor
Dimension(m): 1.1×0.6×0.5
Motor Power: 1.1KW
Functions:
1.conveys the food by the wind-force from the blower.
2.suitable for long distance conveying
Features:
Low energy-consumption, high efficiency.
It use high pressure blower to send food, It is more effective than normal pressure blower.
Name: dryer(we also have gas/steam diesel gas for your selection).
Dimension(m): 5.4×1.3×1.8
Motor power:0.75kw
Heating powder: 27kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel
Name: hoister
Dimension(m): 2.0×0.5×1.5
Motor Power:0.37KW
Function:
elevator conveys the food from the discharge-port of oven to the feed-charge port of roller.
Features:
No leaking material and pollution
PVC conveyor belt
suitable for the long distance conveying
can adjust the height by holder stand.
Name:Oil sprayer
Dimension(m):1.1×0.5×1.3
Motor Power:0.37 KW
Heating power:2KW
Function:
make the liquid oil, sugar and the solid fat be heated, then spray them on the Surface of food by the oil pump.
Feature:
It has heating system and spraying system
Name: flavoring line
Dimension(m): 3.8×0.8×1.8
Motor Power: 1.5KW
Function:
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Feature:
Stainless steel material(1.5mm thickness).
Certifications
Our Service
Pre-sale service:
1).Related machines's technical parameter will be supplied to customer.
2).According to customer's factory size, factory layout can be provided in advance.
3). According to customer's material cost, general formulation can be prepared well.
4).Special machine can be supplied as customer's request.
5).Professional Advice about Market, machines, processing , materials, packing can be supplied
6). Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1).Allocation chart as the buyer's request will be supplied.
2).Operation manual will be supplied after shipment.
3).One year warrantee, life time maintenance with cost price.
4).Free easy broken spare parts will be sent with container .
5).First installation can be done by engineer.
6).Training workers in customer's factory.
Packing & Delivery
Packaging & Shipping:
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
