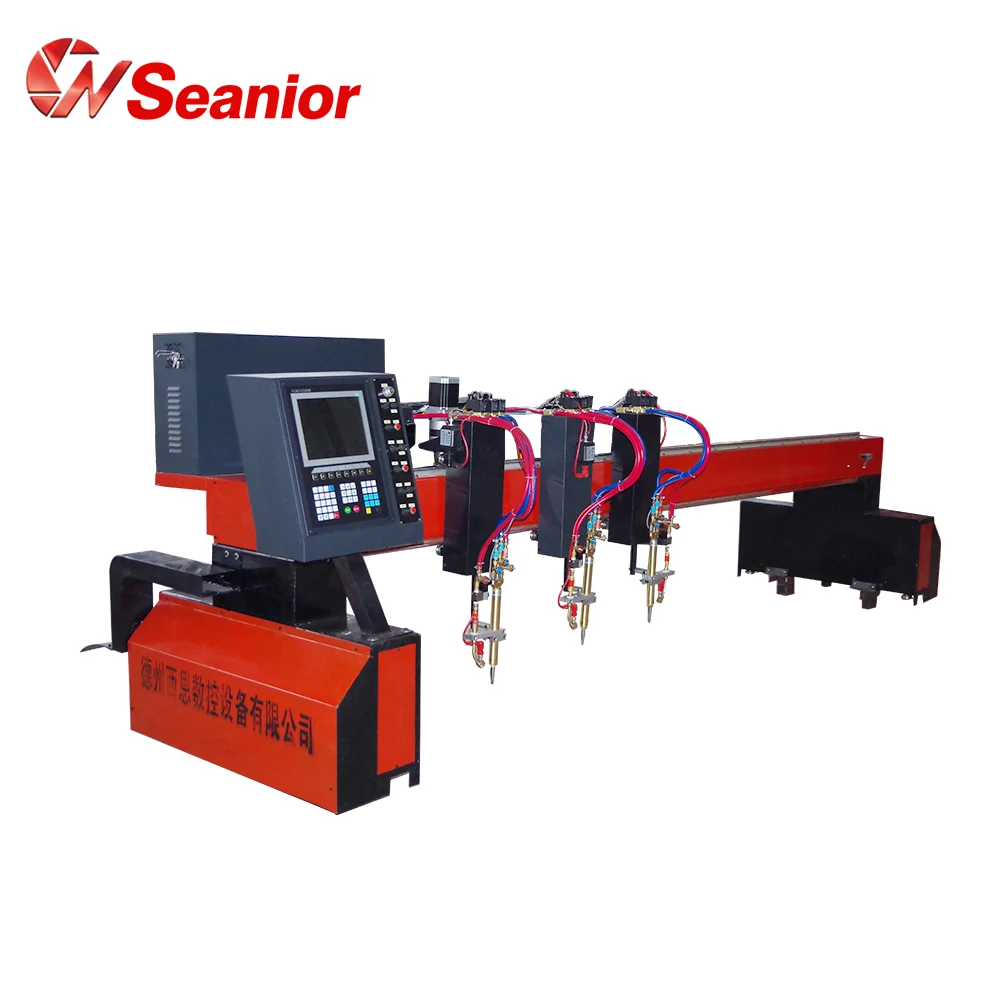

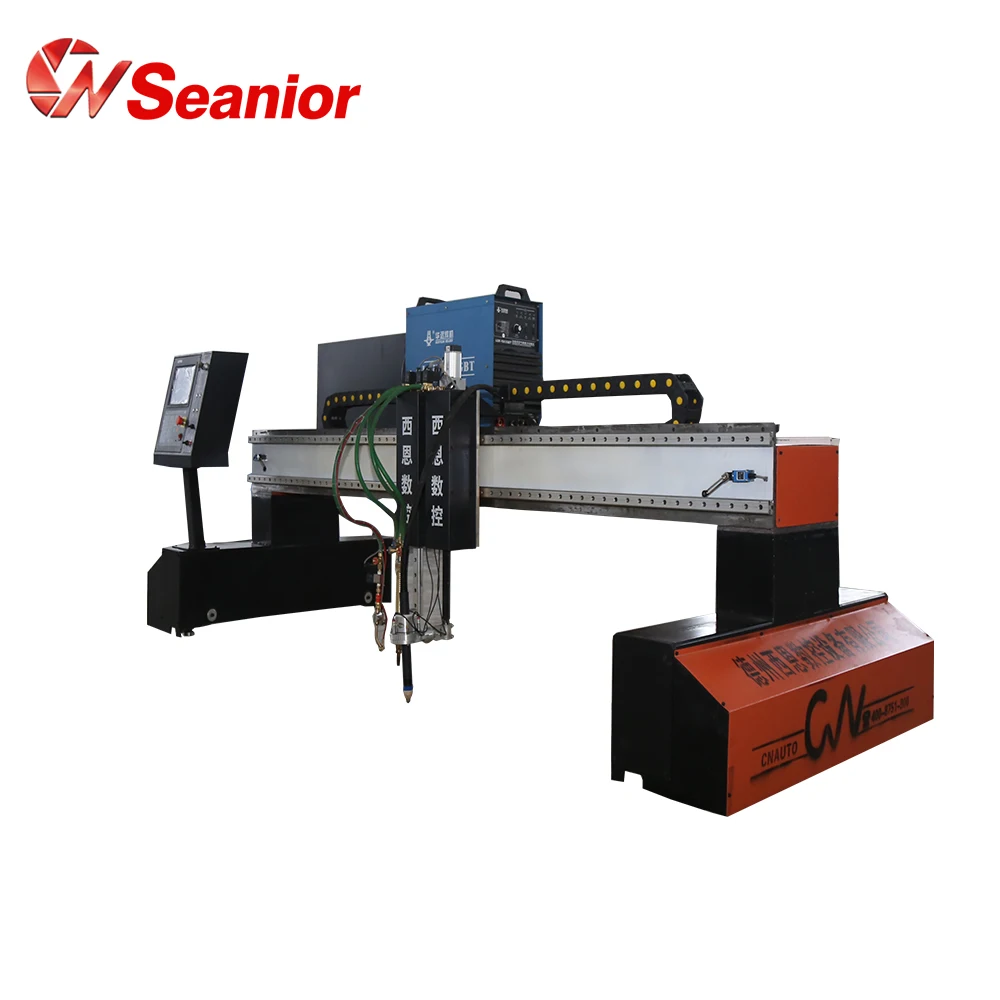

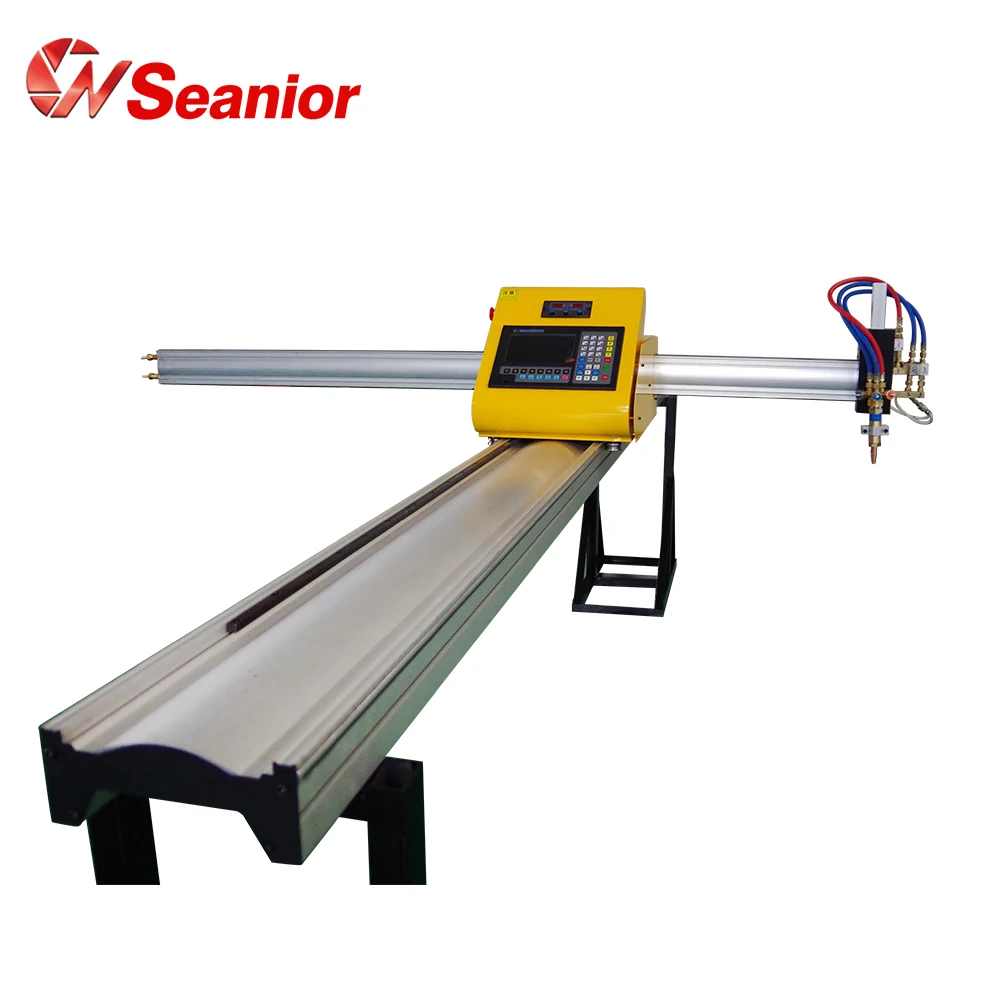

China Manufacturer Portable Gantry Plasma Oxygen Cutting Machine

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.
2) High compliance digital drives provide a smooth cut edge with zero maintenance.
3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.
4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.

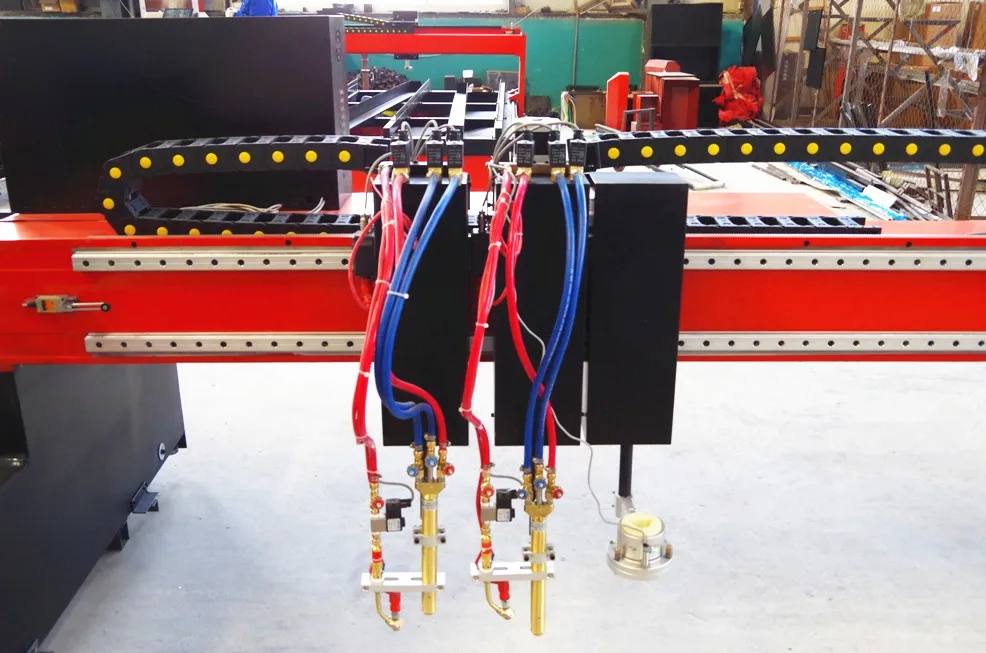

5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.
6) Up to 800 amp plasma depending on your choice.
7) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.

Product Details

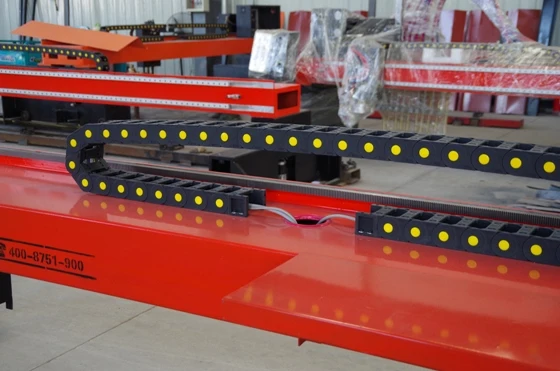

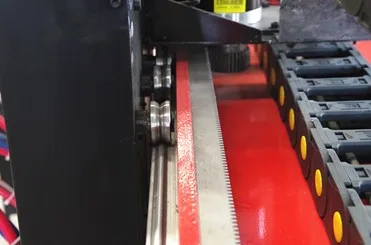

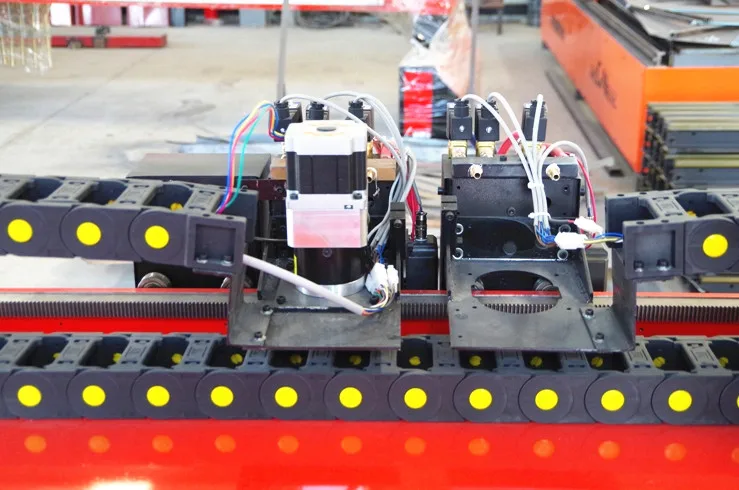

Gear rack

The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

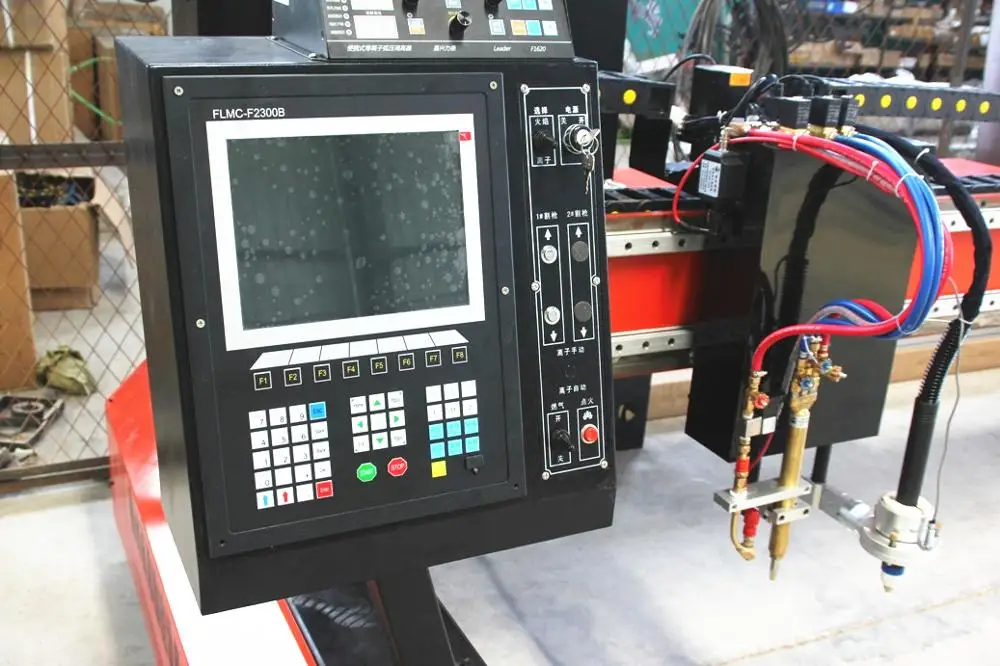

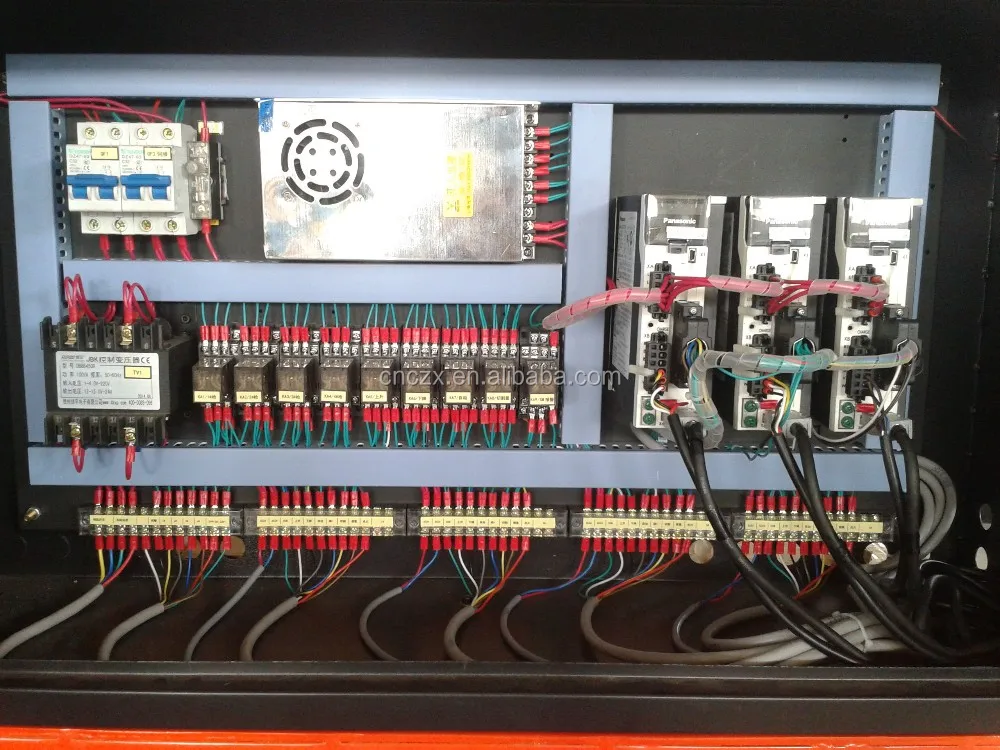

Electric cabinet

The enclosed control cabinet is easily accessible. The digital drives, low-cost  replacement I/O modules and more reduce and limit your repaire and maintenance costs.

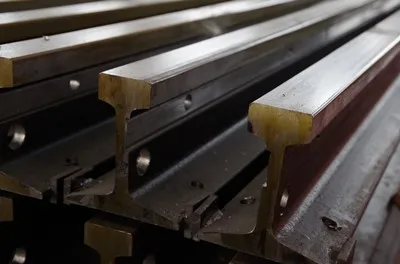

Floor mounted rails

Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torches

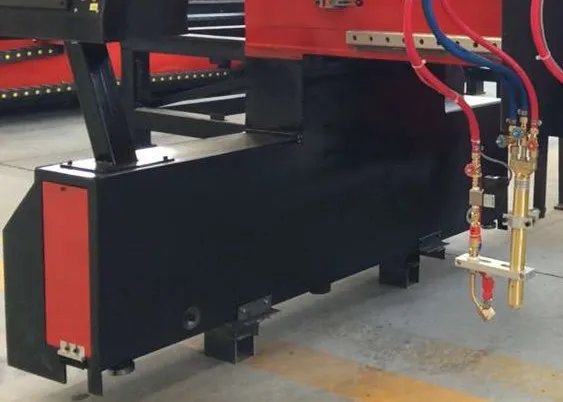

Heavy-duty end trucks

The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.

Product Parameter

Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting 1-45mm for standard 200A plasma cutter
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	100-12000mm/min for plasma cutting 50-600mm/min for flame cutting process
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

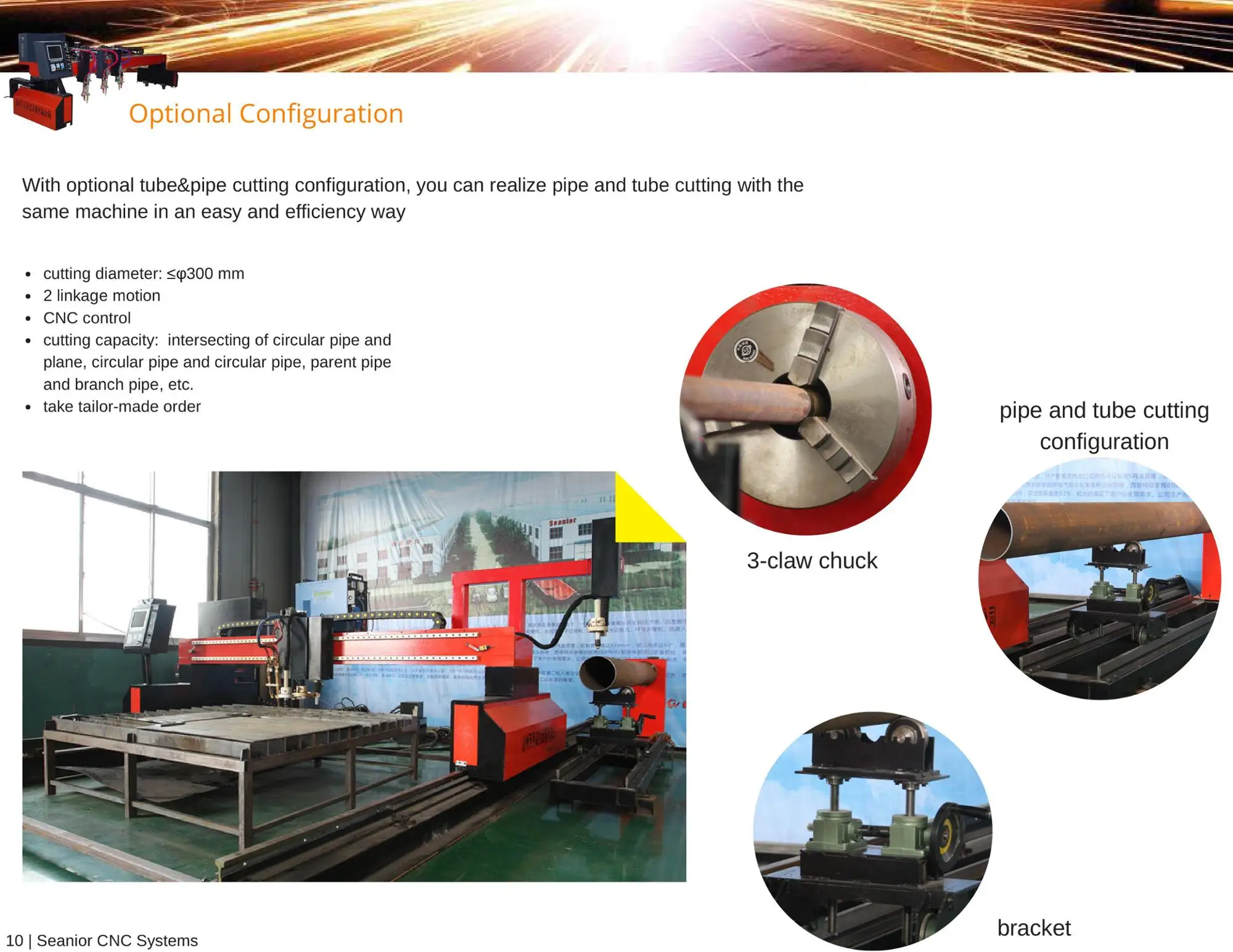

Optional Configuration

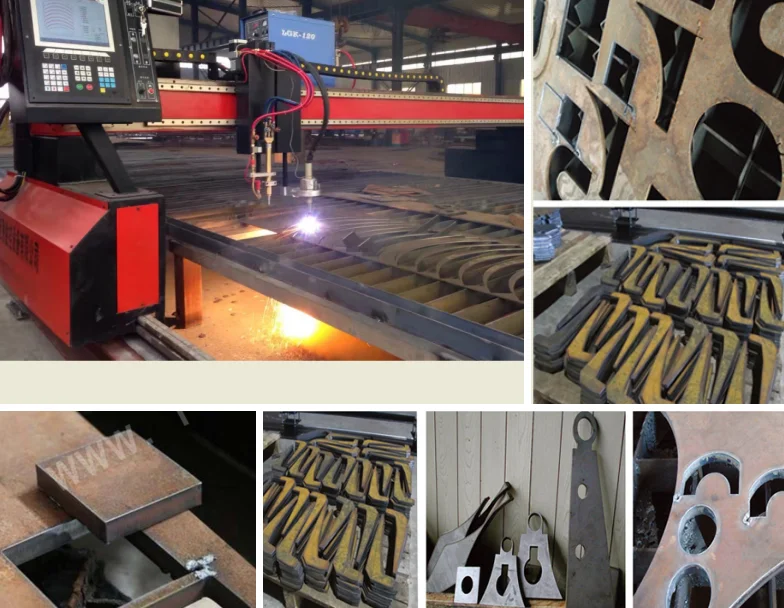

Cutting Samples

Hot Products

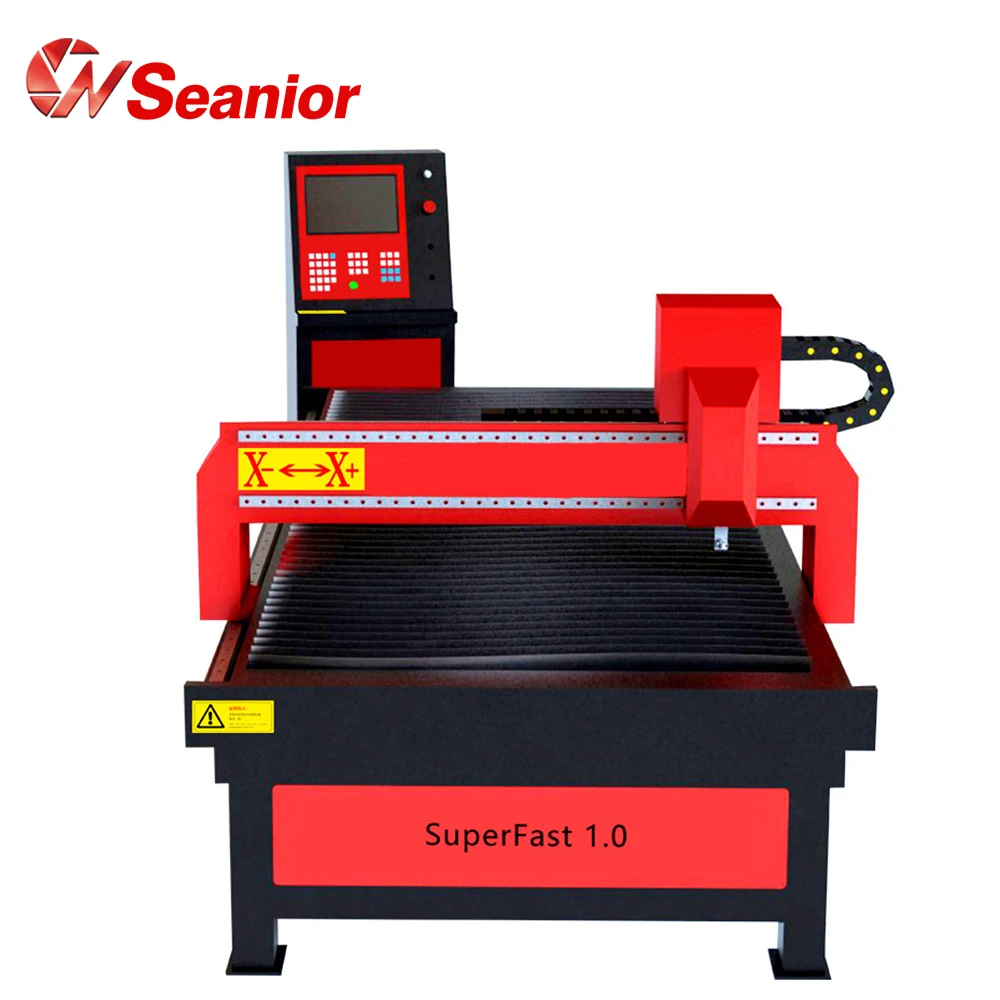

 CNC Plasma Cutting Machine Table

Economic CNC Gantry Cutting Machine

Plasma Cutting Machine Portable

Seanior CNC Systems

Seanior CNC Systems

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

Why you Choose Seanior CNC Systems

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.

1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.

Trade Show

Packing & Delivery

Stand exporting packing
1.Outside package:Standard marine export plywood cases.
2.Inner package:Stretch film and plastic film for humidity.
3.We can package according to your requests
4. Shipped in 25-30 working days after payment.
