Высокопроизводительный направляющий рельс HGR20, рельсовый блок HGH20CA для станка с ЧПУ
- Category: Linear Motion >>>
- Supplier: Zaozhuang Yiding Bearing Co. Ltd.
Share on (60773814802):
Product Overview
Description

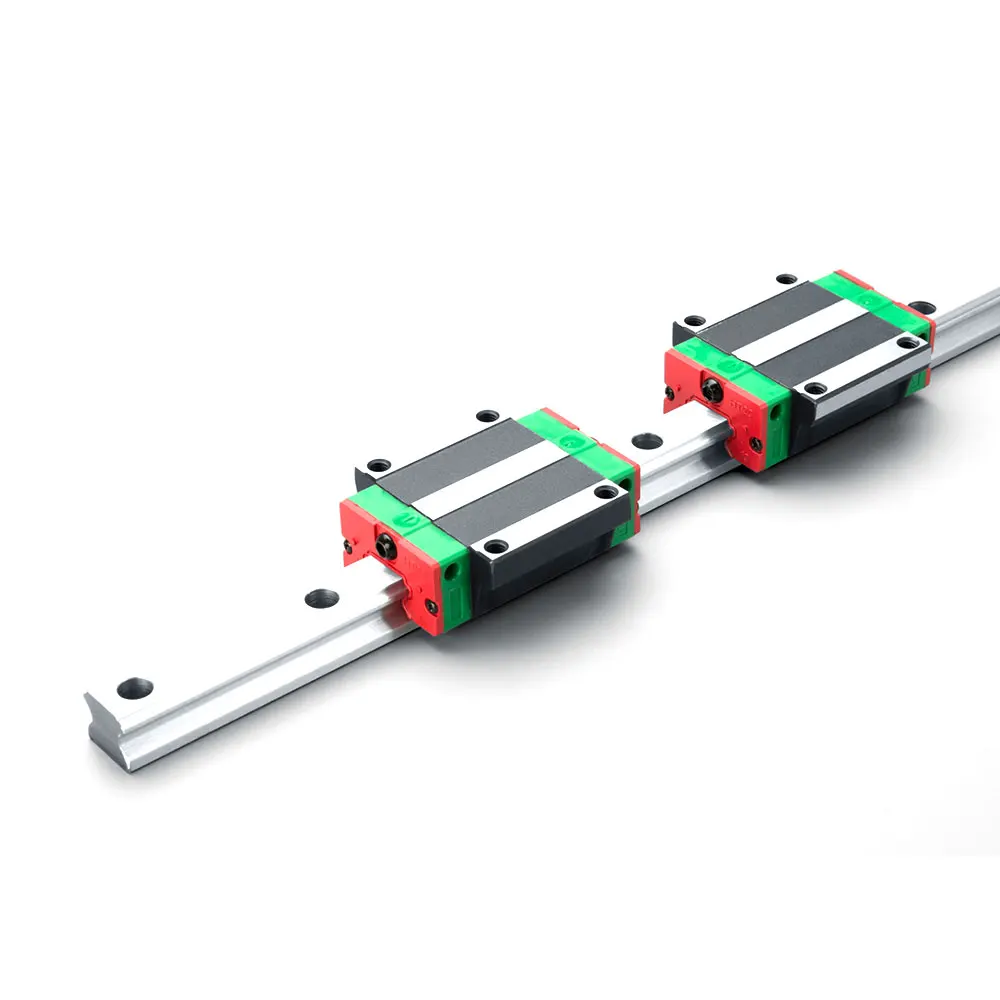

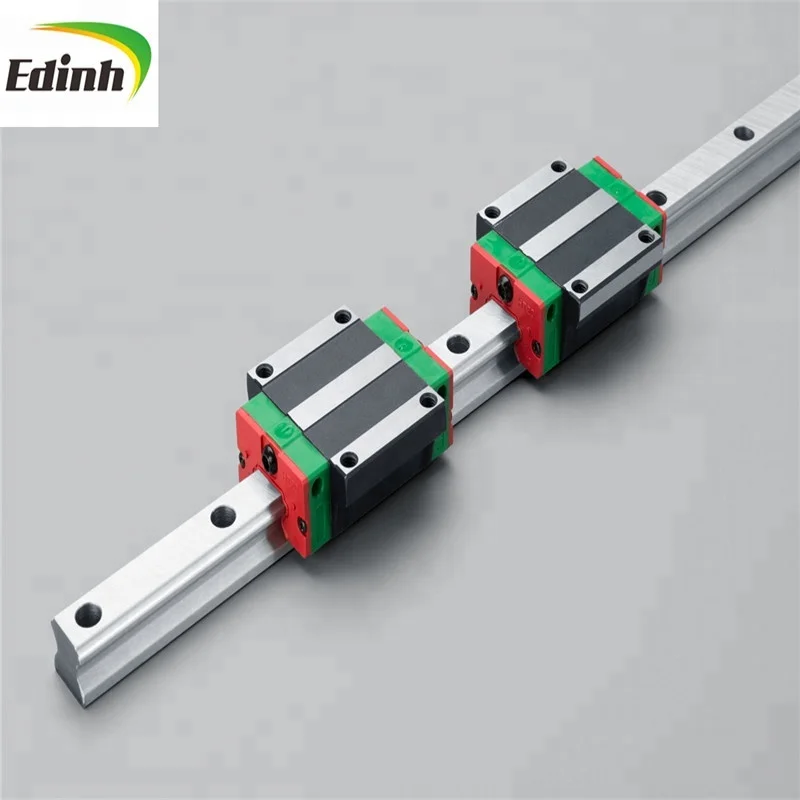

HIgh performance HGR20 guide rail HGH20CA carriage block for CNC machine
Product Description
Features:
- High-speed operation
- Low friction and noise
- High precision, duration, and reliability
- Smooth movement
- High efficiency of transferring
- No gap and preloading
-Rail type: interchangeable types
-Block type: square Type or Flange Type as your request.
-Load Type: Heavy Load
-Block Mounting: Mounting from Top
-Accuracy: C7,C5,C3... as your request.
Description:
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc
groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and
self-aligning to absorb installation-error. Thus, HG series linear guideways can achieve a long life with high speed, high
accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral
directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Applications:
- CNC Precision machining
- Heavy cutting machine
- Punching machines
- Marble cutting machines
- Automatic equipment
- Grinding machines
- High speed transfer equipments
- Injection moulding machines
- High-speed operation
- Low friction and noise
- High precision, duration, and reliability
- Smooth movement
- High efficiency of transferring
- No gap and preloading
-Rail type: interchangeable types
-Block type: square Type or Flange Type as your request.
-Load Type: Heavy Load
-Block Mounting: Mounting from Top
-Accuracy: C7,C5,C3... as your request.
Description:
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc
groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and
self-aligning to absorb installation-error. Thus, HG series linear guideways can achieve a long life with high speed, high
accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral
directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Applications:
- CNC Precision machining
- Heavy cutting machine
- Punching machines
- Marble cutting machines
- Automatic equipment
- Grinding machines
- High speed transfer equipments
- Injection moulding machines
Our Services
Samples | ok |
OEM | ok |
Packing & Shipping

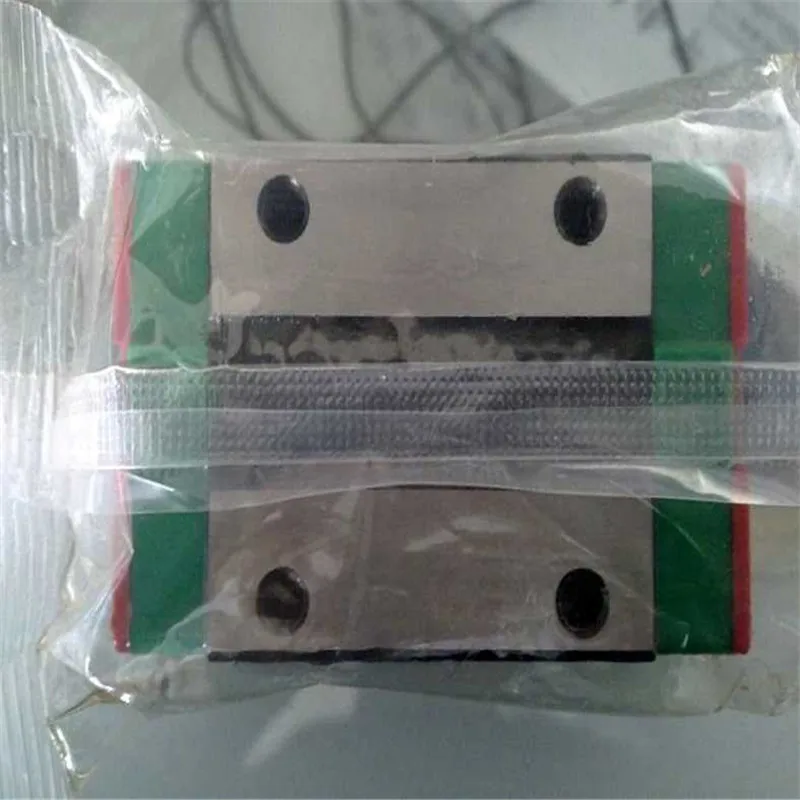

package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
