HORED High Speed wireless Access points WIFI Coverage for Hotel (OEM welcome)
> Wireless Access Points
> Access points WIFI
> Wireless Access Points Coverage
> Access points WIFI Coverage
> Wireless Access points Ceiling AP
> Hotel WIFI Coverage access points
> FCC/CE/RoHS certified
>>> Overview:

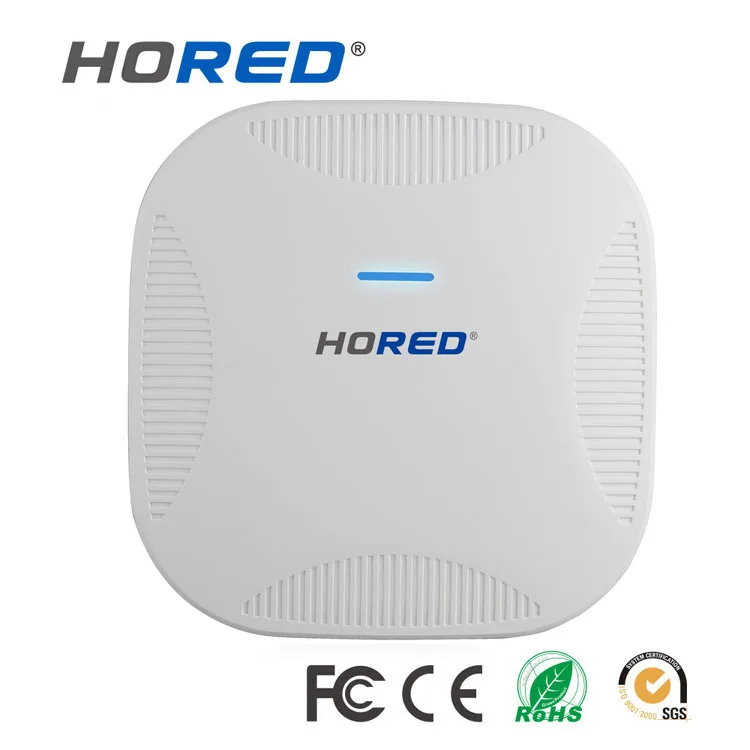

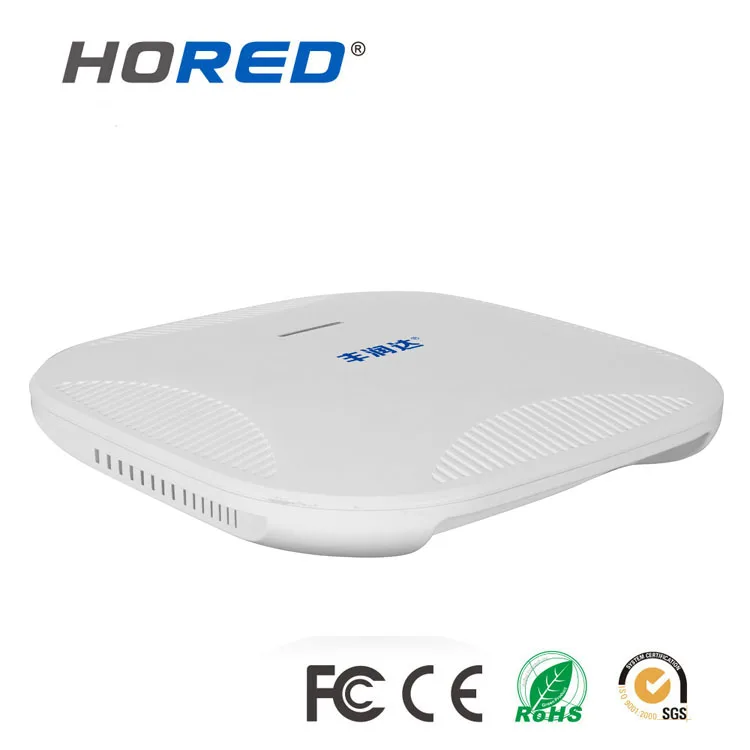

RD-W168AP wireless access point is designed for wireless coverage with high-capacity and high-bandwidth. It is suitable for medium and large hotels, companies, bars, and cafes. RD-W168AP can operate in the 2.4GHz and 5G frequency bands at the same time, and the wireless rate can reach 1200Mbps. The product has four built-in high-gain omnidirectional antennas, which has powerful WIFI signal penetration and coverage without dead angle. The device uses 128M large memory, and support 70 users. It is based on a ceiling-mounted design, elegant appearance. The built-in ceiling mounting accessories can be mounted directly on the wall and ceiling. It supports standard PoE (802.3af/at) power supply, convenient networking.
>>> Technical Parameters:
Working frequency band
2.4GHz 5GHz
Wireless speed rate
1200Mbps
Installation Method
Ceiling/Wall Mounting
Dimension
189mm*189mm*38mm
Port
210/100M RJ45 port
1DC port
Indicator
1 system indicator
1*2.4G indicator
1*5G indicator
Service indicator
Indicator can be turned off
Antenna
Built-in antenna
Button
1Reset button
Power supply
802.3af/at standard power supply
12VDC power supply(Not included in package)
Maximum overall power consumption
8W
Management
HORED AP controller(AC)
Unified Management
Separate web page management, Telnet
SSID Quantity
8
Chinese SSID
Support
Wireless Function
SSID broadcast: Support
Wireless encryption:WPA,WPA2,WPA-PSK,WPA2-PSK
User isolation: isolation between wireless networks and internal isolation of AP
Wireless MAC address filtering: support
Wireless client limit: support
Kicking off weak signal equipment, prohibiting weak signal equipment access: support
System Management
System Management: English
System Log: Support
Restore Factory Settings: Support
Backup configuration: support
Import configuration: support
Software Upgrade: Support
Watchdog: Support
Working environment
Operating temperature:0℃~40℃
Operating Humidity:10%~90%RH Non-condensing
Storage temperature:-40℃~70℃
Storage humidity: 5% to 90% RH non-condensing
>>> Detailed Pictures:
>>> Application:
Certifications
Company Information
Shenzhen Fengrunda Technology Co., Ltd (HORED)is a global leader in PoE devices supply. Established in 2011, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.
At present, we use chipset solution is Broadcom, RTK, TI(Texas Instruments) etc.
Our factory size about 3,000 square meters, No. of production lines above 10. Production capacity is 2000pcs every week, total employees 201-300 people.
QC department seriously control all products quality from material to finished products. Our product can be inspected by the third inspection part, all the products passed certificate, FCC, RoHS, CE...
Honesty is the business basis.
FAQ
1). OEM/ODM Service: Customized package/front panel/label(your logo and model). 2). Quality&RMA: Good quality control system, 100% test before shipment, RMA less than 1% 3). After service: One year warranty, will replace new parts for RMA if it is within warranty 4). Fast delivery: Sample within 2 day; Mass order depends on order quantity. 5). MOQ: 1pcs also welcome
