Geotextile fabric is the geosynthetic textile material widely used to increase soil stability, provide erosion control or aid in drainage. BPM brand short staple needled punched geotextile fabric is made from a synthetic polymer such as polypropylene, polyester, polyethylene or polyamides fiber and processed by woven, needle punched or heat bonded methods. It is the ideal material for civil engineering applications such as roads, harbors, reservoirs, canals, dams and many others retaining construction to improve soil stability, provide erosion control or aid in drainage.

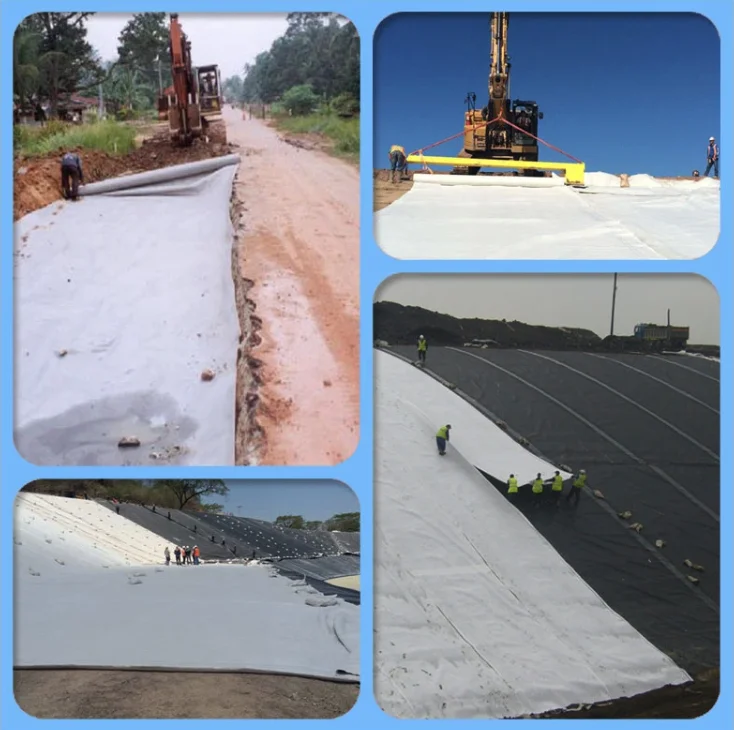

Where the geotextile used?

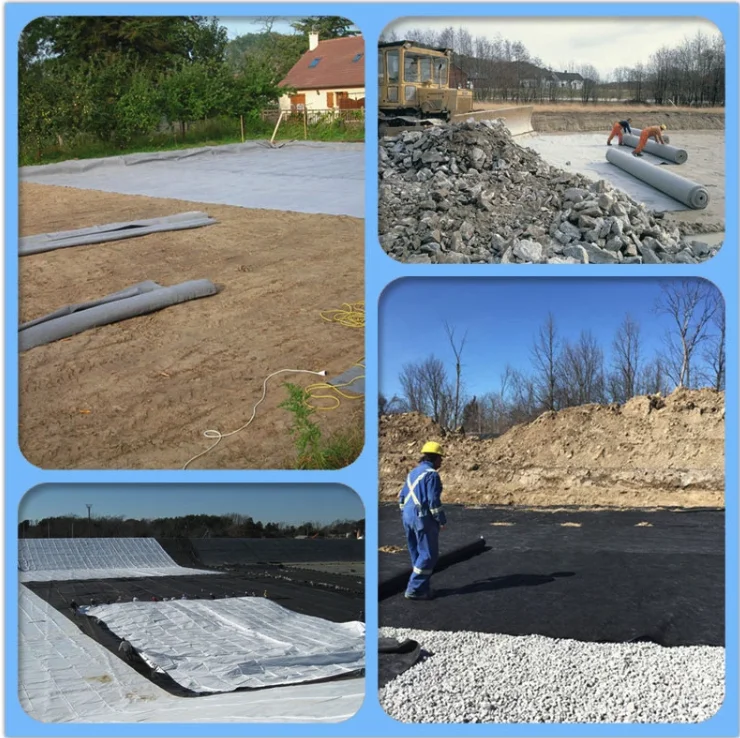

Reinforcement in retaining wall backfill.
Strengthen the weak road and fix the cracks on the road.
Improve the stability of slope and reinforcement soil, avoid water and soil loss and soil frozen injure.
Isolation layer of artificial backfill soil stone with foundation and different tundra.
Filtration layer of drainage pipe or gravel.
Vertical or horizontal drainage; Bury in soil to release air pressure.
Reinforce the weak foundation of engineering of road, railway, embankment, airport.
The role of the geotextile.
1: Isolation Using polyester staple fiber needle geotextile to separate the building materials with different physical properties (particle size, distribution, consistency and density), such as soil and sand, soil and concrete, etc.. Two or more materials are not lost, not mixed, to maintain the overall structure and function of materials, so that the carrying capacity of the structure is strengthened. 2: Filtration (filtration) When the water from the soil into the fine coarse material layer, using polyester staple fiber needle punched geotextile has good air permeability and water permeability, the water flow through, and effectively carrying soil particles, sand, small stones and so on, in order to maintain the stability of soil and water engineering. 3: Drainage The polyester needle punched geotextile has good water conductivity. It can form drainage channel in the soil, and make the excess liquid and gas out of the soil structure. 4: Reinforcement The use of polyester staple fiber needle geotextile to enhance the tensile strength and deformation resistance of soil, and enhance the stability of building structure, in order to improve the quality of soil. 5: Protection When the soil flows against the soil, it can effectively diffuse, transfer or decompose the concentrated stress so as to prevent the soil from being damaged by the external force and protect the soil.
Product Data

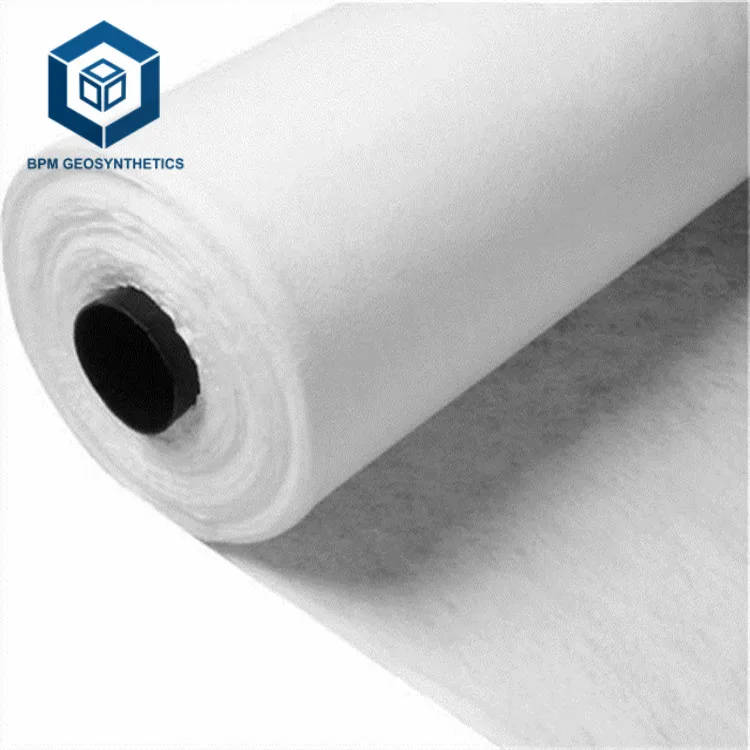

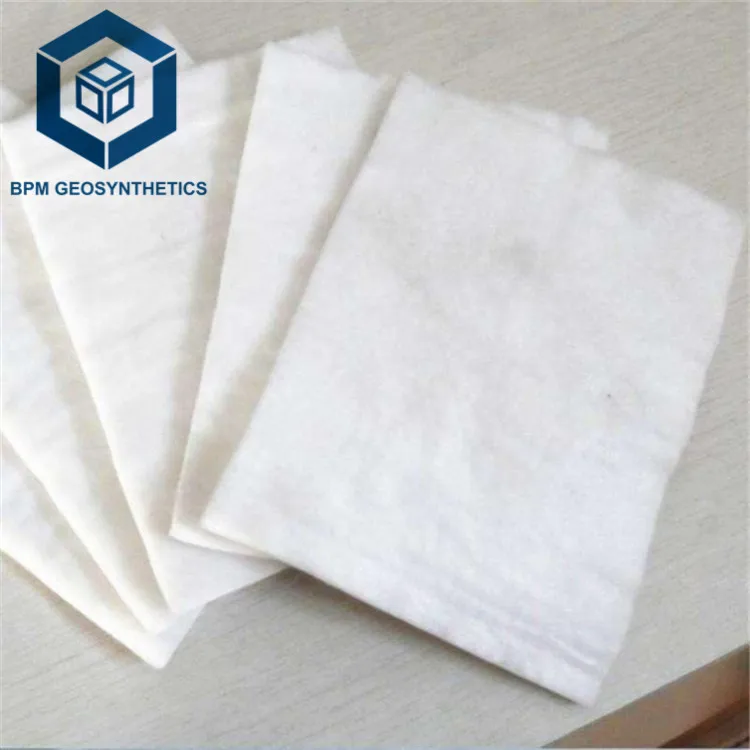

Product appearance
Color
Unit weight (g/sqm)
Thickness(mm)
Length(m/roll)
Width(m/roll)
White
200
1.72
100
4
White
300
2.4
50
4
Technical index
Unit weight(g/sqm)
200
300
Thickness(mm)
1.7
2.4
Transverse fracture strength(kN/m)
6.5
9.5
Longitudinal breaking strength(kN/m)
6.5
9.5
Elongation of transverse fracture(%)
25~100
25~100
Elongation of longitudinal fracture(%)
25~100
25~100
CBR Bursting strength(kN)
0.9
1.5
Tear strength(kN)
0.16
0.24
Packing & Delivery
Transportation and packing of samples.
Customers can get our free samples by paying the postage. If you have frequent international express, please inform us that we will send the samples to you through the designated express delivery.

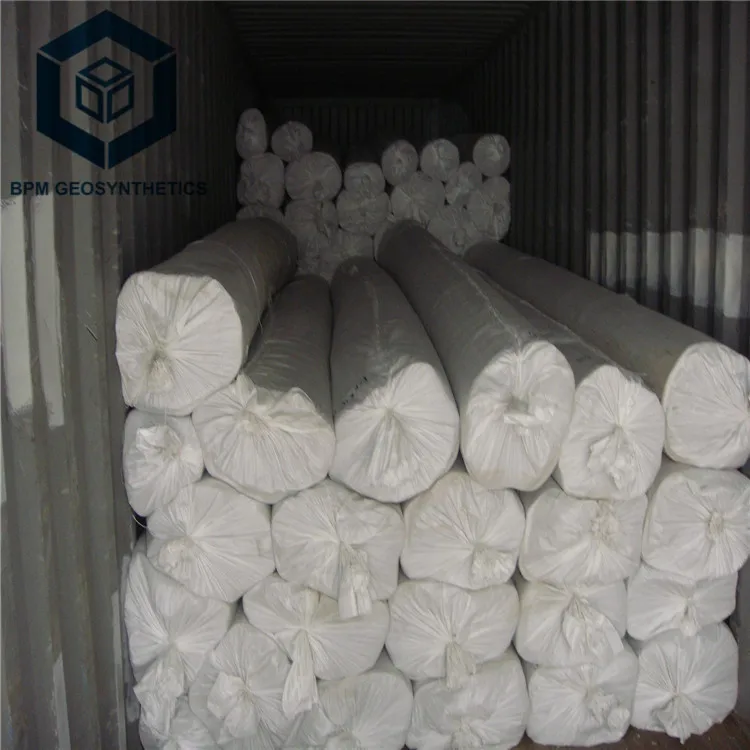

Transportation and packaging of bulk products.

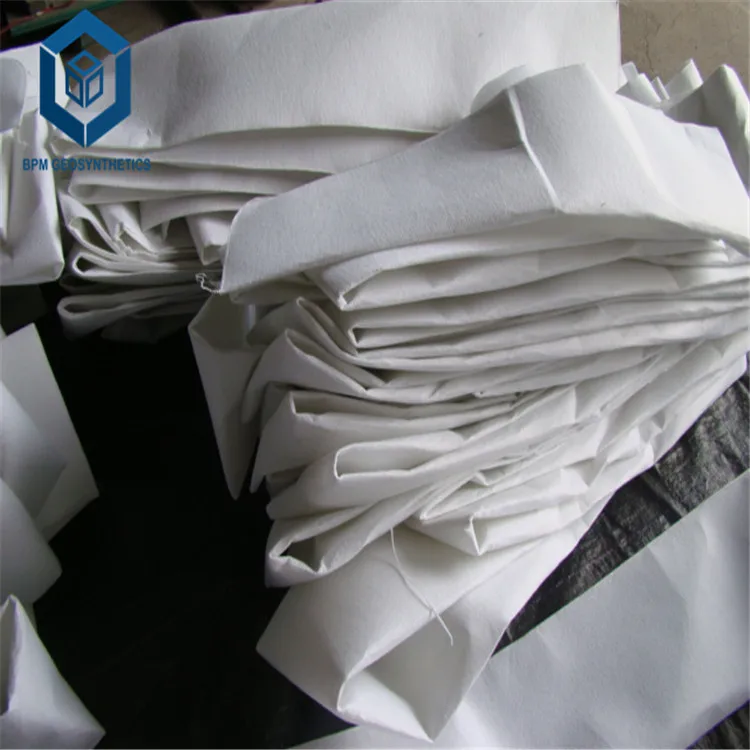

The finished product looks like a roll, and each roll is wrapped in nylon braid.
Type
Packing standard
Volume
(Cubic meters/roll)
200g/sqm
length:100m/roll
width:3m/4m/6m
0.7
300g/sqm
length:50m/roll width:3m/4m/6m
0.5
400g/sqm
length:100m/roll width:3m/4m/6m
0.7
Company Introduction
The Best Project Material Co., Ltd (BPM) is the leading geosynthetic manufacturers, wholesalers, supplier and exporters dedicated in supplying one stop geosynthetics solutions to worldwide customers since its foundation in 2007. We have over 120 professional staffs and 16,000 square meters manufacturing factory equipped with state of the art geosynthetic production lines and testing equipment.
Product innovation, quality assurance and customer satisfaction are our long term commitment to our partners. Our main innovative, high quality products include geomembrane, geotextile, geocell, geosynthetic clay Liner, geogrid and drainage board, etc al. All BPM brand products had been certificated by the ISO9001, ISO14001, Soncap, SASO and BV certificates and passed the test of SGS and Intertek etc.

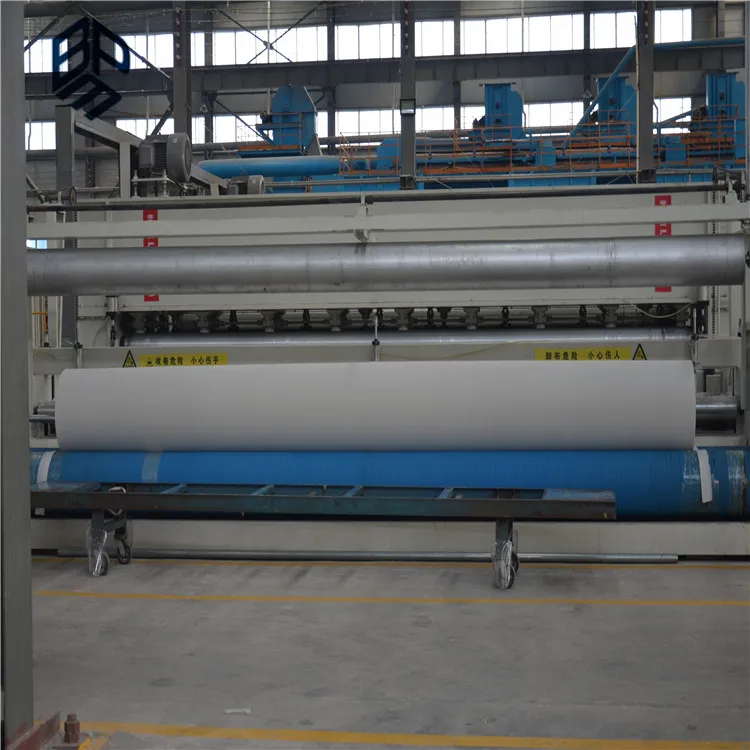

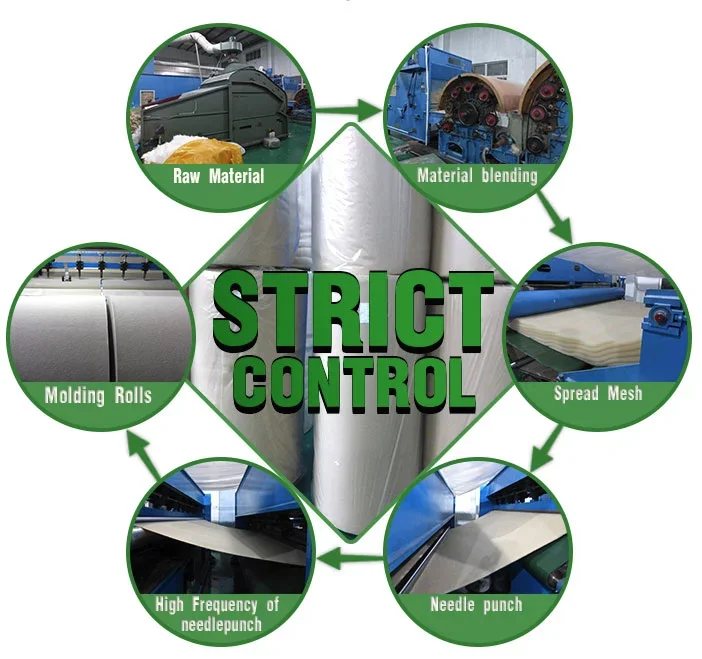

BPM has its own state-of-the-art geosynthetics manufacturing factorywhich is located in Taian City, the famous tourist city near the expressway from Beijing to Shanghai, Shandong Province, China. In recent years, we had invested more than 2,000,000 dollars to improve the basic production facilities, working conditions, employee salary and welfare, technical and teamwork training, etc. Our professional geosynthetics factory is equipped with advanced processing machines and production lines, which help us to keep high product quality, shorter delivery time and competitive cost to meet the demands of our worldwide customers. Most of our products had been kept up with the international forefront counterparts, some of them have enjoyed leading position, especially smooth HPDE geomembranes, geotextiles and geogrids, etc. We also can fabricate according to your special requirements, ODM, OEM, are also available.
FAQ
Q1: Where is your company located?
A:Our company is located in Tai'an City, Shandong Province, China.
HDPE Geomembrane For Pit Liner
Q2: Can you provide a sample for us?
A:Yes,We can send free samples,but customer need to pay the freight.
HDPE Geomembrane For Pit Liner
Q3: What is your minimum order quantity?
A:The minimum order quantity is 5000 ,but it is negotiable.
HDPE Geomembrane For Pit Liner
Q4:What is your payment terms?
A: T/T,Western Union,Paypal,L/C...
HDPE Geomembrane For Pit Liner
Q5:What is your delivery time?
A:Production time usually costs 2-20 days based on the order.
