Hot sale Automatic Plastic Tray Bowl Pallet Blister Vacuum Forming Machine For Thin PP ABS PS PVC PE PET Plastic Material Roll

Product Overview

Description



Technical specifications  Hot-sale Automatic Plastic Tray Bowl Pallet Blister Vacuum Forming Machine For Thin PP ABS PS PVC PE PET Plastic Material Roll
No.	Item	Specifiation
1	Style	ST-2213-XS
2	Voltage	380V,60HZ, three-phase four-wire
3	Power	80KW
4	Current	150A
5	Forming Length	2200mm
6	Forming Width	750-1250mm
7	Forming Depth	100mm
8	Suitable Material	ABS,HIP,PC, PVC, PE
9	Material Thickness	0.3-1.5mm
10	Mold Forming Mode	concave die vacuum molding
11	Bench Power	cylinder drive
12	Cooling mode	air cooling + water mist cooling/mold water cooling
13	Heating Mode	top furnace heating
14	Heating Unit	The electric furnace is quartz heating brick. All heating units can be adjusted separately, and be closed separately when not in use.Control line 1.5mm2.
15	Vacuum Pump	100M ³/h,
16	Machine Size	9720x2050x2560mm
17	Weight	5920KG
18	Product Demoulding Method	Air pressure reversely blowing
19	Ac Contactor	Mitsubishi, Siemens or Schneider
20	Travel Switch	National









♦ Fully automatic from material feeding to semi-products disloading.

♦ High spped.

♦ Stable production.

♦ Safe production.

♦ Low maintainese cost and long life.

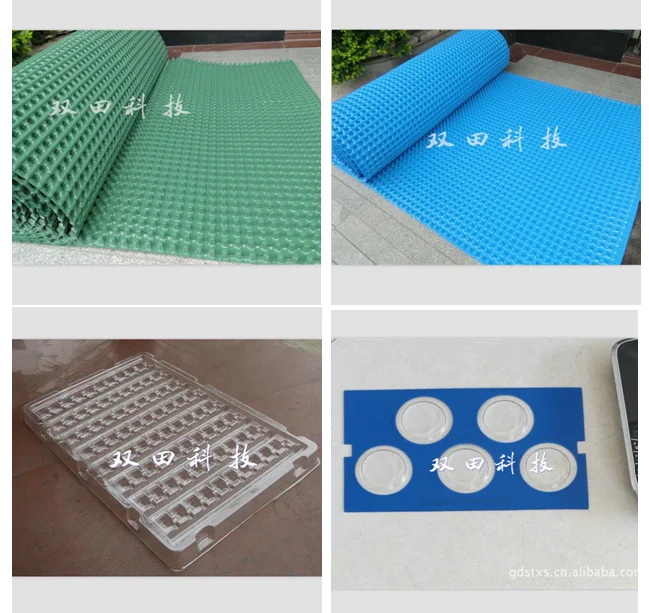

Automatic Plastic Tray Bowl Pallet Blister Vacuum Forming Machine For Thin PP ABS PS PVC PE PET Plastic Material Roll is suitable for 0.5mm to 2mm PP ABS PS, HDPE, PVC, PET plastic roll and applied in making plastic trays, bowls, pallets, coin or chocolate packaging, blister.
