Product Overview

Description

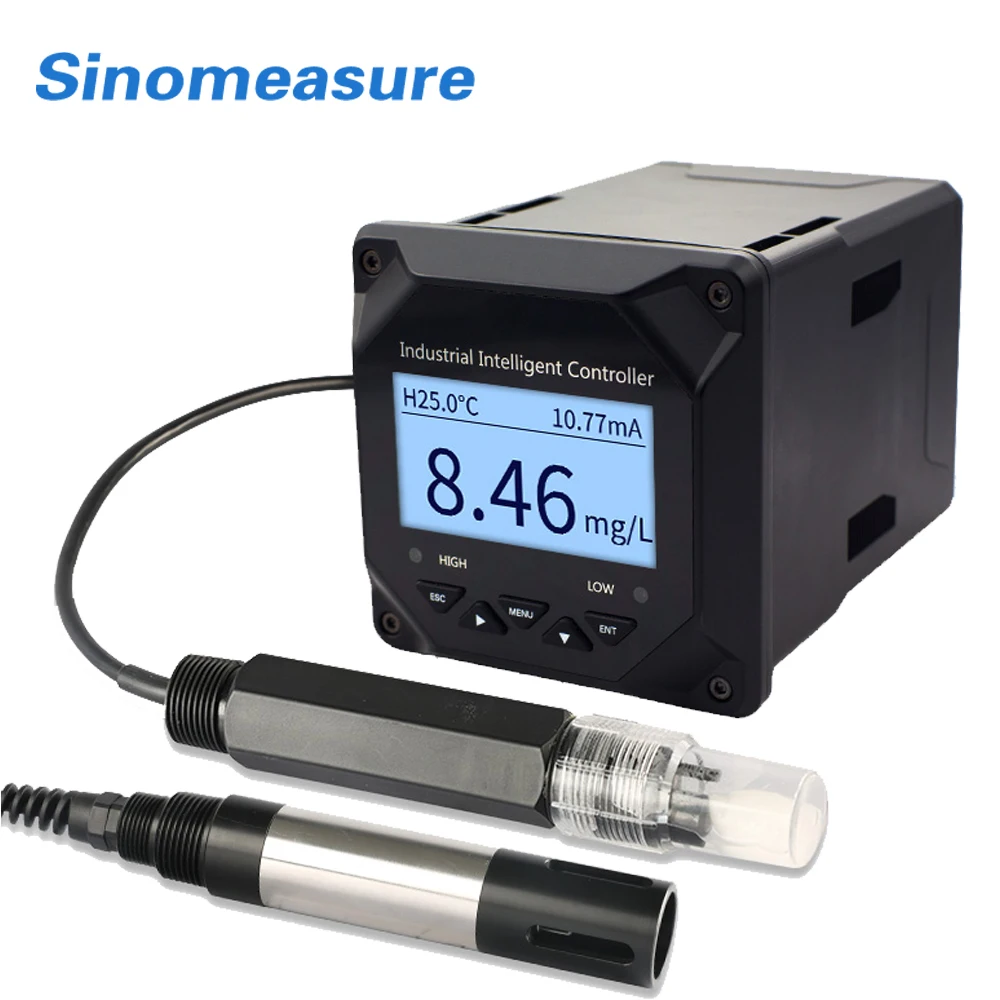

optical online 4-20ma do sensor dissolved oxygen sensor electrode probe

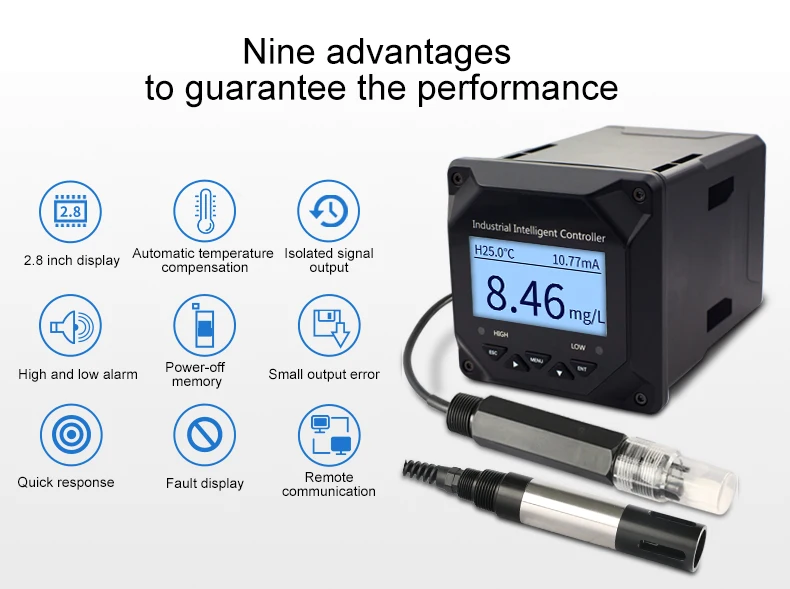

2018.5_03

Models
SIN-DO9100
SIN-DO9100RS
SIN-DO9100D
SIN-DO9100DRS
Tested units
% / ppm / mg/l / TEMP.


Range
%
0~600 %(According to the electrode)
mg/l
0~60.00 mg/l(According to the electrode)
ppm
0~60.00 ppm(According to the electrode)
TEMP
0~100C(According to the electrode)


Resolution
%
0.1 %
mg/l
0.01 mg/l / 0.001 mg/l
ppm
0.01 ppm / 0.001ppm
TEMP
0.1C


Accuracy
%
±0.5% of reading ±1Digit
mg/l
±0.5% of reading ±1Digit
ppm
±0.5% of reading ±1Digit
TEMP
0.2C 1Digit with temperature correction
Temperature compensation
0~50C NTC30K/NTC22K automation compensation
0~50C manual temperature compensation
Salinity compensation
0.0~45.0 ppt manual compensation
Pressure compensation
Compensation range:0.500~2.500bar or 7.25~36.25psi manual adjustment
Calibration mode
Single point or two points calibrations
Working environment temperature
0~50C
Storage environment temperature
-10~70C
Display
Large backlight LCD display, automatic and manual backlight sensor selection
Models
SIN-DO9100
SIN-DO9100RS
SIN-DO9100D
SIN-DO9100DRS
Output current 1
Isolation-programming 4~20mA corresponding Dissolved oxygen Measuring range, maximum load 500
Output current 2
Isolation programming 4~20mA corresponding the temperature range, Max. load 500
—
Isolation programming 4~20mA corresponding the temperature range, Max. load 500
—
Communication interface
—
MODBUS Protocol
—
MODBUS Protocol
Relay control
Contact output
RELAY ON/OFF ,240VAC 0.5A Max.
Setting
Set of two independent HI/LO Control point , Hysteresis setting
Cleaning setting
ON 0~9999 seconds / OFF 0~999.9 hours
Protection level
IP65
Power supply
100V~240VAC±10%,50/60Hz
20V~40VDC, Imax.=0.5A
Installation methods
Wall mounted/ Piped / Paneled
Meter size
144 mm  144 mm  115 mm (HWD)
Hole size
138 mm  138 mm (HW)
Weight
0.8Kg

Features:
*The sensor adopts new type of oxygen sensitive membrane,with NTC temperature compensated function,whose measurement result has good repeatability and stability.
*Won't produce oxygen consumption when measuring and no requirement of flow rate and stirring.
Breakthrough fluorescence technology,without membrane and the electrolyte and almost not need maintenance.
*Built-in self-diagnosis function to ensure the accuracy of data.
*Factory calibration,not need calibration for a year and can carry out field calibration.
*Digital sensor,high anti-jamming capacity and far transmission distance.
*Standard digital signal output,can achieve integration and networking with other equipment without controller.
*Plug-and-play sensor,quick and easy installation.



Applications:
*DO online monitoring of different technological processes such as regulating      reservoir,biochemical pool and effluent of sewage treatment plant.
*DO online monitoring of water plant,surface water,industrial process water and aquaculture and etc.

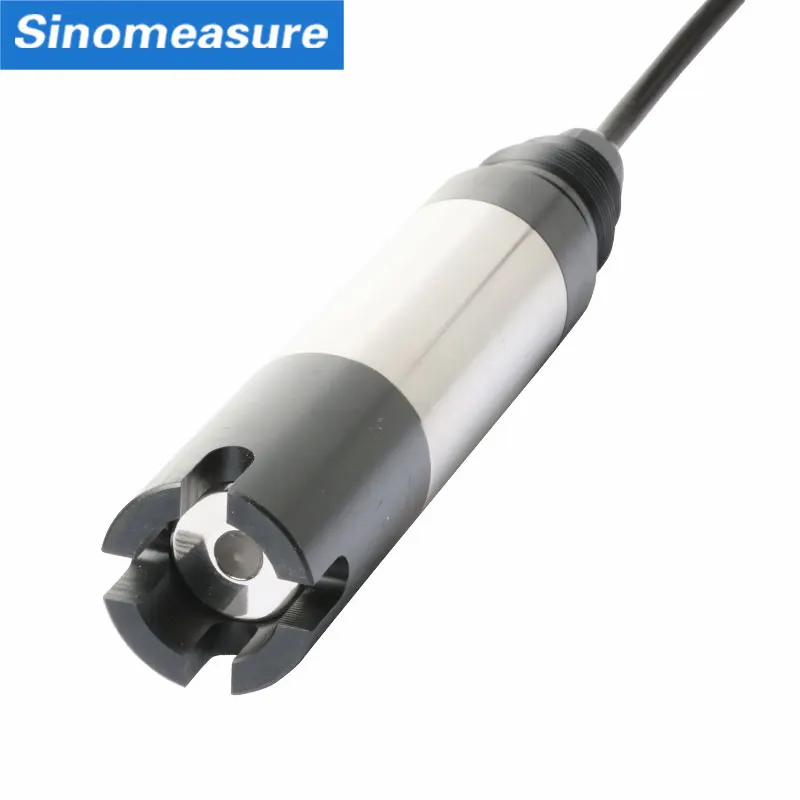

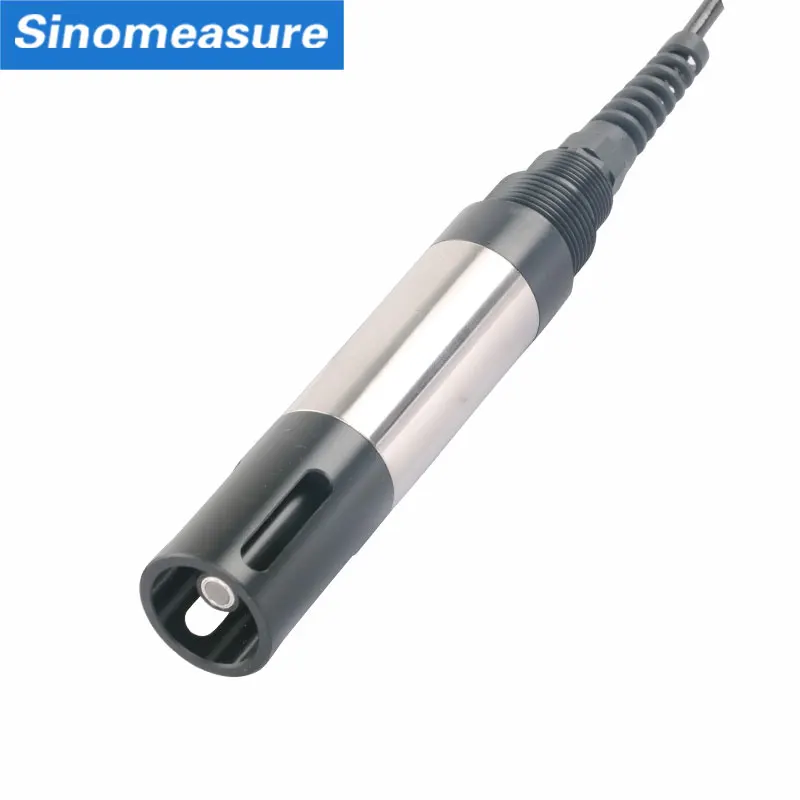

Measurement range
DO:0-20 mg/L,0-20 ppm;Temperature:0-45℃
Measurement Accuracy
DO:±3% of  the value;  Temperature:±0.5℃
Pressure range
≤0.3Mpa
Calibration
Air automated calibration,sample calibration
Main material
Body:SUS316L + PVC(fresh water), Titanium alloy(marine),Oring:fluorine rubber;Cable:PVC
Power supply
AC:100-240VAC (50/60HZ)   DC:9~36VDC
Output
2-way 4-20mA
Relay
Setting three-way relays,programmed response parameter and response value.
Communication protocol
MODBUS  RS485
Storage temperature
-15-65℃
Measuring temperature
0-45℃
Dimensions
Sensor:Dia55mm*L 342mm Transmitter:145*125*162mm(L*W*H)
Weight
Sensor:1.85KG;Transmitter:1.35KG
Protective rate
Sensor:IP68/NEMA6P;Transmitter:IP65/ NEMA4X
Cable length
Standard:10m, the maximum may be extended to 100m

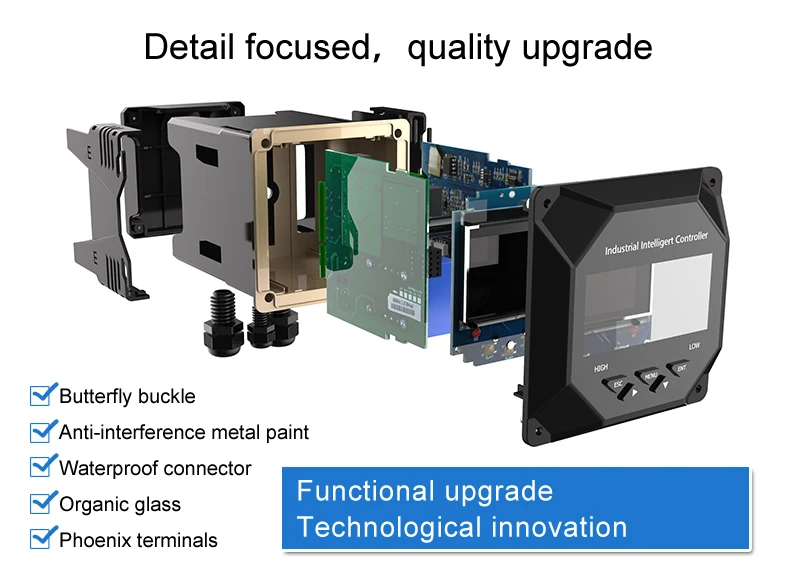

2018.5_02

Related Products

dissolved oxygen sensor

Certificate


Company Information

PH-5014_01



FAQ

Q: How long will you give me the reply?

A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?

A: Sincerely invite you to visit our factory

Q: Do you provide samples?

A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?

A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .

We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?

A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?

A: Warranty: 12 months, Lifetime maintenance
