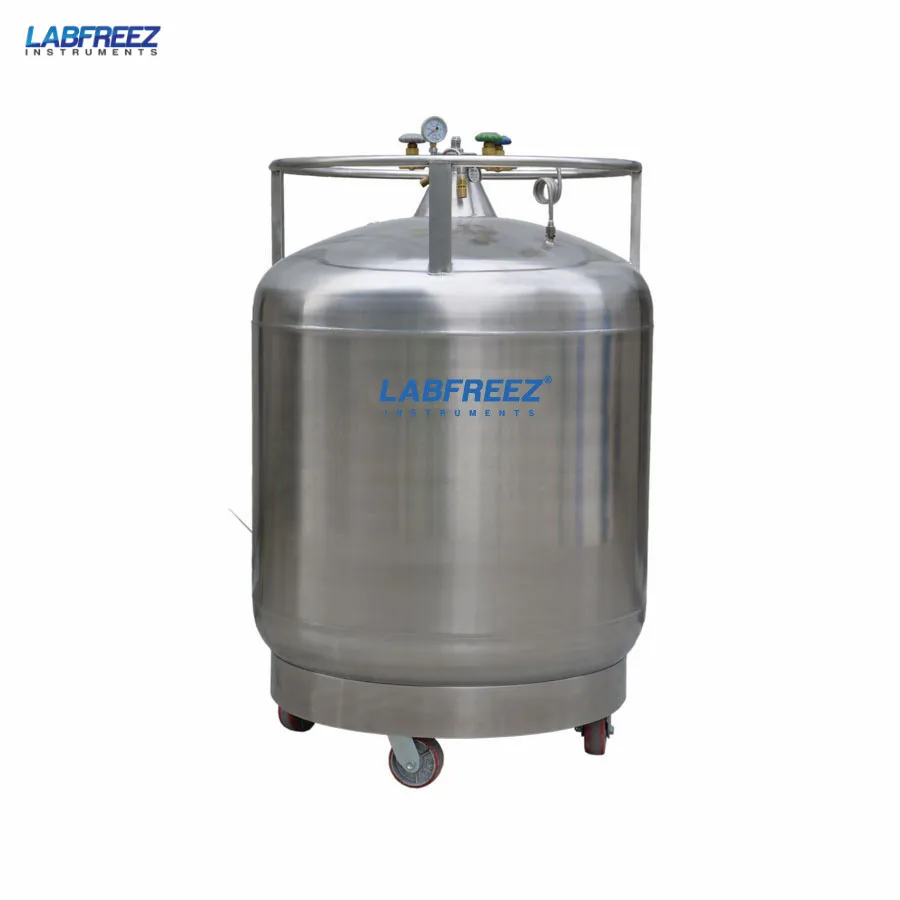

Self pressurized Supplement Liquid Nitrogen Container liquid nitrogen storage tank

Product Overview

Description





PRODUCT QUALIFICATION:
Liquid nitrogen filling tank series use small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. Mainly used for transport and storage of liquid nitrogen, and also as a cold source of other refrigeration devices. It can be equipped with monitoring device and monitoring software to alarm low liquid nitrogen level, high pressure and remote operation on pressure increase and discharge liquid nitrogen. It is widely used in the mold industry,animal husbandry, medicine, semiconductor, food, low temperature chemical,aerospace, military and other industries and fields.

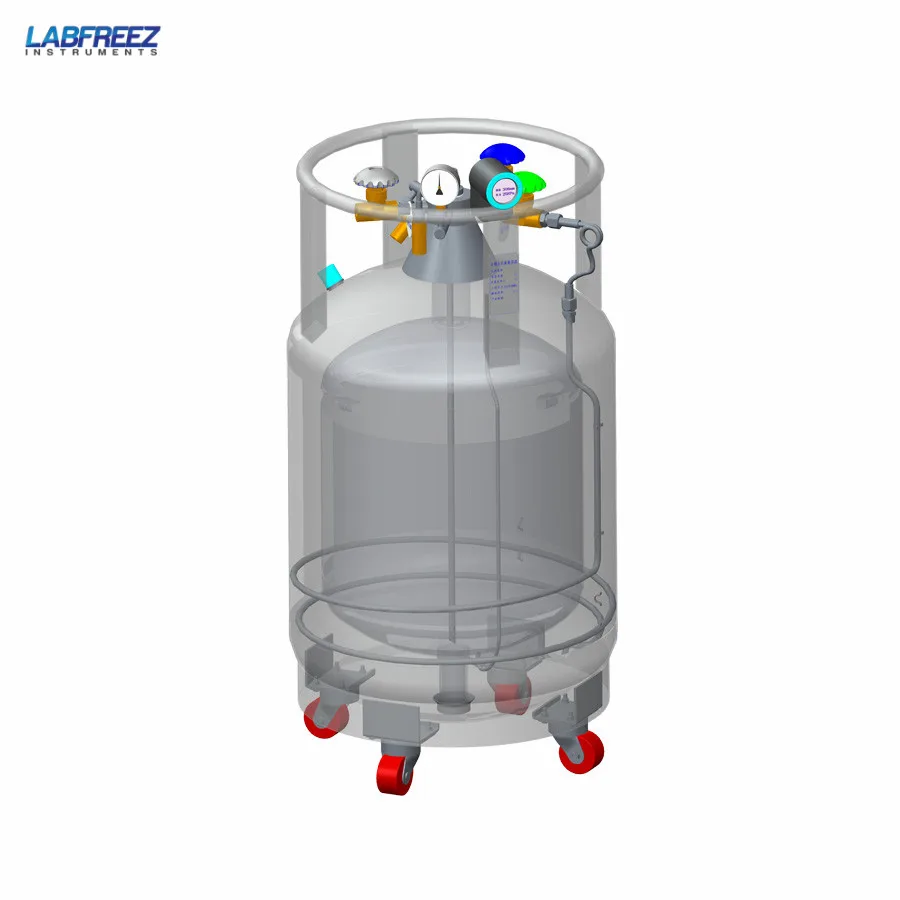

Liquid nitrogen filling tank series is mainly used for liquid nitrogen storage. It uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses. All the models are equipped with pressure building valve, liquid valve, release valve and pressure gauge; and models over200 liters also equipped with bursting disc and muffler. All the models are equipped with 4 rollers at the bottom for easy to move. Mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.

CE certificate National cryogenic container quality supervision and inspection center



APPLICATION RANGE:
Mainly used for store liquid nitrogen and fill liquid nitrogen to other container. Always be used in animal husbandry, bio-medicine, food, semi-conductor, aerospace, superconductor and other industries.



PRODUCT FEATURE:
1. Designed for easy use by people;
2. Use supreme American cryogenic valves;
3. Special neck design and super low evaporation rate;
4. Carrying cart is optional for easy moving;

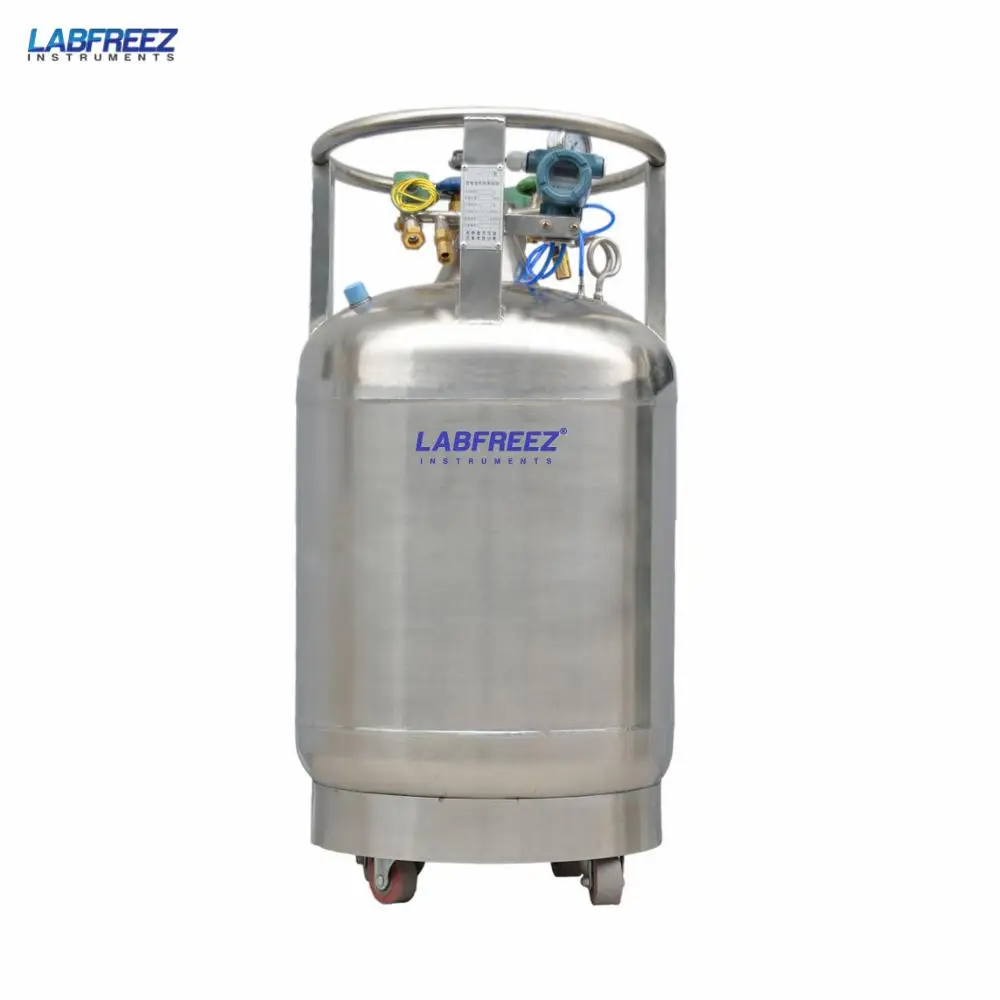

5. Monitoring system is optional to display level and pressure data;



SPECIFICATIONS:

Liquid nitrogen filling tank
Model	BNC-F5	BNC-F15	BNC-F30	BNC-F50	BNC-F100
Geometric capacity (L)	5.5	16.5	32	55	110
Effective capacity (L)	5	15	30	50	100
Outer diameter (mm)	329	404	454	506	606
Height (mm)	510	750	879	991	1185
Weight empty (KG)	15	23	32	54	75
Neck diameter (mm)	40	40	40	40	40
Daily evaporation rate (%)	3	2.5	2.5	2	1.3
Standard working pressure (Mpa)	0.05	0.05	0.05	0.05	0.05
Maximum working pressure (Mpa)	0.09	0.09	0.09	0.09	0.09
Liquid velocity (L/min)
Setting pressure of the first safety valve (Mpa)	0.099	0.099	0.099	0.099	0.099
Setting pressure of the second safety valve (Mpa)	0.15	0.15	0.15	0.15	0.15
Bursting disc working pressure (Mpa)	——	——	——	——	——
Pressure gauge indication range (Mpa)	0~0.25	0~0.25	0~0.25	0~0.25	0~0.25



Liquid nitrogen filling tank
Model	BNC-F150	BNC-F175	BNC-F200	BNC-F300	BNC-F500
Geometric capacity (L)	165	185	220	330	550
Effective capacity (L)	150	175	200	300	500
Outer diameter (mm)	706	706	758	857	1008
Height (mm)	1188	1298	1265	1459	1576
Weight empty (KG)	102	120	130	202	255
Neck diameter (mm)	40	40	40	40	40
Daily evaporation rate (%)	1.3	1.2	1.2	1.1	1.1
Standard working pressure (Mpa)	0.05	0.05	0.05	0.05	0.05
Maximum working pressure (Mpa)	0.09	0.09	0.09	0.09	0.09
Liquid velocity (L/min)
Setting pressure of the first safety valve (Mpa)	0.099	0.099	0.099	0.099	0.099
Setting pressure of the second safety valve (Mpa)	0.15	0.15	0.15	0.15	0.15
Bursting disc working pressure (Mpa)	——	——	0.47	0.47	0.47
Pressure gauge indication range (Mpa)	0~0.25	0~0.25	0~0.25	0~0.25	0~0.25



Configuration

Model	Configuration
	Caster	Infusion hose	Float level gauge	Electric level meter	Solenoid valve	regulator	Repeaters
BNC-F5	•	•	°	——	——	——	——
BNC-F15	•	•	°	——	——	——	——
BNC-F30	•	•	°	——	——	——	——
BNC-F50	•	•	°	——	——	——	——
BNC-F100	•	•	°	——	——	——	——
BNC-F150	•	•	°	——	——	——	——
BNC-F175	•	•	°	——	——	——	——
BNC-F200	•	•	°	——	——	——	——
BNC-F240	•	•	°	——	——	——	——
BNC-F300	•	•	°	——	——	——	——
BNC-F500	•	•	°	——	——	——	——
BNC-F50E	•	•	°	•	°	——	°
BNC-F100E	•	•	°	•	°	——	°
BNC-F200E	•	•	°	•	°	——	°
BNC-F300E	•	•	°	•	°	——	°
BNC-F500E	•	•	°	•	°	——	°
BNC-F30K	•	•	°	•	•	•	°
BNC-F50K	•	•	°	•	•	•	°
BNC-F100K	•	•	°	•	•	•	°
BNC-F150K	•	•	°	•	•	•	°
BNC-F200K	•	•	°	•	•	•	°
BNC-F240K	•	•	°	•	•	•	°
BNC-F300K	•	•	°	•	•	•	°
BNC-F500K	•	•	°	•	•	•	°

• Standard       ° Optional     -- None
