Standard carbon steel ultrasonic calibration block v2 for ultrasonic calibration testing
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (60773886516):
Product Overview
Description
Product Description
Steel Ultrasonic Calibration Block V2 for Ultrasonic Calibration Testing
YUSHI INSTRUMENTS - A Professional Manufacturer of Ultrasonic Calibration Blocks in China Over 10 Years

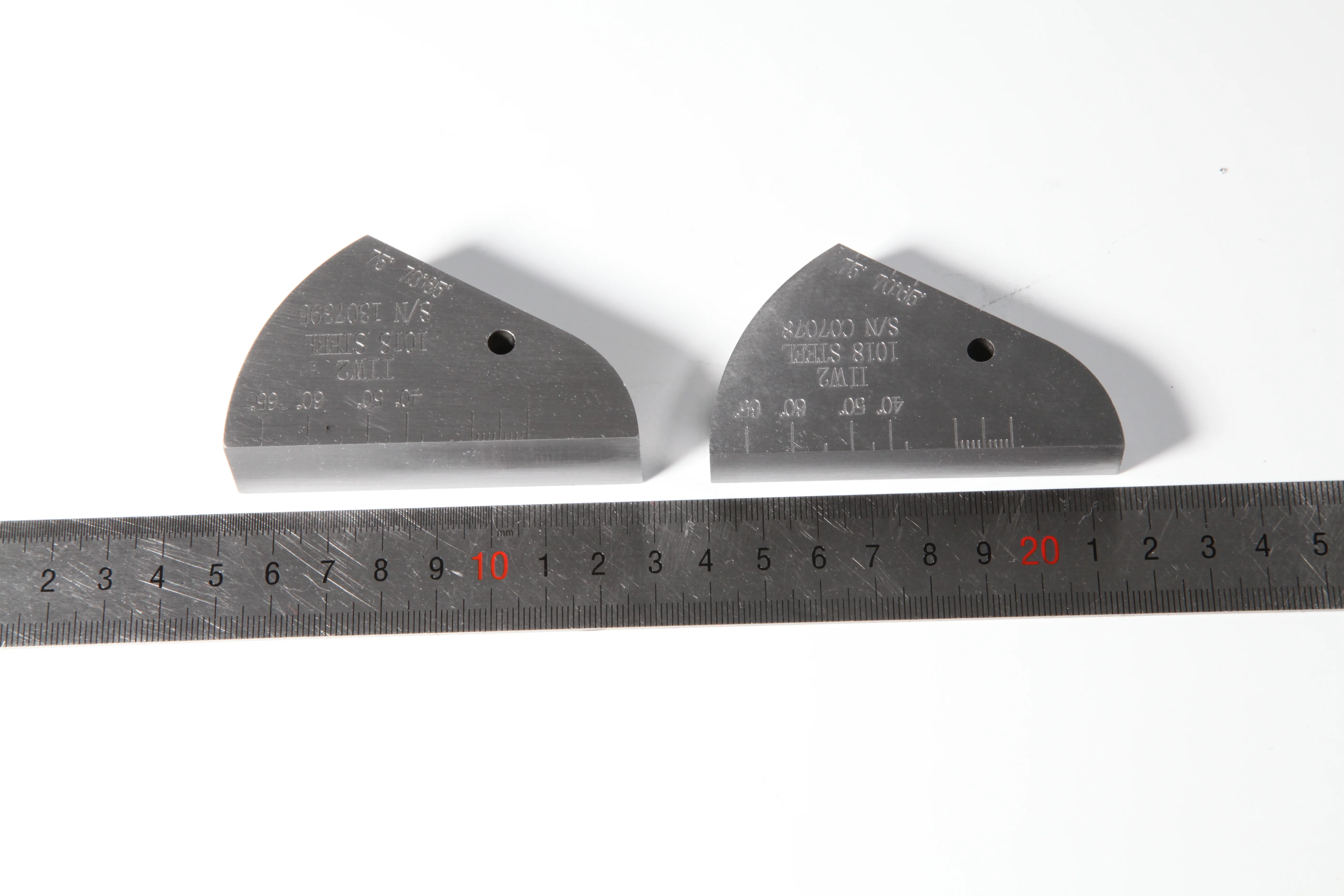

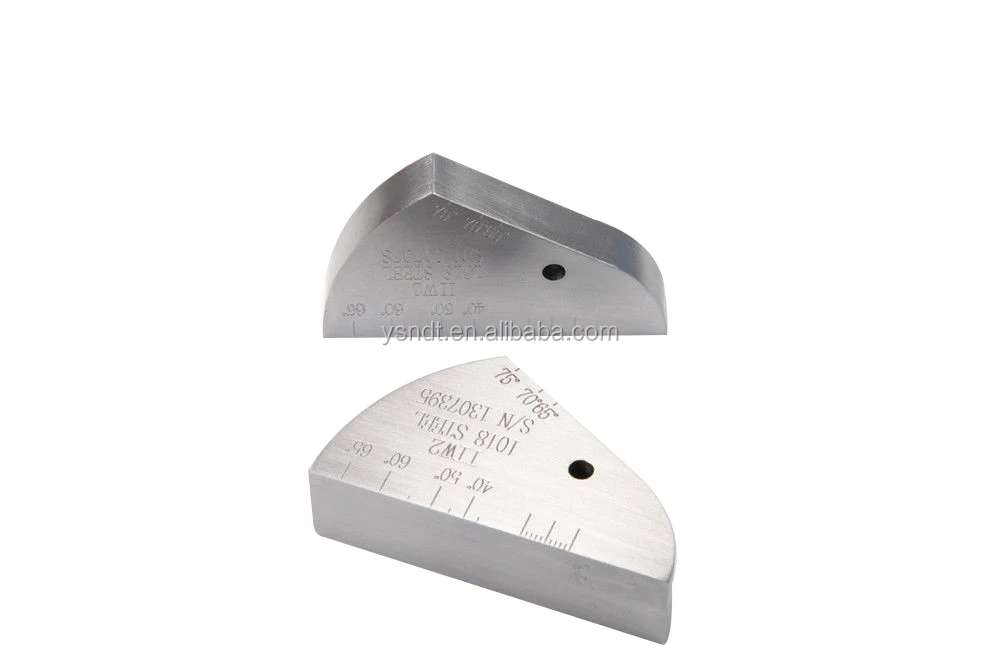

YUSHI Ultrasonic NDT Calibration Block V2 Block
12.5mm, 20mm ,25mm thick, diam of hole 1.5mm , 5mm small calibration block for on-site checking of miniature shear wave probe
index, time base, beam angle and gain. Engraved reference mark scales from 35 to 75 degrees. V2 Block Standard : ISO 7963:2010
Standard Material: Carbon Steel
index, time base, beam angle and gain. Engraved reference mark scales from 35 to 75 degrees. V2 Block Standard : ISO 7963:2010
Standard Material: Carbon Steel
If the material of Aluminum/Stainless Steel needed, please contact me to get new price of it.
Thick =12.5mm/ 20mm/ 25mm Optional
Thick =12.5mm/ 20mm/ 25mm Optional
Hole Dia = 1.5mm/ 5mm
Dimensions: 75mm x 43mm x12.5mm/20mm/25mm
Will delivery according to the clients' actual order model, confirm well the ut block Standard and parameter when buying. Noted please. Thanks.
Package
1. Standard Model： V2/ IIW2 Block
2. Factory Certificate

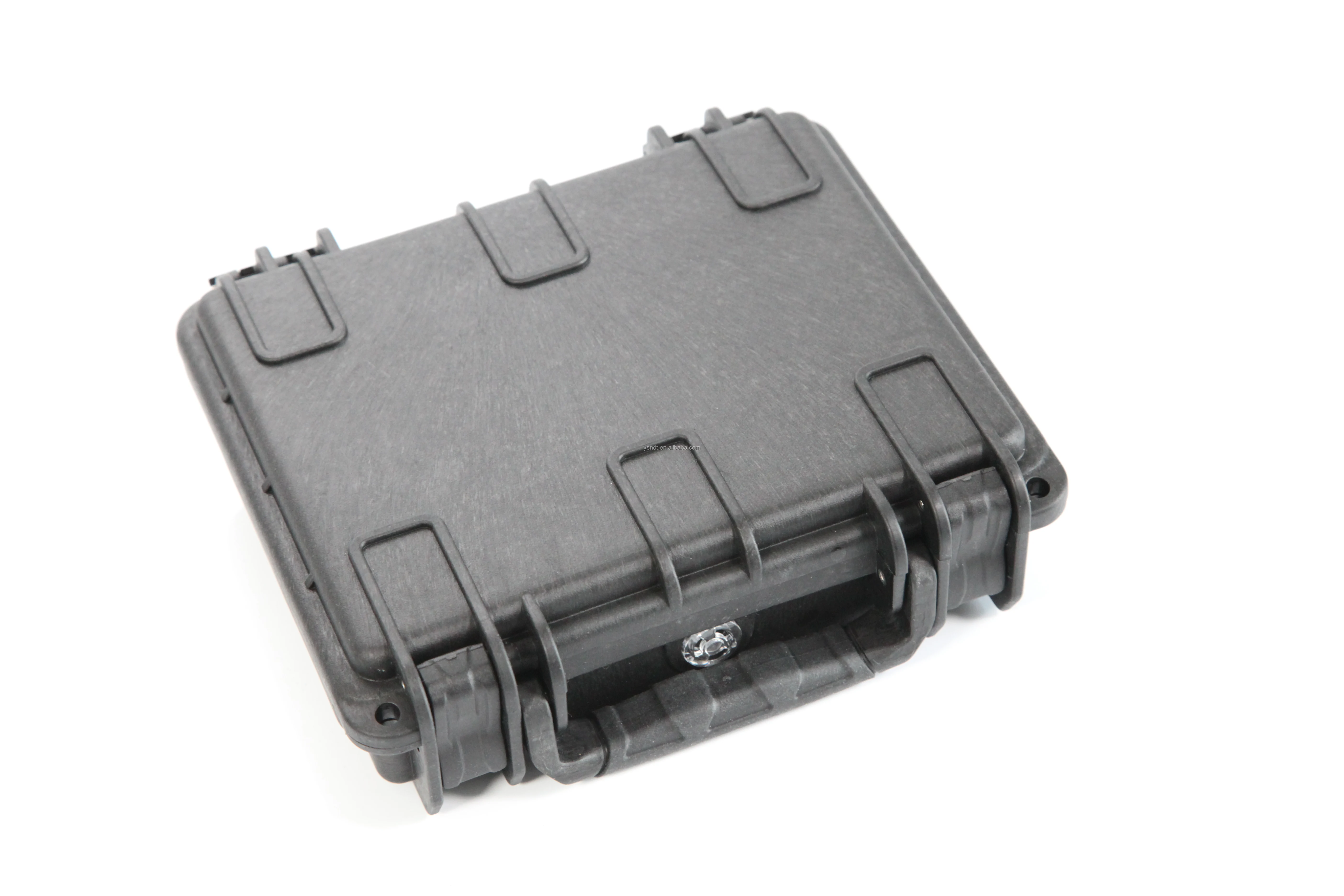

3. Standard Package: Plastic Case and Carton
4. Quantity: 1 PC
Will delivery the ultrasonic calibration biock V2 in 3 days by the International Express after receive the payment.
