Electromagnet Separator
CHNMAG Suspended Electromagnet Separator engineered to provide ferrous metal separation performance. If your application requires increased suspension heights for the magnet or have a deep product burden, the suspended electromagnet separator is an ideal solution magnetically lifting ferrous metals out of bulk material due to its deep reaching magnetic field.

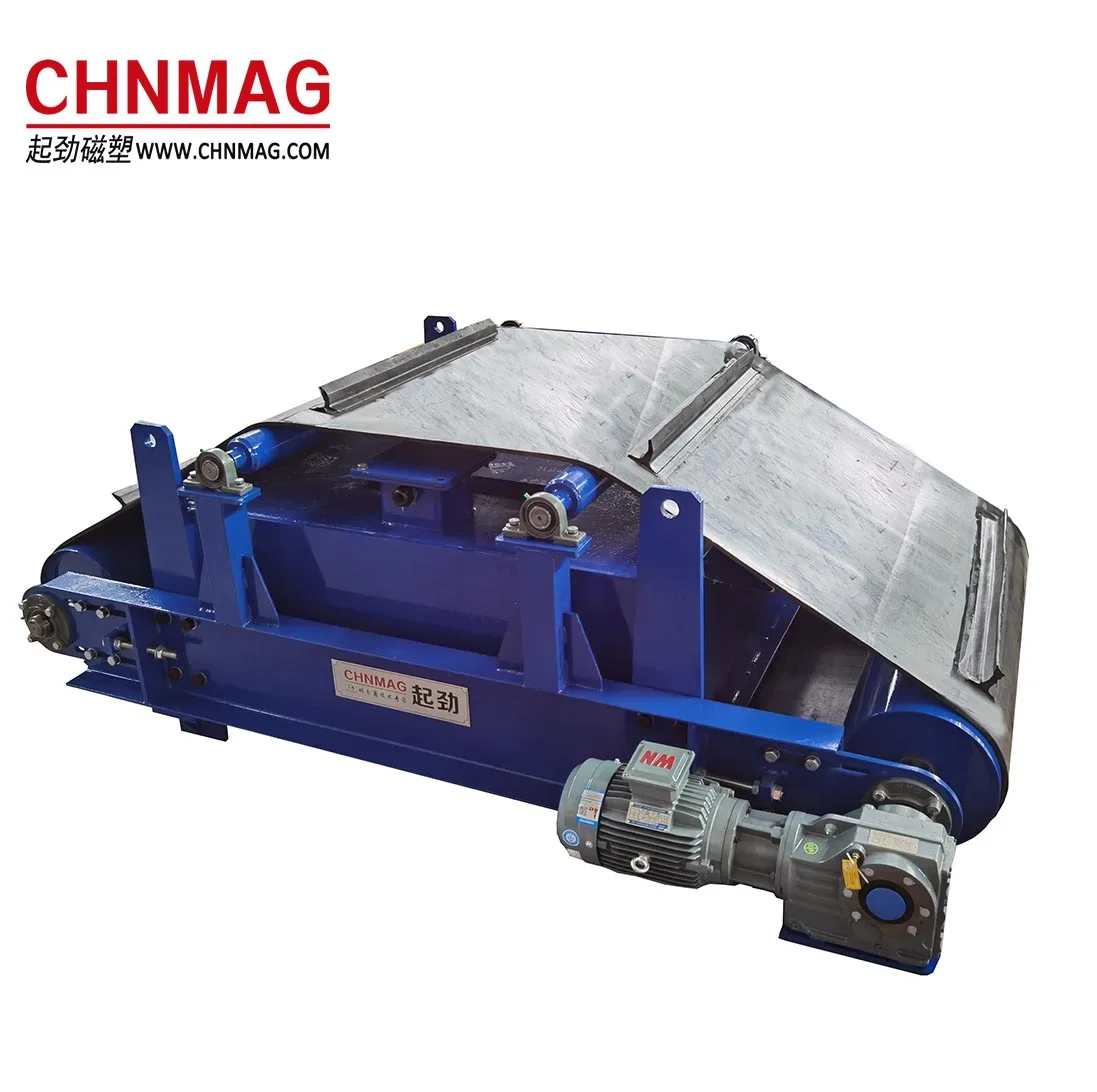

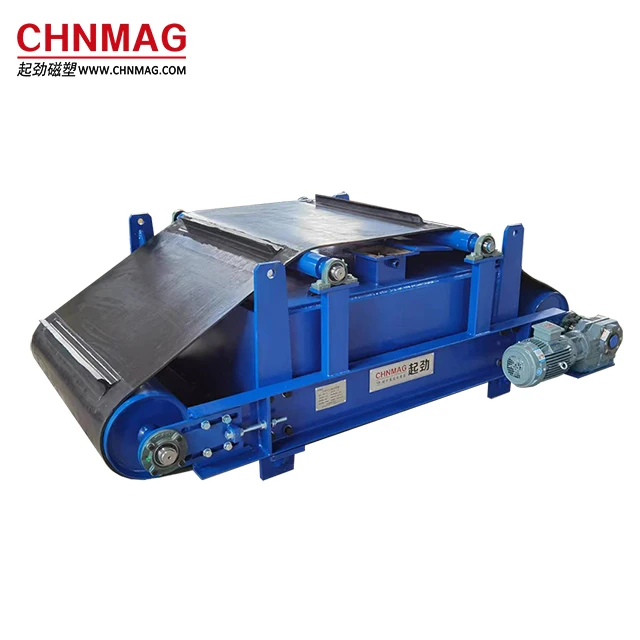

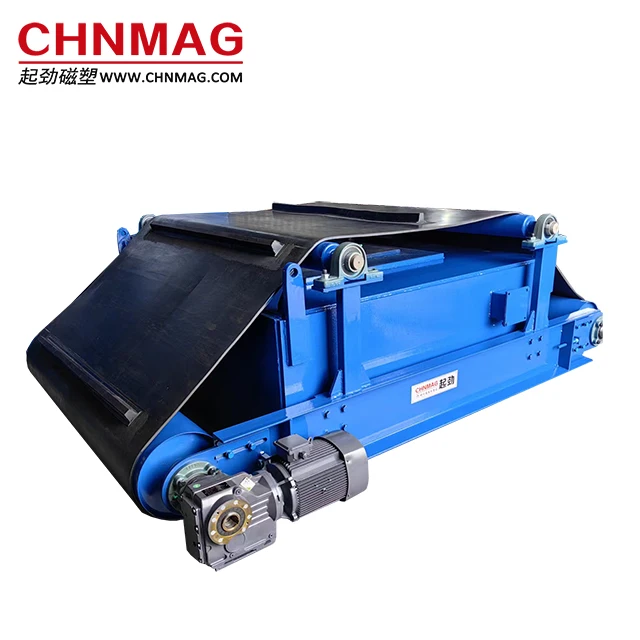

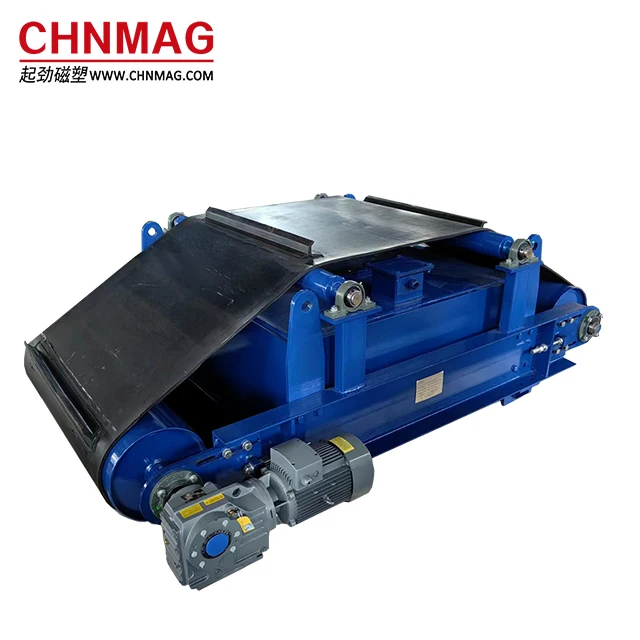

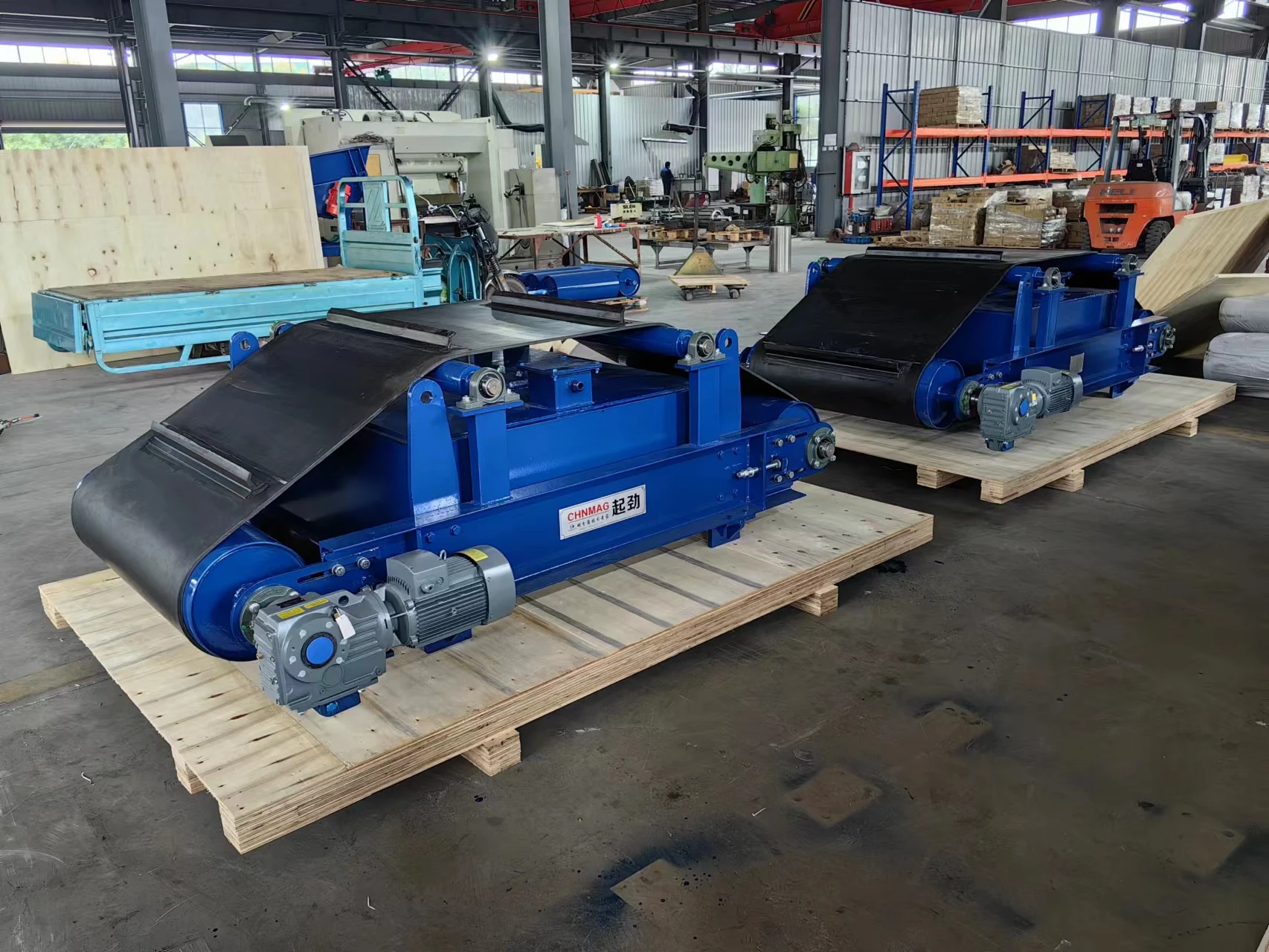

CHNMAG QJRCDD Model Self Discharge Suspended Electromagnet Separator is suspend above belt or vibratory conveyors, pull out and discharge the ferrous metal automatically from electromagnet separator magnetic filed area via the rubber discharge belt.
CHNMAG Suspended Electromagnet Separator engineered to provide ferrous metal separation performance. If your application requires increased suspension heights for the magnet or have a deep product burden, the suspended electromagnet separator is an ideal solution magnetically lifting ferrous metals out of bulk material due to its deep reaching magnetic field.
CHNMAG QJRCDD Model Self Discharge Suspended Electromagnet Separator is suspend above belt or vibratory conveyors, pull out and discharge the ferrous metal automatically from electromagnet separator magnetic filed area via the rubber discharge belt.

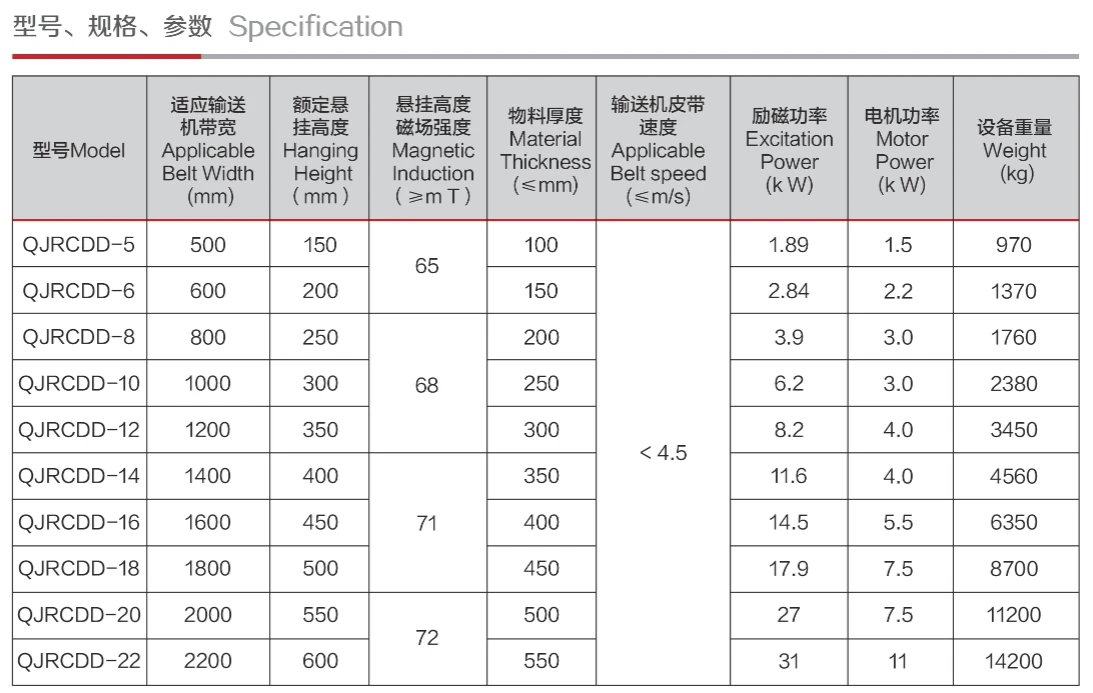

Magnet System | Magnet Coil |
Frame Material | Steel |
Drum Bearing | UCFC |
Discharge Belt | EP100 10-15mm thickness |
Belt Cleats | Vacunized Rubber |
Gearbox | KA helical-bevel gear units |
Motor | IP 55 |
Standard Color | RAL 5015 |
Power Supply | Client's Site Specs |
Features of Cross Belt Electromagnet Separator
1. Deep reaching magnetic coil design to penetrate heavy product burdens
2. Strong magnetic field intensity, high gradient and strong attractive force
3. Advanced Natural Air cooling system
3. Aromatically ferrous metal discharging requires no manpower to clean
4. Electromagnet separator can effectively pull out 0.1-35kgs metals
5. Stainless steel armoured belt is optional for belt protection
1. Deep reaching magnetic coil design to penetrate heavy product burdens
2. Strong magnetic field intensity, high gradient and strong attractive force
3. Advanced Natural Air cooling system
3. Aromatically ferrous metal discharging requires no manpower to clean
4. Electromagnet separator can effectively pull out 0.1-35kgs metals
5. Stainless steel armoured belt is optional for belt protection
Support Frame
Steel Frame will under sand blasting before painting process
Drums Welding
High Thickness Shell and Strong Welding to make sure it endure all life span
Drum Finishing
Perfec Lathing after welding make sure the surface is clean and even welding seam is ourstandingly pretty
Shaft
Drum shaft is connect to drum via shaft capt lockers, not welding.
Bearing
Robust bearing and drum support plate
KA helical-bevel gear units
KA helical-bevel gear ensure the high effiency and long life span
Related Products
Packing&Shipping
Company Introduction
Since founded in Year 2002 , our company devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as America, Thailand, Mexico, the Philippines, Indonesia, Europe etc. Our magnetic separators have been exported to more than 70 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.
Our major products are eddy current separator, over band magnetic separator, magnetic drum and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.
Our major products are eddy current separator, over band magnetic separator, magnetic drum and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.
