Support RS232 IR remote multiviewer HDMI matrix 4*2 matrix switch 4x2
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (60773961055):
Product Overview
Description
Feature

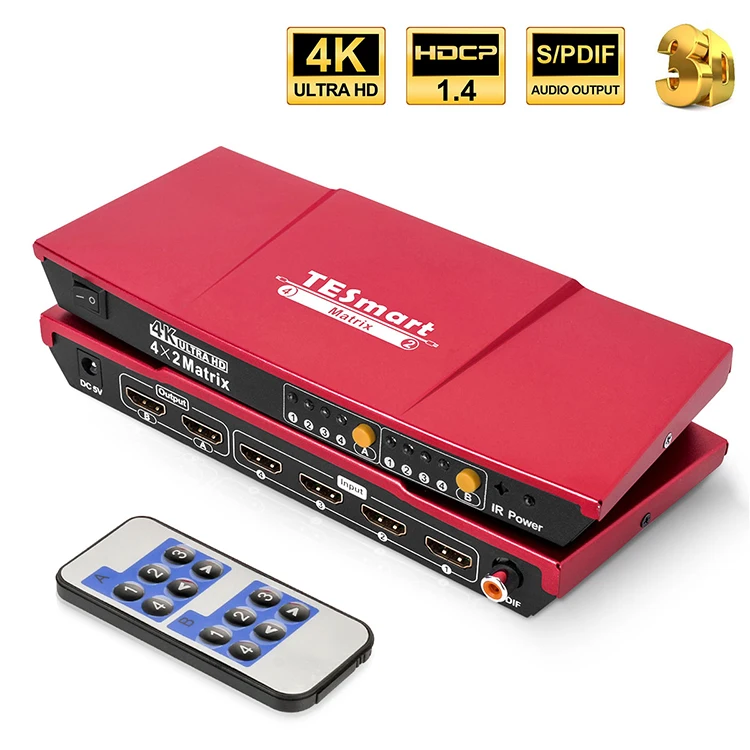

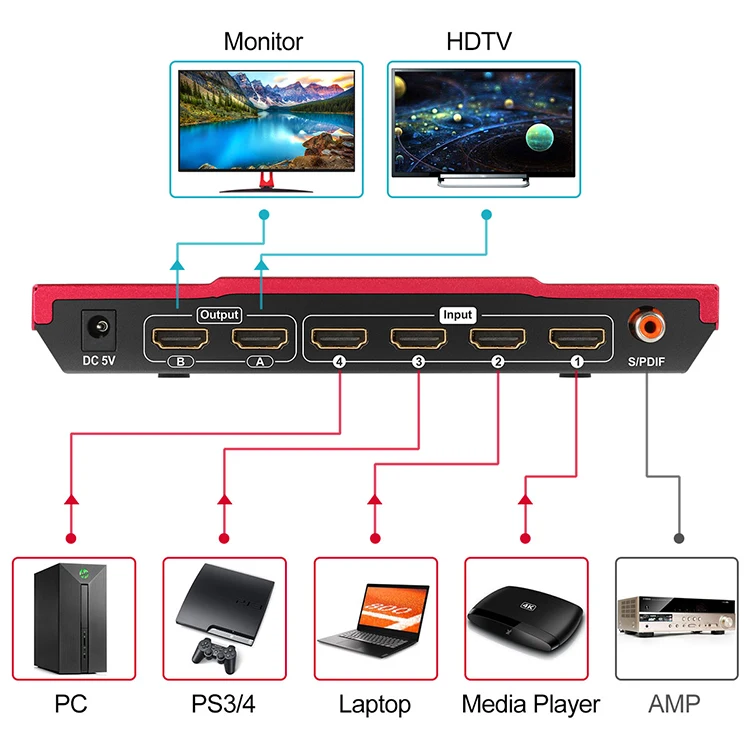

This 4x2 HDMI matrix routes four Ultra HD sources to two 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
Feature：
1.Compliant with HDCP
2.Compliant with HDMI
3.Supports HDMI 1080P 3D 60Hz and 3840x2160P@30Hz

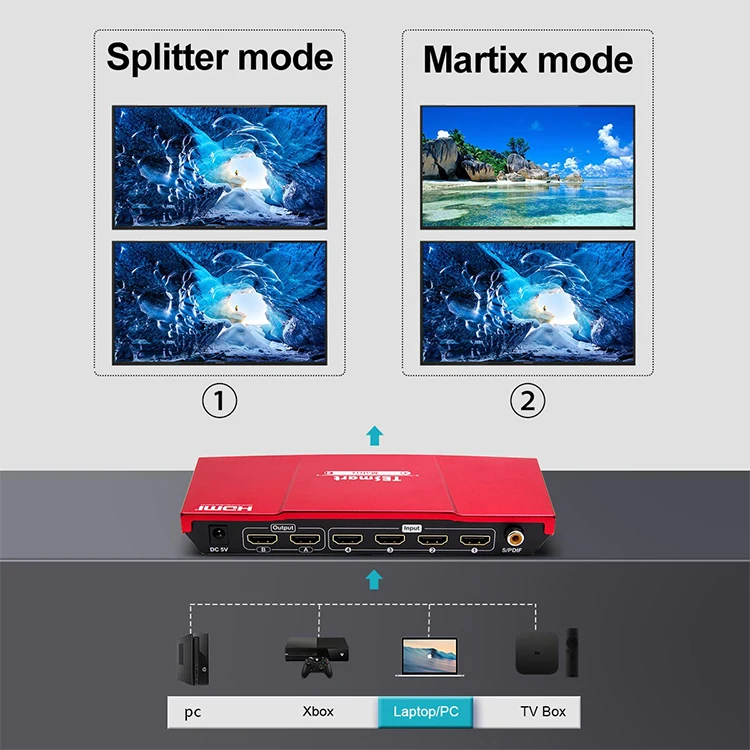

4.Each HDMI output can share same input or select standalone input
5.Supports PCM, AC3, DTS5.1, DTS7.1 and DSD audio format
6.Smart EDID management, make it compatible with most display devices
7.Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

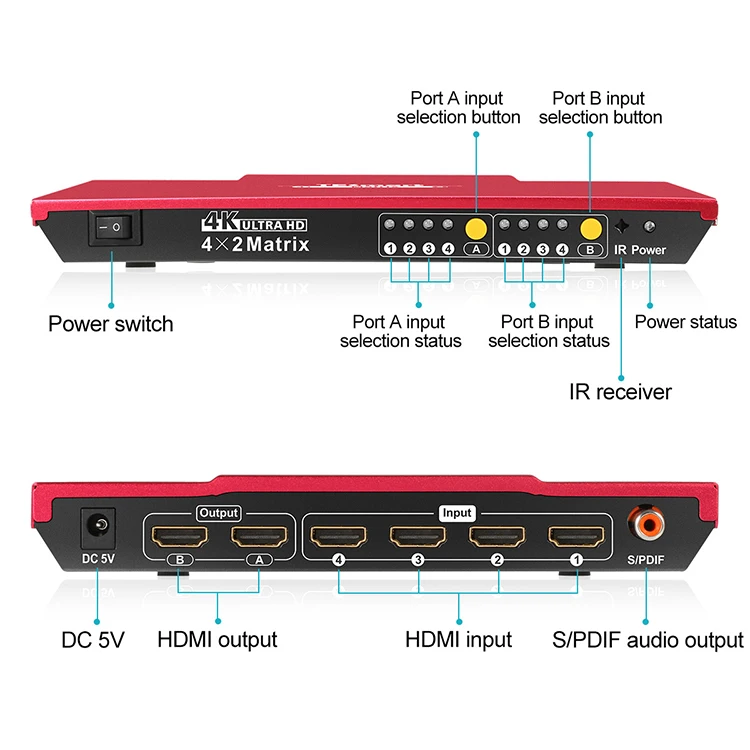

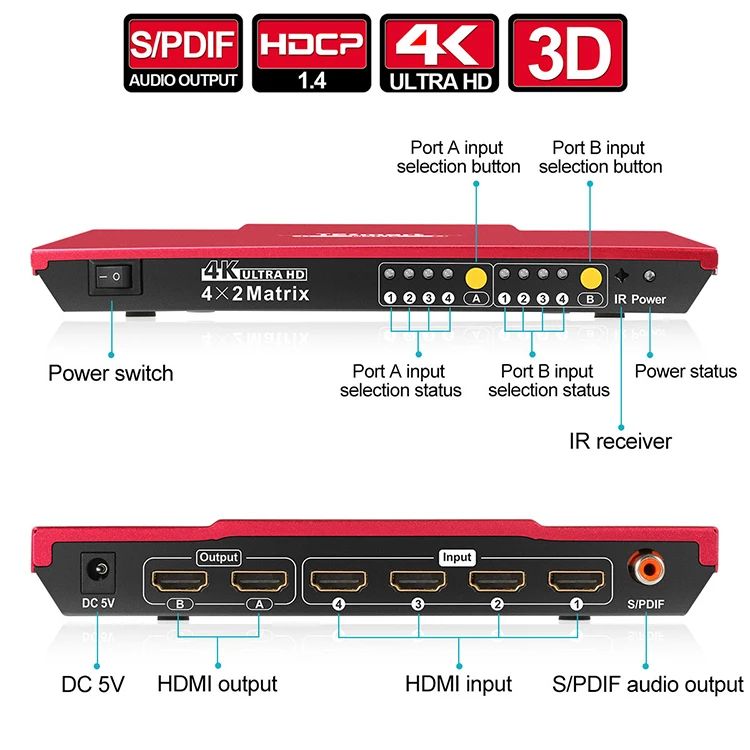

8.Easy control matrix via IR receiver, front keypad
9.S/PDIF audio output via coaxial
10.Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
11.8KV ESD protection
Detailed Images
Specification
Part number | HMA0402A30 |
Functionality | |
Port selection | Front panel buttons |
Console commands | |
IR remote control | |
OSD | Yes (Output A) |
Smart EDID | Yes |
Technical | |
Resolution | Up to 3840x2160@30Hz/ 1080P 3D 60Hz |
HDMI | Yes |
HDCP | Yes |
Bandwidth | 10.2 Gbps |
Input | HDMI Type A *4, 24/26 AWG HDMI cable up to 10M (1080P@60Hz ) |
Output | HDMI Type A *2, 24/26 AWG HDMI cable up to 20M (1080P@60Hz ) |
ESD protection | Human body model - ±8kV (Air-gap discharge) |
Mechanical | |

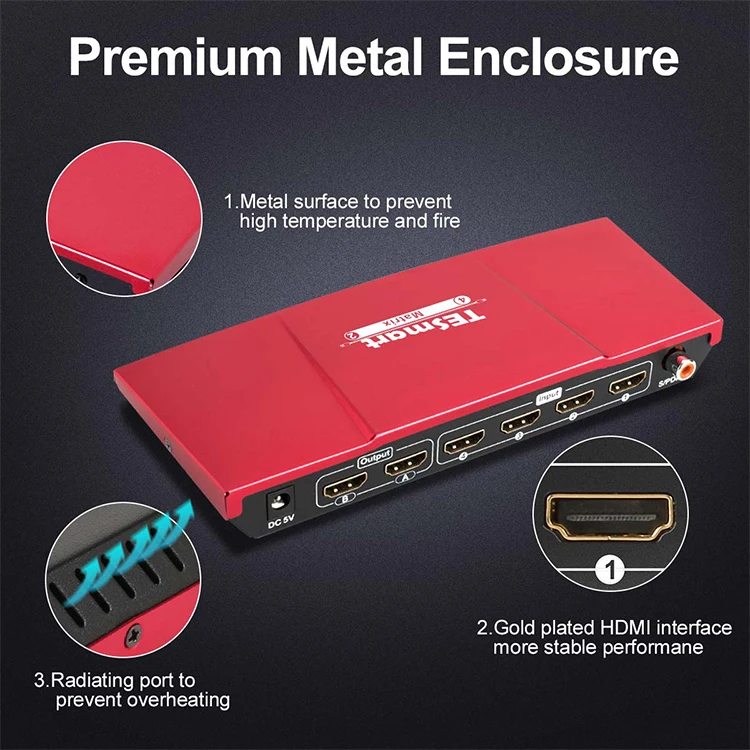

Chasing material | Aluminum Alloy |
Product Dimensions | 198 (L) x 82 (W) x 26 (H) mm |
Item Weight | 400 g |
Power supply | DC 5V 1A |
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree |
Operating Humidity | 10 to 90% RH |

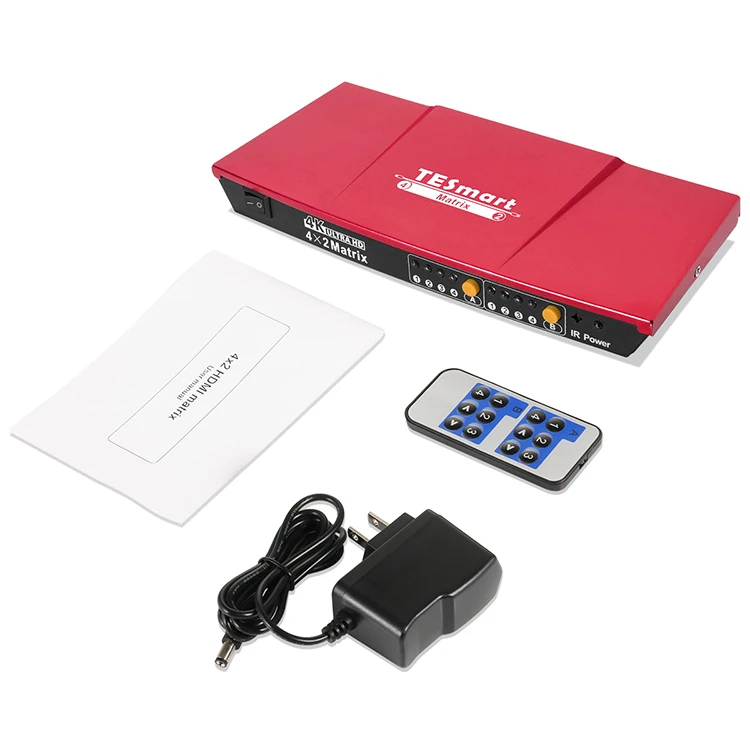

Packing list
1 * HDMI Matrix 4x2
1 * Remote control
1 * DC 5V Power Supply
1 * User manual
Company show
FAQ
1. Does the kvm switch come with the cables or do they have to be ordered seperatly?
Some of the kvm switch products are with cables , some are not. Buyer can also purchase extra cables from us or buy them from local markets .
2. Do I need a power adapter ?
That depends on which product you require. Some of our products are powered over the USB connections from the host computers, some of them need an extra power adapter.
3. Does this product work with a wireless keyboard and mouse ?
Yes, it works fine for wireless keyboard and mouse.
4. How long are the cables?
Currently we provide 1.5-3 meter high quality KVM cables .
5. How many switch mode you provide ?
Our KVM switches support 4 selection modes: push-button, hotkey , IR remote control , desktop controller .
