GOWORLD Portable Phased Array Ultrasonic Flaw Detector ndt CTS 2108PA ultrasound Testing machine

Product Overview

Description

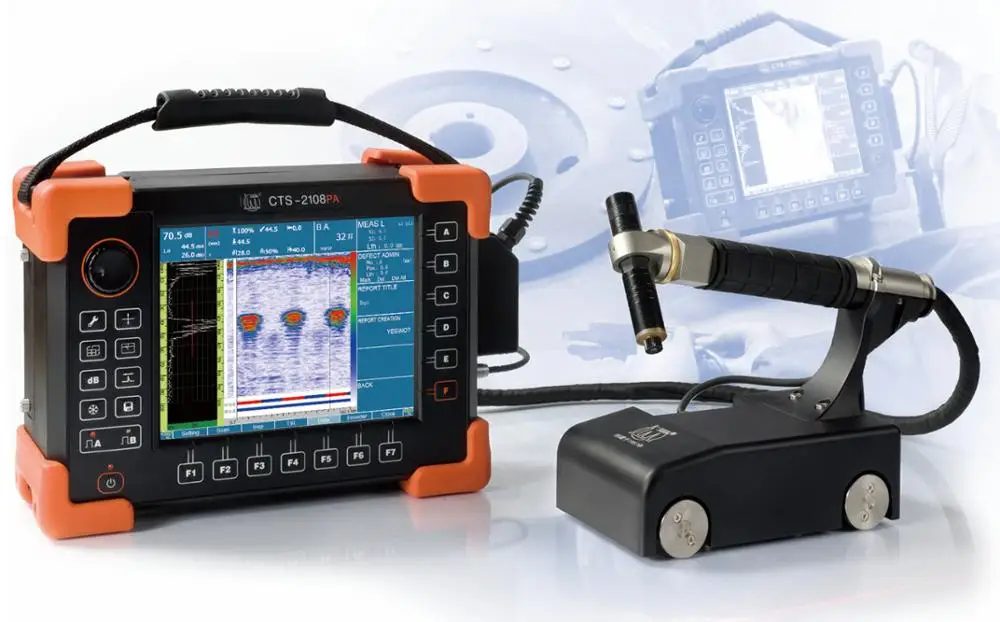

CTS-2108PA Ultrasonic Flaw Detector, newly launched by ''Goworld", was the first phased array intrument in China to reach 32:64 channel configuration. With water- & oil-proof panel and fan-free design, as well as easy and quick operation with full-course recording, it proves to be the most advanced and sophisticated portable phased array UT device in the country.







Features:



• 32:64 Configuration: maximum active aperture of 32 elements and maximum 64 elements available. With certain set parameters, more channels engagaed, better beam steering and imaging. 64 channels for large-vovering C-scan, great promotion in efficiency.

• Delay precision up to 1ns: enhancement on phase delay precision, significant inhibition on sidelobes so as to promote both vertical and horizontal discernibility, as well as to improve imaging definition.

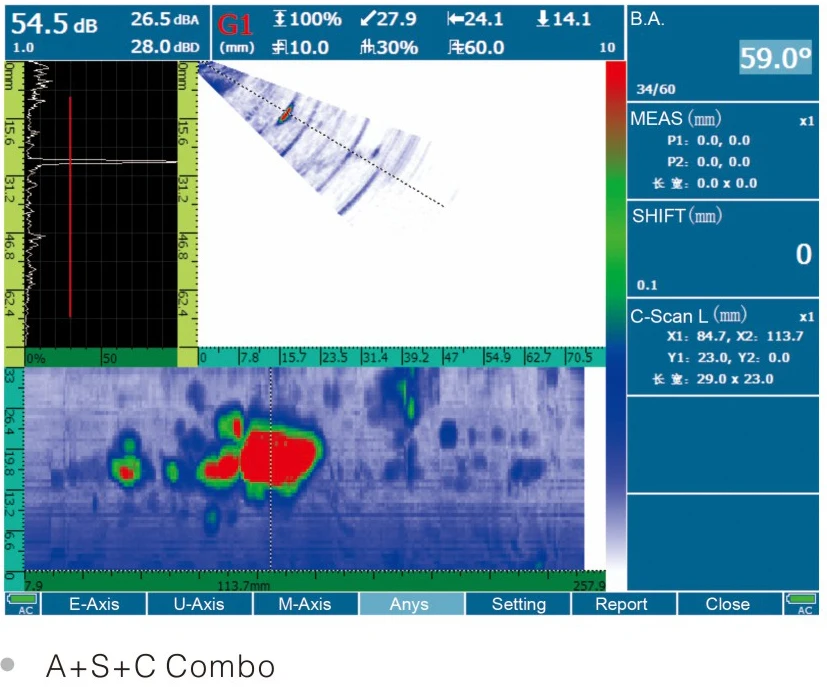

• Real-time A/L/S/C scan responsive imgaging: Scan  combos like A+L, A+L+C, A+S, A+S+C available. Encoding or time-basing optional for continuous data recording, acquiring 100% original definiton.

• Curve compensations like ACG and TCG are available precribed by ASME, to tackle the problems caused by the uneven energy distribution during S-scan as well as measurement errors. ACG auto- calibration available. The consistency of echo sensitivity is higher under ACG and TCG.

• Omnisealed, water- & dust-proof but capable of fan-free heat-dissipation, upstanding against various adverse conditions.

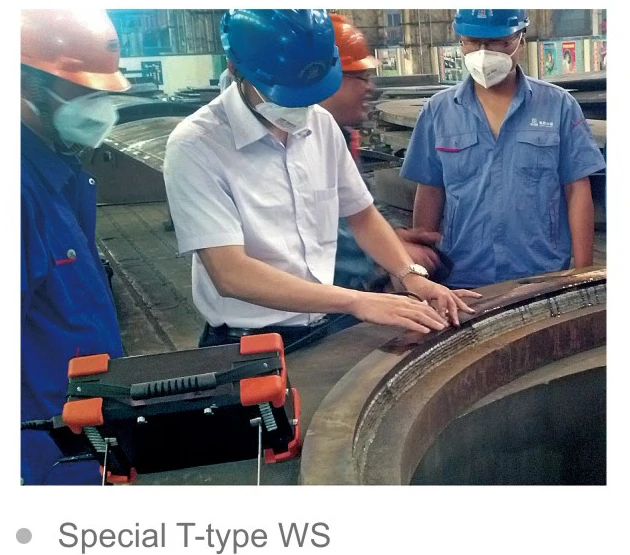

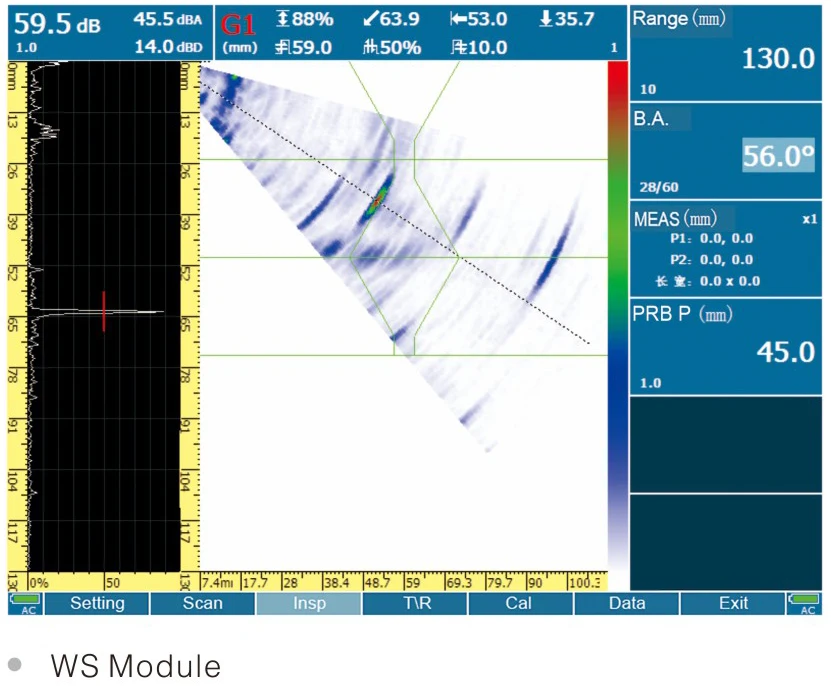

• Modularized software operation: various modules optional incl. butt welded seam(WS), T-type WS, composite. Easy operating and quick judging.

• Focal laws can be generated automatically soon according to angle, focal length, scan mode, parameters of probe element, with auto-optimized stepping of S-scan.

• Analog gain range and 36db digital gain range; 3 options of filtering: 0.5-9.7MHz, 4.0-12.5MHz, and 6.7-20.8MHz. Auto-optimization of pulse width according to probe frequency, excellent noise pocessing. Image smoothing, enhancement of image quality.

• 11-inch, TG and Full WVGA resolution (800*600) TFT display, best feed outdoors or under strong light.

• Massive storage for A/L/S/C scan images, and reports concomitant.

• USB port for quick data transferring; HDMI port for grafting display with unlimited size.

• AC/DC optional, allowing 2 batteries engaged as co-powersuppliers and engagement takes shifts automatically according to power allowance, guaranting nonstop work of 6+ hrs.





Specification:





CTS-2108PA Portable Ultrasonic Phased Array Flaw Detector
PRF	Max 10KHz
Voltage	-ve square wave, -50~-100V tunable with 10V per step
Pulse Width	20~800ns, 5ns per step
Bandwidth	0.5~20.8MHz
Gain	0~96dB,Analog: 60dB; Digital: 36dB
Filer	Auto tunable; 0.5~9.7MHz/4.0-12.5MHz/6.7~20.8MHz optional
Channel Configuration	32: 64
Modes	L/S/C
Trigger Precision	Time-based/Encoder
Scan Lines	Max128
Angale	L-scan: -75° ~+75°, 0.1/1/10 per step; S-scan: auto-optimized step
Cal Modes	Vel/Delay/ACG/TCG
Display Reachable	0-1000mm(steel LW)
Display Delay Availability	1000mm
Gate	A/B
For Standard Kit	Pobe: 4L16P1.05-C1; Wedge: SC1-N55S
Display	11 inch 800*600 color TFT
Port(s)	USB 2.0 Host Port, HDMI, LAN 100M, encoder
Weight	About 3kg(with battery)





Applications:

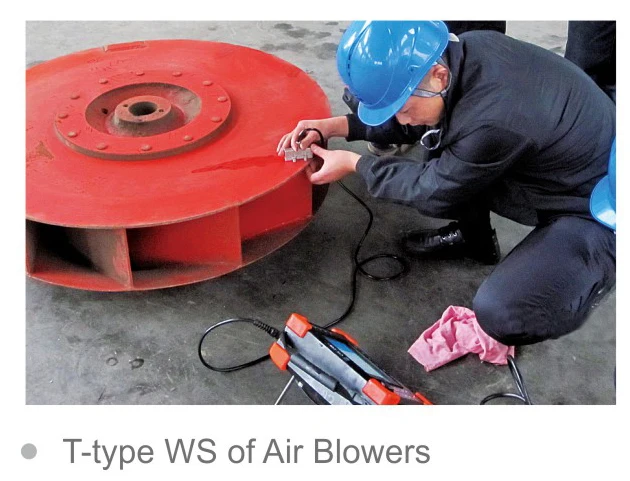

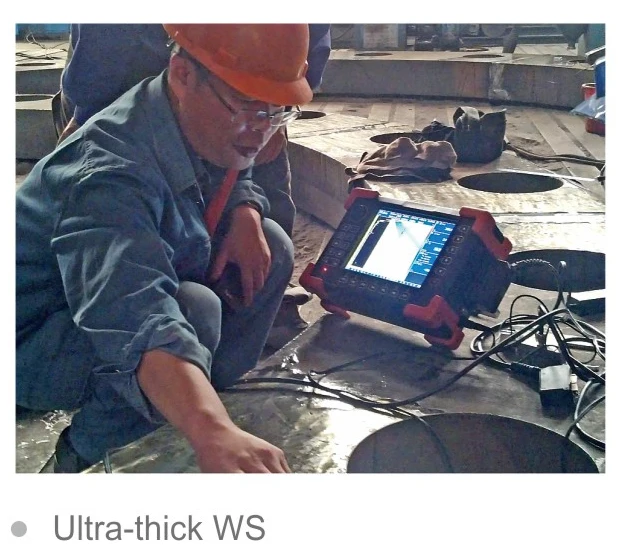

• Conventional Inspection on Welded-seam(WS)
• Inspection with Restricted Movement like on Blade Roots
• Inspection on Bolts
• Inspection on WS of Rail
• Inspection on Axles and Wheelsets of Railway Vehicle
• Inspection on Al Alloy FSW seams
• Inspection on Butts of Ethylene Tube

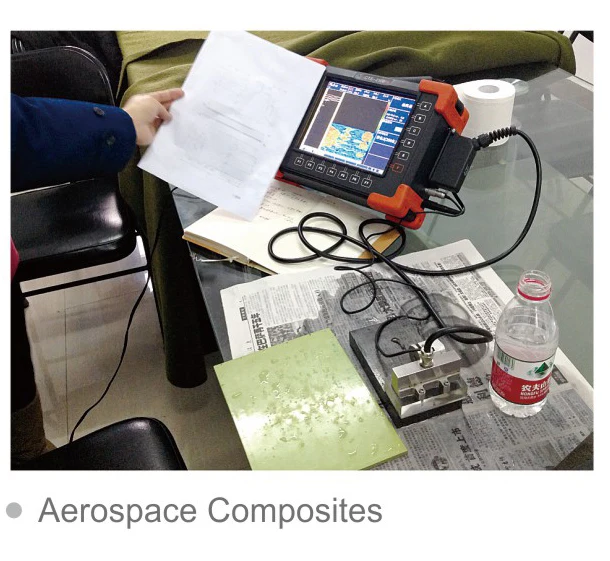

• C-scan on Composites
