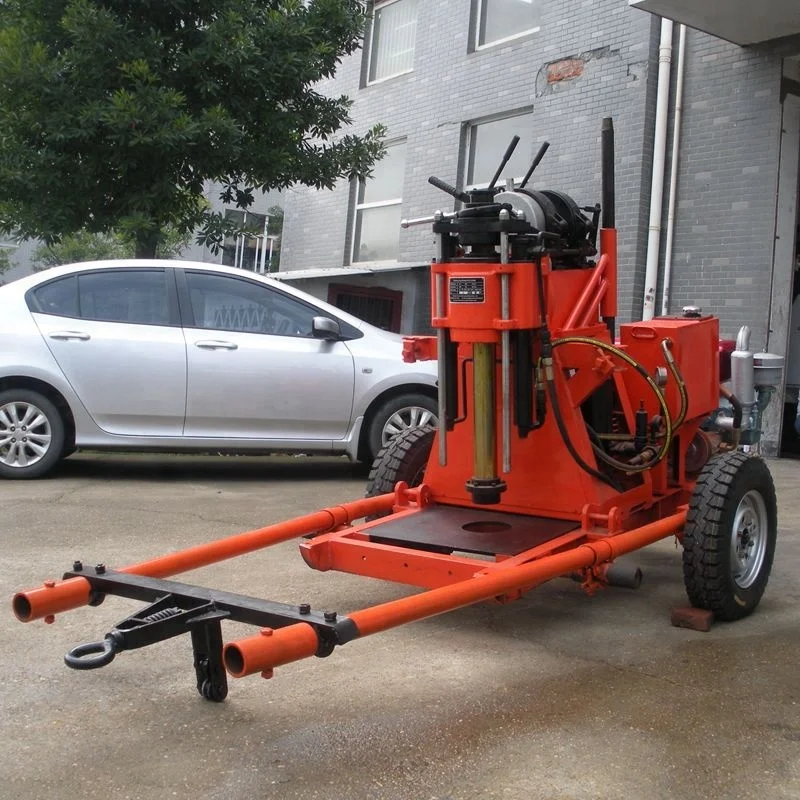

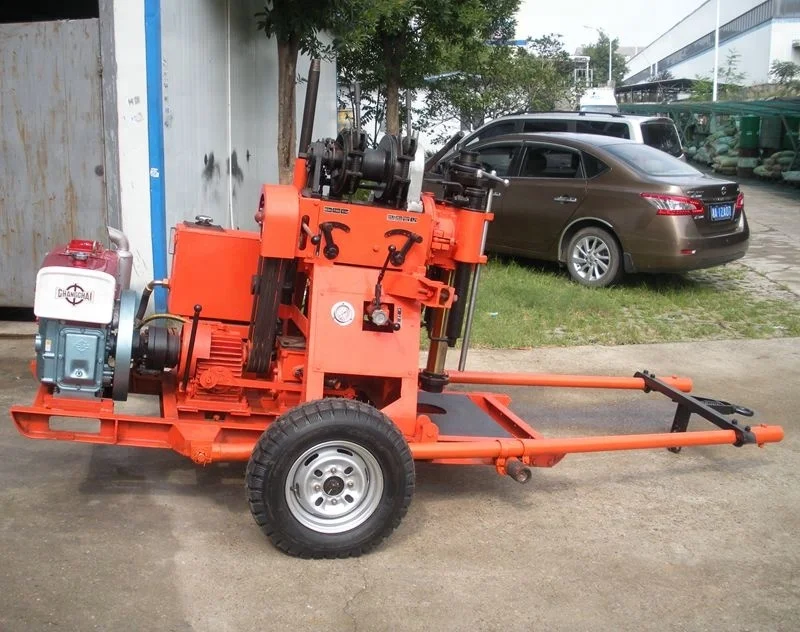

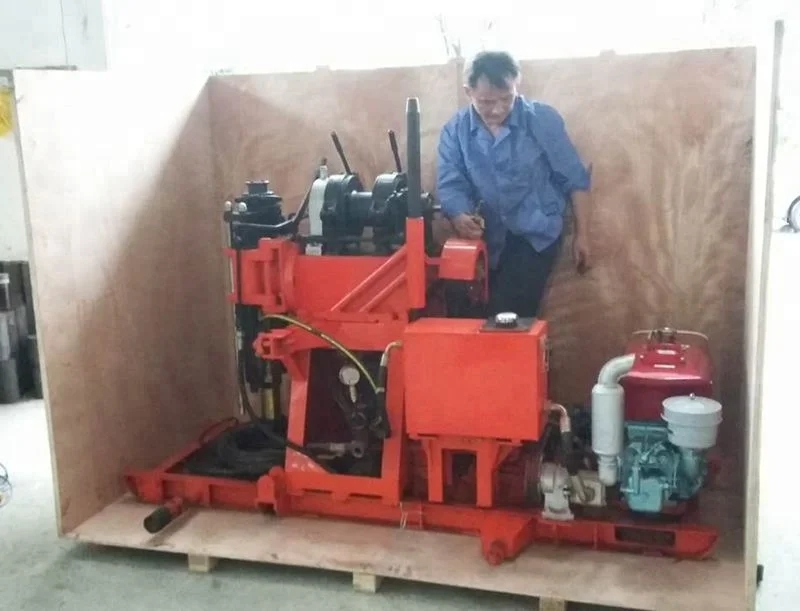

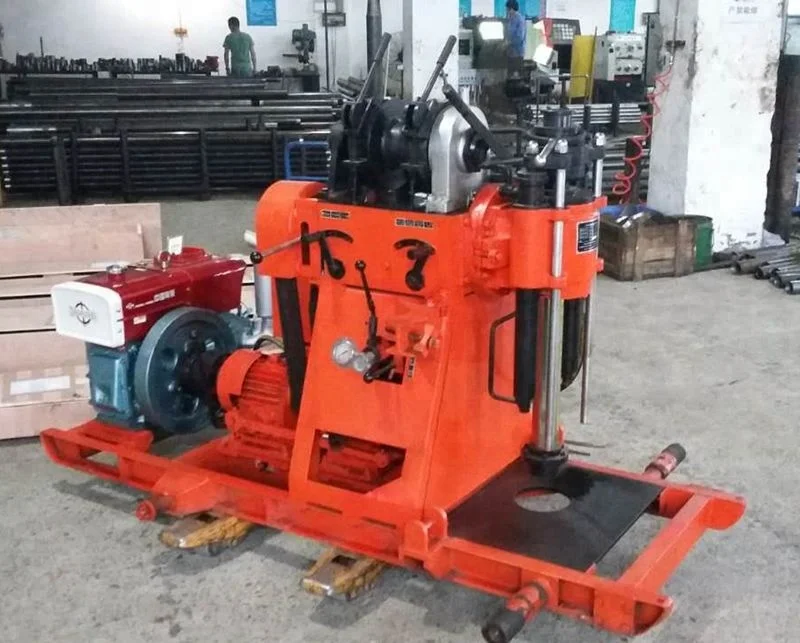

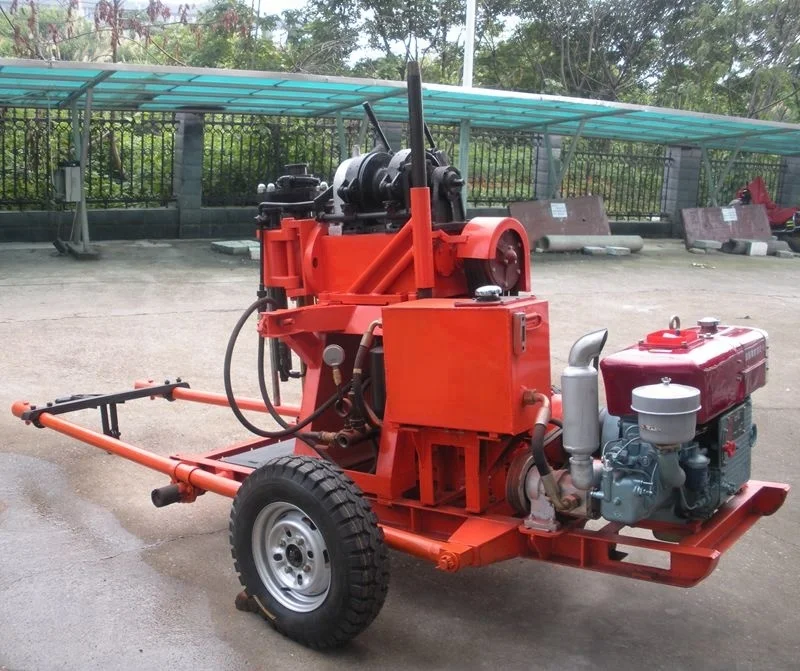

GY 150B Small Portable Trailer Mounted Water Well Drilling Rig
- Category: >>>
- Supplier: Changsha Miracleland Import & Export Co. Ltd.
Share on (60773982363):
Product Overview
Description
Product Description
Hydraulic rotary drilling rig machine
GY-150B drilling rig with pump integrated, which is convenient for drilling; It also with 2 wheels trailer, which is quite easy for movement.
Product details
| Chuck | Manually Chuck |
| Drilling diameter | 76-300mm |
| Drilling depth | 150m |
| Usage | Geological exploration, Water well, Mining |
| Color | Red |
| Spindle Speed | 60 200 400 610 1100 r/min |
| HS Code | 8430691900 |
| Engine brand | changchai |
| Product name | Core drilling rig |
| Quality | Good |
| Product Keywords | hydraulic rotary drilling rig machine |

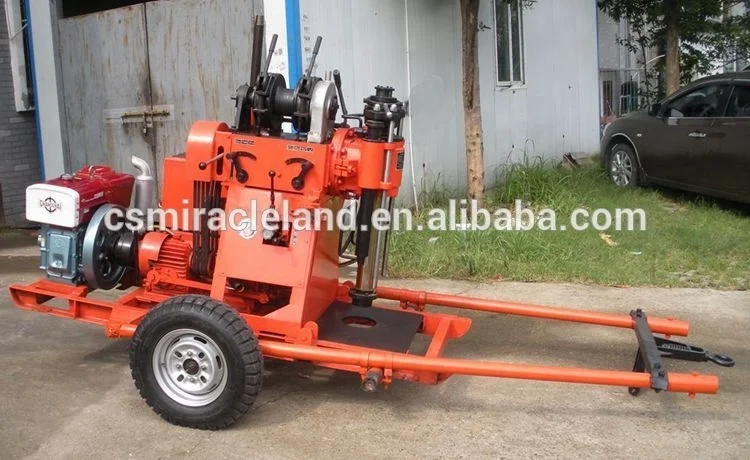

GY-150B Drilling Rig With Pump Integrated:
GY-150B is a portable and multipurpose engineering exploration drilling rig, applicable to the engineering geological exploration in fields of industrial and civil buildings, railways, bridges, hydropower engineering, as well as small-diameter foundation pile hole drilling.
Features:
1. With mud pump attached on the rig.
2. Large torque, multiple drilling speeds in an appropriate range.
3. Capable to drill inclined holes at different angle.
4. High efficiency drilling with hydraulic feeding structure.
5. Multiple usages, geotechnical investigation for engineering constructions, mineral exploration, small size pile hole, water well boring.
The technical parameter of the GY-150B Drilling Rig:
| Basic Parameters | |
| Drilling depth | 150m 35m |
| Drilling diameter | 76mm 300mm |
| Drill pipe diameter | 42mm CR42 AW |
| Gross weight of drilling machine(engine not included) | 600kg |
| Dimension (length ×width × height) | 1610 × 790× 1420 mm |
| Revolving Plate | |
| Rated speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20,000N |
| Maximum Cylinder lifting force | 30,000N |
| Lifter | |
| Lifting capacity | 24,000N |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 125mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Oil pumps: | |
| Displacement: | 20ml/r |
| Normal speed | 2500r/min |
| Normal pressure | 20MPa |
| Max pressure | 25MPa |
| Mud pumps | |
| Displacement | 100L/min |
| Maximum pressure | 1.5MPa |
| Drilling rig | |
| Type | Steel pipe quadripod |
| Height | 6m |
| Drive motor | |
| Type | Changzhou ZS1100 diesel engine |
| Rated power | 13.2KW |
| Weight | 160kg |
