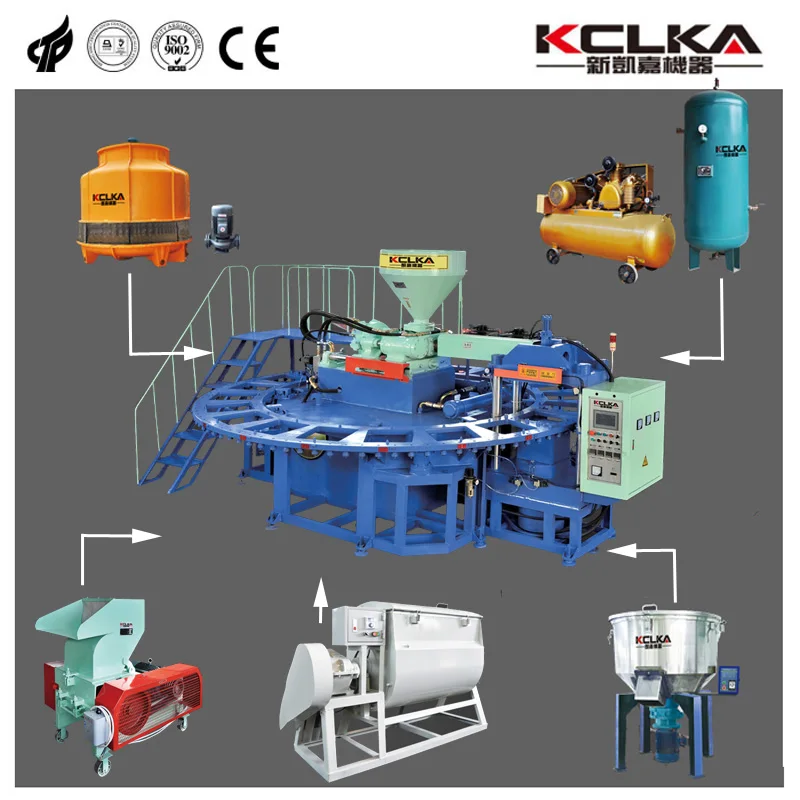

Automatic Rotary Crystal Slippers/Sandals Injection Molding Machine

Product Overview

Description

Detailed Description.

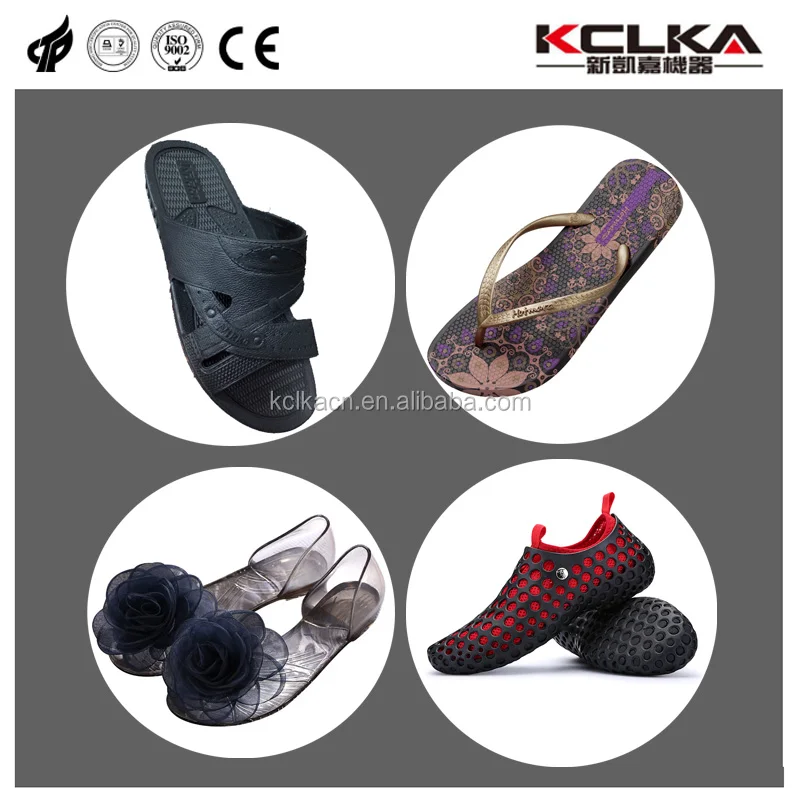

1.This machine is specialized in the manufacture of various kinds of high-grade single color sandals, crystal slippers, boots and tennis shoes

2. This unit is suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC, TPU, TRP etc.

3. Used of spiral diameter screw, to make large injection volume and high production capacity, and machine can be injected with different volume because of automatic digital control.

4. With double-proportional pressure control, which makes separately controlling of each molds injection pressure, and be suitable for different design products.

5. Adopting Full automatic PLC programme control of human machine interface, stable and easily operation.




Technical Description.

Raw material			PVC.TPU.TPR
Work Stations		Stations	12/16
Mould-clamping Pressure		Tons	250
Mould space(LxWxH)		Mm	5000*180*220
Diameter of Screw		Mm	50
Screw length diameter ratio		L/D	21:1
Max. Injection Volume		Cm3	350
Injection Pressure		Kg/cm2	125
Heating bands power		Kw	8
Temperature Control Section		Sections	5
Motor		Kw/Hp	18.5
Total Electricity Consumption		kw	26.5
Machine dimension		Mm	4097*3100*2163
Screw length diameter ratio		L/D	100-150
Machine Weight		Tons	6
Daily Production		Pairs/24hours	2000
