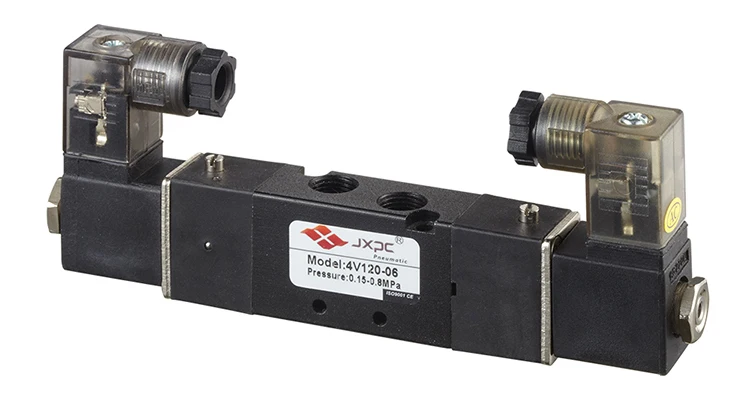

4V120 06 Pneumatic Control Valve High Quality 1/8' DC 24V Double Position 5 Way Air Solenoid Valve
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.
Share on (60774026843):
Product Overview
Description
Product Description
- Product Name :Pneumatic Solenoid Valve

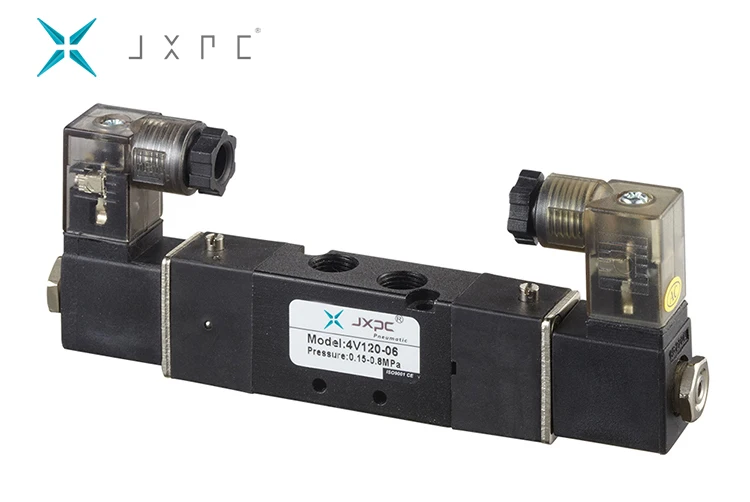

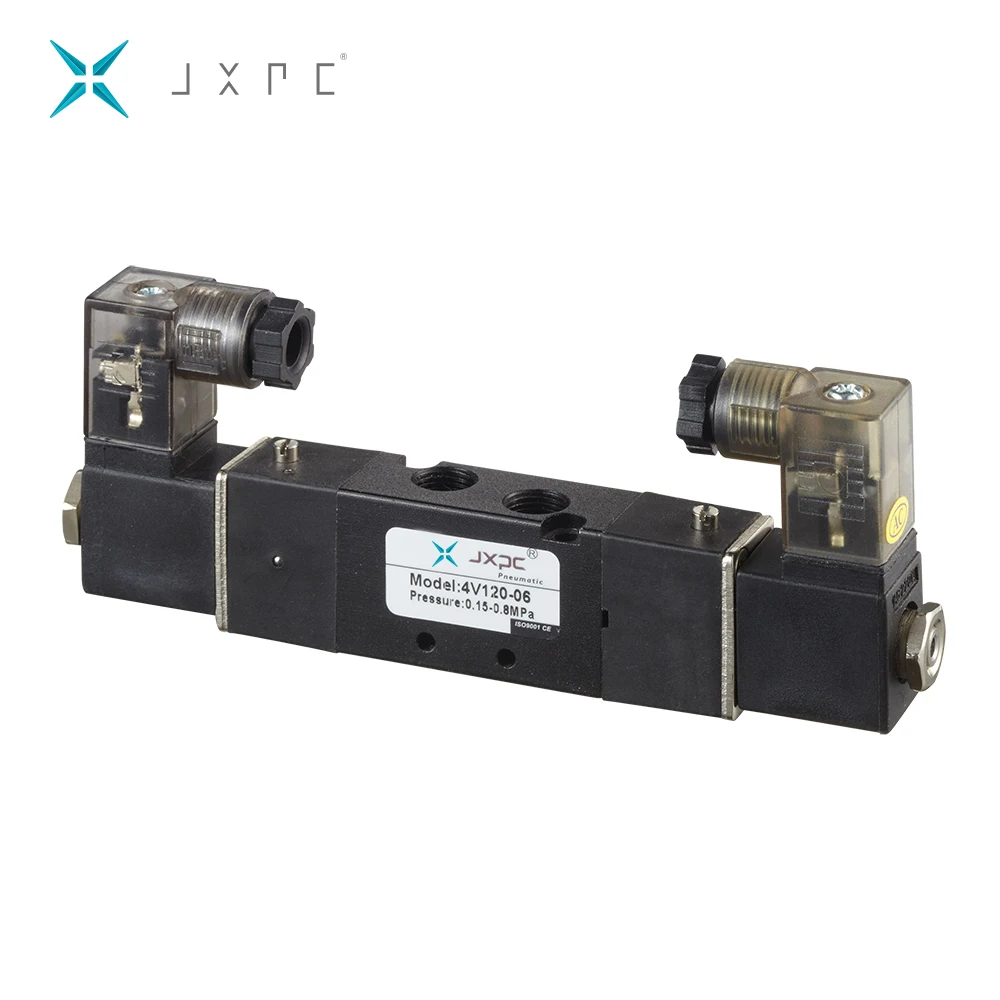

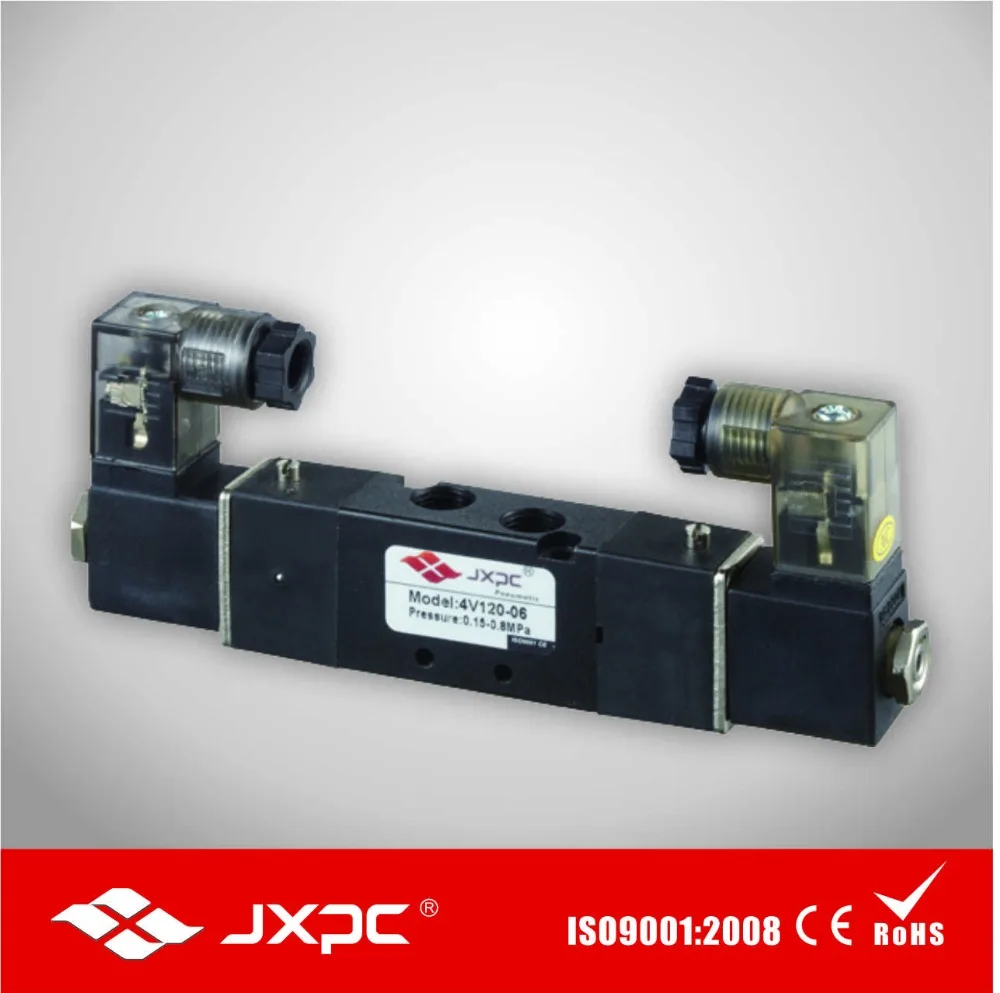

- Model : 4V120-06
- Type : Two-position Five-way
- Power Consumption:12V 24V 110V 220V 230V 380V or Custom
- Working Temperature Range: 5~50°C
- It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
- We have solenoids available in AC/DC and various size NPT threads as welll

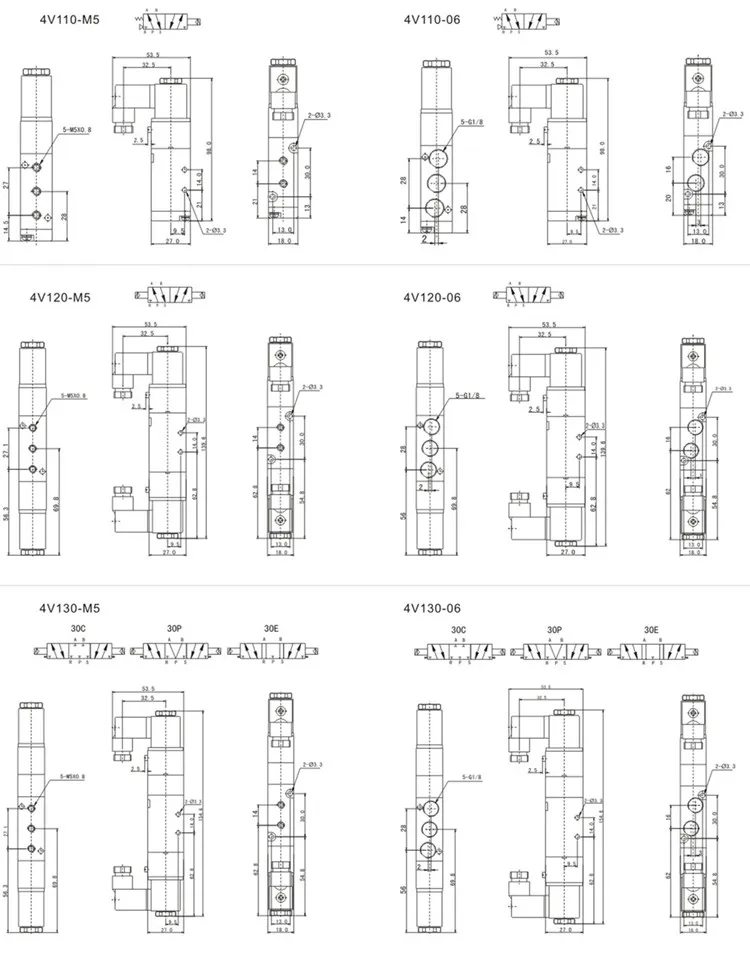

| 4V100 Series Solenoid Valve,Pneumatic Control Valve | ||||||||||
| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 7mm²(CV=0.40) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | ||||||
| Port Size | Air inlet=Air Outlet=Exhaust=M5×0.8" | Air inlet=Air Outlet=Exhaust=G1/8 | ||||||||
| Working Medium | Air (40Micron Filtered) | |||||||||
| Acting Type | Inner Guide Type | |||||||||
| Working Pressure | 0.15~0.8MPa | |||||||||
| Max.Pressure Resisance | 1.2MPa | |||||||||
| Working Temperature | 5~50°C | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:2.8VA DC:2.8W | |||||||||
| Insulation&Protection Class | F Class.IP 65 | |||||||||
| Wiring Form | Lead wire or Connector type | |||||||||
| Max.Frequency | 5 Cycle/Secretary | |||||||||
| ShortestActivate Time | 0.05 Second | |||||||||
