Вертикальный обрабатывающий центр VMC850
- Category: Machine Centre & Parts >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (60774059386):
Product Overview
Description
Product Description
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3000*2550*3000 | |
Weight | 6200kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
Products Name with link
99.8% Response Rate
Products Name with link
96.8% Response Rate
Products Name with link
99.8% Response Rate

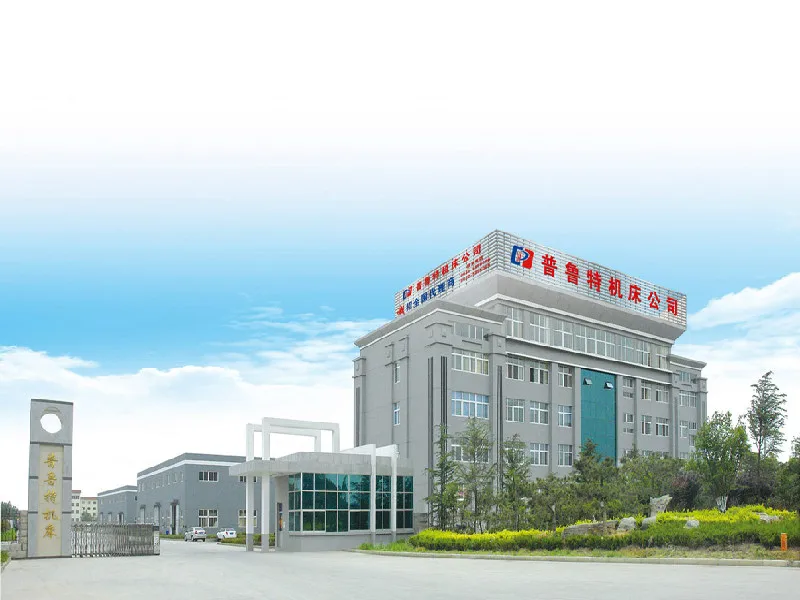

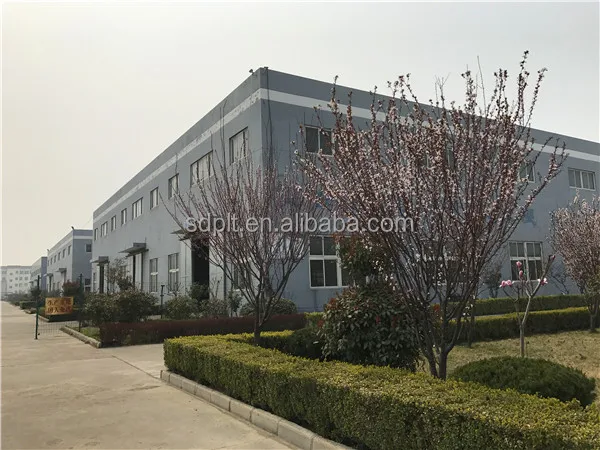

COMPANY INTRODUCTION

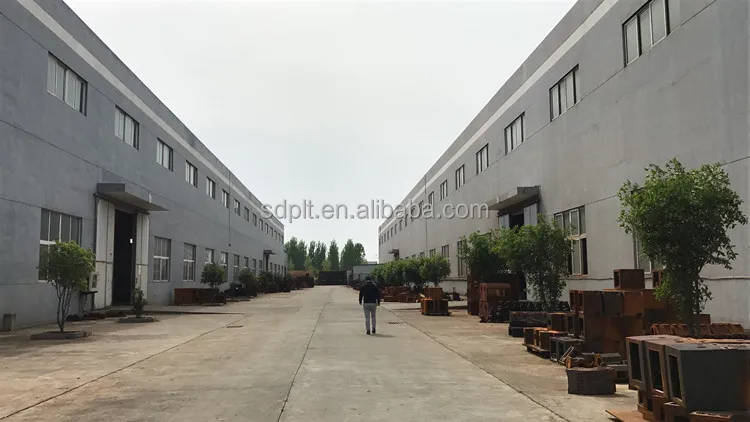

Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.

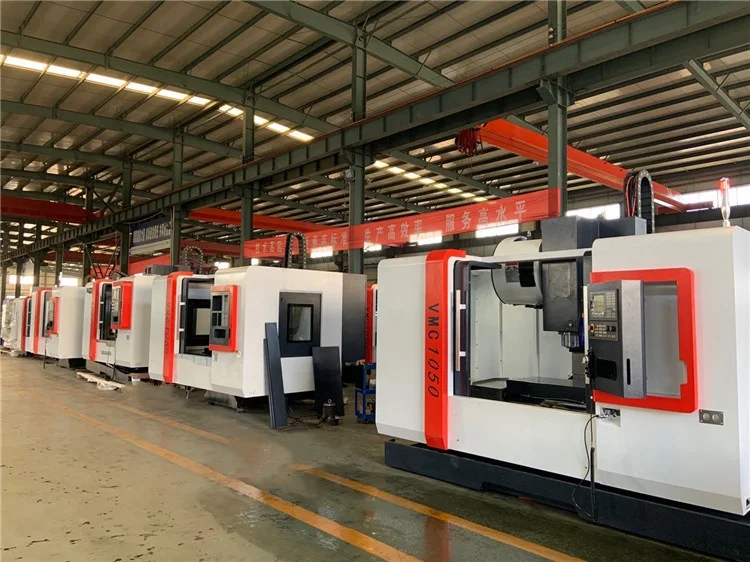

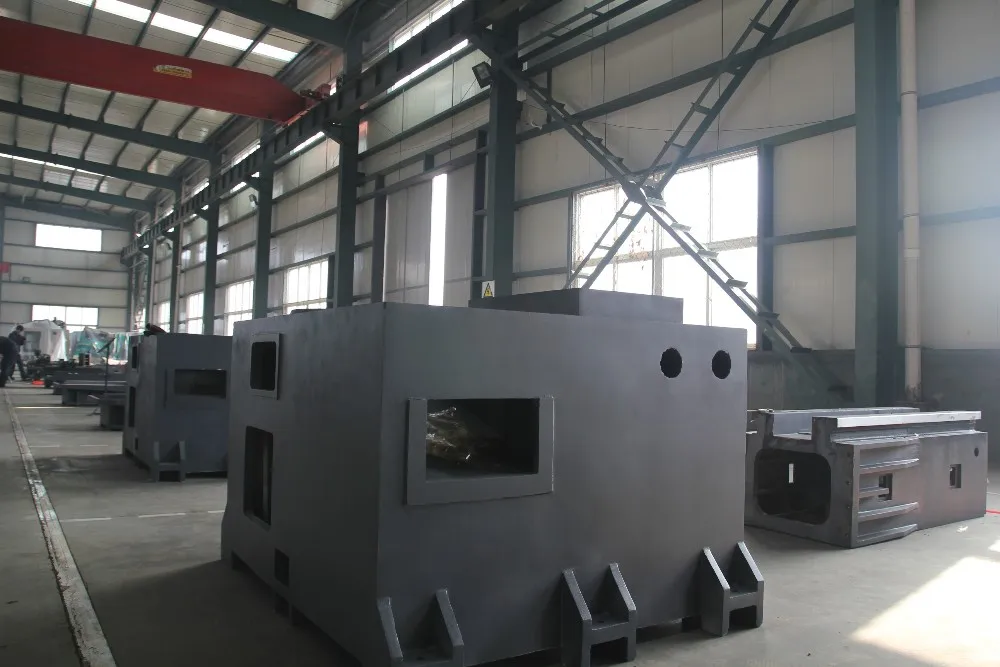

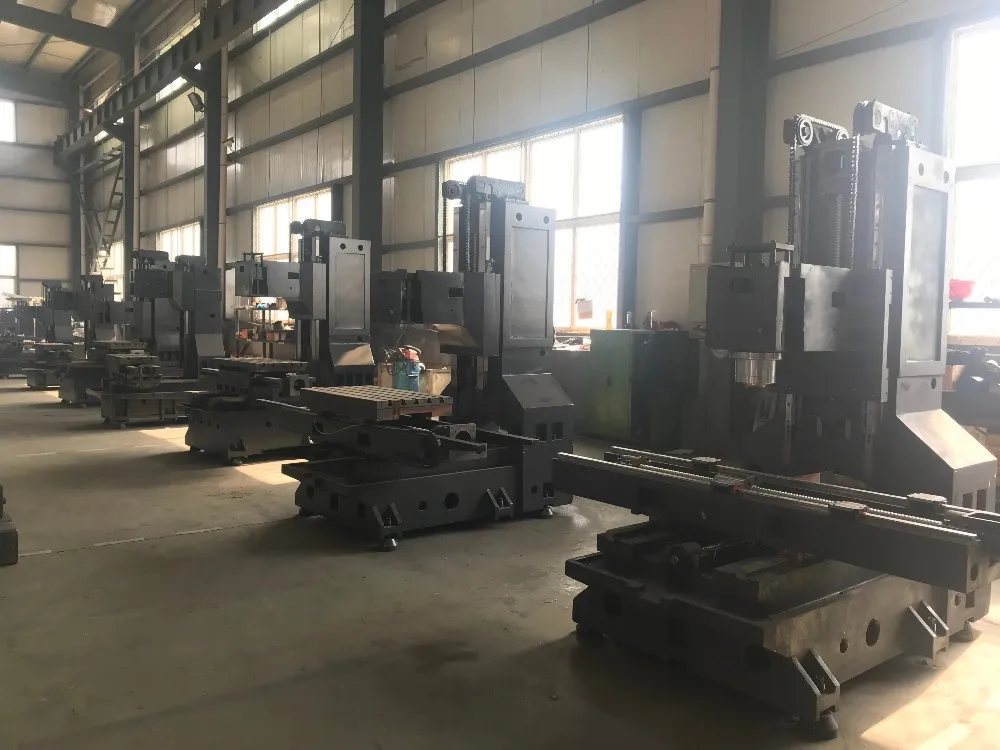

Machining center assembling workshop
Machining center assembling workshop
cnc lathe assembling workshop
cnc lathe assembling workshop
Plastic spraying and splash metal guard workshop
Machining workshop
CNC lathe assembling workshop
one of our warehouses

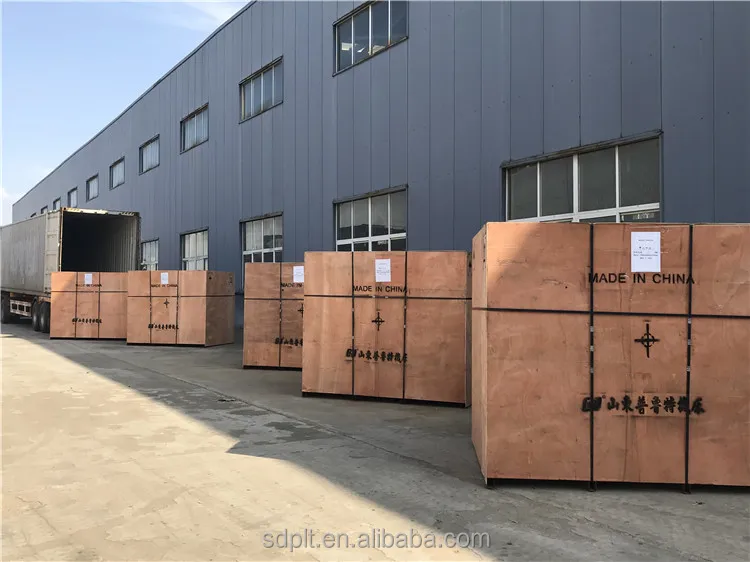

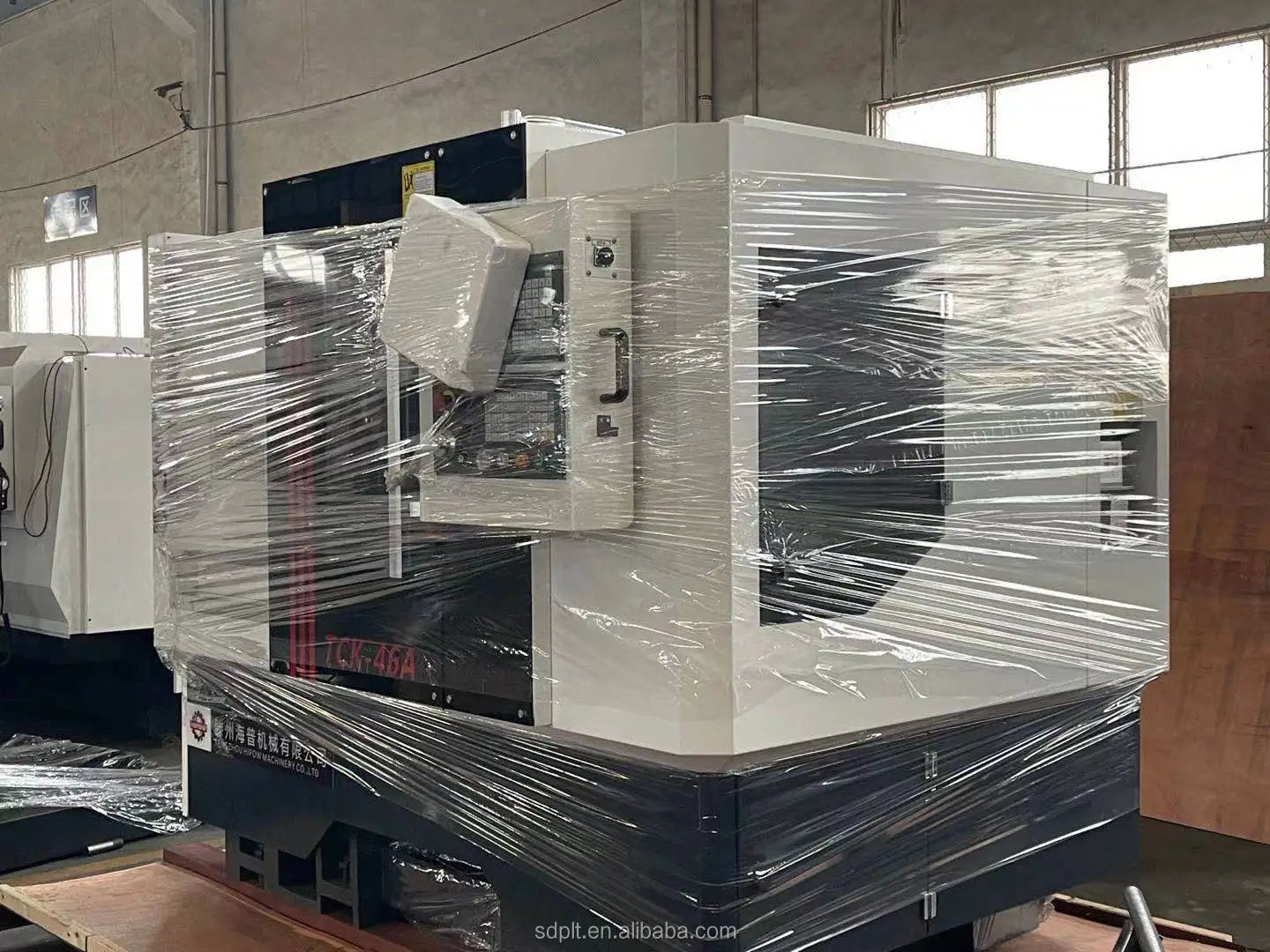

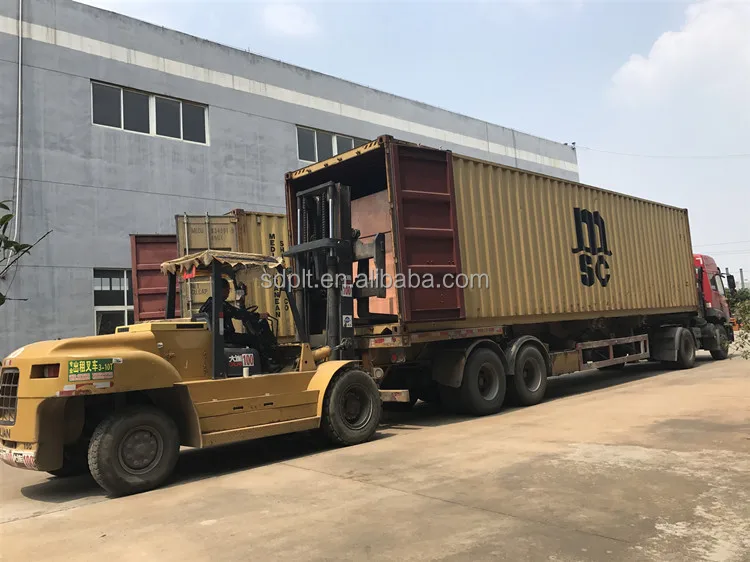

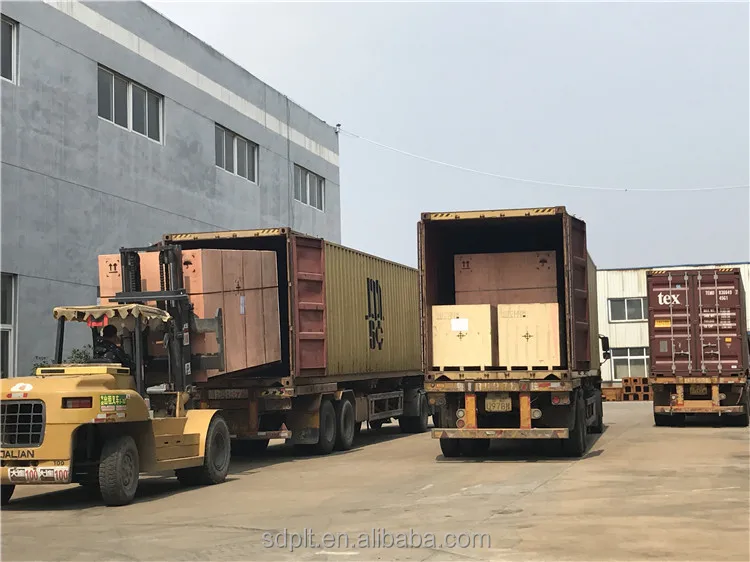

PACKING AND DELIVERY
There is the professional packing and delivery team in SHANDONG PULUTE MACHINE TOOL CO., LTD.

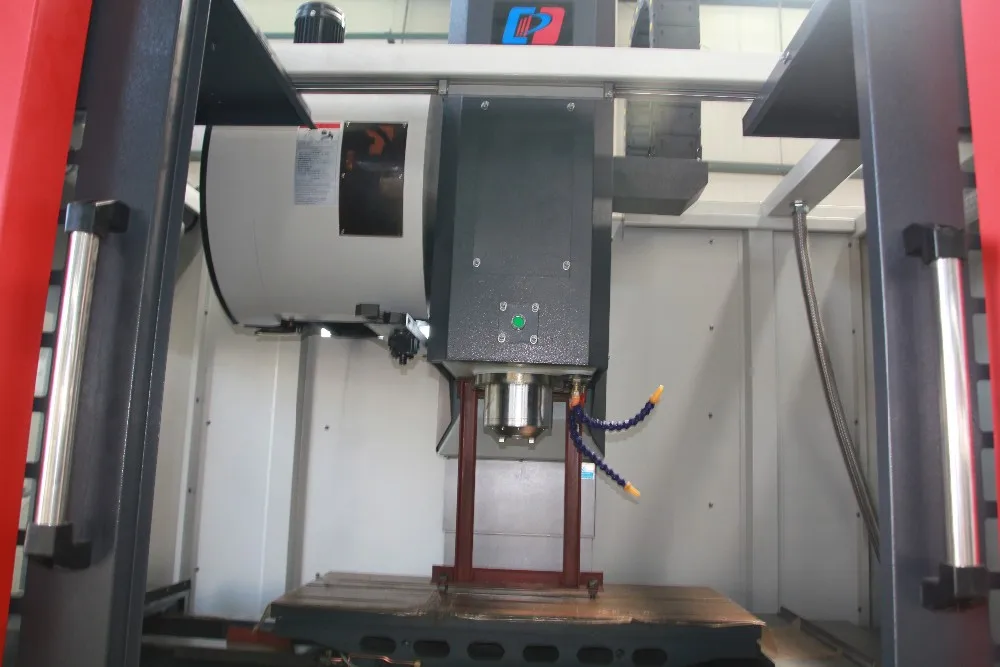

SPECIFICATION AND CONFIGURATION OF VMC850 VERTICAL MACHINING CENTER
work table | work table size | 1050×500 mm for VMC850 1000X530 mm for VMC850L2 and VMC850L3 |
max. loading of work table | 600 kgs | |
travel of 3 axes (X/Y/Z) | 800/500/600 mm | |
T slot width x length | 18X90 mm | |
T slot QTY | 5 pcs | |
spindle | spindle taper | BT40 |
distance from spindle center to column | 560 mm for VMC850 and VMC850L2 579 mm for VMC850L3 | |
Distance from spindle head to work table | 140-740 mm | |
speed | 8000 rpm | |
spindle motor power | 7.5/11 kw | |
axis | Power of X/Y/Z axis | 2.4/2.4/2.4 kw for VMC850 3.9/3.9/3.9 kw for VMC850L2 and VMC850L3 |
Rapid feed of X, Y, Z axis | 20/20/15 m/min for VMC850 24/24/15 m/min for VMC850L2 24-24-20 m/min for VMC850L3 | |
Cutting feed of X, Y, Z axis | 1-10000 mm/min | |
accuracy | position accuracy | ±0.01 mm |
repeatability | ±0.004 mm | |
cutting tool | Length of max. Tool | 300 mm |
Weight of max. Tool | 8 kgs | |
others | dimension | 3200X2280X2500 mm |
N.W. | 5700 kgs |
Taiwan brand VYU CHENG spindle
Taiwan brand KENTURN spindle
Chinese famous brand AIMACH ATC hat type or arm type

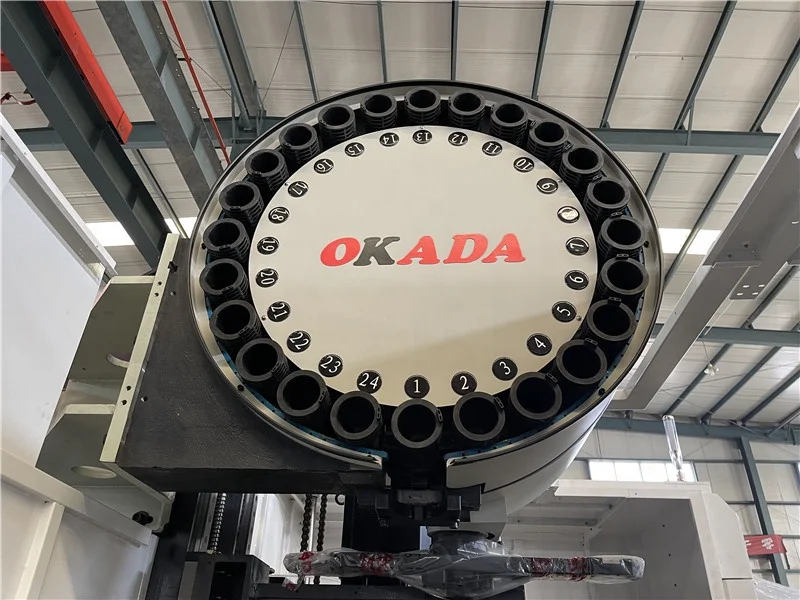

Taiwan brand OKADA ATC hat type or arm type
Taiwan brand HIWIN linear guide
Chinese or Taiwan ball screw
Automatic concentrated lubrication system
Heat exchanger or air conditioner
Fanuc, Siemens, GSK, Syntec, Mitsubishi etc NC controller
higher rigid and higher precise machine frame
LEADER VISITING
Leaders visited SHANDONG PULUTE MACHINE TOOL CO., LTD.
