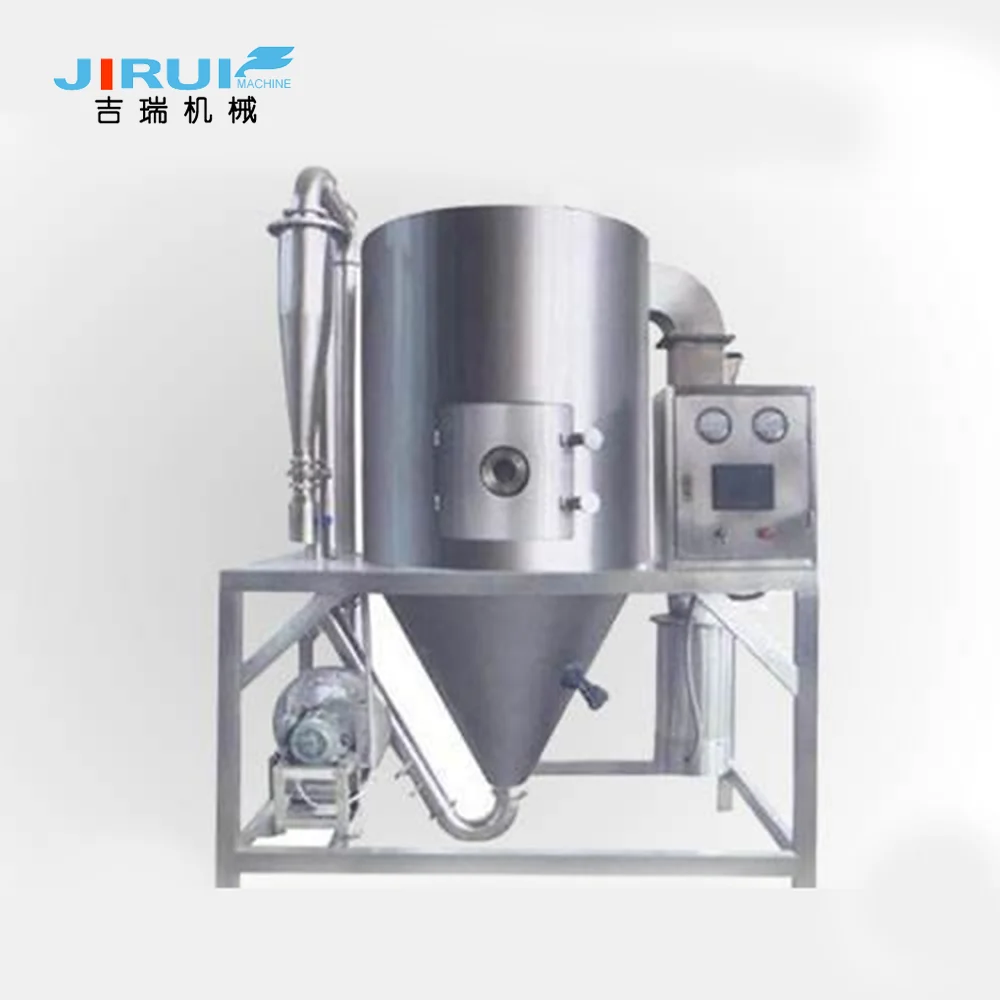

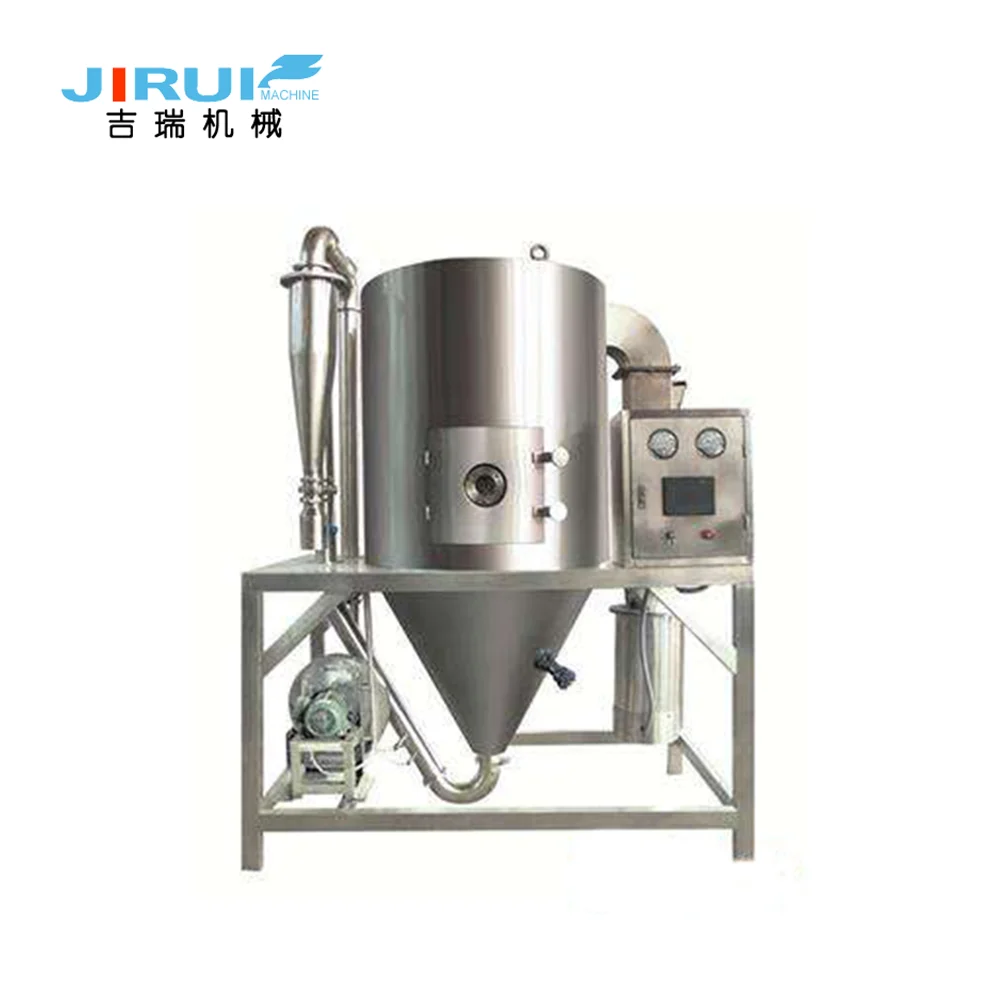

ZLG 50 chinese traditional herb extract spray dryer

Application

1.Spray dryer can be used for drying of ny substances both in solution or in suspension.
2.Spray dryer are very useful for the drying of thermolabile substances.
3.Citric acid, borax, sodium phosphate, hexamine, gelatine and extracts are dried by a spray dryer.
4.The suspensions of starch, barium sulphate and calcium phosphate are also dried by the spray dryer.
5.Milk, soap and detergents too are dried by a spray dryer.

Descriptions

The machine adopts a fully closed form. All parts are made of stainless steel. The machine is equipped with three-level purification device. The air after filtration can meet the 100,000 grade requirements. The tank and top are installed with the wall cooling device to make the wall temperature less than 80℃, so that the materials staying on the walls do not have such occurrence as coking or deterioration, powder collection rate(above 95%)is greatly increased, and there is no occurrence of mixed medicines and sticking to walls.

Basic principle

The traditional Chinese medicine extract high speed centrifugal spray device is the application of centrifugal spray drying technology in special material drying. It is a drying device that uses the high-speed centrifugal atomizer to make the materials dispersed into fog and get sufficient contact with hot air to complete instant drying and form finished powder products.
