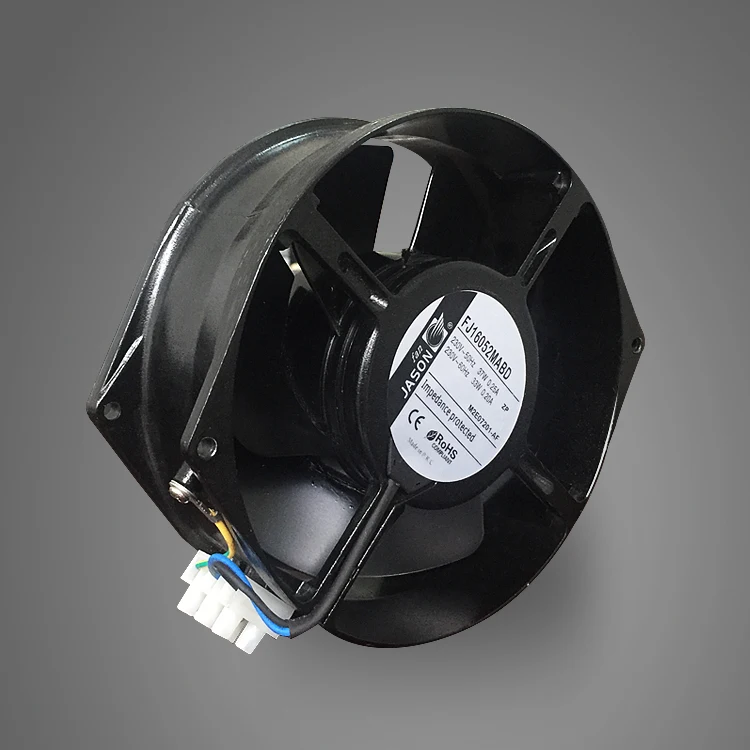

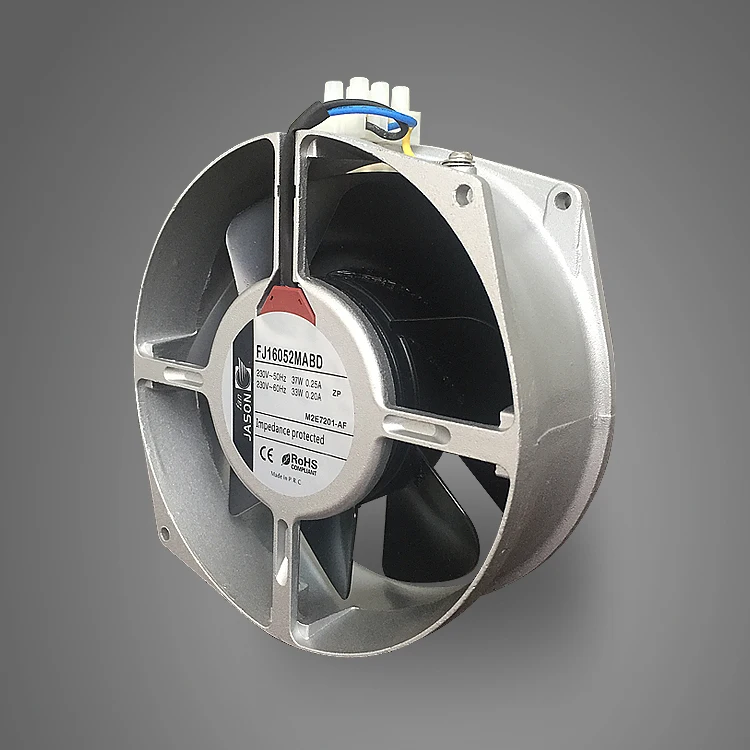

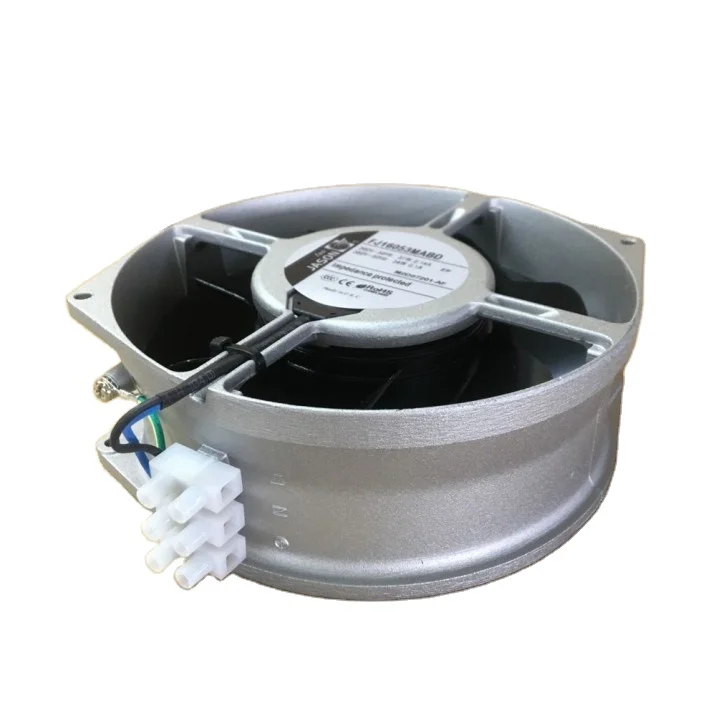

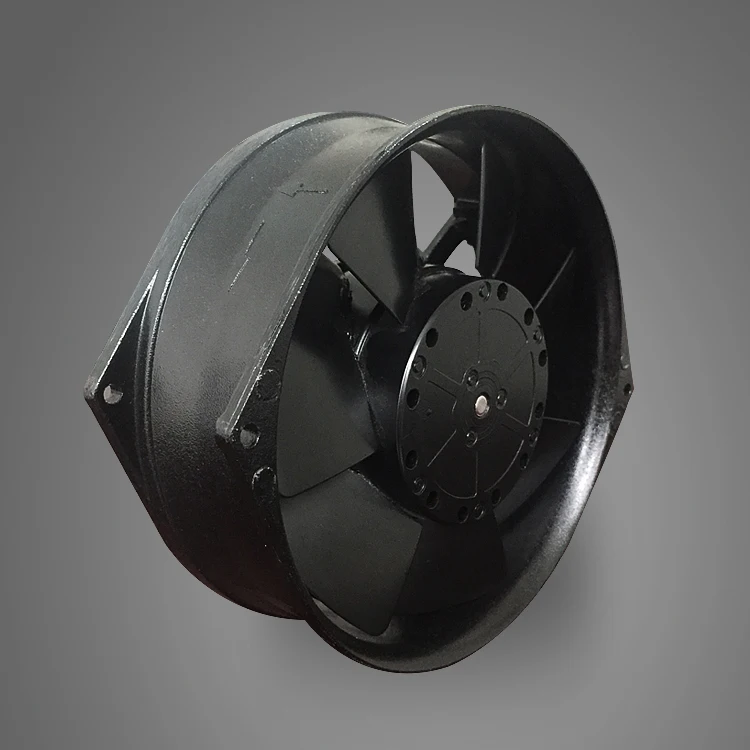

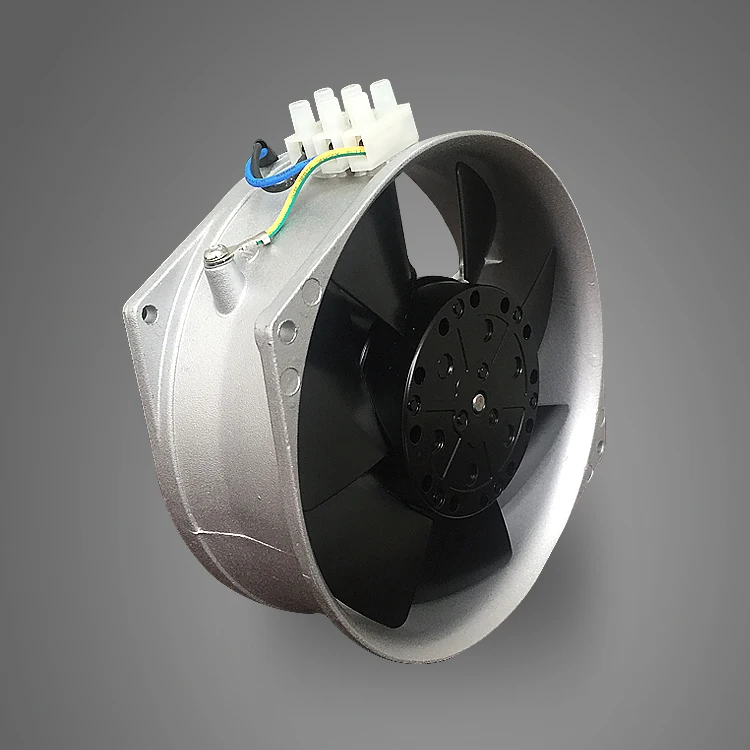

Jasonfan brand 220V 230V AC 172mm 150mm 55mm 224CFM oval metal blade axial cooling fan
- Category: >>>
- Supplier: Wenzhou Jason Fan Manufacturer Co. Ltd.
Share on (60774116167):
Product Overview
Description
| Model | FJ16052MAB | FJ16051MAB | FJ16053MAB | FJ16052MABD | FJ16051MABD | FJ16053MABD |
| Power connection way | Lead wire | Terminal block | ||||
| Impellers | Metal impellers | |||||
| Rated voltage (V/Hz) | 230 50/60 | 115 50/60 | 380 50/60 | 230 50/60 | 115 50/60 | 380 50/60 |
| Air flow,free blowing | 320/380 m³/h | |||||
| Rated current(A) | 0.20 | 0.52 | 0.12 | 0.20 | 0.52 | 0.12 |
| 0.25 | 0.43 | 0.15 | 0.25 | 0.43 | 0.15 | |
| Power(W) | 33/37 | 34/37 | 34/39 | 33/37 | 34/37 | 34/39 |
| Noise level(dB) | 49/53 | |||||
| operating temperature range | -40°C ~ +65°C | |||||
| Bearing | Double ball bearings | |||||
| Color | Black or silver | |||||
FJ16052MABD
Frame
Aluminum die-casting, surface is finished by anti-corrosion
treatment with primary color or black electrophoresis
anti-corrosion treatment
Impeller
Metal impellers are welded to motor rotor, and surface is
finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity
Temperature -30ºC ~ +65ºC Humidity 0% ~ 95%
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade F,
Protection Grade
IP44
Quick Details:
| Type | Axial Flow Fan |
| Frame Material | Aluminum die-casting |
| Impeller | Metal |
| Motor Structure | External rotor motor |
| Protection | Automatic recovery thermal protector |
| Temperature & Humidity | -30ºC ~ +80ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | PA-10(Terminal block connection) |
| Protection Grade | IP44 |
| Insulation Systerm | F |
| Model Number | FJ16052MABD |
| Voltage | 115VAC / 230VAC / 380VAC |
| Power: | 50/60Hz |
| Air Volume | 189-224CFM |
| Speed | 2650-30000RPM |
| Certification | CE, ROHS , CSA |
| Unit weight | 1.1KG |
| Color | Black or Grey |
Packaging & Delivery:
Packaging Details: 20 PCS/CTN
Weight: 24KGS/CTN
Size: 40.5*36.5*40 cm
Delivery Detail (sample): Shipped in 3-8 days after payment
