With Operation Manual Industrial Coal Fired Steam Hand Boiler with Economizer 1th 4 ton/hr  6ton/hr 10ton/h


Dear Customer:





     We have a Trade Assurance Amount US $176,000 granted by Alibaba.com. It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.



Product Description


This boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.


This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.




description of DZH Series Industrial Single Drum Coal Steam Boiler Machine 2 ton


Combustion Processe:


The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.

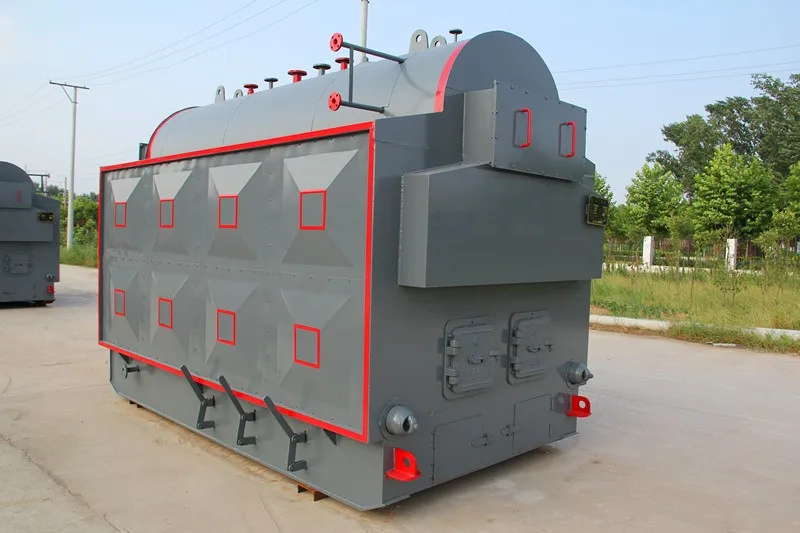

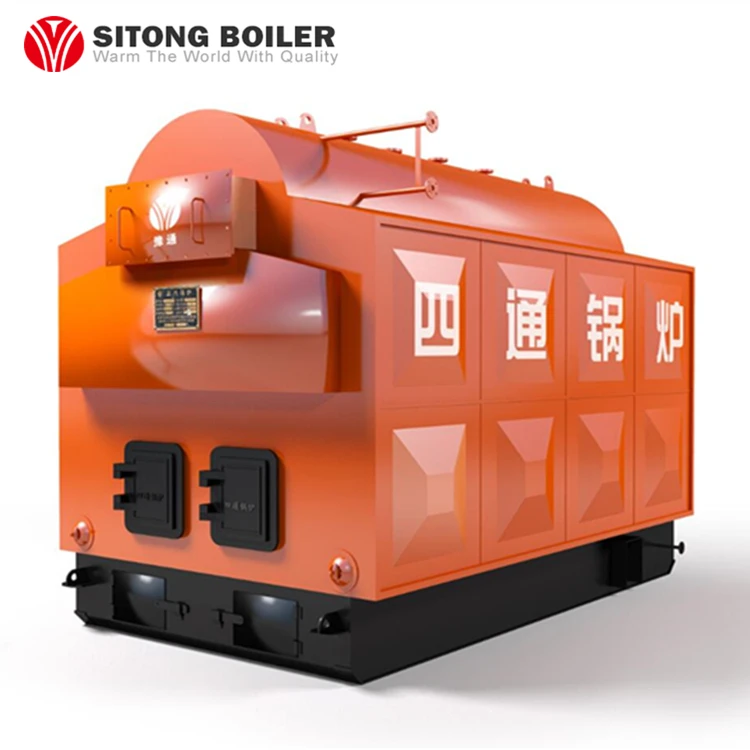

 dzh photo of With Operation Manual Industrial Coal Fired Steam Hand Boiler


Feeding System Introduction:





1.Conveyor feeding mode (For biomass particles)





2.Elevating automatic feeding (For coal)





3.Blast feeding (For size of less than 50mm of small sawdust, or rice husk)





4.Screw feeder





Advantages:





1.No need special protection when power off.


2.Higher efficiency,heating fast.


3.Safe and reliable.


4.Easy to install.

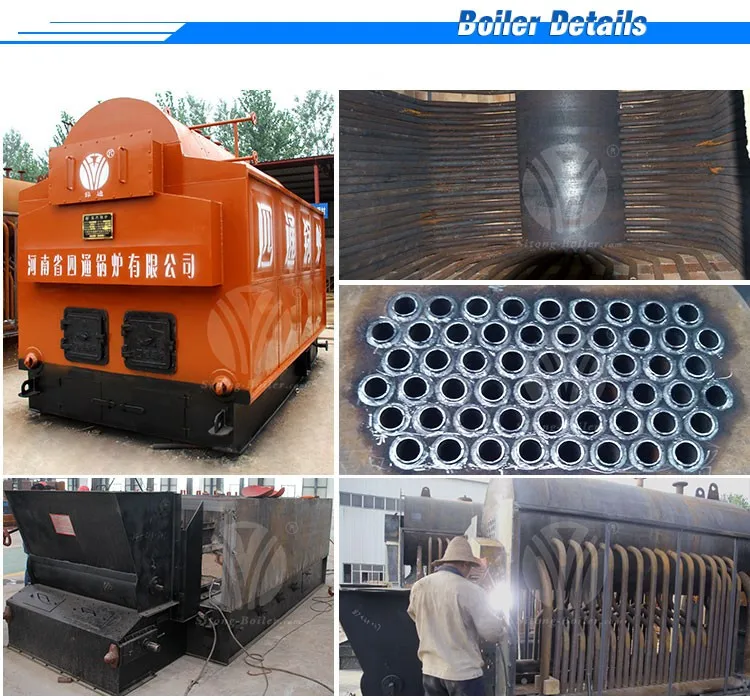

 detail of With Operation Manual Industrial Coal Fired Steam Hand Boiler


                              Get Price Now





Technical Parameters:






















































































              Model

Item



DZH0.5-0.7-AII
DZH0.5-1.0-AII



DZH1-0.7-AII
DZH1-1.0-AII
DZH1-1.25-AII



DZH2-0.7-AII
DZH2-1.0-AII
DZH2-1.25-AII
DZH2-1.6-AII



DZH4-1.25-AII
DZH4-1.6-AII



Rated evaporation
capacity (t/h)



0.5



1



2



4



Working
pressure(Mpa)



0.7/1.0



0.7/1.0/1.25



0.7/1.0/1.25/1.6



1.25/1.6



Rated steam
temperature(℃)



170/184



170/184/194



170/184/194/204



194/204



Feed water
temperature(℃)



20



20



20



20



Effective area of
grate(m2)



1.28



2.1



3.36



5.2



Fuel consumption
(Kg/h)



76



150



301



602



Exhaust flue gas
temperature(C)



165



165



165



165



Thermal Efficiency
(%)



80



80



80



80



Size(m)



3.2x 2.0x 2.6



4.1x 2.2x 2.9



4.7x 2.3x 3.2



5.6x 2.5x 3.5



Weight (t)



8



12



15



22

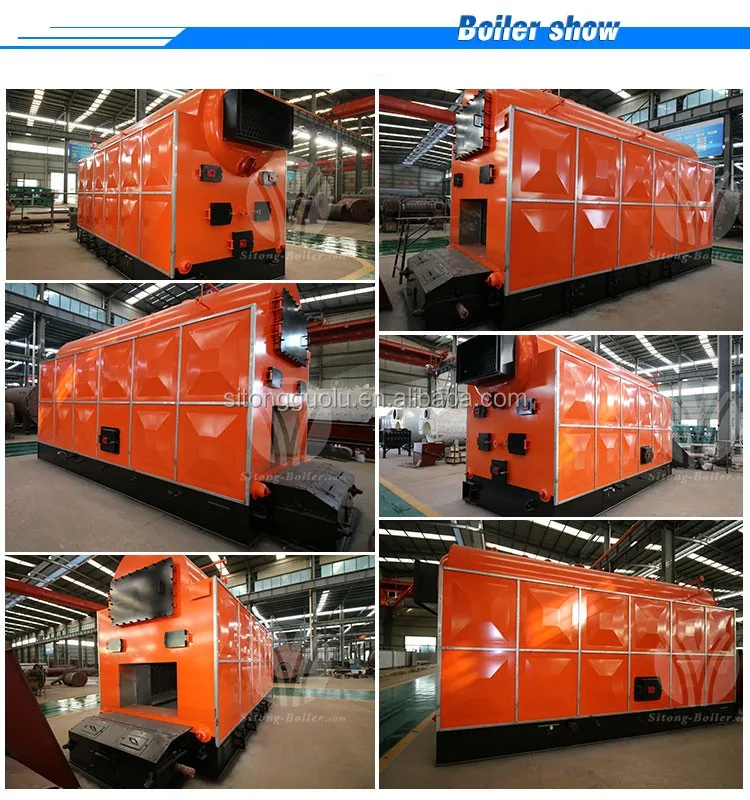

 show of With Operation Manual Industrial Coal Fired Steam Hand Boiler

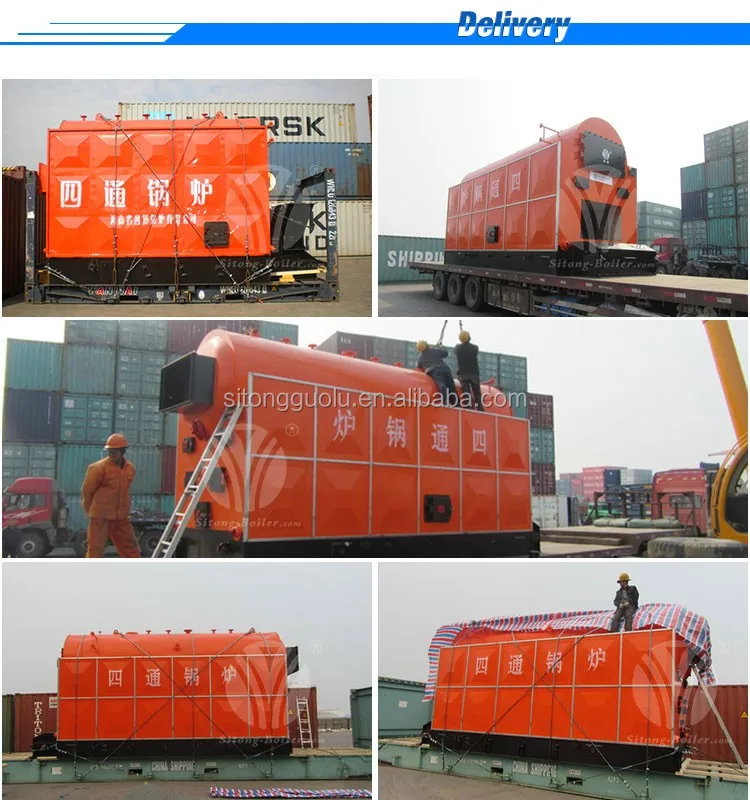

Packaging & Shipping


 Our boiler exported to many countries, India, Nigeria, Bangladesh, Ethiopia, Turkey, Uzbekistan, Egypt, Lebanon and Pakistan etc.


delivery of With Operation Manual Industrial Coal Fired Steam Hand Boiler











Boilers Application


 Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.


application of With Operation Manual Industrial Coal Fired Steam Hand Boiler


                              Get Price Now





Company Information


Henan Sitong Boiler Co.,Ltd. is devoted to heat energy field and has the word’s leading heating technology which are specialized in manufacture all kinds of boilers which included Hot Water Boiler , Steam Boiler, Hot Air Stove, Organic Heat Carrier Furnace ,etc .


Our product have won the trust and support from our customers both at home and abroad ,which have been exported to Southeast Asia, Central Europe, Middle East and other countries .welcome your inquiry .


factory of With Operation Manual Industrial Coal Fired Steam Hand Boiler




One-stop service
You only need to provide what you need, and the rest,We will provide product design,manufacturing, transportation, installation team installed faction, guide the operation and so on. We guarantee to provide you with satisfactory service.



Company culture


team of With Operation Manual Industrial Coal Fired Steam Hand Boiler








Customer visiting


 Turkey, Indonesia, Pakistan customers were visited our factory,they were interested in our steam boiler of coal biomass fired.


customer visiting of With Operation Manual Industrial Coal Fired Steam Hand Boiler


                              Get Price Now


Business Exhibition:


Exhibition of With Operation Manual Industrial Coal Fired Steam Hand Boiler








Certifications


certificate of With Operation Manual Industrial Coal Fired Steam Hand Boiler





Our Services


Warranty and after-sale service


Sitong promises the top quality of every set of machine and best after-sales service as followings :


(A) The boiler body guarantee is two years , for accessories three years


(B) During the guarantee period , if the main body defective or broken without wrong operating , Sitong must replace the parts for free or prepare the spare-parts for free.


(C) Sitong should provide boiler technical service and operation guidance for whole life


long.


(D) Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets)
