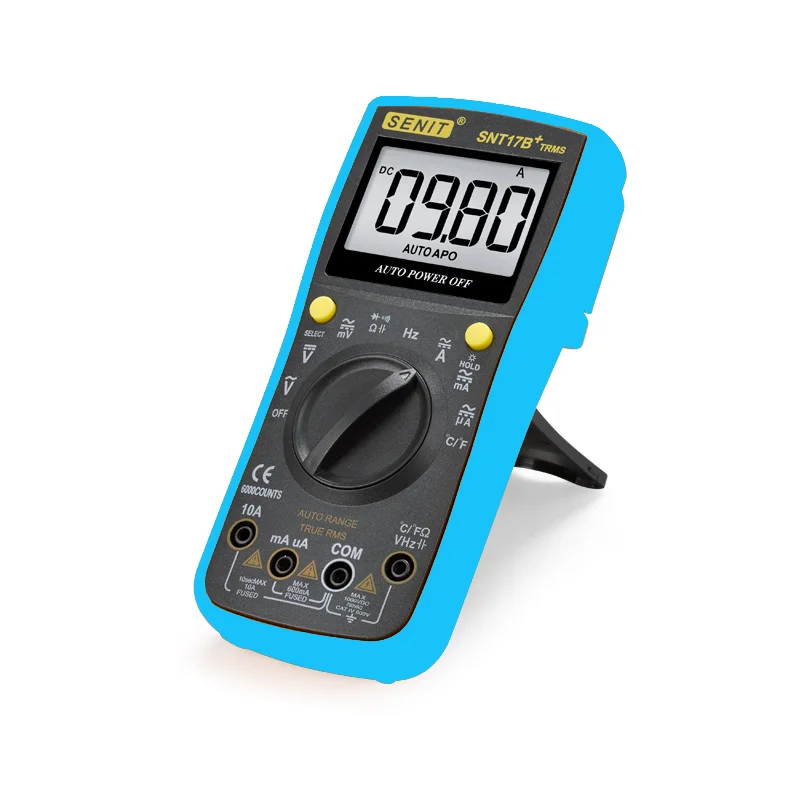

SNT17B Auto Range Digital Multimeter 6000 Counts AC / DC Measurement Tool

Features:
1. Auto range, make tests easier and quicker
2. True RMS, self-calibrated chip, high accuracy
3. 6000 counts
4. 16 test modes
5. Large LCD screen with white backlight
6. Data hold, auto power off
7. Measure current up to 20A
8. Measure Capacitance up to 10mF
9. Two AA batteries/one 9V battery, easier to change
10. Protective case, very sturdy and durable

Test Mode Range Range
DC Voltage (V) 6.000V/60.00V/600.0V/1000V ±(0.5%+3)
DC Voltage (mV) 60.00mV/600.0mV ±(0.5%+3)
AC Voltage (V) 6.000V/60.00V/600.0V/750V ±(1.0%+3)
AC Voltage (mV) 60.00mV/600.0mV ±(1.0%+3)
DC Current (A) 6.000A/20.00A ±(1.2%+3)
DC Current (mA) 60.00mA/600.0mA ±(1.2%+3)
DC Current (μA) 600.0μA/6000μA ±(1.2%+3)
AC Current (A) 6.000A/20.00A ±(1.5%+3)
AC Current (mA) 60.00mA/600.0mA ±(1.5%+3)
AC Current (μA) 600.0μA/6000μA ±(1.5%+3)
Resistance 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ
60.00MΩ ±(1.5%+3)
±(0.5%+3)
Capacitance 9.999nF
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF
9.999mF ±(5.0%+20)
±(2.0%+5)
±(5.0%+5)
Frequency 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+2)
Duty Cycle 1% ~ 99% ±(0.1%+2)
Temperature (-20~1000)℃/(-4~1832)℉ ±(2.5%+2)
Diode yes
Continuity yes

Standard Accessories: 1.5V Battery * 2pcs , or one pcs 9V battery

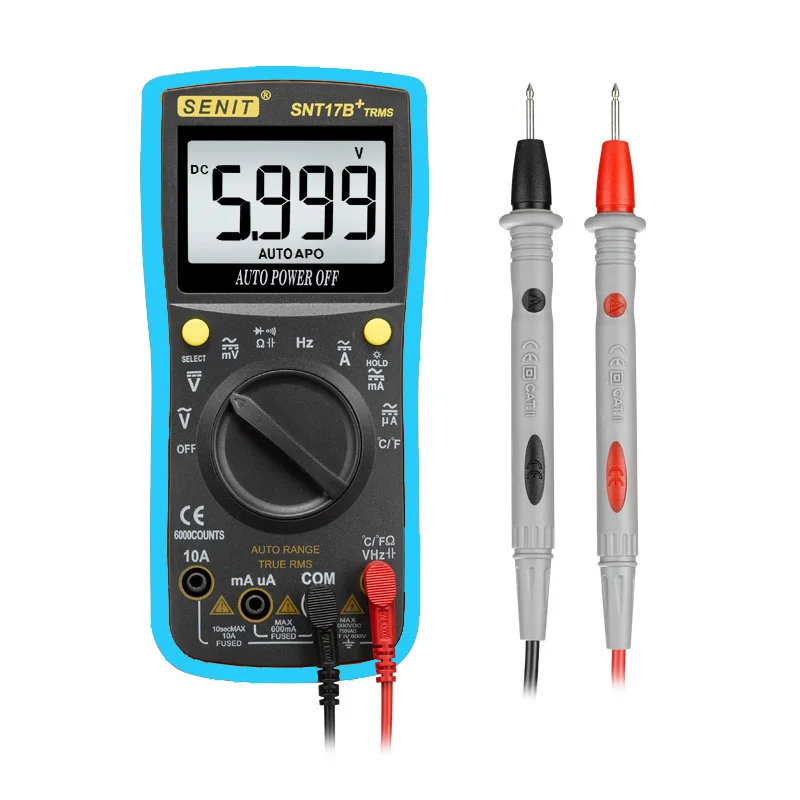

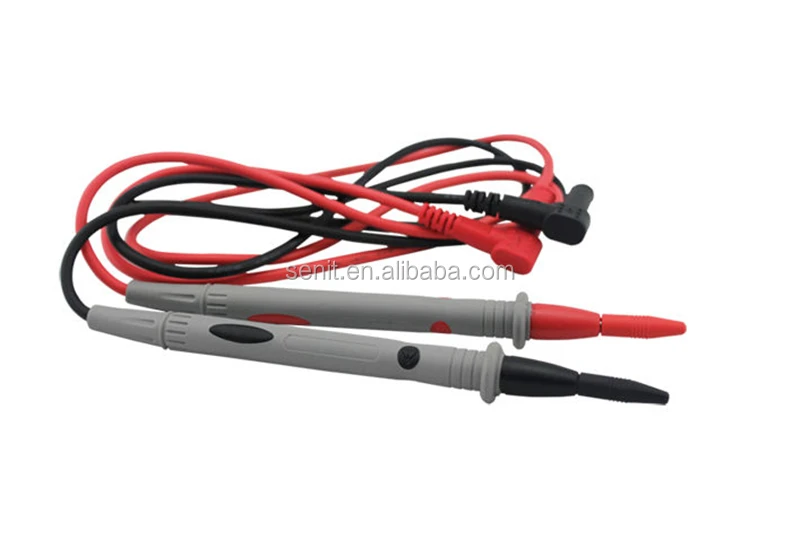

Test Lead * 1 pair, TP01K thermocouple probe * 1pc
Standard Packing: English User Manual , Gift Box

Detailed Images

Large LCD screen

6000 counts display
With backlight

Main Features

Auto range

Frequency test

Temperature test

Easier to use

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

Related Products

Digital multimeter SNT18A

91.8% Response Rate

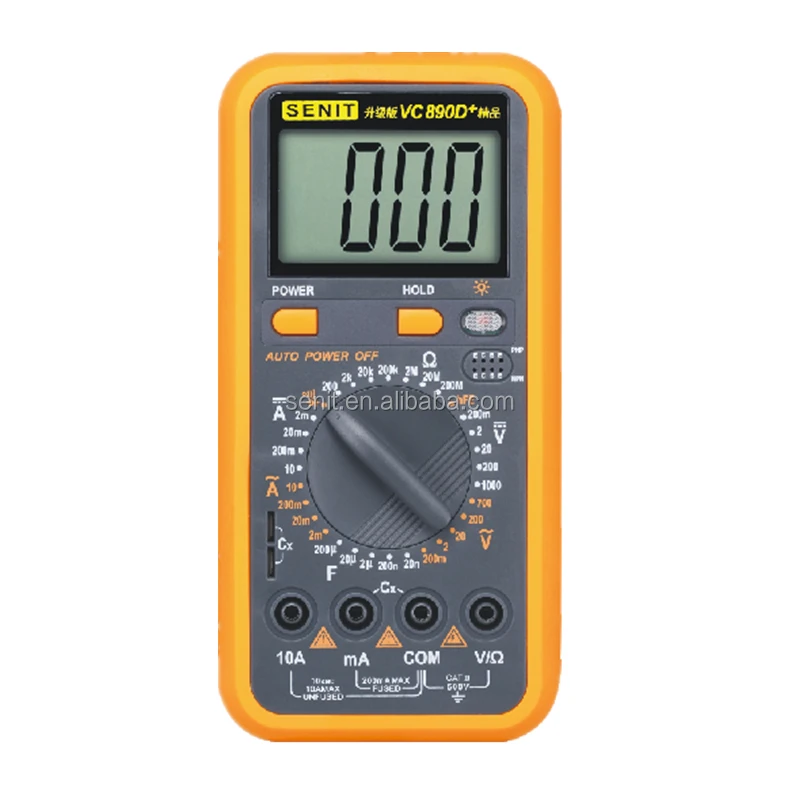

Digital multimeter VC890D
