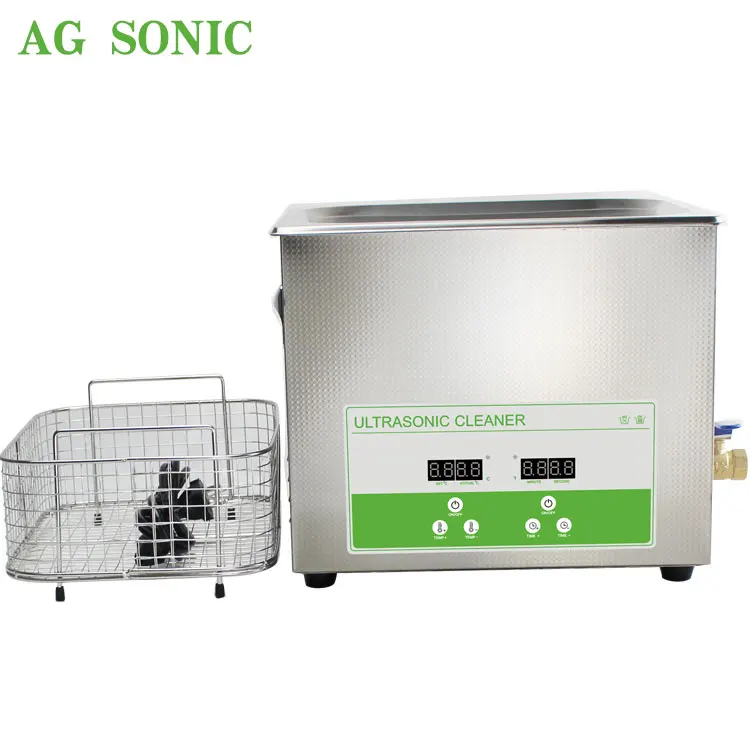

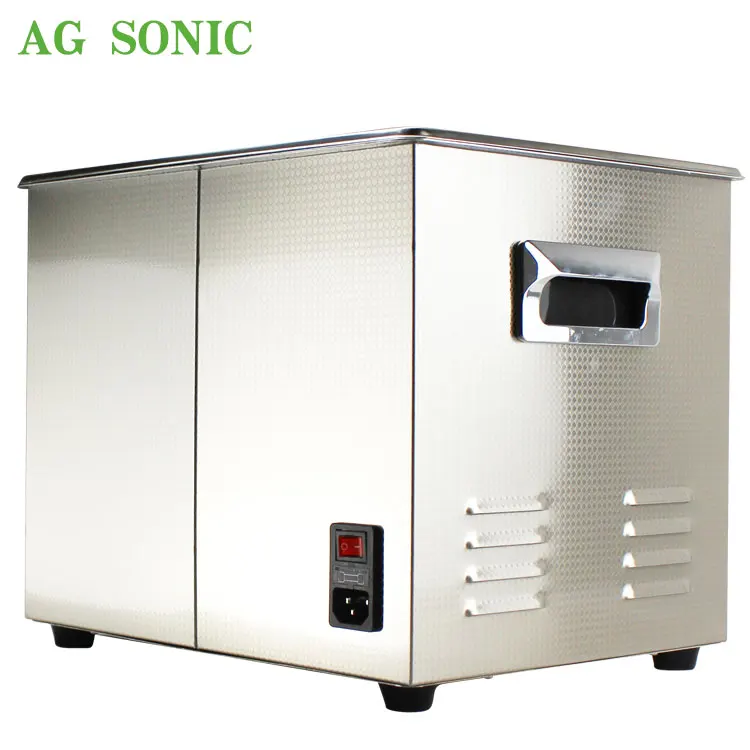

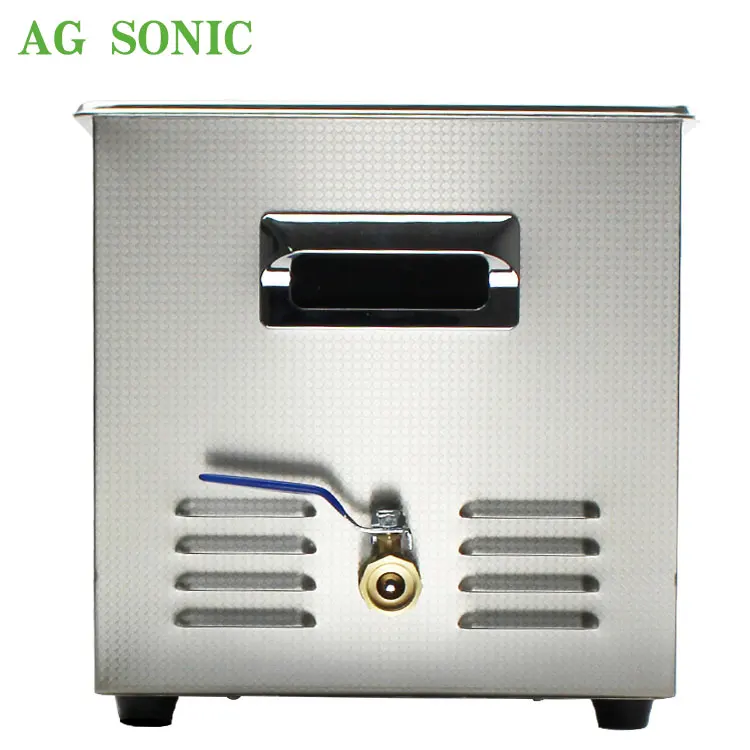

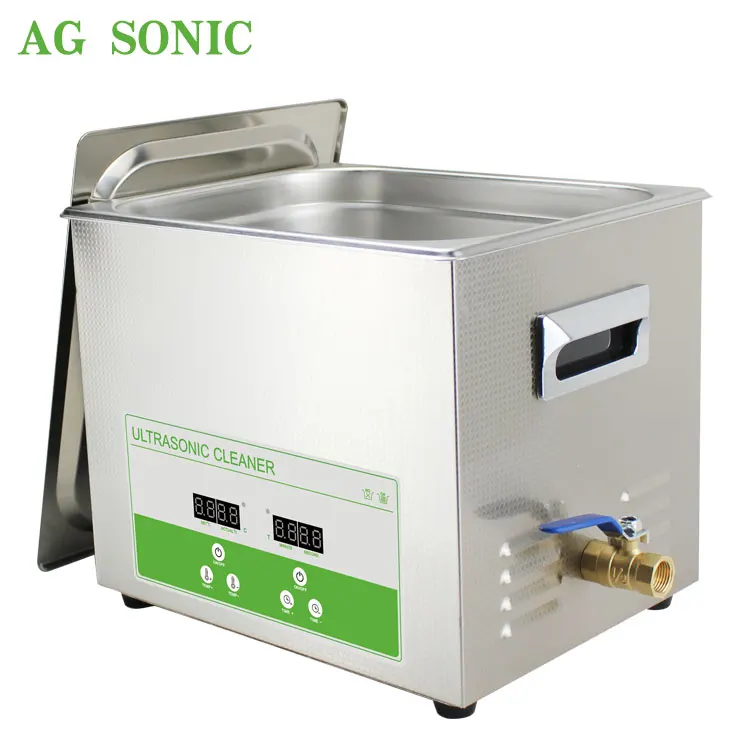

Digital ultrasonic cleaner for bike parts / bike chain / motor parts 28khz

Product Overview

Description

Digital ultrasonic cleaner for bike parts / bike chain / motor parts 28khz



As this illustration shows, a bicycle has lots of parts. In order to keep your bike clean and functioning in top shape, you need to make sure that all of these parts stay clean and free from the dirt and grime the road can throw on them. One of the most effective ways to get all of these assorted parts clean is to use an ultrasonic cleaner.



How Does an Ultrasonic Cleaner Work?

Cleaning can be done by hand with rags and cleaners, so what makes using an ultrasonic cleaner so much more capable to take on the task of cleaning your bike? That all begins with knowing how an ultrasonic cleaner works. Those bike parts, particularly the cassette, are made in a way that they can be very hard to clean by hand.

Ultrasonic cleaners work by having the parts fully submerged in a cleaning bath. The bath is then excited by sound waves that create very tiny bubbles. Those bubbles contain a ton of energy and, as they impact the surface of the bike parts, they blast off all of the dirt, oil and grime with tiny hot jets. Since the bubbles are so small, they are able to get to every surface on your part, ones that you could never reach by hand.



Application:

1. Car service:   Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.


2. Medicine:   Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.


3. Engineering:  Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.


4. Instrumentation:  Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.



Produce Specifications:

Model	TB-200
Ultrasonic Frequency	40,000 Hz
Material	SUS304
Tank Capacity	10.8L
Ultrasonic Power	200 W
Heating power	450W strong power, quick heating
Timer	1-30min adjustable
Heater	0-80C adjustable
Unit Size	325 x 265 x 280 mm ( L x W x H )
Tank Size	300 x 240 x 150 mm ( L x W x H )
Package Size	435 x 360 x 350 mm ( L x W x H )
N.W.	7.4 kg
G.W.	8.5 kg
Power Supply	AC 100 ~ 120V, 50 / 60Hz AC 220 ~ 240V, 50 / 60 Hz



Features:

1. Ultrasonic power: 0-100% adjustable

2. Time setting: 0-30min or 24 hours continuous working

3. Heating: 20-80℃ adjustable

4: Ultrasonic frequency: 28 kHz or 40 kHz

5: Material: 2mm thickness SUS304 tank for acid-proof.

6: Improved PCB design for stable and durable industrial use

7: More strong and uniform ultrasonic wave

8: With free lid and stainless steel SUS304 basket



Other models for your choice:

Model	Tank size	Unit size	Volume	Actual ultrasonic power	Rated ultrasonic power	Ultrasonic frequency	Heating power	Timer	Heating temperature
	LxWxH(mm)	LxWxH(mm)	(L)	(W)	(W)	(kHz)	(W)	(MIN)	(℃)
TB-50	150x135x100	175x160x210	2	50	60	40	150	1-30	0-80
TB-100	240x135x100	265x165x220	3.2	100	120		150
TB-150A	300x150x100	325x180x225	4.5	150	180		300
TB-150B	300x150x150	325x180x280	6.5	150	180		300
TB-200	300x240x150	325x265x280	10.8	200	240		450
TB-300	330x300x150	360x325x285	15	300	360		450
TB-400	500x300x150	530x325x285	22	400	480		600
TB-500	500x300x200	530x325x325	30	500	600		600





Our service:



FAQ:

Q: Can ultrasonic cleaning damage parts?

A: Ultrasonic can't damage parts.

Ultrasonic cleaning is considered safe for most parts, although in some cases it is necessary to observe caution. Although the effects of thousands of implosions per second is very powerful, the cleaning process is safe.



Q.: What are the advantages of ultrasound over traditional cleaning methods?

A.: Compared with traditional methods of ultrasonic cleaning allows you to:

· minimize the use of manual labor

· make cleaning and degreasing without the use of organic solvents

· clean hard to reach areas of products and remove all types of dirt

· shorten the processes such as extraction, dispersion, purification, chemical reactions

· eliminates costly mechanical and chemical cleaning of heat exchangers



Q: What is the duration of time cleaning?
A.: Cleaning time will vary, depending on factors such as soil, solution, the degree of cleanliness



Q.: What is the purpose of the unit heater?
A.: The primary purpose of the unit heater is to maintain the solution temperature between cleaning cycles. The tremendous energy released by cavitation generates heat for cleaning.
