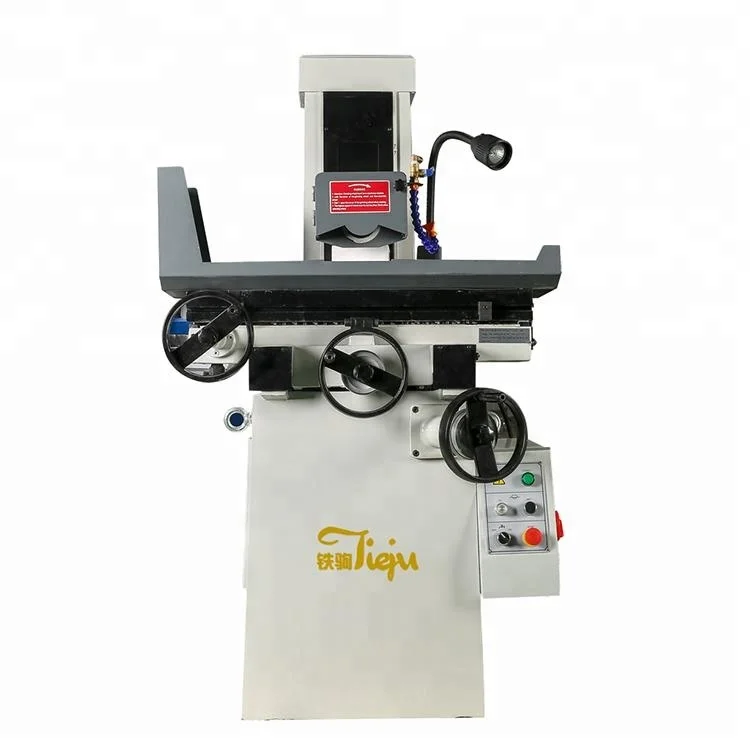

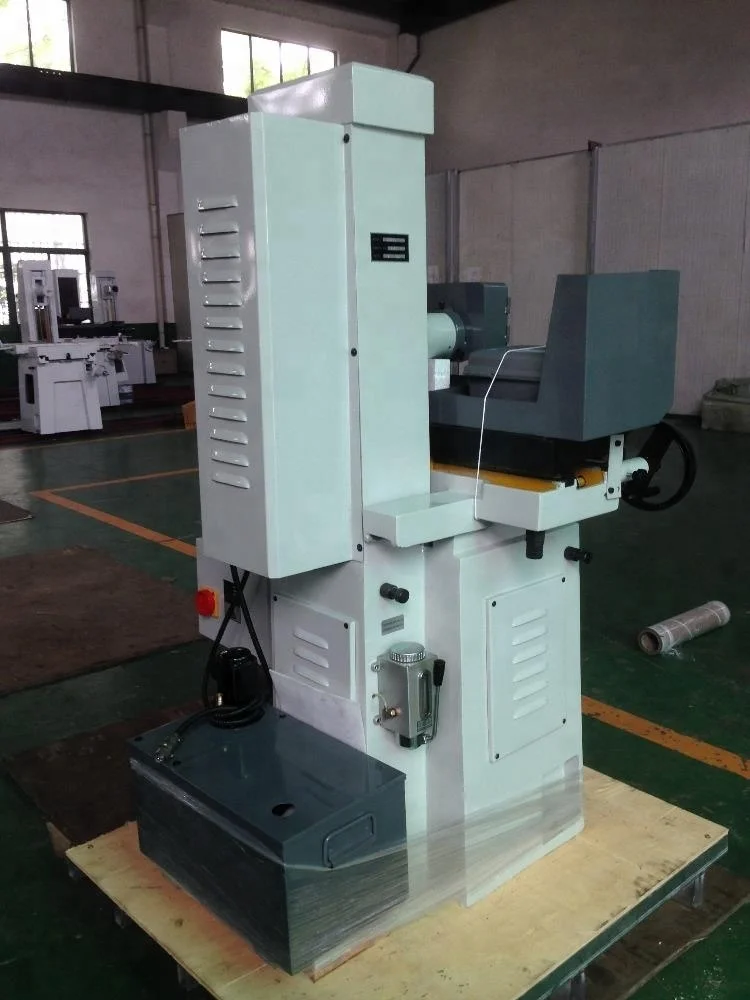

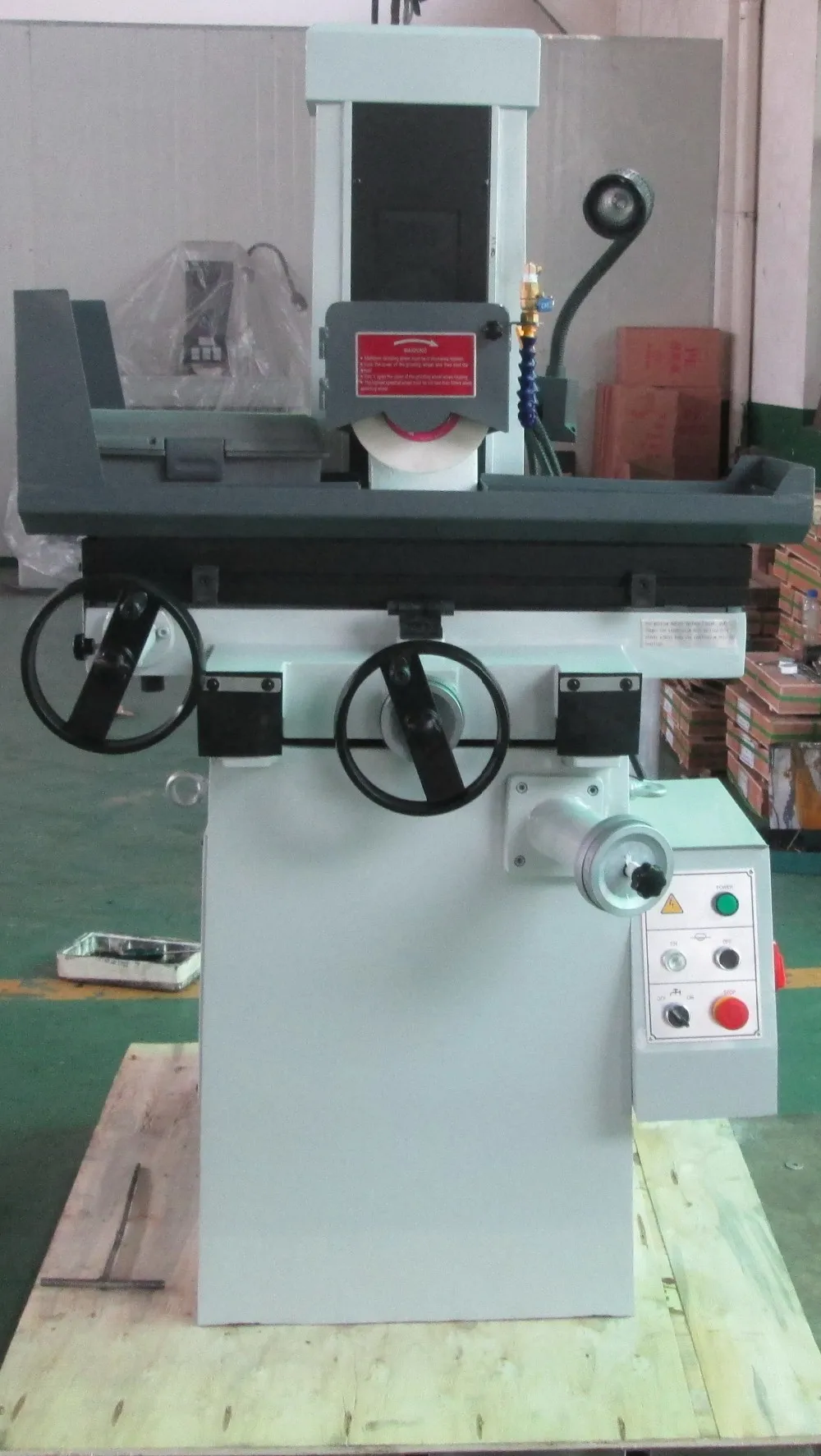

surface grinder m618 surface grinder manufacturer

Model

M618

Working table

Table Size (L× W)

mm

460×180

Max movement of working table(L× W)

mm

500×190

T -Slot number×width

mm

1×14

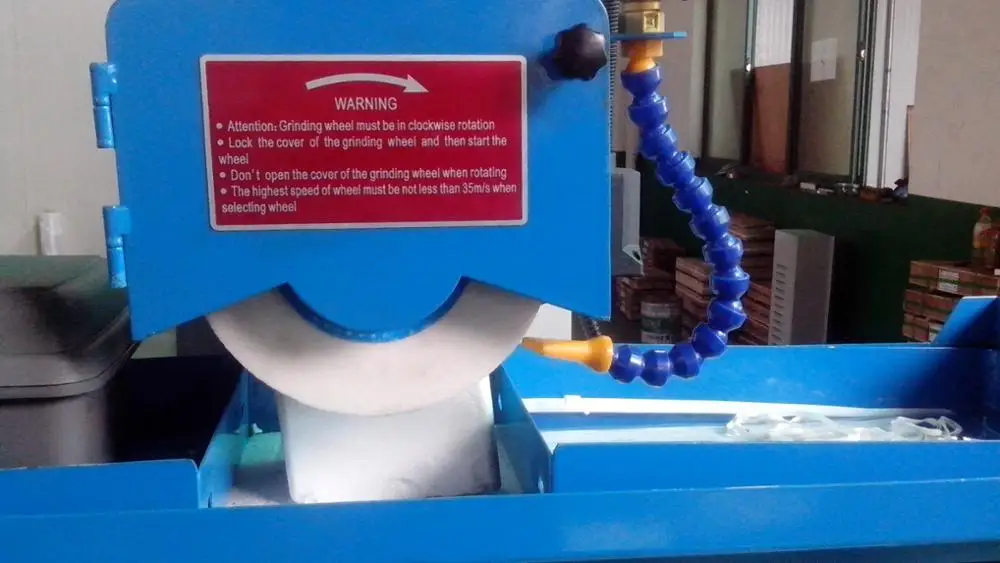

Grinding head

Max distance from spindle center to table surface

mm

335

Wheel Size(Outer diameter×width×Inner diameter)

mm

φ180×13×Φ31.75

Wheel speed

50HZ

r/min

2850

60HZ

3440

Feed amount

Vertical feed on  handwheel

Per revolution

mm

1.25

Per graduation

mm

0.01

Cross feed on handwheel

Per revolution

mm

2.5

Per graduation

mm

0.02

Motor power

Spindle motor

kw

1.1

Coolant pump motor

w

40

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net

kg

650

Gross

kg

750

Overall dimension(L×W×H)

mm

1550x1150x1590

Package dimension(L×W×H)

mm

1000x1150x1760
