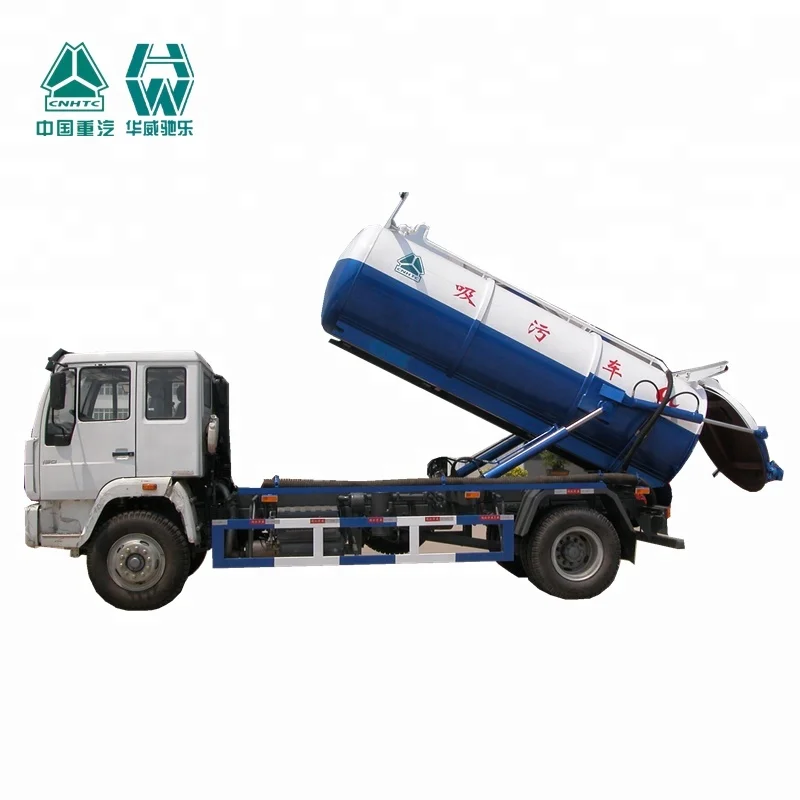

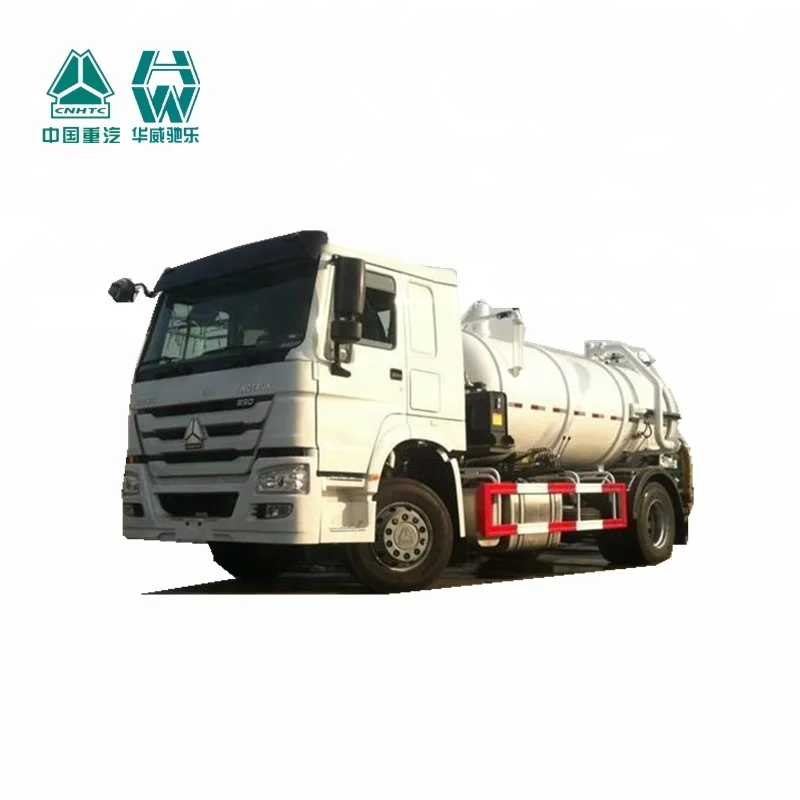

SINOTRUK 4X2 вакуумный грузовик 12 куб. М
- Category: Sewage Suction Trucks >>>
- Supplier: Sinotruk Hubei Huawin Special Vehicle Co. Ltd.
Share on (60774232565):
Product Overview
Description

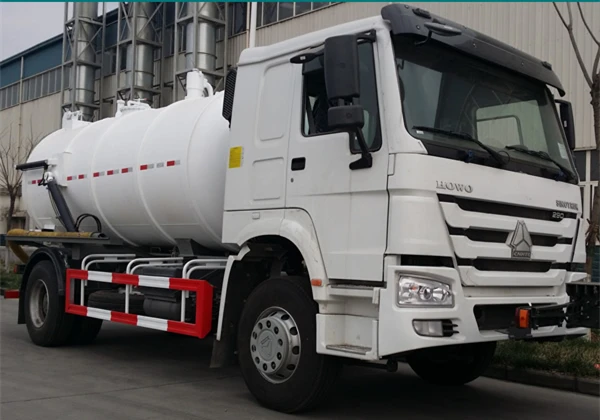

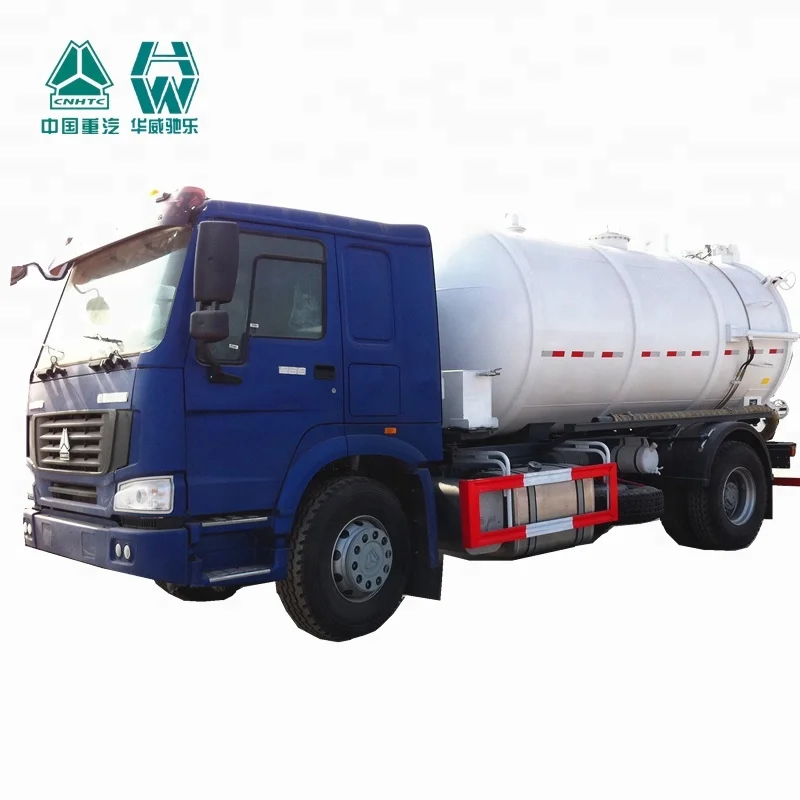

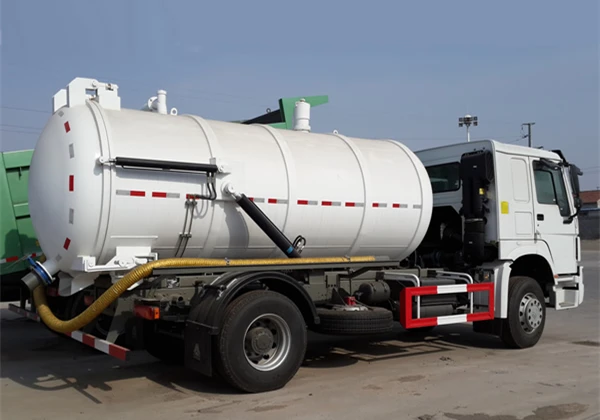

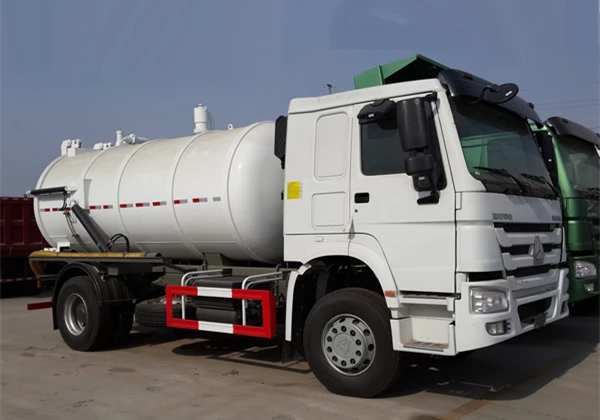

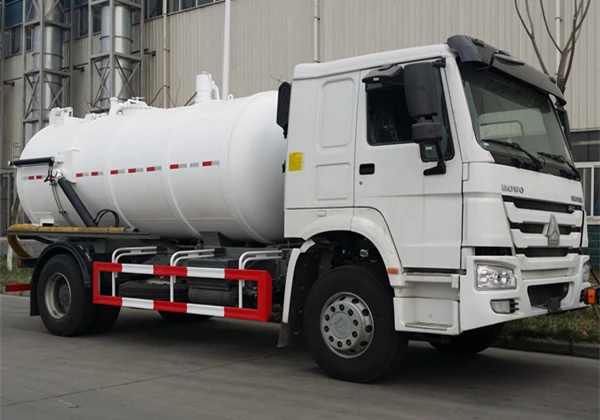

Sewage Suction Truck SINOTRUK HOWO 12 CBM 4x2
Description:
Suction sewage truck is sanitation vehicles which is used for collecting and transporting sewage and sludge in municipal, enviromental sanitation and large property managerment company ,to avoid secondary pollution ,with vacuum suction ,pressure discharge function efficient and time saving vacuum pump,valve and others are imported products.
Specification:
SINOTRUK HOWO 4x2 Vacuum Truck – 12CBM | |
Chassis Model | ZZ1167M4617 |
Driving Type | Left Hand Driving (Right Hand Driving is optional) |
Production Year | New truck. |
Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
Transmission | HW15710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 1x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tires | 295/80R22.5, radial tyres with one spare tyre. Optional: 11.00-20, bias tires. |
Fuel Tank | 300 L |

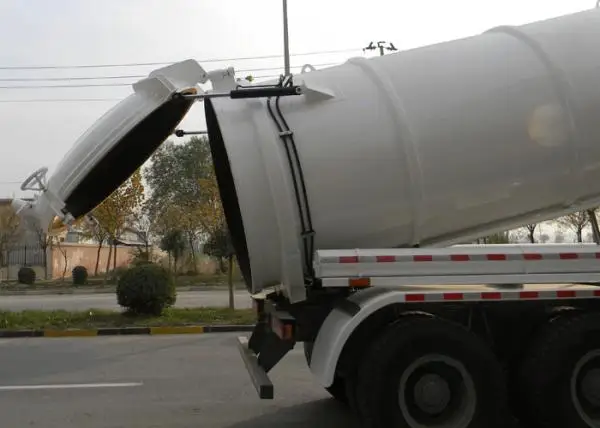

Cargo Body | 12CBM, with rear back hole and anti-static. |
Overall Dimension | 7300*2550*3200 mm |
Applications:
Can be widely used in the collection of urban rain wells, inspection wells and all kinds of ditches within the sludge, sewage or oil chemical sewage tank sediment suction, shipment and discharge.
Competitive Advantage:
1: Reliable quality
The truck is produced by our factory which follow ISO standard strictly and got ISO certification; each production process listed and material using in specification we follow strictly; All trucks’ assemble parts are produced in our workshops and we never place assemble parts order to small and private workshops.
2: Advanced function

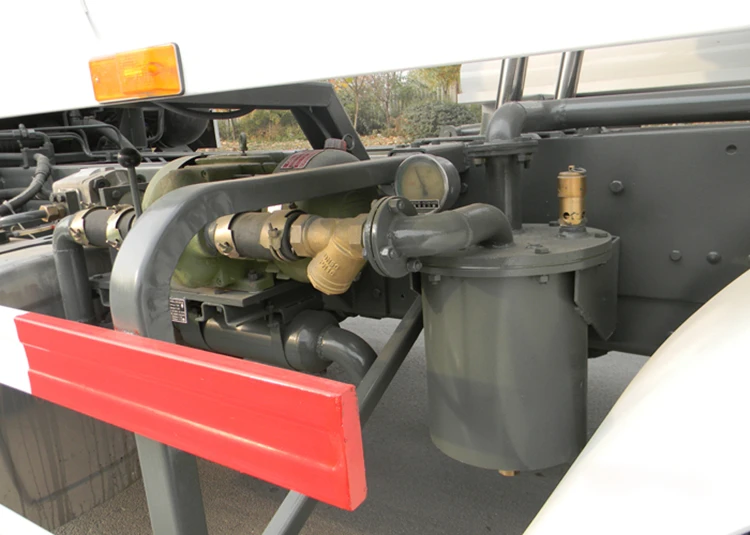

Has sufficient vacuum to suck depth deeper than 8 m
Secondary protection installed on vacuum pump to forbidden sewage flow into pump
Vacuum pump driven by manual operation which is easy for clutch
The truck designed excellent appearance and with good performance
