Free sample underwater proximity sensor inductive 8mm long distance proximity sensor
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (60774248606):
Product Overview
Description
Product Description
Free sample underwater proximity sensor inductive 8mm long distance proximity sensor
Product details
| Brand Name | F&C |
| Detection mode | NPN.NO/ NC |
| Voltage | 12-24VDC 10%; 5V customizable |
| Detection distance | 2mm |
| metal detector sensor | metal detector sensor |
| Certificate | CE,RoHS |
| Entry cable | dia4*2m/3 wires or M8/M12 connector |
| Material | PBT |
| Key words | inductive proximity switch |
| Product name | 3 wires 2mm metal detector sensor, M8 inductive proximity switch |
| Product Keywords | underwater proximity sensor,inductive rpm sensor,proximity omron |

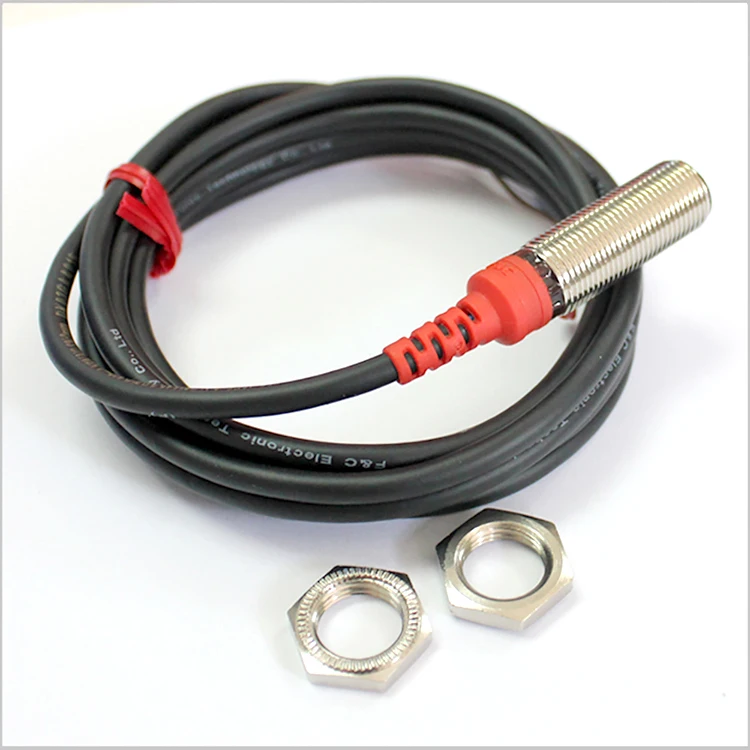

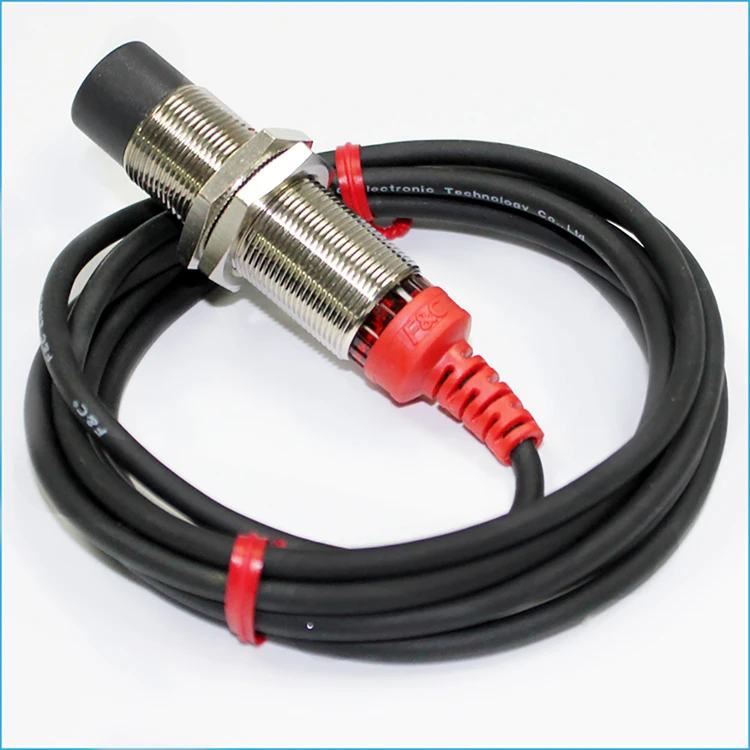

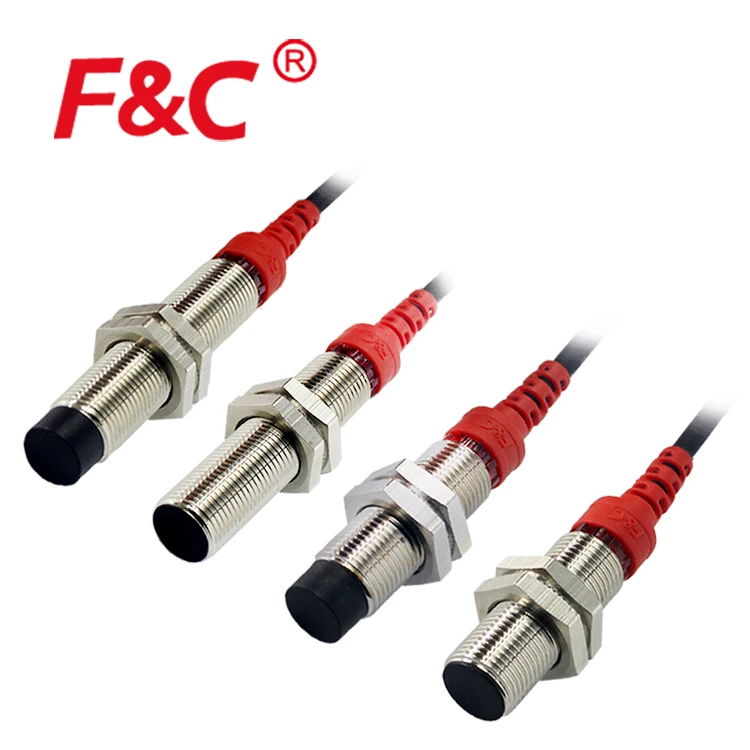

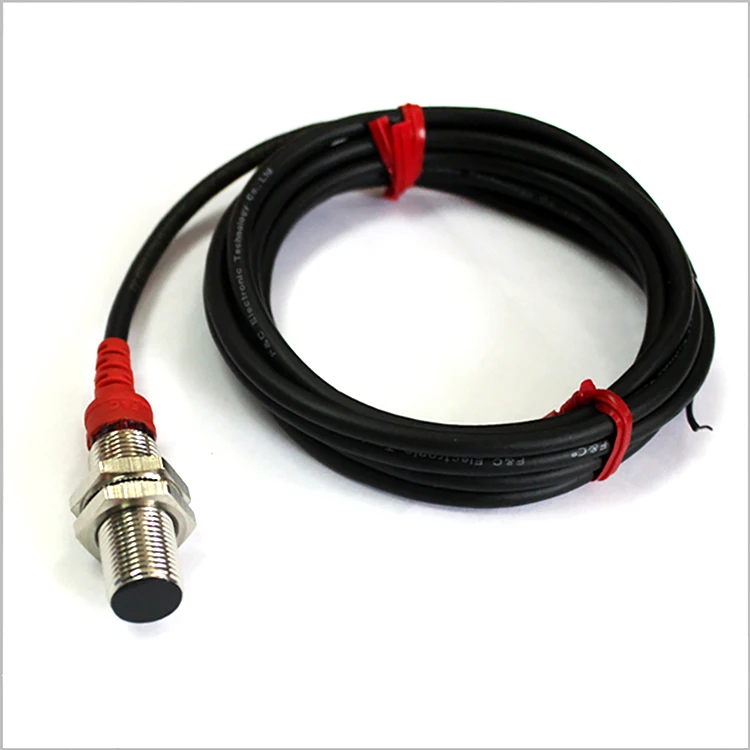

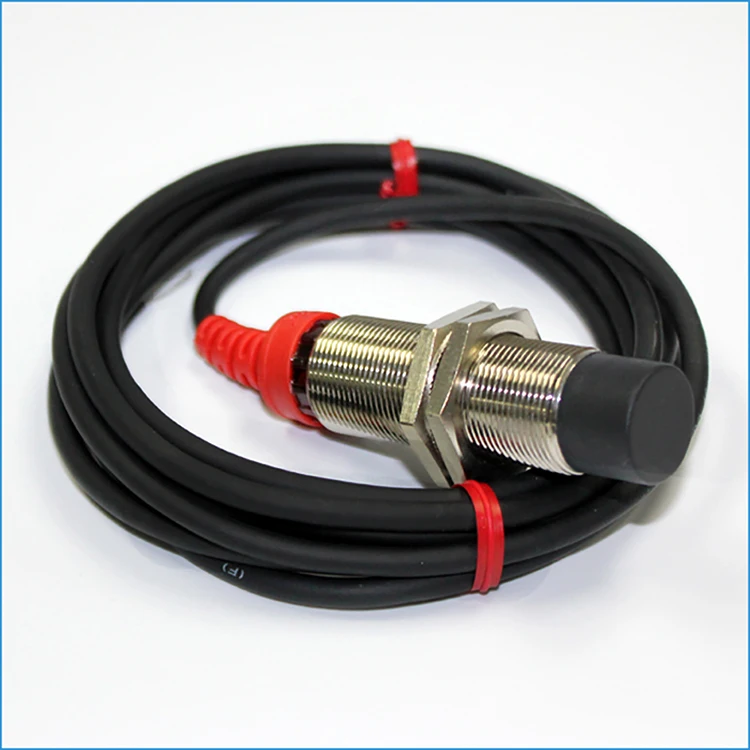

Product picture
Product Description
;
| standard shell/shield; | F3C-08KS01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KS01-N2 R2M | NPN.NC | ||||
| F3C-08KS01-P R2M | PNP.NO | ||||
| F3C-08KS01-P2 R2M | PNP.NC | ||||
| standard shell/non-shield; | F3C-08KN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KN02-N2 R2M | NPN.NC | ||||
| F3C-08KN02-P R2M | PNP.NO | ||||
| F3C-08KN02-P2 R2M | PNP.NC | ||||
| short shell/shield;; | F3C-08ES01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08ES01-N2 R2M | NPN.NC | ||||
| F3C-08ES01-P R2M | PNP.NO | ||||
| F3C-08ES01-P2 R2M | PNP.NC | ||||
| short shell/non-shield; | F3C-08EN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08EN02-N2 R2M | NPN.NC | ||||
| F3C-08EN02-P R2M | PNP.NO | ||||
| F3C-08EN02-P2 R2M | PNP.NC | ||||
| standard shell/shield/double sensing range | F3L-08KS02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3L-08KS02-N2 R2M | NPN.NC | ||||
| F3L-08KS02-P R2M | PNP.NO | ||||
| F3L-08KS02-P2 R2M | PNP.NC | ||||
| standard shell/non-shield/double sensing range | F3L-08KN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-08KN04-N2 R2M | NPN.NC | ||||
| F3L-08KN04-P R2M | PNP.NO | ||||
| F3L-08KN04-P2 R2M | PNP.NC | ||||
| short shell/shield/double sensing range | F3L-08ES02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3L-08ES02-N2 R2M | NPN.NC | ||||
| F3L-08ES02-P R2M | PNP.NO | ||||
| F3L-08ES02-P2 R2M | PNP.NC | ||||
| short shell/non-shield/double sensing range | F3L-08EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-08EN04-N2 R2M | NPN.NC | ||||
| F3L-08EN04-P R2M | PNP.NO | ||||
| F3L-08EN04-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
;
Diagram
;
