TOP A1070 High Quality Doppler 3D 4D Cheap Ultrasound Machine Medical Devices

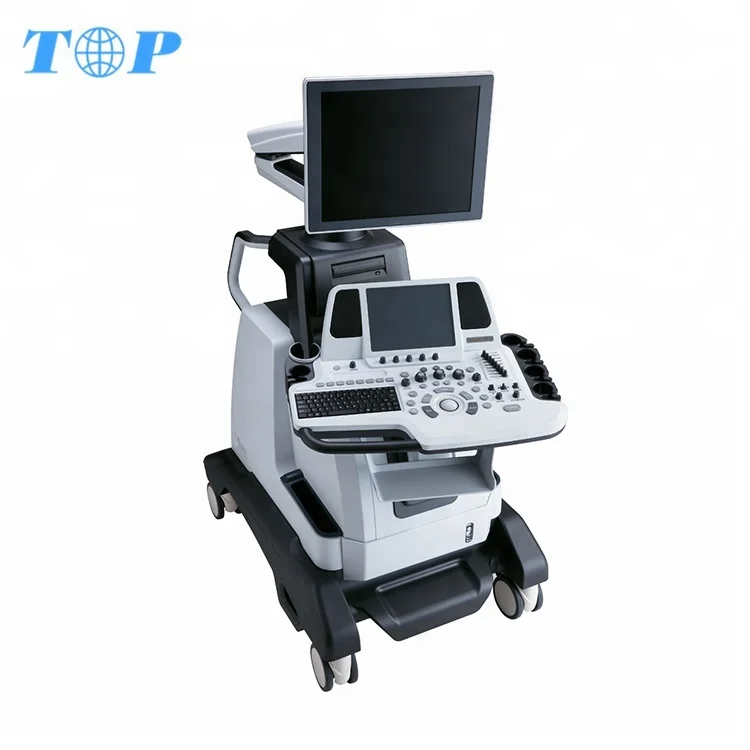

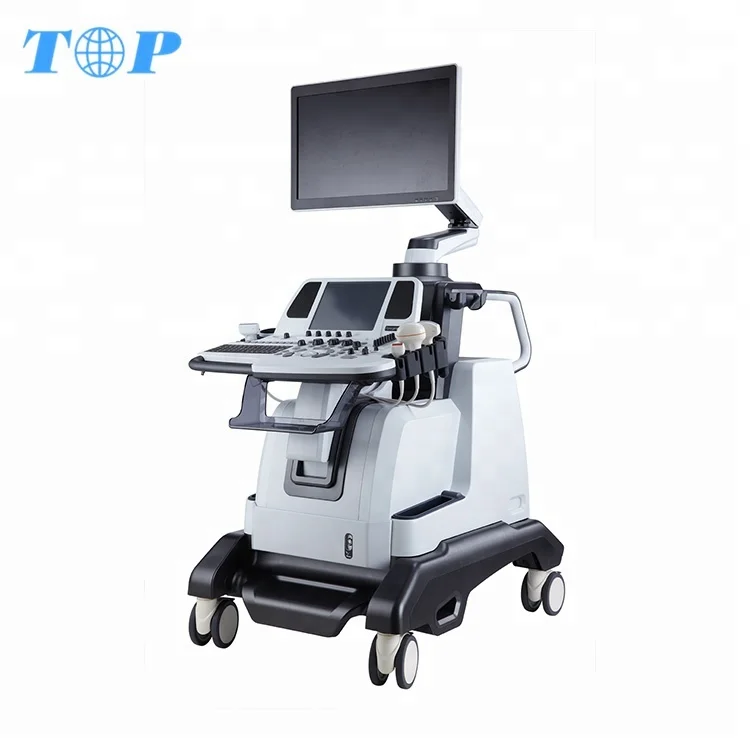

TOP-A1070 Trolley 3D4D Ultrasound Scanner

Balanced echo compensation
The technology recognizes and enhances the effective signals as well as reduces noise beyond boundaries which significantly improves the tissue uniformity and S/N ratio.

Nanopure & Nanoview

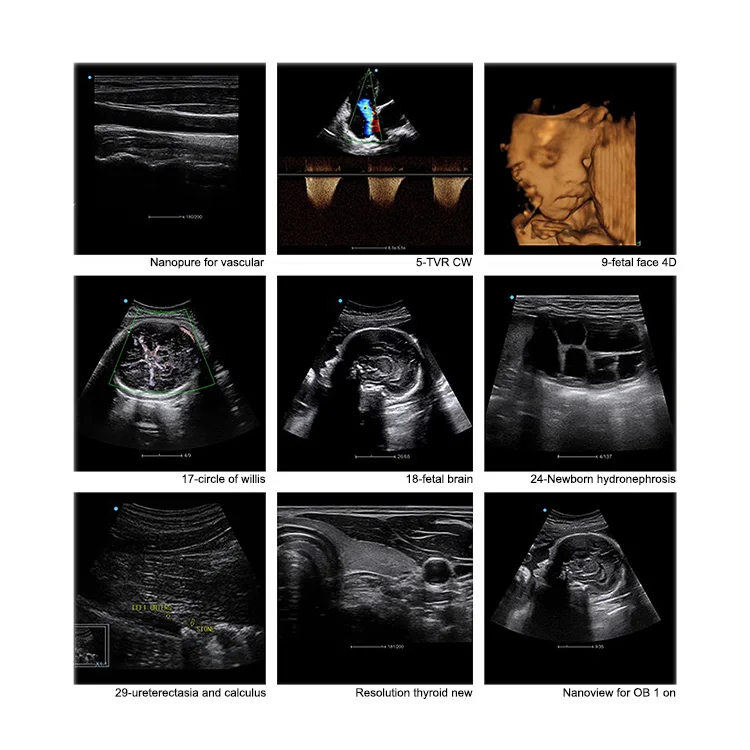

Two kinds of speckle reduction technology are ready to use according to different tissue. The newly developed Nanopure technology has remarkable performance in scanning cardiovascular MSK and superficial organs while Nanoview keeps its advantage in abdomen and OBG image optimization.

Fuzzy logic flow
Fuzzy logic algorithm is applied to set each key parameter in specific range. Different parameter weight is designed according to targeted tissue so as to furthest restore flow signal enhance flow sensitivity and reduce wall motion noise.

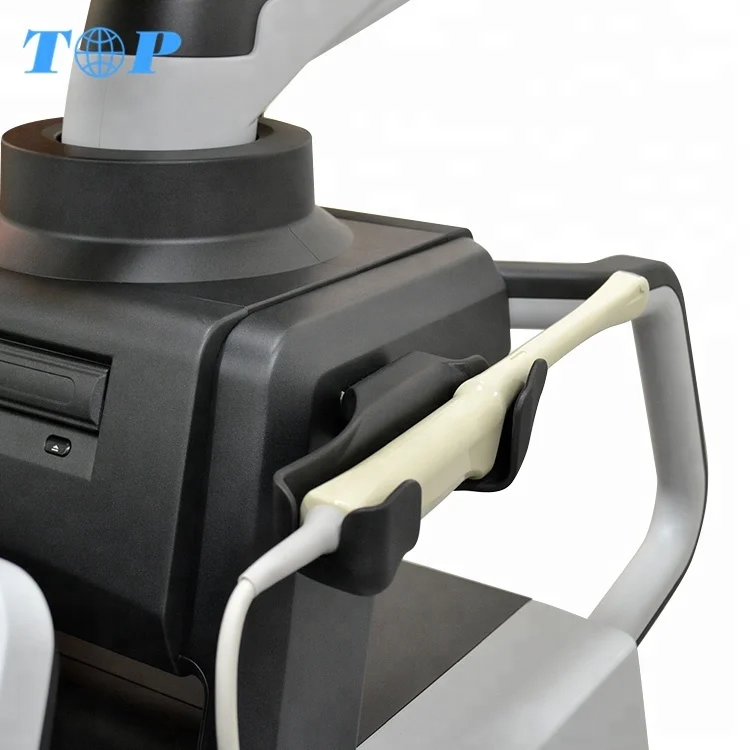

Crystal purity probe
Apogee 5800 incorporates SIUI’s new generation crystal purity probe. Application of single crystal material brings about a huge leap of 110% in bandwidth which facilitates the probe performance on patients even in difficult model and significantly boosts diagnostic confidence.

High element density probe
High element density probe employed in this system has demonstrated its advantage in image density resolution and information.

Specification:

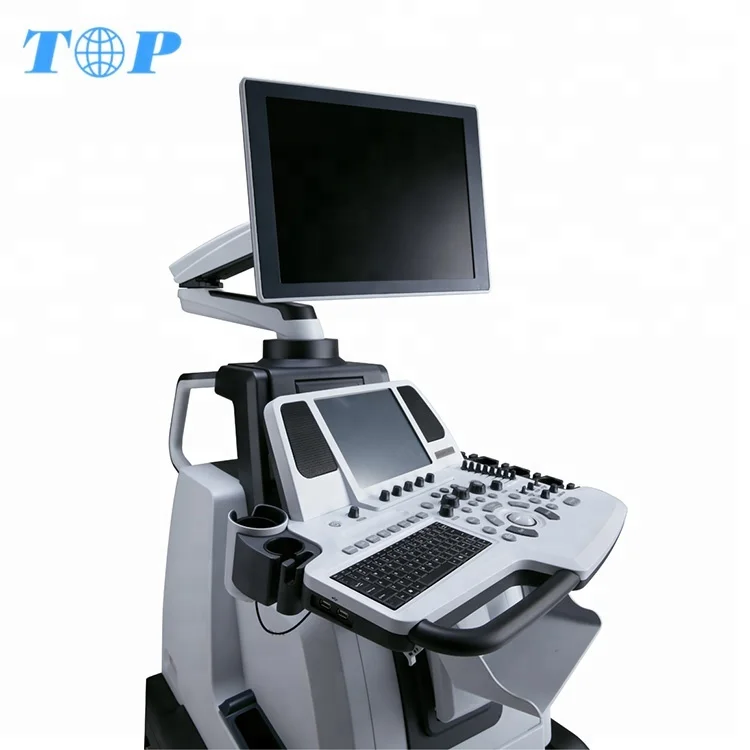

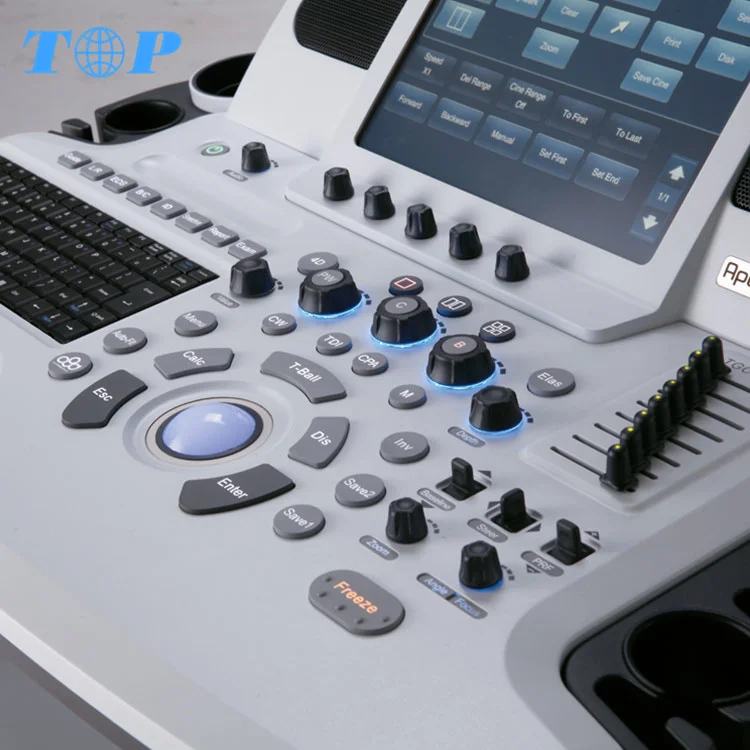

1.Main unit with 19-inch medical LCD monitor 10.4-inch touch screen

2.500G Hard disk imaging archiving

3.DVD-RW, 4 USB ports,

4.6 probe connectors

5.Display mode: B, 2B, 4B, M, B/M, CFM, B/C,CPA, DPA, B+CFM, B+CPA, B+DPA, B+PW, B+CFM+PW, B+CPA+PW, THI (Tissue Harmonic Imaging) HPRF, Trapezoid Imaging

6.Nanoview & Nanopure

7.X-Beam (Spatial Compounding Imaging)

8.Panoscope (Panoromic Imaging, including color mode) Anatomic M Mode (5 Lines)

9.CW (Continuous Wave Doppler )

10.4D Pro (n-Slice, Any-Cut, Q-cut, including 4D Lite) TDI (Tissue Doppler Imaging)

12.Color M Mode

13.VS Flow (Micro-flow Enhancement) MFI (Macro Fidelity Imaging)
