semi auto moulding machine JS-600G With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
Nontoxic conveyor belt to carry preforms
Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
Easy to maintain

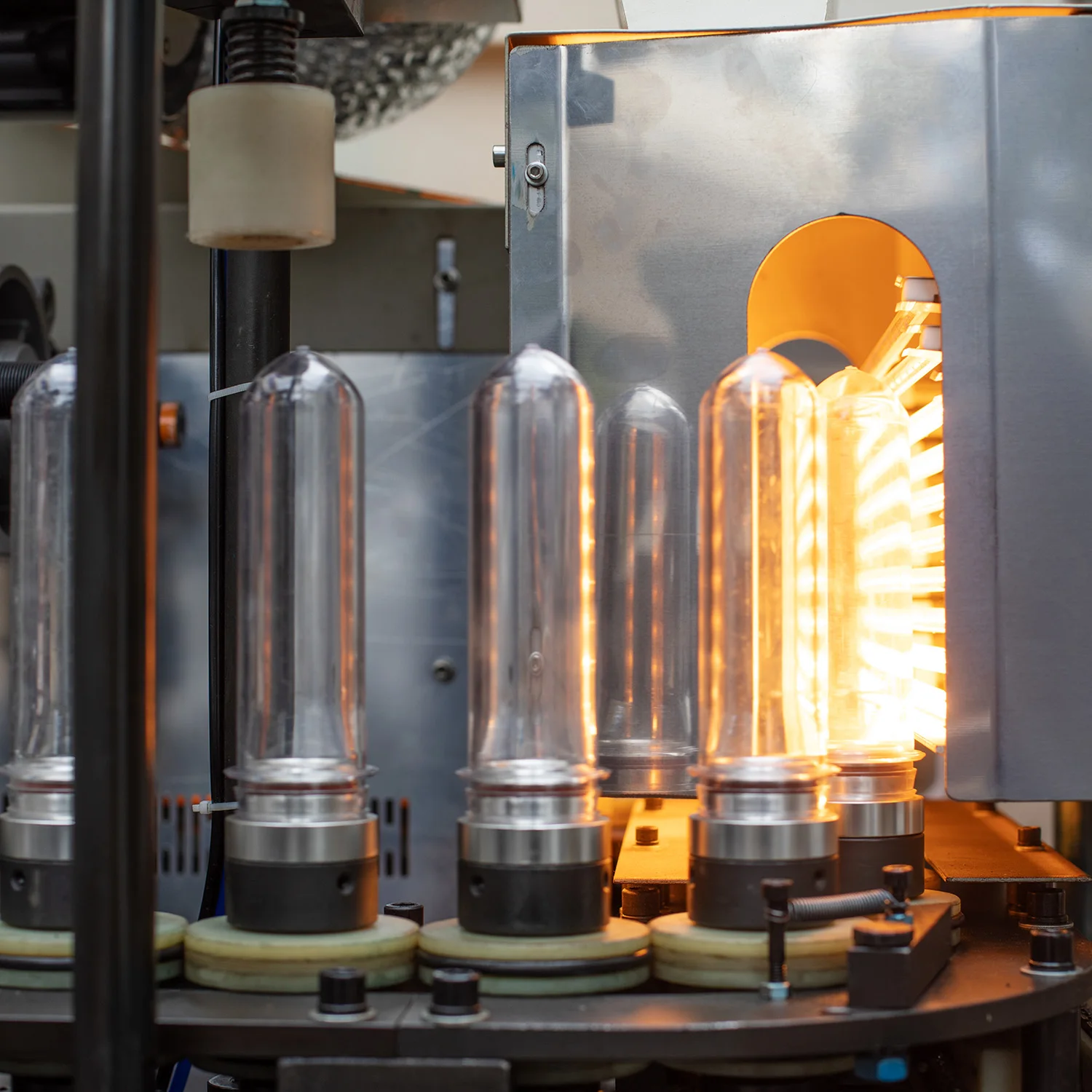

Infrared lamps
High safety. high speed with high efficiency.
Manual saving, one man is enough for operation the machine.
Stable performing with easy maintaining.
Imported PLC controlling and man-machine interface computer.
Japan Omron inspection sensor.

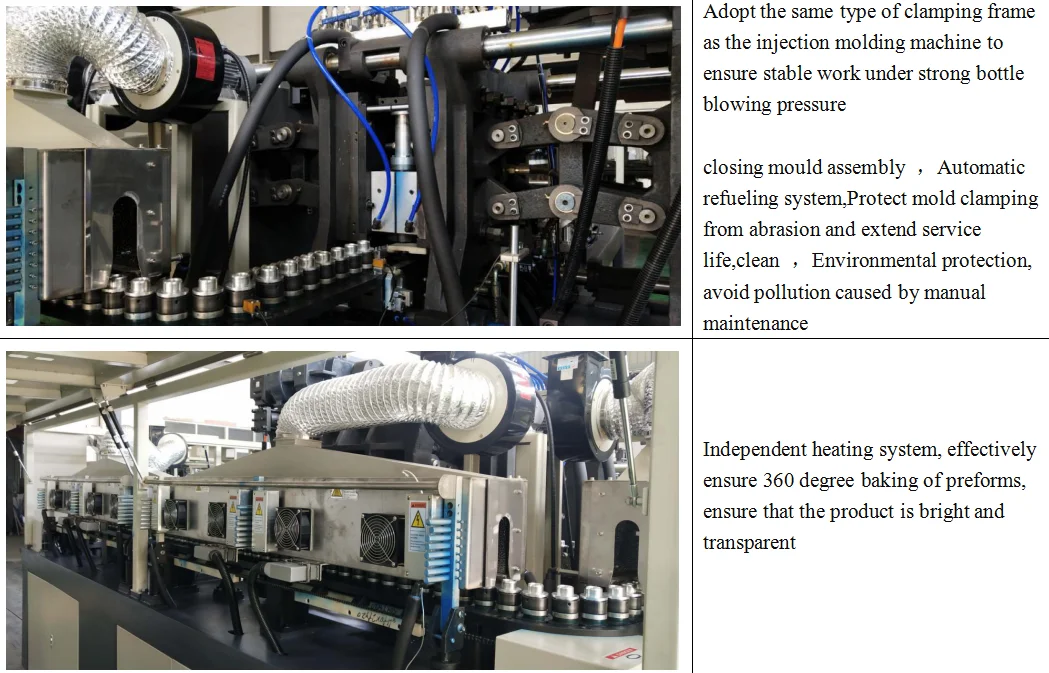

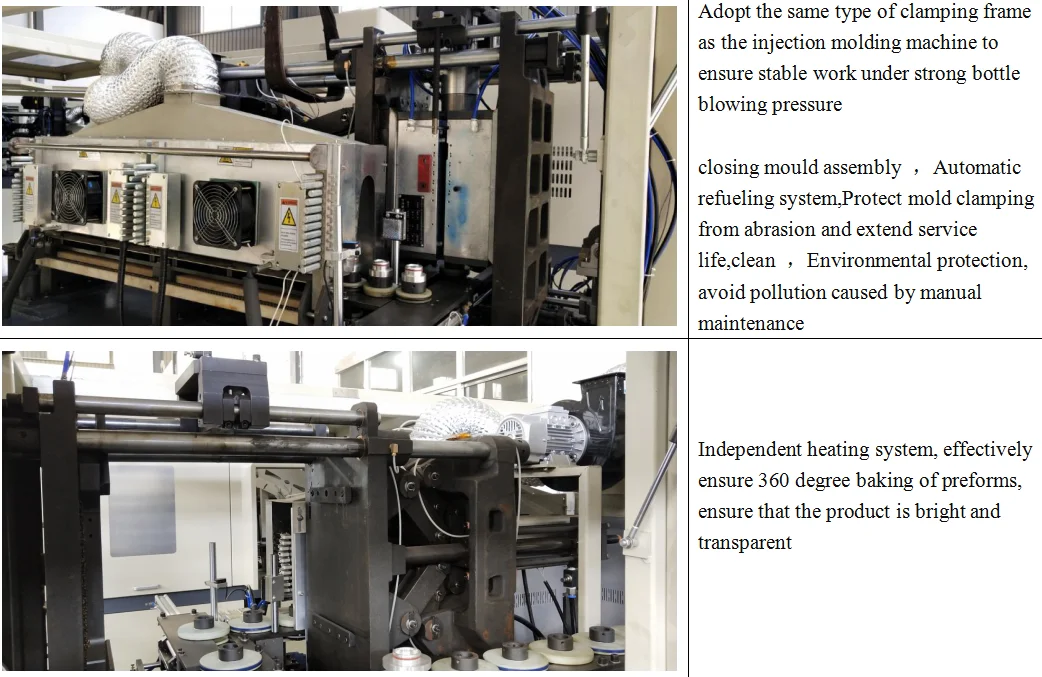

Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
Power saving design that can increase your profits.
Segregate type air controlling system, which is designed for avoiding waste pollution.
General Specifications
Specification
Gathers the moldstrenghth ( KN)
150
The theory produces energy(BPH)
600-900
Mold traveling schedule(mm)
230
Electric power specification
Total power consumption(KW)
31
Pulls rises the traveling schedule(mm)
350
Thermal rating(KW)
30
Jar Spacing
Air pressure specification
Service pressure(kg/cm2)
8
Mold hole number(cavity)
1
Low pressure gas consumption(1tr/min)
800
Bottle specification
bottle maximum capacity(L)
5
Blows the bottle pressure(Kg/cm2)
30
Max. tooth department size(mm)
120
High-pressured gas consumption(1tr/min)
900
Max.Bottle diameter
180
Machine weight
Machine size(M)
2.5*1.5*2
Max.Bottle body height(mm)
350
Machine weight(T)
2.5
Main Parts
No.
Part Name
Brand
1
cylinder
FESTO(Germany)
2
magnetic valve
FESTO(Germany)
3
atomized lubricator
oil-water separator
Low pressure relief valve
FESTO(Germany)
4
high-pressure valve
PARKER (U.S.A)
5
PROXIMITY SWITCH
OMRON(JAPAN)
7
TOUCH SCREEN COMPUTER
TAIWAN WEI LUN
8
converter
Mitsubishi(JAPAN)
9
SEAL RING
ITALY
10
PLC
Mitsubishi(JAPAN)
11
high-pressure valve
SMC(JAPAN)

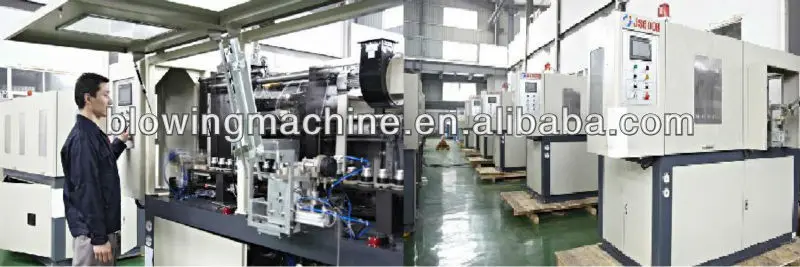

Product Overviews
FAQ
Q: what is your trade term?
A: normally FOBNINGBO, if customer country requires, also can accept L/C at sight.
Q: what is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q: Have blow machine 100% assemnled well in stock?
A: NO.All blow machine will be assembly produced according to your order.
Q:what is your delivery time?
A: usually in 45-60days, depends on your projects.
Q: what about installing in customer factory?
A: after machine arrive your factory, please prepare water, electric,air and perform, then we will arrange engineer to install machine and train your workers, the longest time to free installing shall be in one week, you should afford engineer air tickets, food, hotel,transport.
Q: what is your packing?
A: wooden pallet packing.
Q:guarantee time?
A: one year guarantee, not man-made.
