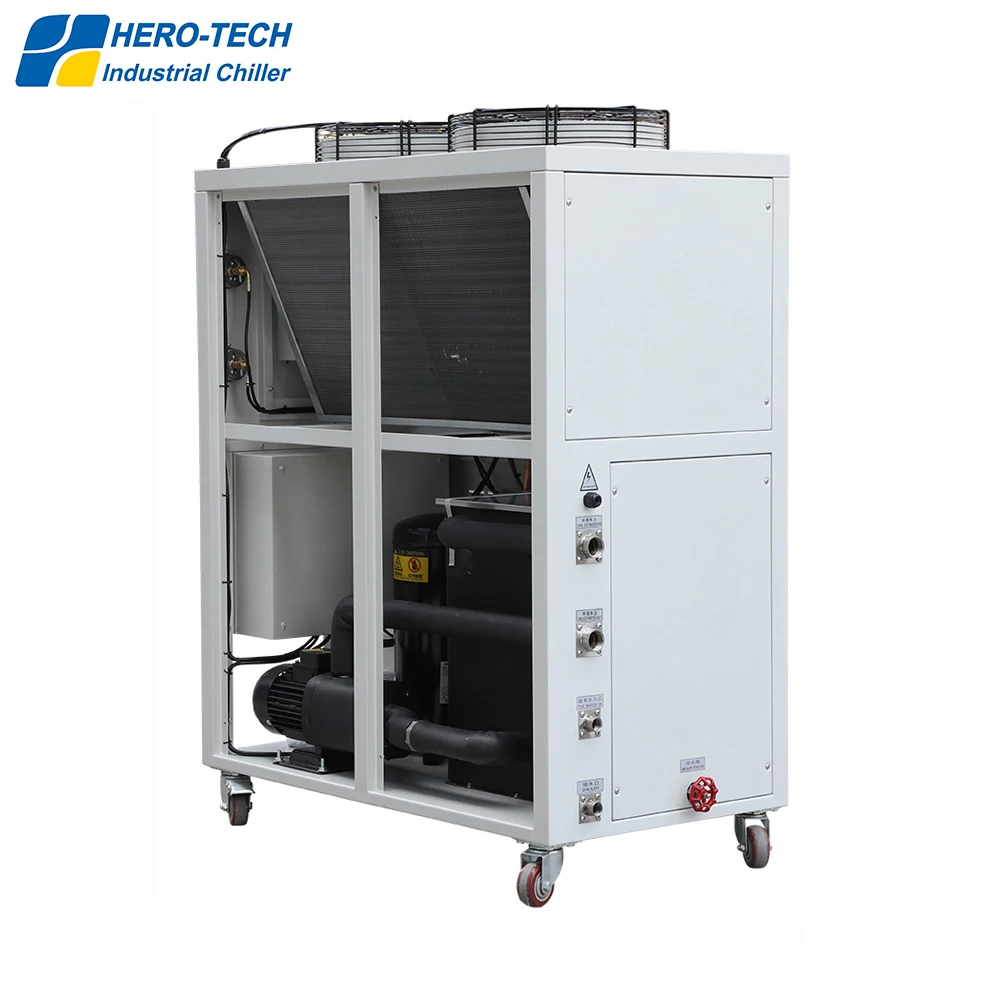

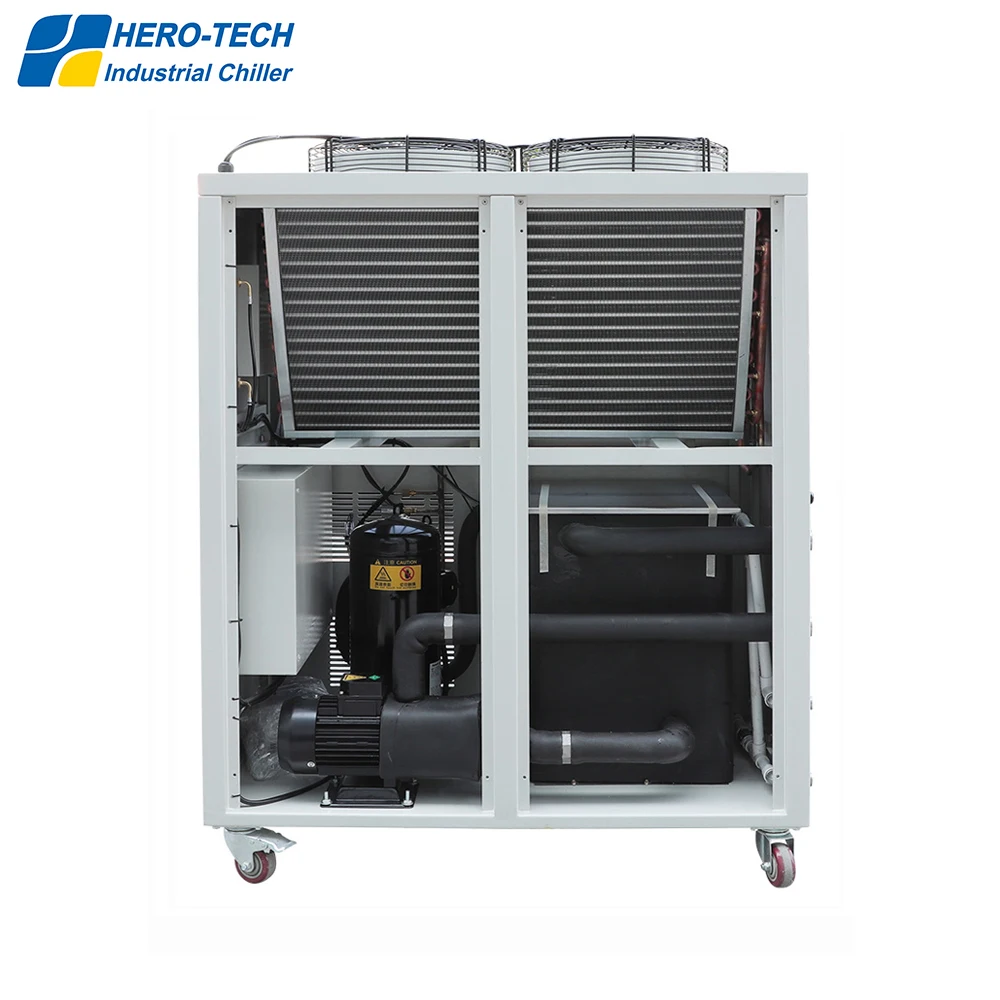

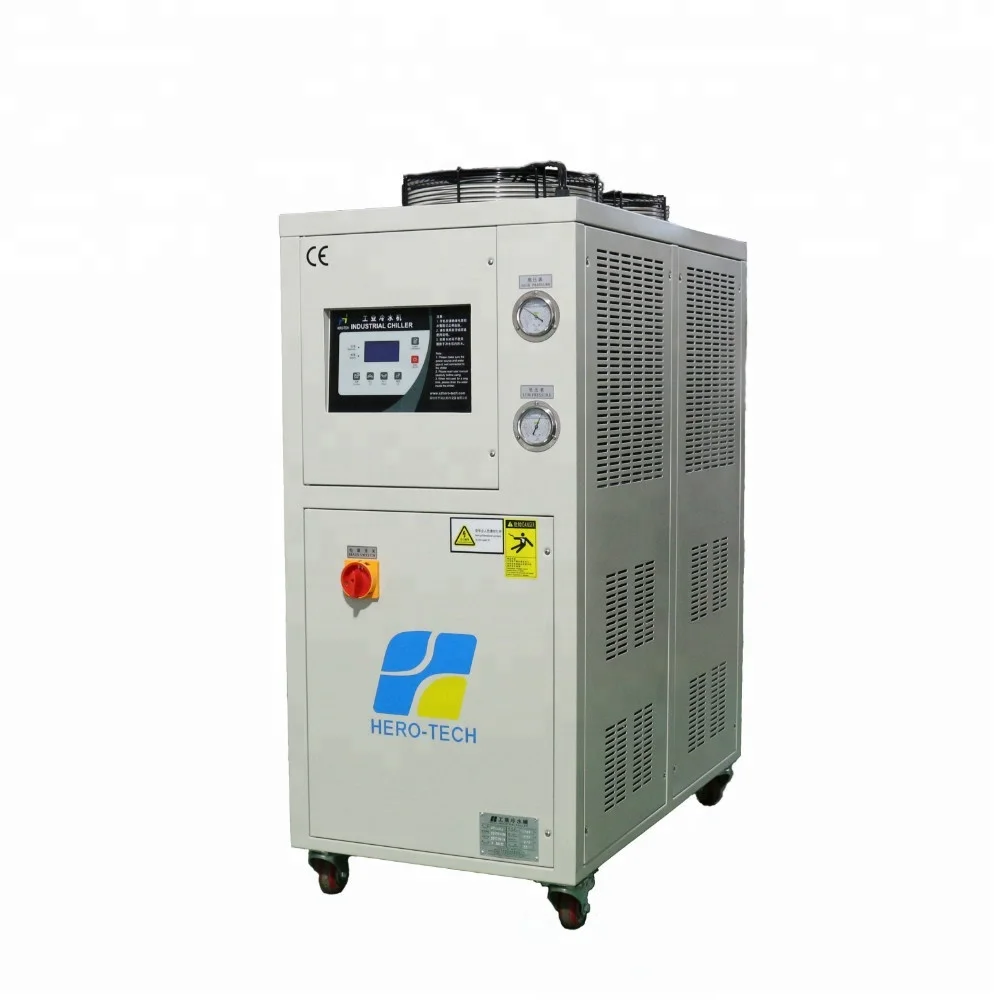

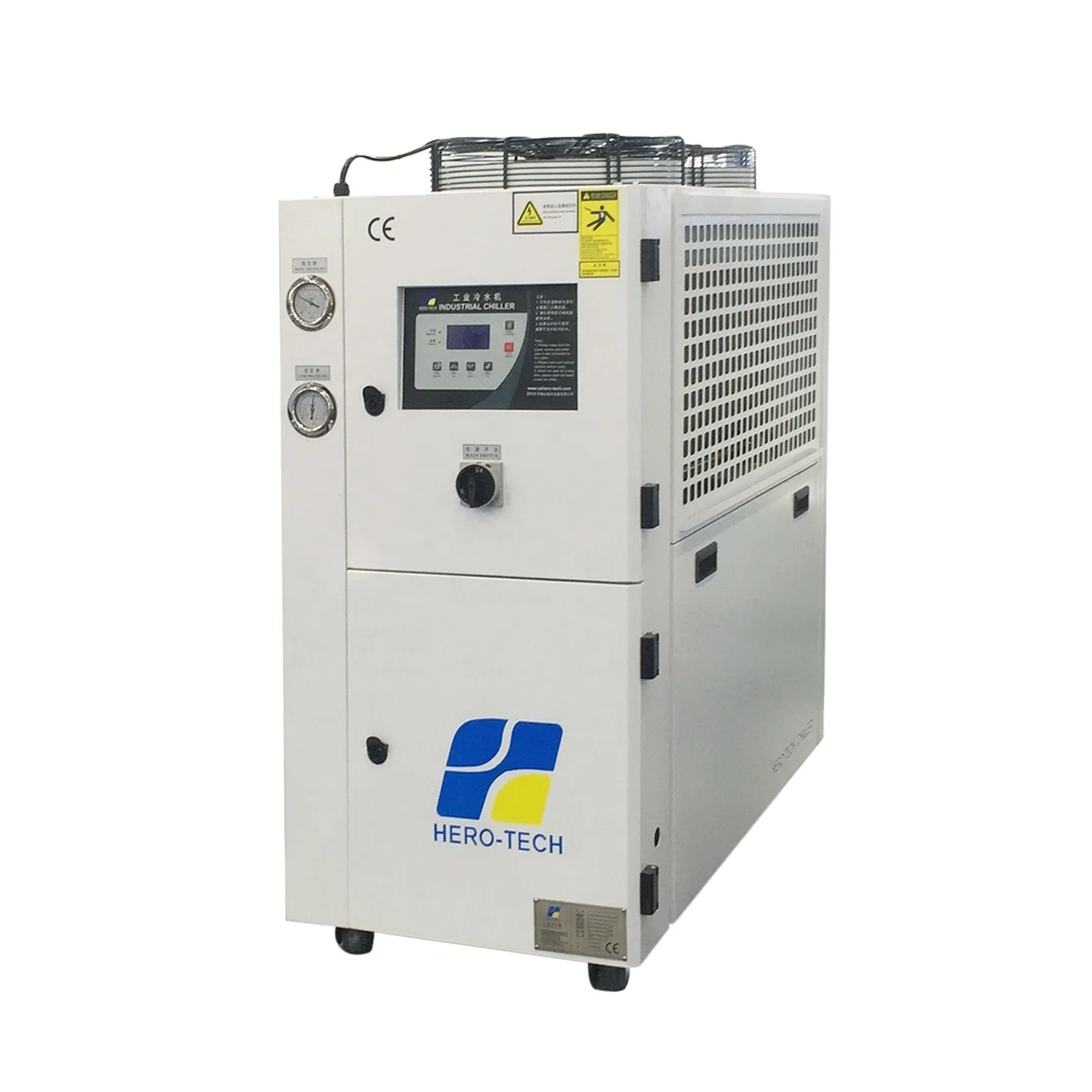

Oil chiller 5hp stable shaft tube & hydraulic oil chiller

Product Overview

Description

Oil chiller

Oil chiller is widely applied in cooling of main shaft lube oil and hydraulic oil of CNC machine, jig boring machine, grinder, machining center, combined machine tool and other precision machine tool. Oil chiller is designed to precisely control the oil temperature, avoid heat distortion, so to ensure machining precision.



Application

1, lathe, high speed lathe

2, internal-external lapping machine

3, Elctron Discharge Machining

4, Hydraulic press equipments

5, Grinder, broaching machine, milling machine

6, Comprehensive processing center

7, wood engraving machine, wood cutting equipment, etc.



 Design features

*Adopt European or Japanese brand compressor, stable performance, high efficiency and low noise

*Famous brand electric components are employed to ensure long service life.

*Specially designed control system, ±1℃ control accuracy

*Imported oil pump for high temperature fluid, high pressure, large flow rate and stable

*Optional refrigerant, including R22, R407c, R134a, R410a, etc.

* Full protection for system, including high/low pressure, high discharge temperature, compressor motor overheat, over current, anti-freezing, flow switch and quick break switch
