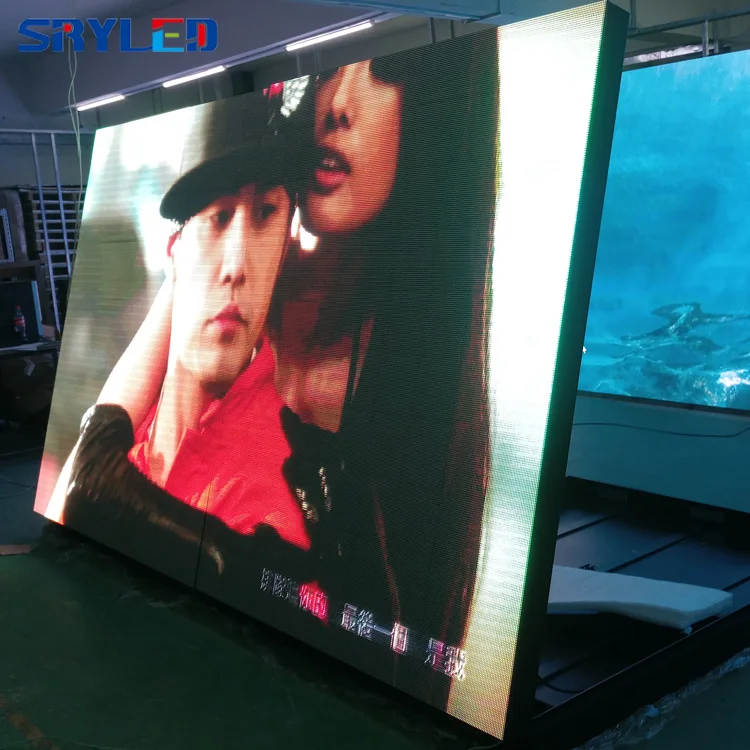

High Brightness P3 P4 P5 Outdoor Wall Mounted Waterproof LED Display Panel Front Service Advertising LED Screen
- Category: >>>
- Supplier: Shenzhen Sryled Photoelectric Co. Ltd.
Share on (60774343476):
Product Overview
Description
Feature

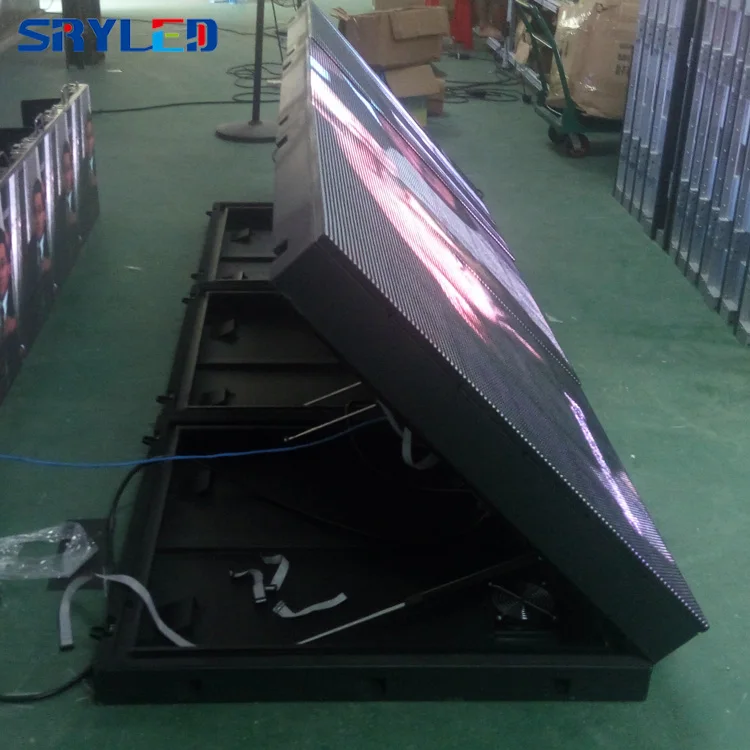

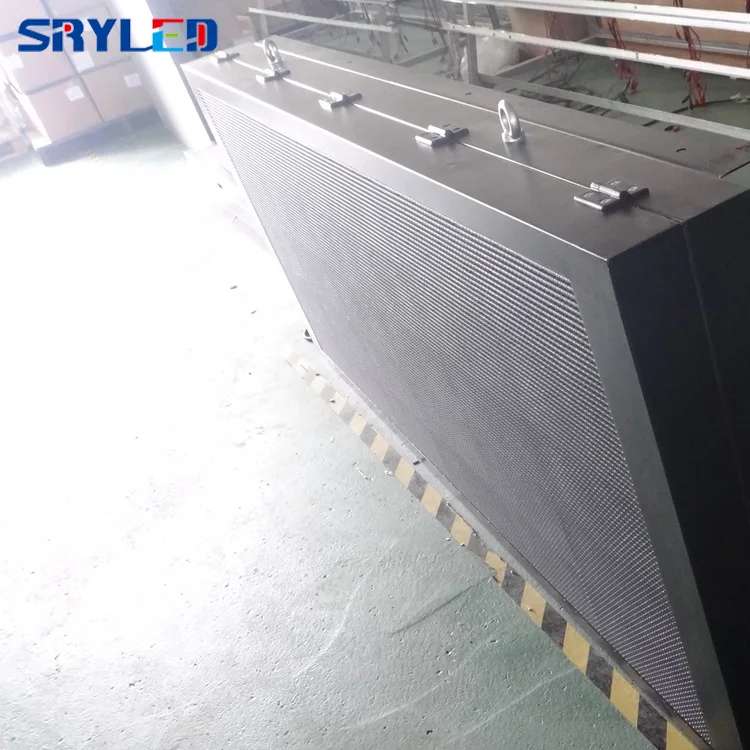

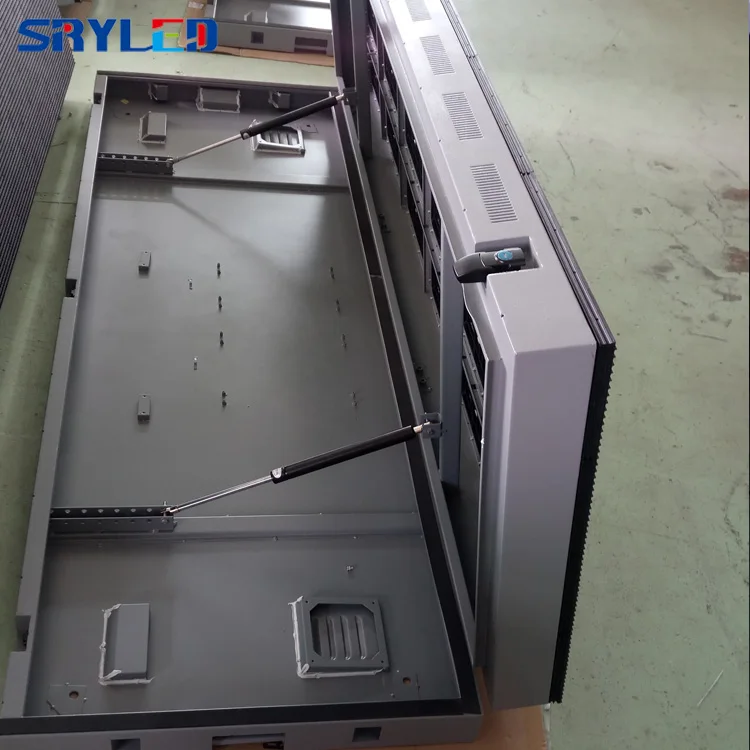

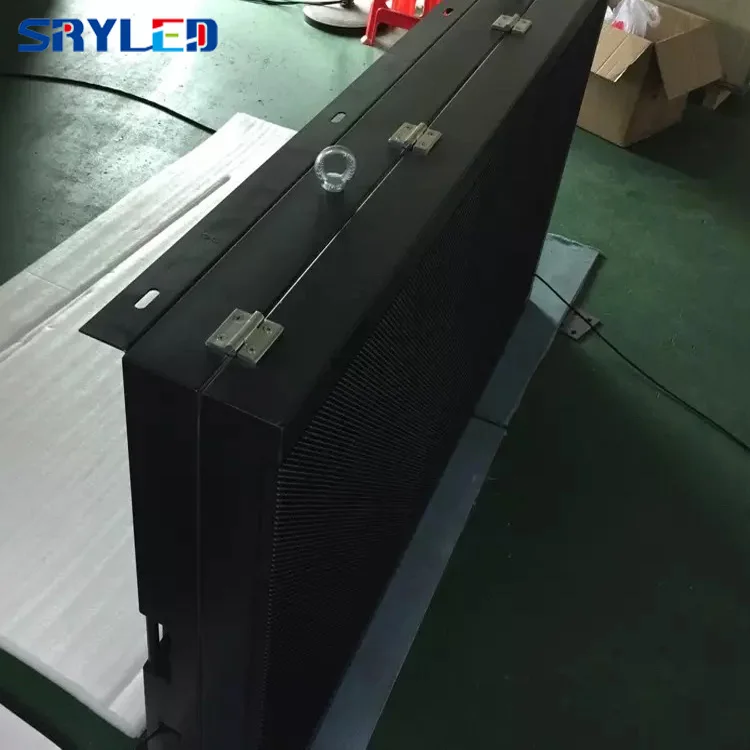

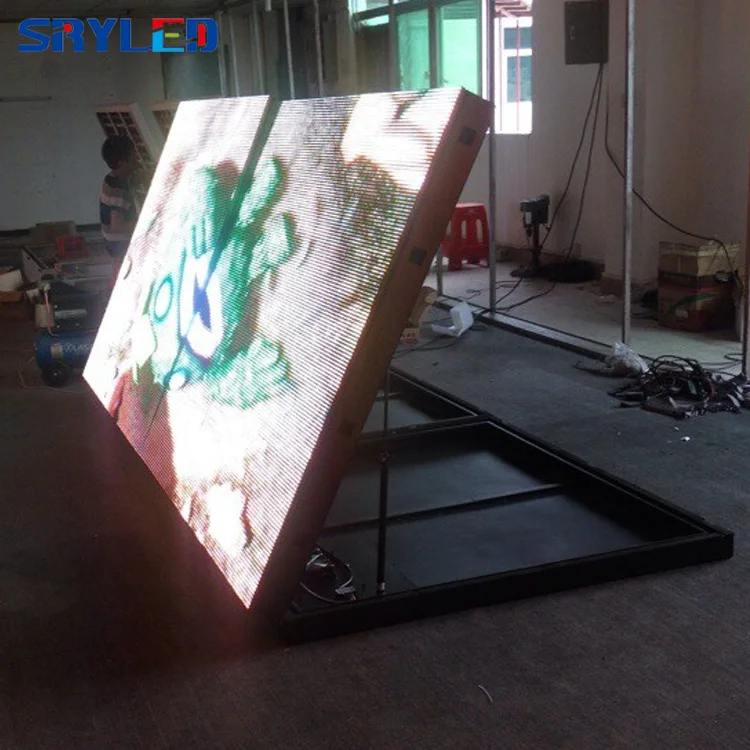

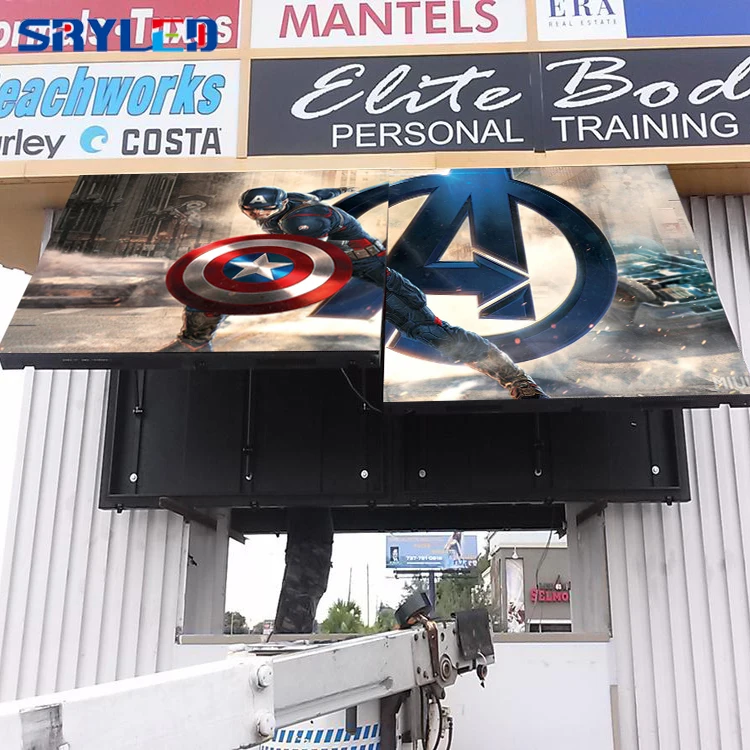

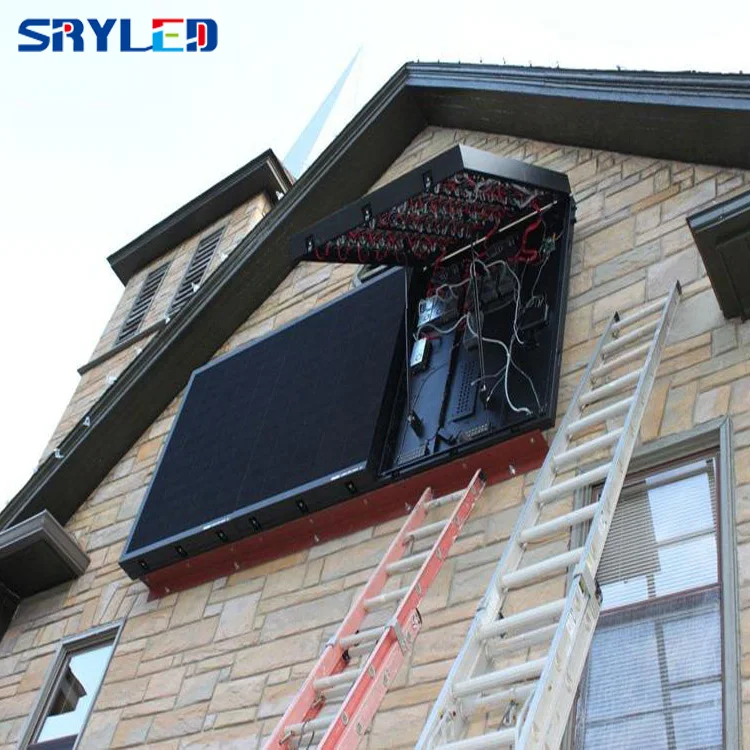

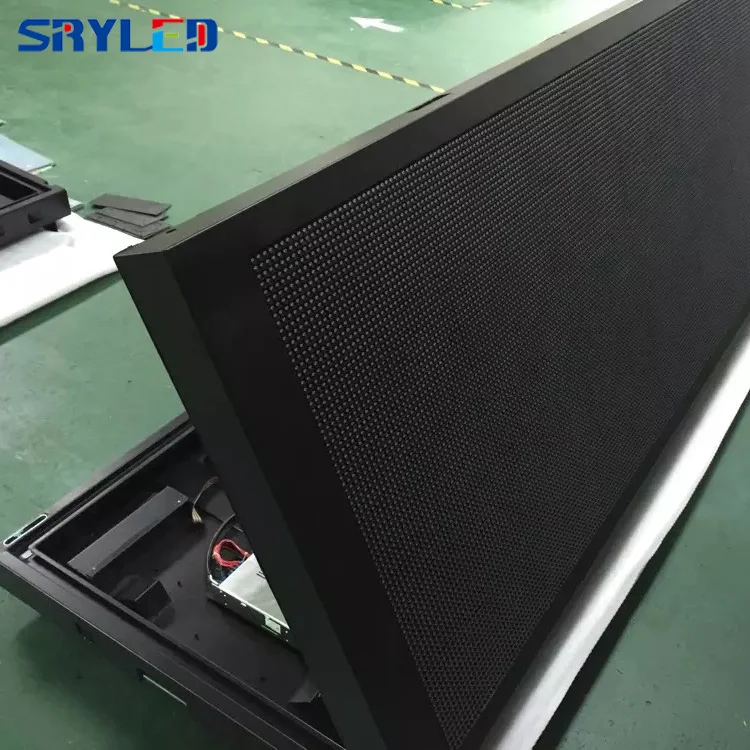

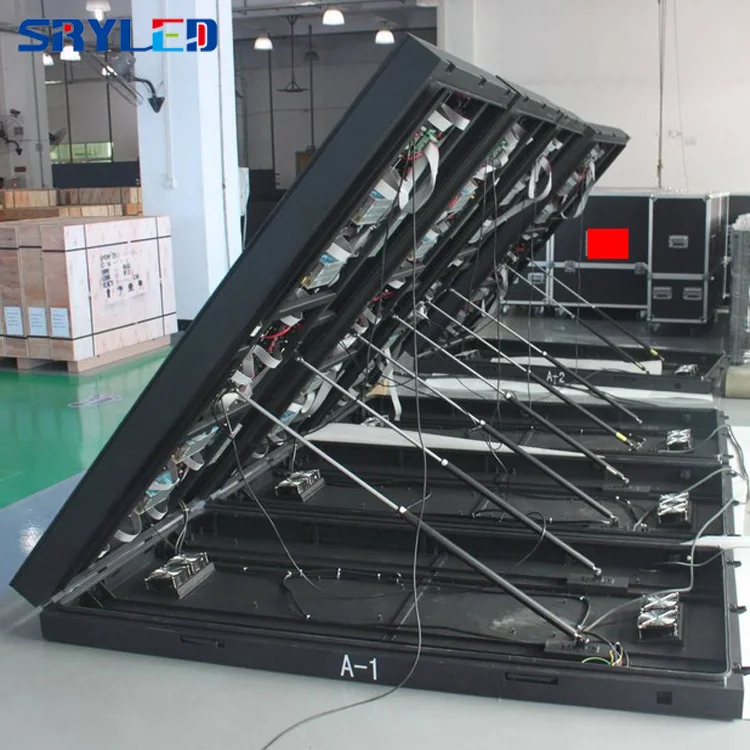

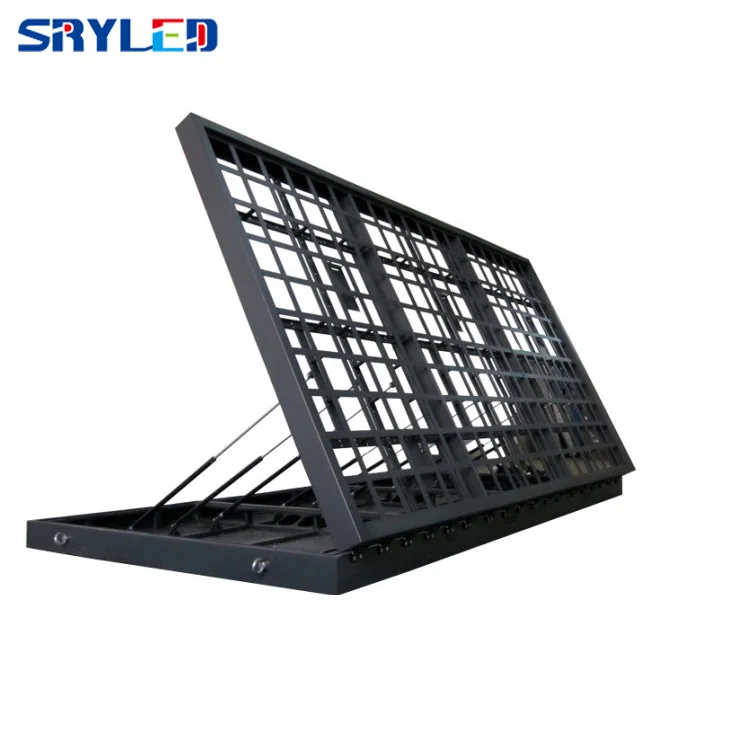

Front open led display is easy to install, only need 2pcs angle iron bar support from top and bottom side.
It can be repaired from front side, it suitable for wall attached short led display, height usually less than 2 meters. If you your led display width and height is big, and need maintain from front side, then we recommend you buy led display with front maintenance modules.
Available model: P3,P4, P5, P6, P8, P10, P16.
Applications

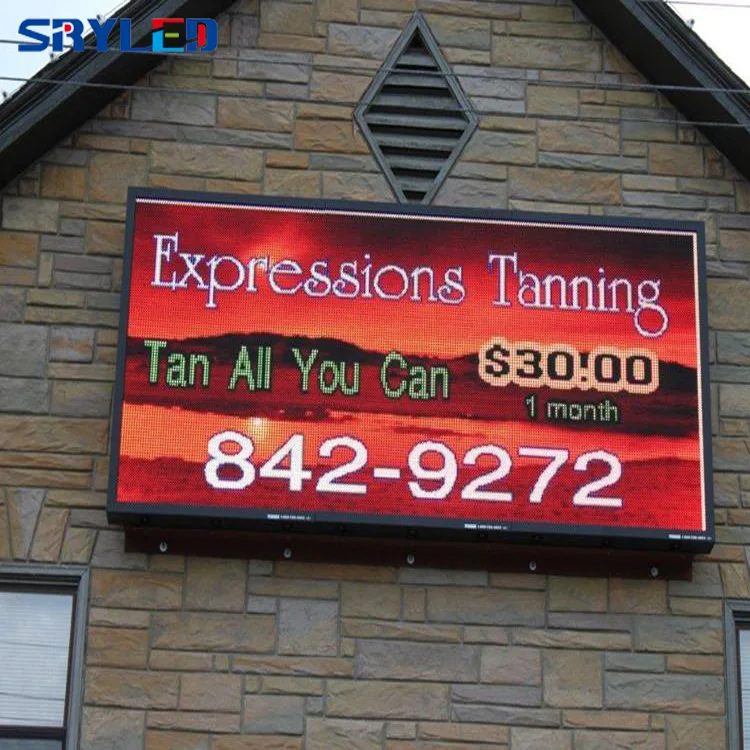

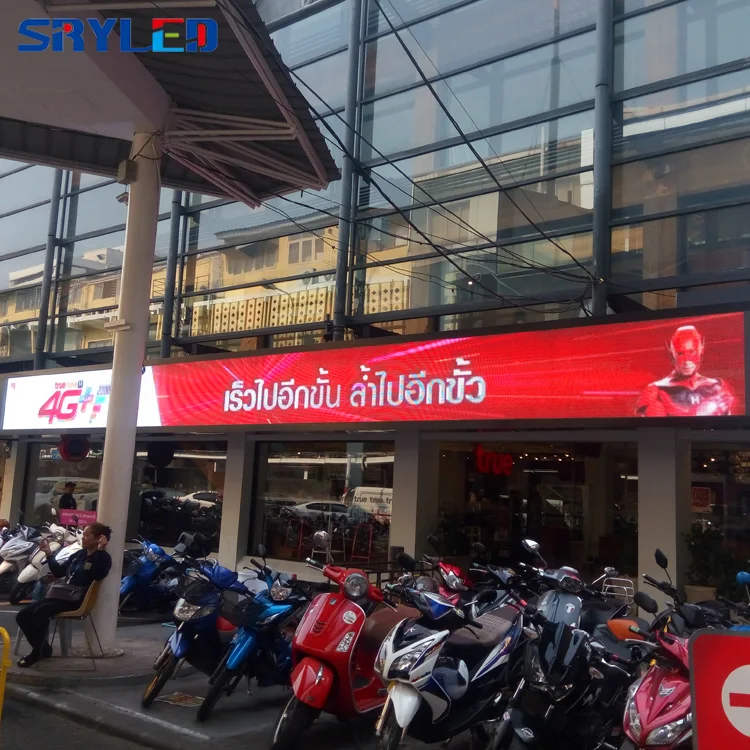

Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.
Specification
Pixel Pitch | 5mm |
Pixel Density | 40000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2727 |
Module Size | 320mm x 160mm |
Module Resolution | 64dots x 32dots |
Drive Mode | 1/8 Scan, Constant Current |
Brightness | >5000cd/sqm |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 1920HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10%, 50HZ |
Max Power Consumption | 900W/sqm |
Ave. Power Consumption | 300W/sqm |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |

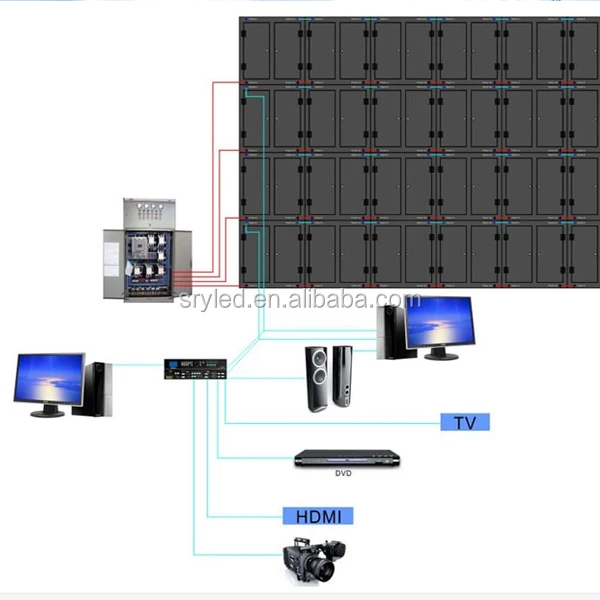

Control System | Synchronous, 3G, WIFI, USB |
Control PC | With DVI Graphic card |
PC Display Resolution | 1280x1024 |
Operating System | Win 98, Win2000, XP, Win7 ,Win8, Win10.etc |
Video Signal Mode | RF,S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Product Images

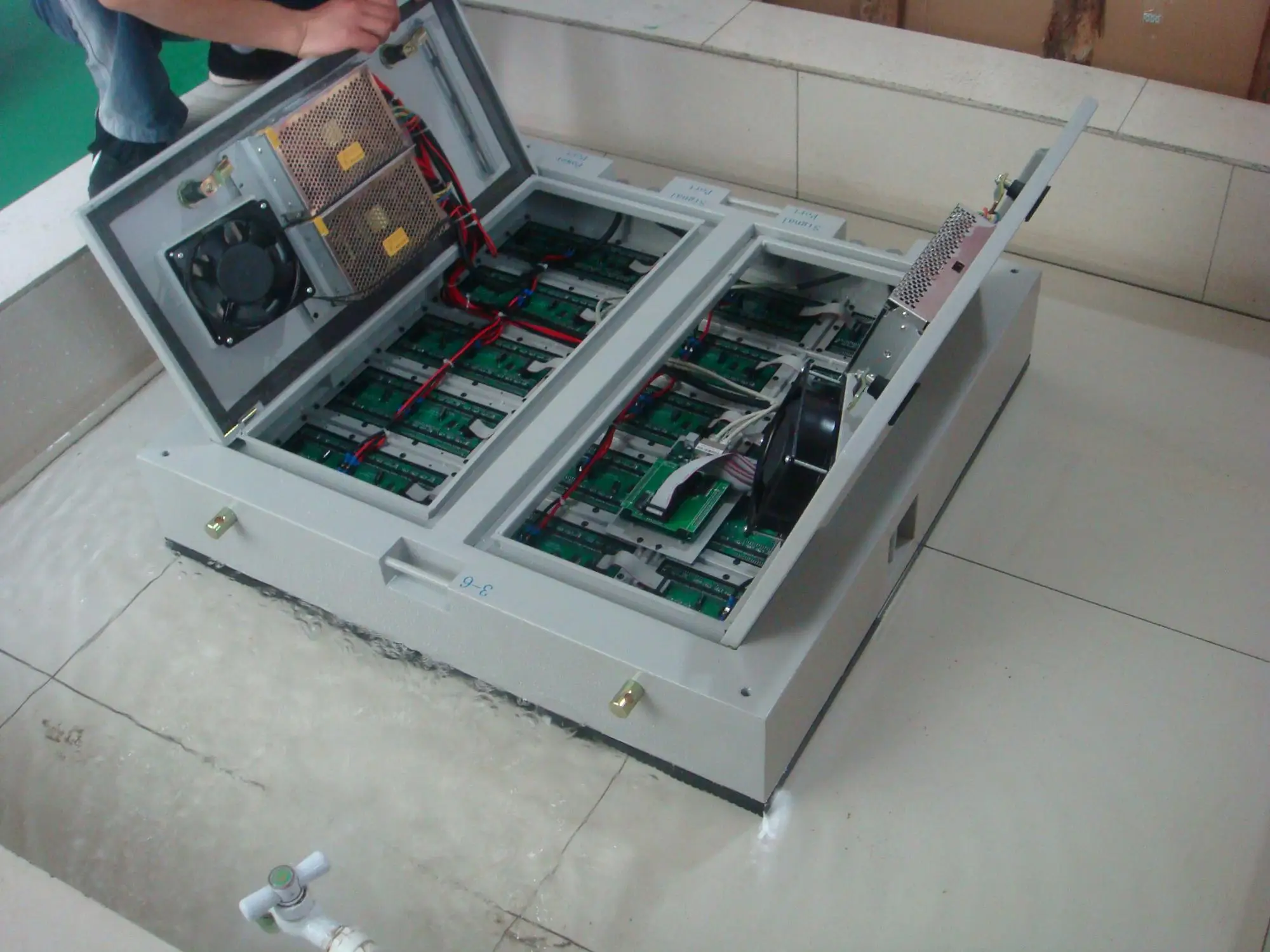

Waterproof test

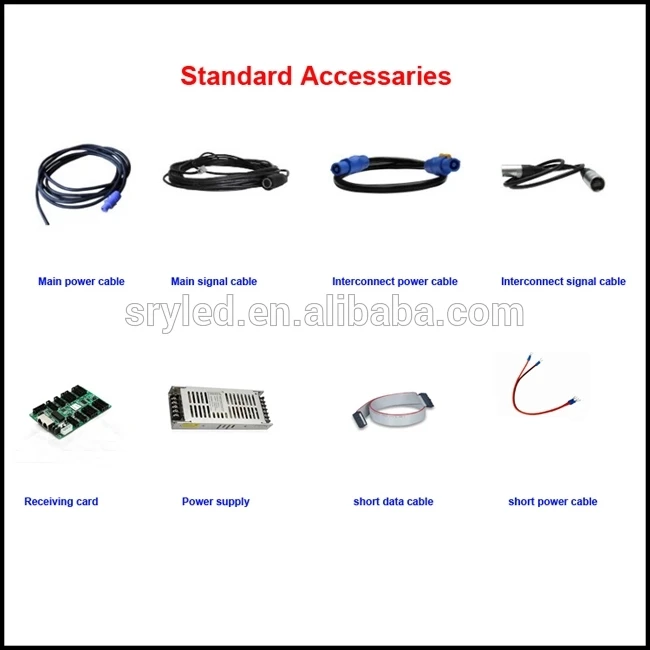

Accessary
